2026 SSR XD150 Crankcase Covers

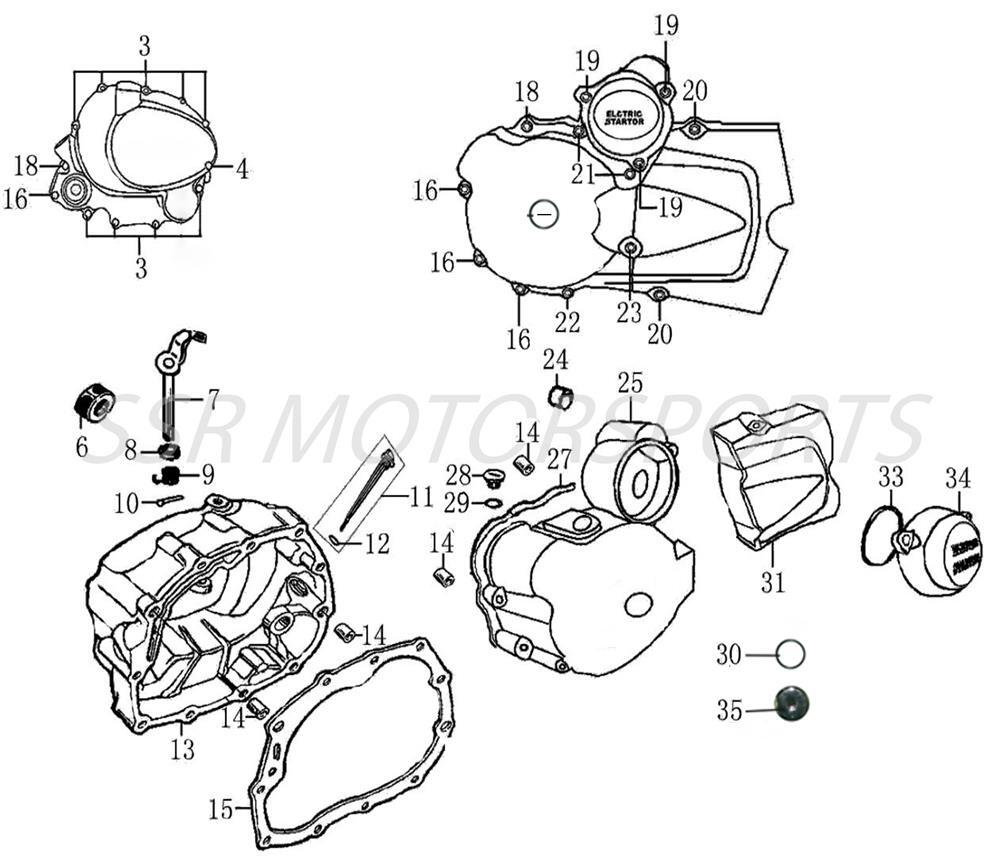

2026 SSR XD150 - Crankcase Covers Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 3 | A00426-19-08 | CASE FLANGE BOLT M6X40+ ADD | $2.00 | 9 |
| 4 | A00428-19-08 | CASE FLANGE BOLT M6X50+ ADD | $2.00 | 1 |
| 6 | A00036-26-00 | OIL SEAL 16X28X7+ ADD | $4.40 | 1 |
| 7 | A03196-09-00 | CLUTCH ACTUATOR ROD+ ADD | $14.00 | 1 |
| 8 | A00025-26-00 | OIL SEAL 12X22X5+ ADD | $8.00 | 1 |
| 9 | A03197-09-00 | CLUTCH RELEASE SPRING+ ADD | $2.00 | 1 |
| 10 | A00005-25-03 | ROLL PIN+ ADD | $2.00 | 1 |
| 11 | A03198-09-00 | OIL LEVEL DIPSTICK+ ADD | $10.50 | 1 |
| 12 | A00090-27-00 | O-RING 18X3+ ADD | $2.60 | 1 |
| 13 | A03199-09-00 | CLUTCH COVER+ ADD | $85.80 | 1 |
| 14 | A00001-23-00 | DOWEL PIN M8X14+ ADD | $2.00 | 4 |
| 15 | A00321-13-00 | CLUTCH COVER GASKET+ ADD | $15.80 | 1 |
| 16 | A00421-19-08 | CASE FLANGE BOLT M6X25+ ADD | $2.00 | 4 |
| 18 | A00425-19-08 | CASE FLANGE BOLT M6X35+ ADD | $2.00 | 2 |
| 19 | A00419-19-08 | CASE FLANGE BOLT M6X20+ ADD | $2.00 | 3 |
| 20 | A00422-19-08 | CASE FLANGE BOLT M6X28+ ADD | $2.00 | 2 |
| 21 | A00012-19-03 | CASE FLANGE BOLT M6×55+ ADD | $2.00 | 2 |
| 22 | A00427-19-08 | CASE FLANGE BOLT M6X45+ ADD | $2.00 | 1 |
| 23 | A00429-19-08 | CASE FLANGE BOLT M6X60+ ADD | $2.50 | 1 |
| 24 | A03283-09-00 | BUSHING 10X14X9.5+ ADD | $2.00 | 1 |
| 25 | A03200-09-00 | STATOR COVER+ ADD | $87.50 | 1 |
| 27 | A00322-13-00 | STATOR COVER GASKET+ ADD | $19.30 | 1 |
| 28 | A03204-09-00 | INSPECTION PLUG TIMING INSPECTION PLUG+ ADD | $15.80 | 1 |
| 29 | A00026-27-00 | O-RING 13.2X2.65+ ADD | $2.00 | 1 |
| 30 | A00088-27-00 | O-RING 27.4X2.65+ ADD | $6.10 | 1 |
| 31 | A03201-09-00 | COUNTERSHAFT SPROCKET COVER+ ADD | $21.00 | 1 |
| 33 | A00057-27-00 | O-RING 63X3+ ADD | $2.60 | 1 |
| 34 | A03202-09-00 | STARTER REDUCTION GEAR COVER+ ADD | $15.80 | 1 |
| 35 | A03203-09-00 | INSPECTION PLUG CRANKSHAFT ROTATION PLUG+ ADD | $3.50 | 1 |
