2026 SSR XD150 Crankcase

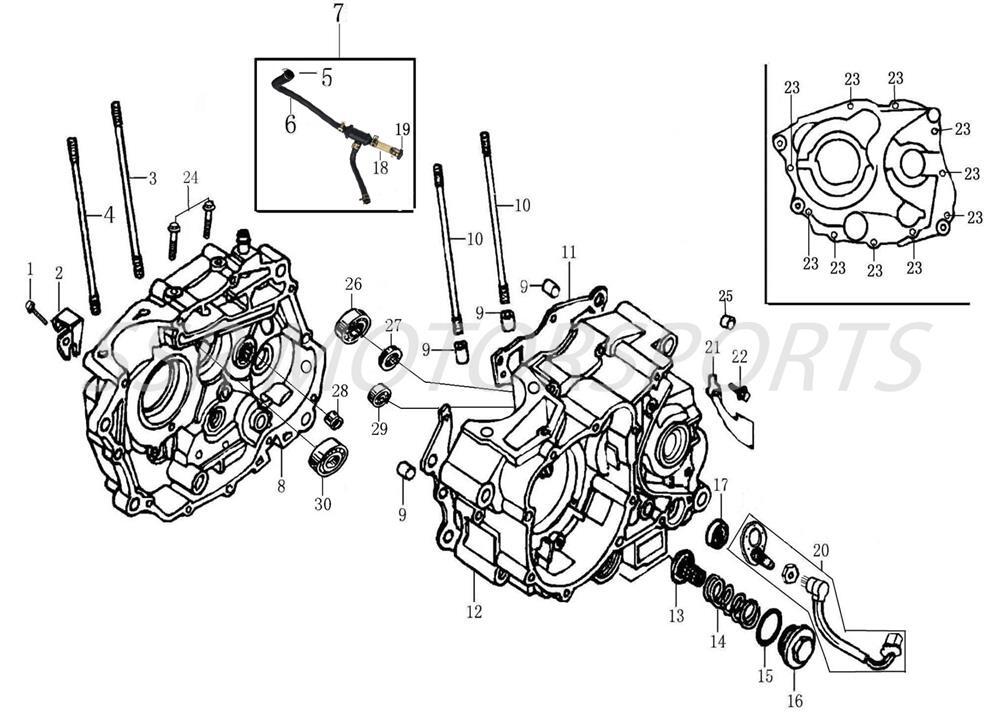

2026 SSR XD150 - Crankcase Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00429-19-08 | CASE FLANGE BOLT M6X60+ ADD | $2.50 | 1 |
| 2 | A03241-09-00 | CLUTCH CABLE HOLDER+ ADD | $2.50 | 1 |
| 3 | A00112-19-04 | STUD A 216MM+ ADD | $3.50 | 1 |
| 4 | A00113-19-04 | STUD A 216MM+ ADD | $3.50 | 1 |
| 5 | A00304-14-00 | WIRE HOSE CLAMP 13.5+ ADD | $2.00 | 1 |
| 6 | A03242-09-00 | CRANKCASE VENT HOSE+ ADD | $15.80 | 1 |
| 7 | A03243-09-00 | CRANKCASE VENT HOSE ASSY+ ADD | $24.50 | 1 |
| 8 | A03244-09-00 | RIGHT CRANKCASE HALF+ ADD | $154.00 | 1 |
| 9 | A00002-23-00 | DOWEL PIN M10X14+ ADD | $2.00 | 4 |
| 10 | A00114-19-04 | STUD B 228MM+ ADD | $3.50 | 2 |
| 11 | A00324-13-00 | CENTER CASE GASKET+ ADD | $26.30 | 1 |
| 12 | A03245-09-00 | LEFT CRANKCASE HALF+ ADD | $162.80 | 1 |
| 13 | A00660-09-00 | OIL FILTER SCREEN+ ADD | $8.80 | 1 |
| 14 | A02298-09-00 | OIL FILTER SCREEN SPRING+ ADD | $3.50 | 1 |
| 15 | A00052-27-00 | O-RING 35X3+ ADD | $2.60 | 1 |
| 16 | A02299-09-00 | OIL FILTER SCREEN CAP+ ADD | $8.00 | 1 |
| 17 | A00037-26-00 | OIL SEAL 14X28X7+ ADD | $4.40 | 1 |
| 18 | A00383-14-00 | AIRBOX DRAIN HOSE 12MM+ ADD | $2.00 | 1 |
| 19 | A00384-14-00 | AIRBOX DRAIN HOSE PLUG 12.5MM+ ADD | $2.00 | 1 |
| 20 | A03247-09-00 | NEUTRAL SWITCH ASSY+ ADD | $43.80 | 1 |
| 21 | A03248-09-00 | DRIVE CHAIN RETAINER PLATE+ ADD | $3.50 | 1 |
| 22 | A00008-19-03 | FLANGE BOLT M6X12+ ADD | $2.00 | 1 |
| 23 | A00428-19-08 | CASE FLANGE BOLT M6X50+ ADD | $2.00 | 10 |
| 24 | A00424-19-08 | CASE FLANGE BOLT M6X32+ ADD | $2.00 | 2 |
| 25 | A03283-09-00 | BUSHING 10X14X9.5+ ADD | $2.00 | 1 |
| 26 | A00020-28-00 | BEARING 6204+ ADD | $35.00 | 1 |
| 27 | A00038-26-00 | OIL SEAL 20X34X7+ ADD | $4.40 | 1 |
| 28 | A00074-28-00 | BEARING NK152312+ ADD | $33.30 | 1 |
| 29 | A00021-28-00 | BEARING 6202+ ADD | $14.00 | 1 |
| 30 | A00067-28-00 | BEARING 6006+ ADD | $12.30 | 1 |
