2026 SSR XD150 Engine Assy

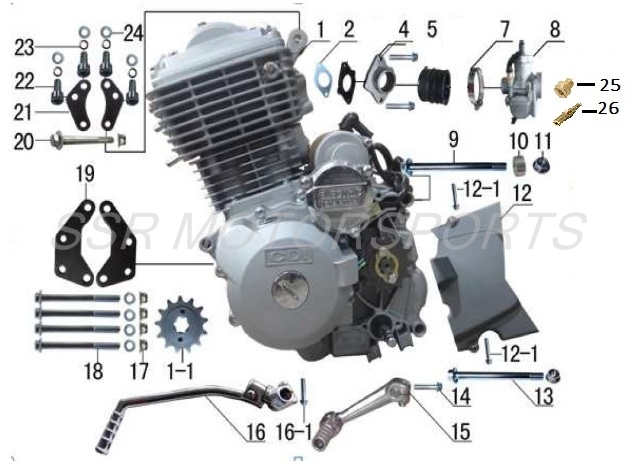

2026 SSR XD150 - Engine Assy Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A03059-09-00 | COMPLETE ENGINE ASSY *OVERSIZE/WEIGHT*+ ADD | $490.00 | 1 |
| 1-1 | A00357-07-00 | COUNTERSHAFT SPROCKET 15T-428+ ADD | $19.30 | 1 |
| 2 | A00096-13-00 | INTAKE MANIFOLD GASKET+ ADD | $8.00 | 1 |
| 4 | A00372-14-00 | INTAKE MANIFOLD ASSY+ ADD | $19.30 | 1 |
| 5 | A00003-19-01 | FLANGE BOLT M6X25+ ADD | $2.00 | 1 |
| 7 | A00005-24-02 | HOSE CLAMP 32-44+ ADD | $8.80 | 2 |
| 8 | A00475-12-00 | CARBURETOR ASSY PE28-39S 115/36+ ADD | $119.00 | 1 |
| 9 | A00004-19-01 | FLANGE BOLT M10X120+ ADD | $3.50 | 1 |
| 10 | A00315-11-00 | SPACER 10X20X10+ ADD | $2.60 | 1 |
| 11 | A00004-22-34 | FLANGE LOCKNUT M10+ ADD | $2.50 | 2 |
| 12 | A03060-09-00 | COUNTERSHAFT SPROCKET COVER+ ADD | $45.50 | 1 |
| 12-1 | A00001-19-01 | FLANGE BOLT M6X30+ ADD | $2.00 | 2 |
| 13 | A00005-19-88 | FLANGE BOLT M10X115 8.8+ ADD | $3.50 | 1 |
| 14 | A00008-19-02 | ALLEN BOLT M6X20+ ADD | $2.00 | 1 |
| 15 | A00532-05-00 | GEAR SHIFTER LEVER+ ADD | $21.00 | 1 |
| 16 | A00533-05-00 | KICKSTARTER LEVER+ ADD | $47.30 | 1 |
| 16-1 | A00007-19-01 | FLANGE BOLT M8X25+ ADD | $2.00 | 1 |
| 17 | A00100-22-34 | FLANGE LOCKNUT M8+ ADD | $2.00 | 5 |
| 18 | A00008-19-01 | FLANGE BOLT M8X95+ ADD | $2.60 | 4 |
| 19 | A00316-11-00 | ENGINE BRACKET A+ ADD | $10.50 | 2 |
| 20 | A00009-19-11 | FLANGE BOLT M8X75 10MM HEAD+ ADD | $2.50 | 1 |
| 21 | A00317-11-00 | HANGER PLATE B+ ADD | $6.10 | 2 |
| 22 | A00001-19-02 | ALLEN BOLT M8x16+ ADD | $2.00 | 4 |
| 23 | A00001-21-02 | LOCK WASHER 8X13X2+ ADD | $2.00 | 4 |
| 24 | A00013-21-01 | WASHER 8X16X1.5+ ADD | $2.00 | 8 |
| 28 | A00546-11-00 | SPACER 8.5x15x8+ ADD | $2.60 | 1 |
Selected Parts (0)
Estimated Total: $0.00
WHERE USED
WHERE USED
Exact part-number matches verified in SSR parts catalogs.
