2026 SSR XD150 Kick Starter

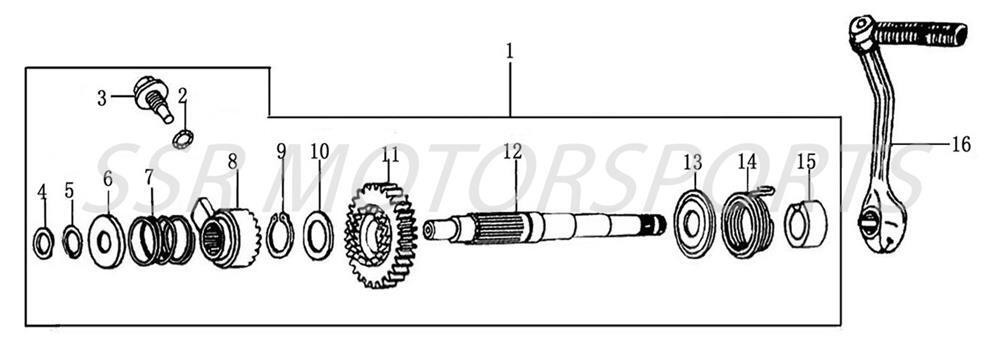

2026 SSR XD150 - Kick Starter Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A03231-09-00 | COMPLETE KICK STARTER ASSY+ ADD | $59.50 | 1 |
| 2 | A00037-27-00 | O-RING 11.8X2.65+ ADD | $2.00 | 1 |
| 3 | A00152-19-01 | SPECIAL BOLT M12X25+ ADD | $2.50 | 1 |
| 4 | A00299-21-01 | WASHER 12X18X1+ ADD | $2.50 | 1 |
| 5 | A00016-24-07 | CIRCLIP 16+ ADD | $2.00 | 1 |
| 6 | A03232-09-00 | RATCHET SPRING GUIDE PLATE+ ADD | $8.00 | 1 |
| 7 | A03233-09-00 | KICK STARTER RATCHET SPRING+ ADD | $2.60 | 1 |
| 8 | A03234-09-00 | KICKSTARTER RATCHET+ ADD | $14.00 | 1 |
| 9 | A00019-24-07 | CIRCLIP 18.5X22.4X1.2+ ADD | $2.00 | 1 |
| 10 | A00295-21-01 | THRUST WASHER 20X27X0.5+ ADD | $2.50 | 1 |
| 11 | A03235-09-00 | KICK STARTER GEAR+ ADD | $21.00 | 1 |
| 12 | A03236-09-00 | KICK STARTER SHAFT+ ADD | $19.30 | 1 |
| 13 | A03237-09-00 | KICK START SPRING SEAT+ ADD | $3.50 | 1 |
| 14 | A03238-09-00 | KICK STARTER SPRING+ ADD | $3.50 | 1 |
| 15 | A03239-09-00 | KICK STARTER SHAFT GUIDE+ ADD | $3.50 | 1 |
| 16 | A03240-09-00 | KICKSTARTER LEVER+ ADD | $47.30 | 1 |
