2026 SSR XD150 Oil Pump / Oil Sling

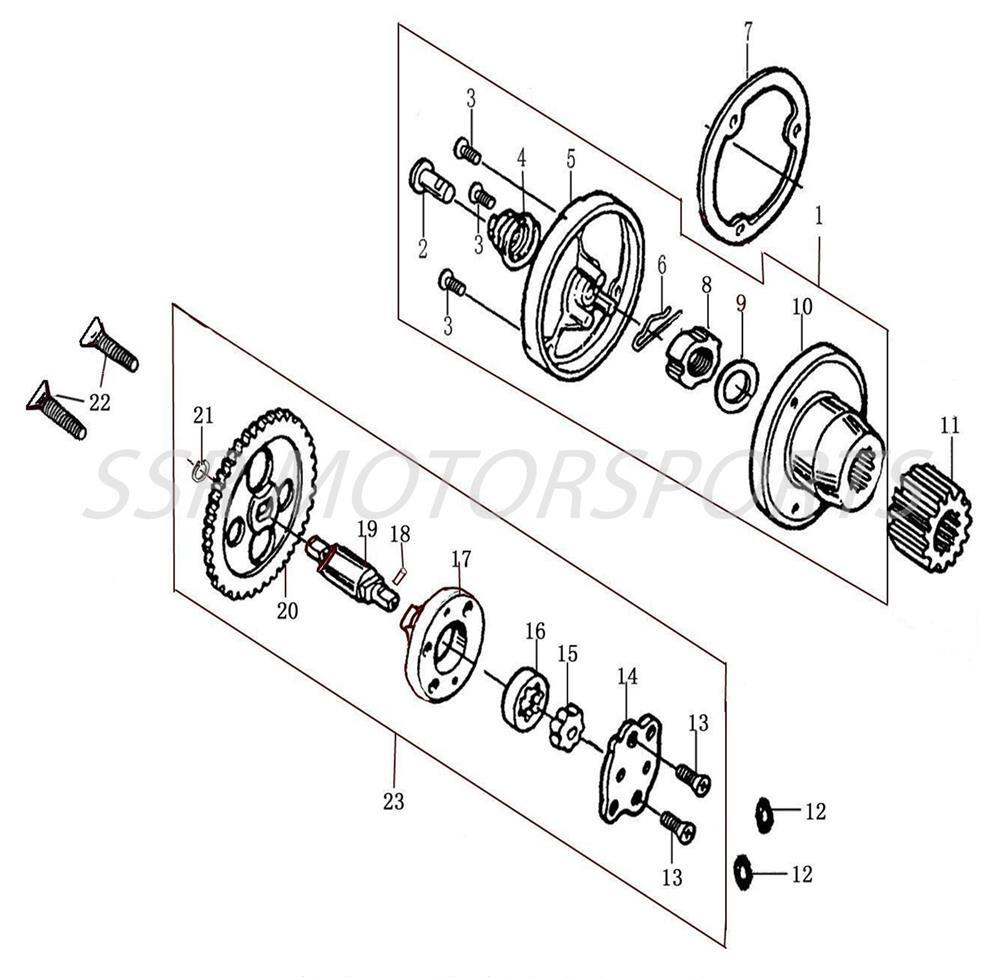

2026 SSR XD150 - Oil Pump / Oil Sling Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A03205-09-00 | OIL STRAINER ASSY+ ADD | $35.00 | 1 |
| 2 | A03206-09-00 | FILTER BOLT+ ADD | $2.50 | 1 |
| 3 | A00007-20-01 | CS SCREW M5x12+ ADD | $2.00 | 3 |
| 4 | A03207-09-00 | OIL PASSAGE SPRING+ ADD | $2.60 | 1 |
| 5 | A03208-09-00 | ROTOR CAP+ ADD | $12.30 | 1 |
| 6 | A00036-25-01 | COTTER PIN+ ADD | $2.00 | 1 |
| 7 | A00323-13-00 | OIL STRAINER BODY GASKET+ ADD | $8.00 | 1 |
| 8 | A02236-09-00 | SPLINED NUT M16+ ADD | $4.40 | 1 |
| 9 | A00072-21-01 | DISHED WASHER 16X27X2+ ADD | $2.60 | 1 |
| 10 | A03209-09-00 | OIL STRAINER BODY+ ADD | $14.00 | 1 |
| 11 | A03210-09-00 | PRIMARY DRIVE GEAR+ ADD | $8.80 | 1 |
| 12 | A00051-27-00 | O-RING 9.4X2.4+ ADD | $2.00 | 2 |
| 13 | A00001-20-12 | CS SCREW M4X10+ ADD | $2.00 | 2 |
| 14 | A03211-09-00 | OIL PUMP CAP+ ADD | $8.00 | 1 |
| 15 | A03212-09-00 | INNER OIL PUMP ROTOR+ ADD | $4.40 | 1 |
| 16 | A03213-09-00 | OUTER OIL PUMP ROTOR+ ADD | $4.40 | 1 |
| 17 | A03214-09-00 | OIL PUMP BODY+ ADD | $15.80 | 1 |
| 18 | A00004-25-03 | ROLL PIN 2.5X10+ ADD | $2.00 | 1 |
| 19 | A03215-09-00 | OIL PUMP SHAFT+ ADD | $8.00 | 1 |
| 20 | A03216-09-00 | OIL PUMP DRIVE GEAR+ ADD | $14.00 | 1 |
| 21 | A00021-24-07 | CIRCLIP 6+ ADD | $2.00 | 1 |
| 22 | A00027-20-01 | CS SCREW M6X30+ ADD | $2.00 | 2 |
| 23 | A03217-09-00 | OIL PUMP ASSY+ ADD | $43.80 | 1 |
