2026 SSR XD150 Shift Drum

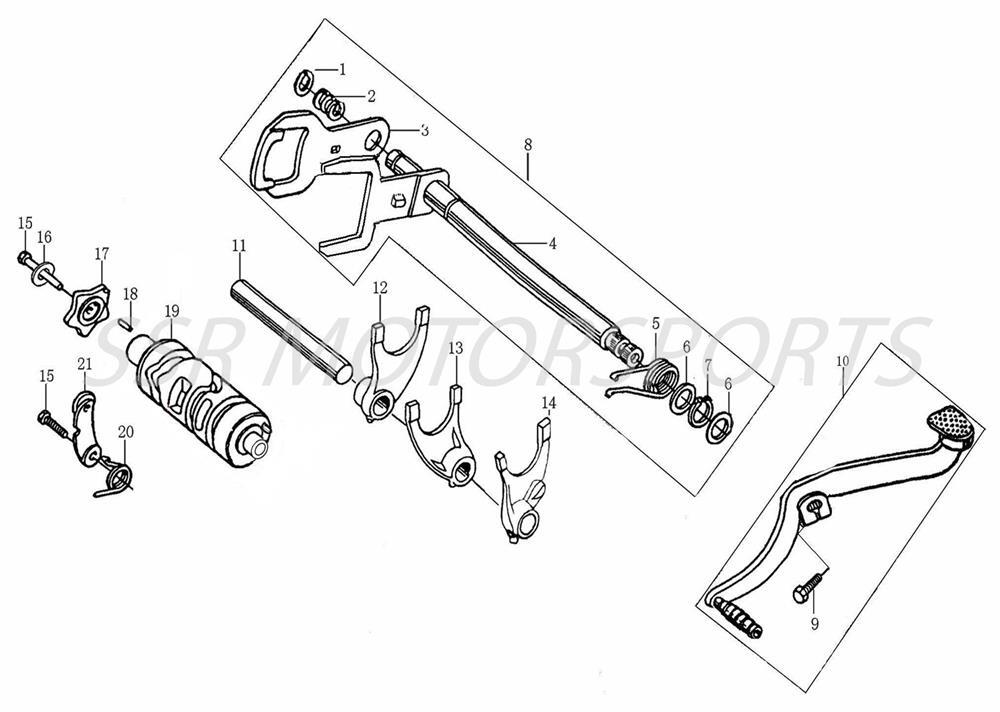

2026 SSR XD150 - Shift Drum Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00003-24-07 | CIRCLIP 12+ ADD | $2.50 | 1 |
| 2 | A02289-09-00 | SPRING+ ADD | $2.50 | 1 |
| 3 | A03257-09-00 | GEAR SHIFT PLATE+ ADD | $12.30 | 1 |
| 4 | A03258-09-00 | GEAR SHIFT SHAFT+ ADD | $12.30 | 1 |
| 5 | A03259-09-00 | RETURN SPRING+ ADD | $4.40 | 1 |
| 6 | A00270-21-06 | THRUST WASHER 14X20X0.5+ ADD | $2.50 | 2 |
| 7 | A00005-24-07 | CIRCLIP 14+ ADD | $2.00 | 1 |
| 8 | A03260-09-00 | GEARSHIFT SHAFT ASSY+ ADD | $78.80 | 1 |
| 9 | A00419-19-08 | CASE FLANGE BOLT M6X20+ ADD | $2.00 | 1 |
| 10 | A00532-05-00 | GEAR SHIFTER LEVER+ ADD | $21.00 | 1 |
| 11 | A03262-09-00 | SHIFT FORK SHAFT+ ADD | $50.80 | 1 |
| 12 | A03263-09-00 | RIGHT SHIFT FORK+ ADD | $19.30 | 1 |
| 13 | A03264-09-00 | MIDDLE SHIFT FORK+ ADD | $19.30 | 1 |
| 14 | A03265-09-00 | LEFT SHIFT FORK+ ADD | $19.30 | 1 |
| 15 | A00483-19-03 | HEX BOLT M6X25+ ADD | $2.00 | 2 |
| 16 | A00000-21-05 | SPECIAL WASHER M6+ ADD | $2.00 | 1 |
| 17 | A03266-09-00 | GEAR SHIFT CAM+ ADD | $19.30 | 1 |
| 18 | A00002-25-03 | PIN 4X10+ ADD | $2.00 | 1 |
| 19 | A03267-09-00 | GEARSHIFT DRUM+ ADD | $115.50 | 1 |
| 20 | A03268-09-00 | STOPPER SPRING+ ADD | $2.00 | 1 |
| 21 | A03269-09-00 | GEAR SHIFT STOPPER+ ADD | $8.00 | 1 |
