2026 SSR XD150 Stator & Flywheel

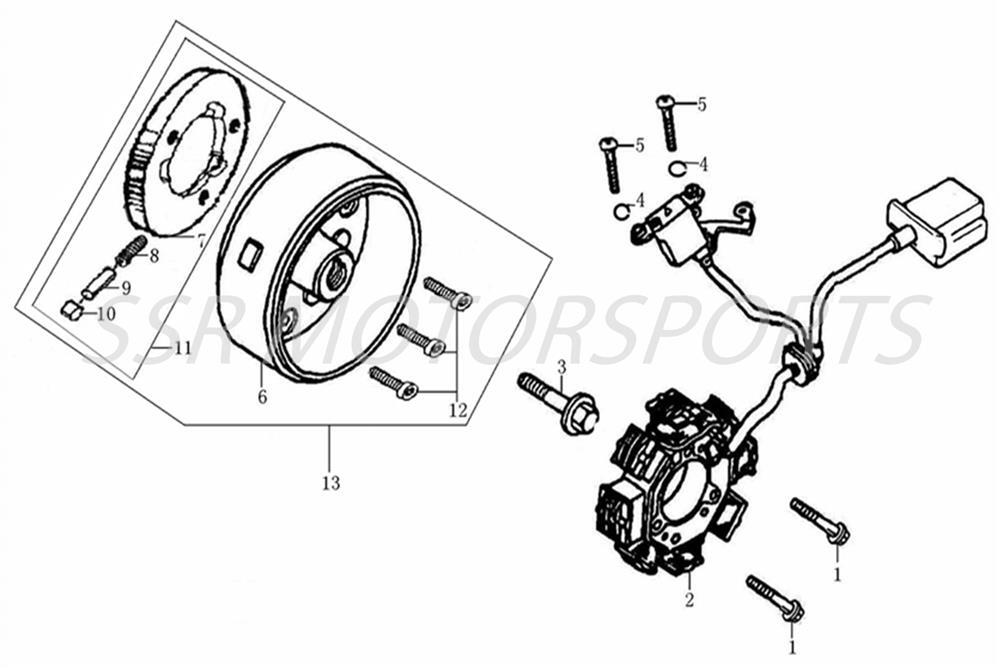

2026 SSR XD150 - Stator & Flywheel Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00422-19-08 | CASE FLANGE BOLT M6X28+ ADD | $2.00 | 2 |
| 2 | A03270-09-00 | STATOR ASSY+ ADD | $92.80 | 1 |
| 3 | A00005-19-03 | FLANGE BOLT M10X35+ ADD | $2.50 | 1 |
| 4 | A00019-21-02 | WASHER M4+ ADD | $2.00 | 2 |
| 5 | A00020-20-01 | PHILLIPS BOLT M4X10+ ADD | $2.00 | 2 |
| 13 | A03277-09-00 | ROTOR W/ STARTER CLUTCH ASSY+ ADD | $106.80 | 1 |
