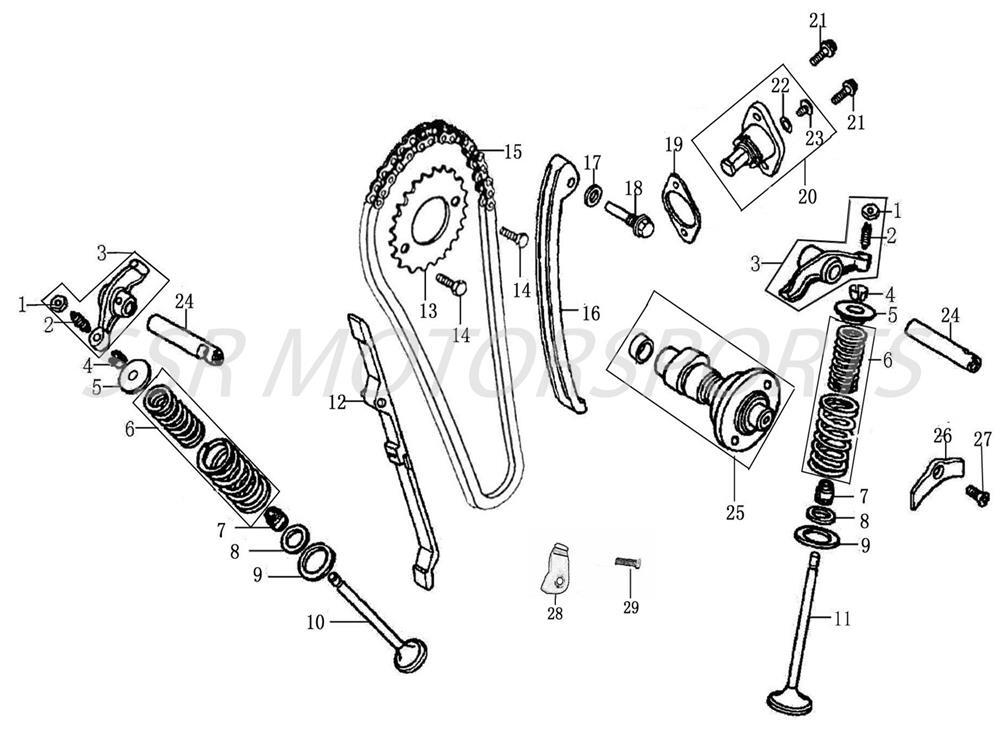

2026 SSR XD150 - Timing Chain Parts Diagram

Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	A03174-09-00	ADJUSTER NUT+ ADD	$2.00	2
2	A03175-09-00	ADJUSTER SCREW+ ADD	$2.00	2
3	A03176-09-00	ROCKER ARM ASSY+ ADD	$35.00	2
4	A03177-09-00	VALVE STEM COLLET+ ADD	$2.00	4
5	A03178-09-00	VALVE SPRING RETAINER+ ADD	$8.00	2
6	A03179-09-00	INNER/OUTER VALVE SPRING+ ADD	$8.80	2
7	A03180-09-00	VALVE STEM SEAL+ ADD	$8.00	2
8	A03181-09-00	LOWER SPRING SEAT I+ ADD	$5.30	2
9	A03182-09-00	LOWER SPRING SEAT II+ ADD	$5.30	2
10	A03183-09-00	EXHAUST VALVE+ ADD	$28.00	1
11	A03184-09-00	INTAKE VALVE+ ADD	$28.00	1
12	A03185-09-00	FRONT CAM CHAIN GUIDE+ ADD	$21.00	1
13	A03186-09-00	CAM SHAFT SPROCKET+ ADD	$12.30	1
14	A00015-19-03	HEX BOLT M6X10+ ADD	$2.00	2
15	A03187-09-00	CAM CHAIN+ ADD	$26.30	1
16	A03188-09-00	CAM CHAIN GUIDE+ ADD	$17.50	1
17	A00095-21-01	WASHER 8X14X1.5+ ADD	$2.50	1
18	A03189-09-00	CAM CHAIN GUIDE PIVOT BOLT+ ADD	$2.50	1
19	A03190-09-00	CAM CHAIN TENSIONER GASKET+ ADD	$2.60	1
20	A03191-09-00	CAM CHAIN TENSIONER ASSY+ ADD	$17.50	1
21	A00006-19-02	ALLEN BOLT M6X16+ ADD	$2.00	2
22	A00034-27-00	O-RING 9X1.8+ ADD	$2.00	1
23	A00008-20-02	PAN HEAD SCREW M6X6+ ADD	$2.00	1
24	A03192-09-00	ROCKER ARM SHAFT+ ADD	$14.00	2
25	A03193-09-00	CAMSHAFT+ ADD	$96.30	1
26	A03194-09-00	ROCKER SHAFT RETAINER PLATE+ ADD	$2.50	1
27	A00286-19-03	CS PHILLIPS BOLT M6X16+ ADD	$2.00	1
28	A03195-09-00	CAM CHAIN PROTECTION PLATE+ ADD	$2.50	1
29	A00020-19-03	HEX BOLT M6X16+ ADD	$2.00	1
