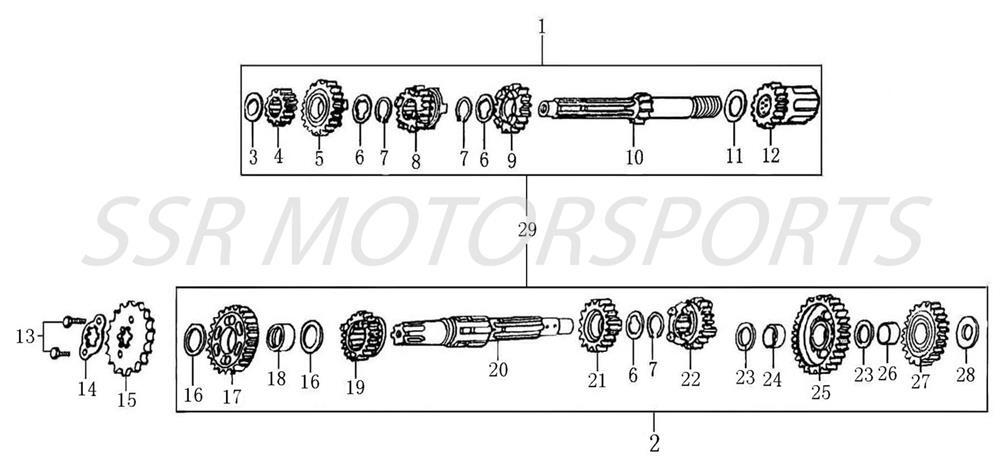

2026 SSR XD150 - Transmission Parts Diagram

Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	A00454-17-00	MAINSHAFT ASSY+ ADD	$115.50	1
2	A00455-17-00	COUNTERSHAFT ASSY+ ADD	$106.80	1
3	A00007-21-06	WASHER 15.2X25X1+ ADD	$2.00	1
4	A00456-17-00	MAINSHAFT 2ND GEAR M2+ ADD	$24.50	1
5	A00457-17-00	MAINSHAFT 5TH GEAR M5+ ADD	$24.50	1
6	A00008-21-06	WASHER 17.3(20)X26X1.6+ ADD	$2.50	3
7	A00017-24-07	CIRCLIP 20+ ADD	$2.00	3
8	A00458-17-00	MAINSHAFT 4TH GEAR M4+ ADD	$24.50	1
9	A00459-17-00	MAINSHAFT 3RD GEAR M3+ ADD	$24.50	1
10	A00460-17-00	MAINSHAFT+ ADD	$45.50	1
11	A00009-21-06	WASHER 20.2X27X0.5+ ADD	$2.50	1
12	A00461-17-00	KICK STARTER GEAR+ ADD	$21.00	1
13	A00015-19-03	HEX BOLT M6X10+ ADD	$2.00	2
14	A00351-17-00	LOCK WASHER+ ADD	$2.60	1
15	A00357-07-00	COUNTERSHAFT SPROCKET 15T-428+ ADD	$19.30	1
16	A00010-21-06	WASHER 20.2X27X1+ ADD	$2.50	2
17	A00462-17-00	COUNTERSHAFT 2ND GEAR C2+ ADD	$24.50	1
18	A00463-17-00	BUSHING+ ADD	$3.50	1
19	A00464-17-00	COUNTERSHAFT 5TH GEAR C5+ ADD	$24.50	1
20	A00465-17-00	COUNTERSHAFT+ ADD	$45.50	1
21	A00466-17-00	COUNTERSHAFT 4TH GEAR C4+ ADD	$24.50	1
22	A00467-17-00	COUNTERSHAFT 3RD GEAR C3+ ADD	$24.50	1
23	A00011-21-06	WASHER 16.7X24X0.5+ ADD	$2.50	2
24	A00468-17-00	BUSHING+ ADD	$2.50	1
25	A00469-17-00	COUNTERSHAFT 1ST GEAR C1+ ADD	$24.50	1
26	A00470-17-00	SPACER+ ADD	$2.50	1
27	A00471-17-00	STARTER IDLER GEAR+ ADD	$24.50	1
28	A00012-21-06	WASHER 15.2X30X1+ ADD	$2.50	1
29	A00472-17-00	COMPLETE TRANSMISSION ASSY+ ADD	$222.30	1
