26. 70/90-17&90/80-17 Supermoto Wheels Set

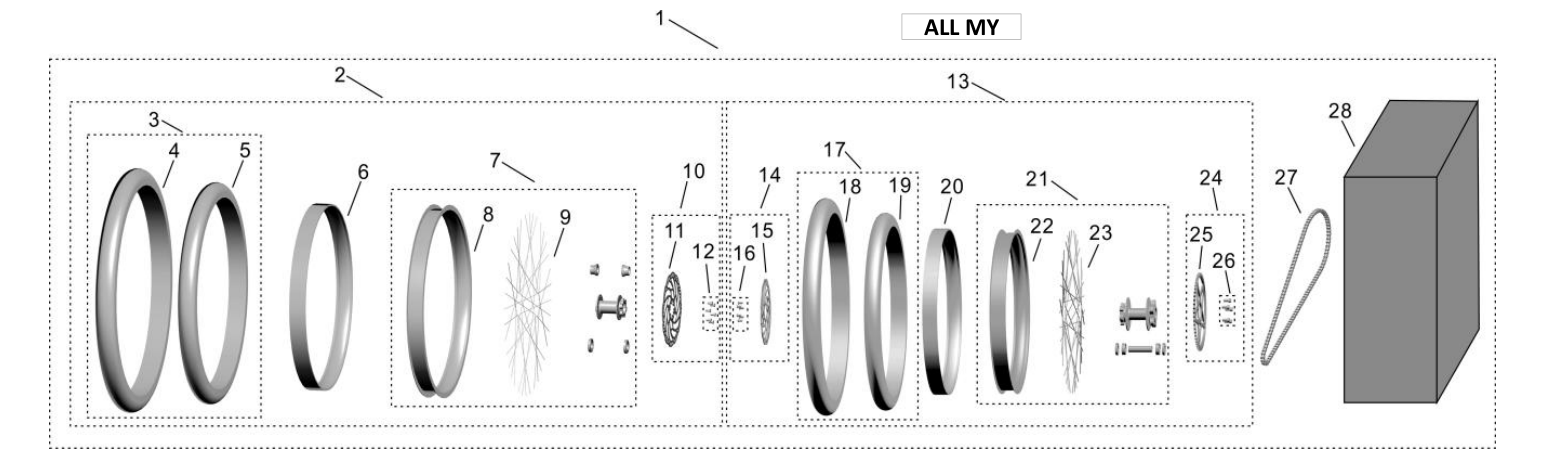

2026 Surron Light Bee X - 70/90-17&90/80-17 Supermoto Wheels Set Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

Catalog version V01.2026 includes 2026 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.

Click diagram to enlarge

FIND & SELECT YOUR PARTS

DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.

NO.	PART #	DESCRIPTION / YEAR	MSRP	QTY
21_01	51200-YQ2A-Z3	Front & Rear SM Tire Kit+ ADDALL MY	$455.00	1
21_02	51200-YQ2A-Z4	Front SM Wheel Assy.+ ADDALL MY	$320.00	1
21_03	51231-YQ2A-Z3	Front SM Tire + Front SM Inner Tube+ ADDALL MY	$170.00	1
21_04	51231-YQ2A-0100	Front SM Tire+ ADDALL MYNot for sale separately	Call for price	1
21_05	51232-YQ2A-0100	Front SM Inner Tube+ ADDALL MY	$20.00	1
21_06	51266-YQ2A-0100	Rim Band ( SM Wheel )+ ADDALL MY	$5.40	1
21_07	51270-YQ2A-0100	Front Wheel Rim Assy+ ADDALL MY	$150.00	1
21_08	51271-YQ2A-0200	Front SM Rim+ ADDALL MY	Call for price	1
21_09	51291-YQ2A-0100	Front SM Spokes+ ADDALL MY	$0.40	36
21_10	52171-YQ2A-Z1	Front Brake Disc Assy.+ ADDALL MY	$25.00	1
21_11	52171-YQ2A-0001	Front Brake Disc+ ADDALL MY	Call for price	1
21_12	FB03-006-05-010-F3	Screw FB03006 M5*10+ ADDALL MY	$0.40	6
21_13	51300-YQ2A-Z4	Rear SM Wheel Assy.+ ADDALL MY	$425.00	1
21_14	52271-YQ2A-Z1	Rear Brake Disc Assy.+ ADDALL MY	$24.90	1
21_15	52271-YQ2A-0001	Rear Brake Disc+ ADDALL MY	Call for price	1
21_16	FB03-006-06-013-F3	Screw FB03006 M5*10+ ADDALL MY	$0.40	6
21_17	51331-YQ2A-Z3	Rear SM Tire + Rear SM Inner Tube+ ADDALL MY	$205.00	1
21_18	51331-YQ2A-0000	Rear SM Tire+ ADDALL MYNot for sale separately	Call for price	1
21_19	51332-YQ2A-0000	Rear SM Inner Tube+ ADDALL MY	$25.00	1
21_20	51266-YQ2A-0100	Rim Band ( SM Wheel)+ ADDALL MY	$5.40	1
21_21	51370-YQ2A-0100	Rear Wheel Rim Assy+ ADDALL MY	$185.00	1
21_22	51371-YQ2A-0000	Rear SM Rim+ ADDALL MY	Call for price	1
21_23	51391-YQ2A-0100	Rear SM Spokes+ ADDALL MY	$0.40	36
21_24	13204-YQ2A-Z3	Sprocket (42T) Assy.+ ADDALL MY	$75.00	1
21_25	13204-YQ2A-0100	Sprocket (42T)+ ADDALL MY	Call for price	1
21_26	B3-001-08-016-F0	Screw B3001 M8*16+ ADDALL MY	$0.40	5
21_27	13114-YQ2A-0100	Chain (420-102 links)+ ADDALL MY	$40.00	1
21_27	82333-YQ2A-0000	outer carton+ ADDALL MY	Call for price	1
