4. Controller & Battery & Charger

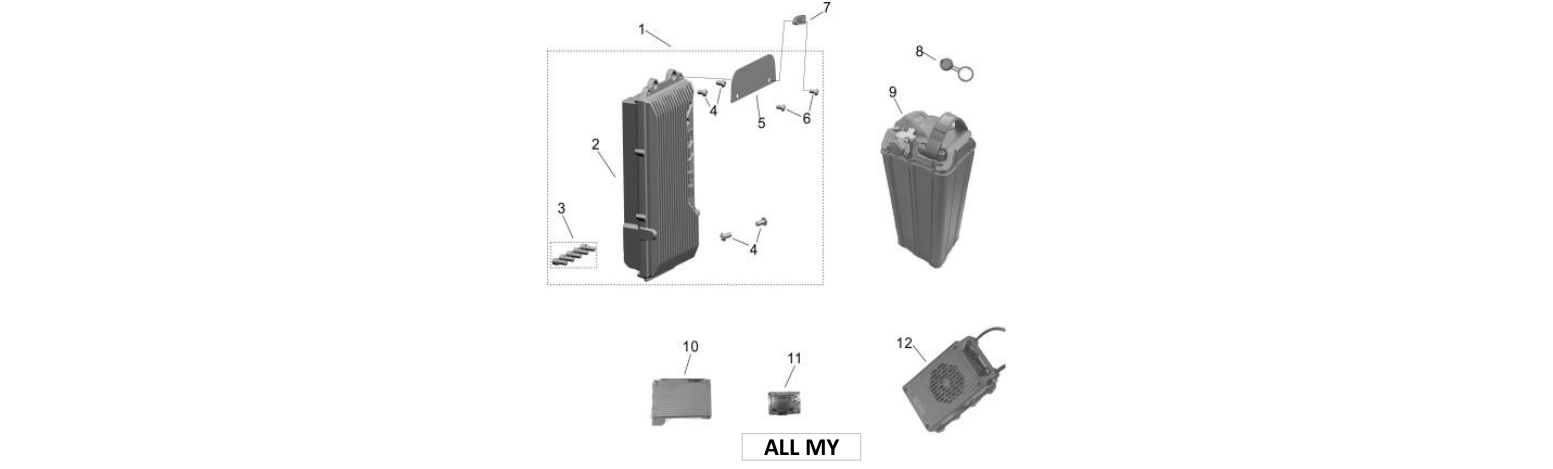

2026 Surron Light Bee X - Controller & Battery & Charger Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

Catalog version V01.2026 includes 2026 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.

FIND & SELECT YOUR PARTS
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
NO. PART # DESCRIPTION / YEAR MSRP QTY
4_01 21100-Y029A-Z1 MY25 $798.00 1
4_01 21100-Y029E-Z1 MY26NOT compatible to old version $798.00 1
4_02 21100-YQ2A-0700 MY17-24 Call for price 1
4_02 21100-Y029A-0100 MY25Can be applied to old version but power stays at 6kW $788.00 1
4_02 21100-Y029E-00B0 MY26NOT compatible to old version $698.00 1
4_03 B8-001-06-016-F2 ALL MY $0.40 5
4_04 B3-002-06-012-F0 ALL MY $0.40 4
4_05 21103-YQ2A-0000 ALL MY $5.60 1
4_06 B3-002-05-010-F0 ALL MY $0.40 2
4_07 81137-YQ2A-0000 MY17-24 $0.40 1
4_07 81153-NM1A-0000 MY25 $0.40 1
4_07 81154-NM1A-0000 MY26 $0.40 1
4_08 26351-YQ2A-0000 MY17-23Only used for battery 26000-YQ2A-1000 $0.40 1
4_08 26351-YQ2A-0100 MY24-25 $0.40 1
4_09 26000-YQ2A-1200 MY24 $1,503.00 1
4_09 26000-Y029A-0000 MY25LB MY 2024 not supported $1,503.00 1
4_09 26000-Y029A-0100 MY25LB MY 2024 not supported $1,503.00 1
4_09 26000-Y029E-0000 MY26 $1,553.00 1
4_09 26000-Y029E-0100 MY26 $1,553.00 1
4_10 26220-YQ2A-0100 /Not for sale Call for price 1
4_11 26360-YQ2A-0000 ALL MY $36.50 1
4_12 21700-YQ2A-1000 MY17-24 $283.00 1
4_12 21700-Y028A-0200 MY25 $283.00 1
4_12 21700-Y029E-0200 MY26 $283.00 1
