20. Drive System

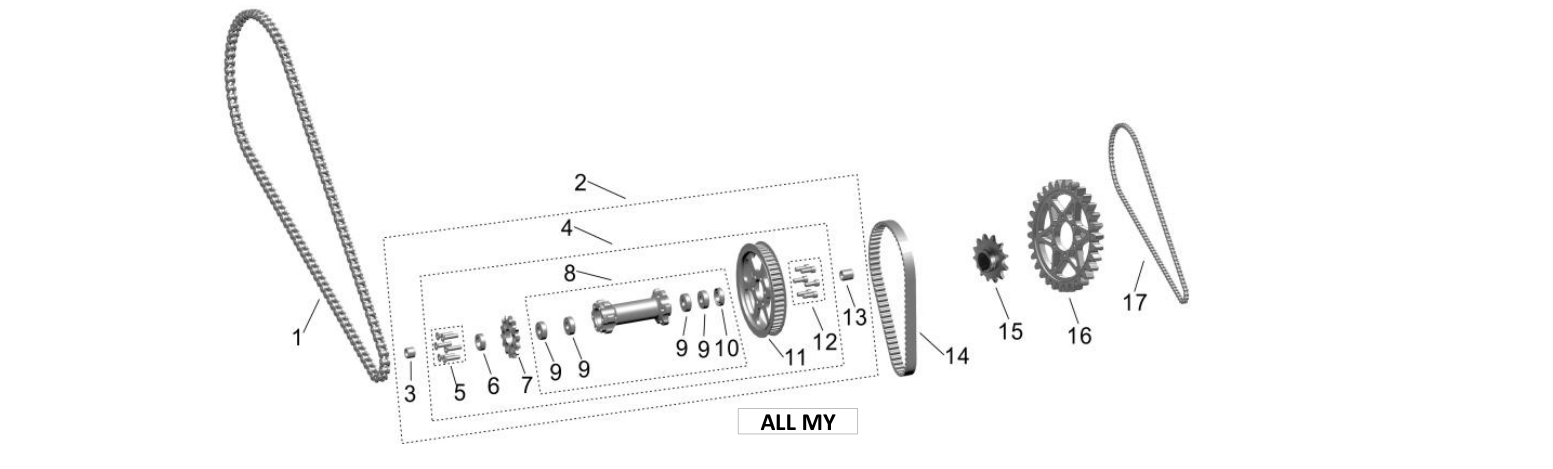

2026 Surron Light Bee X - Drive System Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
Catalog version V01.2026 includes 2026 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 17_01 | 13114-YQ2A-0600 | ALL MYThe rear pulley and belt must be replaced together and cannot be replaced separately. | $47.00 | 1 |
| 17_01 | 13114-YQ2A-0700 | ALL MYThe rear pulley and belt must be replaced together and cannot be replaced separately. | $50.00 | 1 |
| 17_01 | 13114-Y029E-0000 | MY26NOT compatible to old version | $44.00 | 1 |
| 17_02 | 61280-YQ2A-Z1 | MY17-24NOT compatible to old version | $181.00 | 1 |
| 17_02 | 61280-YQ2A-Z2 | MY25 | $181.00 | 1 |
| 17_02 | 61280-Y029E-Z2 | MY26 | $181.00 | 1 |
| 17_03 | 61234-YQ2A-0001 | MY25 | $2.60 | 1 |
| 17_03 | 61234-Y029E-0000 | MY26 | $2.60 | 1 |
| 17_04 | 61280-YQ2A-Z3 | MY17-24 | $170.50 | 1 |
| 17_04 | 61280-YQ2A-Z4 | MY25 | $170.50 | 1 |
| 17_04 | 61280-Y029E-Z1 | MY26 | $170.50 | 1 |
| 17_05 | B3-001A-06-025-F0 | ALL MY | $0.80 | 6 |
| 17_06 | B7-001-15-24-07 | MY25 | $3.00 | 1 |
| 17_06 | B7-001-17-26-07 | MY26NOT compatible to old version | $3.00 | 1 |
| 17_07 | 13105-YQ2A-0000 | MY25 | $16.00 | 1 |
| 17_07 | 13105-Y029E-0000 | MY26NOT compatible to old version | $16.00 | 1 |
| 17_08 | 61280-YQ2A-0001 | MY25 | $78.50 | 1 |
| 17_08 | 61280-Y029E-0000 | MY26NOT compatible to old version | $78.50 | 1 |
| 17_09 | Z-6000-2RS-26-10-08 | MY25 | $13.50 | 4 |
| 17_09 | Z-6001-2RS-28-12-08 | MY26NOT compatible to old version | $13.20 | 4 |
| 17_10 | B7-001-15-26-06 | MY25 | $2.80 | 1 |
| 17_10 | B7-001-17-28-06 | MY26NOT compatible to old version | $2.80 | 1 |
| 17_11 | 13202-YQ2A-0400 | MY17-24NOT compatible to old version | $78.00 | 1 |
| 17_11 | 13202-YQ2A-0500 | MY25LB MY 2024 not supported | $80.00 | 1 |
| 17_11 | 13202-Y029E-0000 | MY26NOT compatible to old version | $76.00 | 1 |
| 17_12 | B3-001-06-016-F0 | ALL MY | $0.40 | 6 |
| 17_13 | 61233-YQ2A-0001 | MY25 | $8.00 | 1 |
| 17_13 | 61233-Y029E-0000 | MY26NOT compatible to old version | $8.00 | 1 |
| 17_14 | 13111-YQ2A-0100 | MY17-24 | $77.00 | 1 |
| 17_14 | 13111-YQ2A-0400 | MY17-24 | $77.00 | 1 |
| 17_14 | 13111-YQ2A-0500 | MY25-26LB MY 2024 not supported | $77.00 | 1 |
| 17_15 | 13211-YQ2A-0000 | ALL MY | $20.00 | 1 |
| 17_16 | 13212-YQ2A-0000 | ALL MY | $44.00 | 1 |
| 17_17 | 13117-YQ2A-0000 | ALL MY | $10.00 | 1 |
