6. Frame Coverings

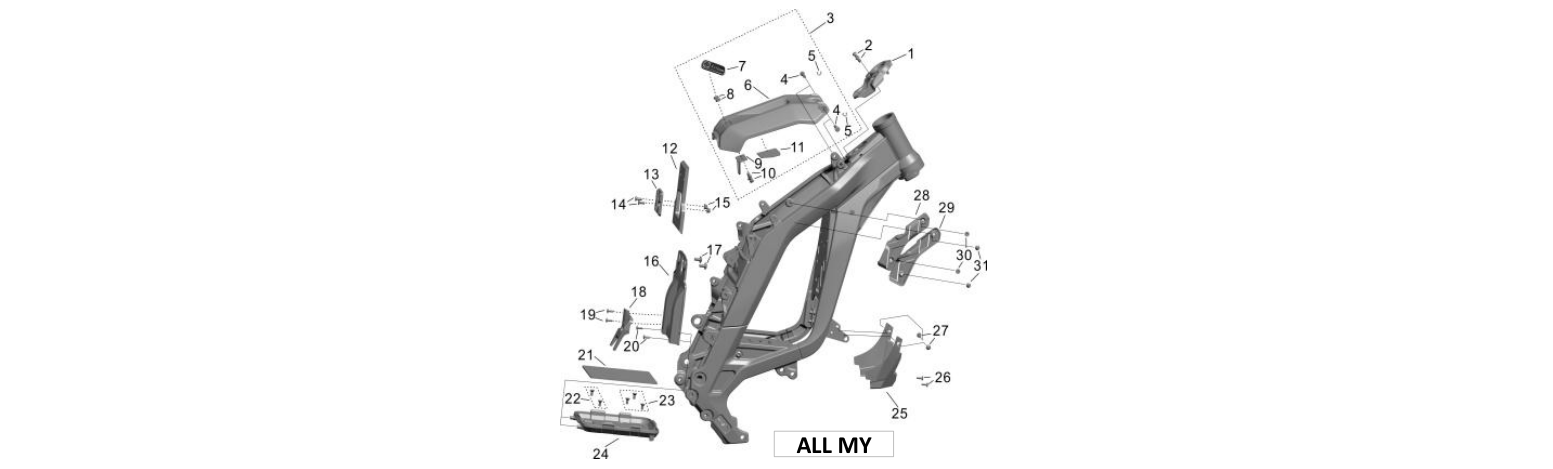

2026 Surron Light Bee X - Frame Coverings Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

Catalog version V01.2026 includes 2026 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.

FIND & SELECT YOUR PARTS
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
NO. PART # DESCRIPTION / YEAR MSRP QTY
6_01 32340-YQ2A-0000 ALL MY $5.00 1
6_02 B3-002-06-012-F0 ALL MY $0.40 2
6_03 32231-YQ2A-Z1 MY25 $53.30 1
6_03 32231-Y029E-Z1 MY26NOT compatible to old version $53.30 1
6_04 41762-YQ2A-0000 ALL MY $3.00 2
6_05 B4-007-05-F4 ALL MY $0.40 2
6_06 32231-YQ2A-0000 MY25 $25.00 1
6_06 32231-Y029E-0000 MY26NOT compatible to old version $25.00 1
6_07 82124-YQ2A-0100 ALL MY $6.50 1
6_08 B2-001-06-F2 ALL MY $0.40 2
6_09 26290-YQ2A-0000 MY25 $4.80 1
6_09 26290-Y029E-0000 MY26 $4.80 1
6_10 B3-002-06-012-F0 ALL MY $0.40 2
6_11 32233-YQ2A-0000 ALL MY $8.60 1
6_12 26341-YQ2A-0000 MY25 $3.00 1
6_12 26341-YQ2A-0001 MY26 $3.00 1
6_13 32353-YQ2A-0000 ALL MY $5.50 1
6_14 B3-003-05-012-F0 ALL MY $0.40 2
6_15 B2-012-05-F2 ALL MY $0.40 2
6_16 32355-YQ2A-0000 MY25 $19.50 1
6_16 32355-YQ2A-0001 MY26 $19.50 1
6_17 FB03-001-06-012-F0 ALL MY $0.80 2
6_18 32365-YQ2A-0000 ALL MY $6.60 1
6_19 FB03-003-04-013-F3 ALL MY $0.40 2
6_20 FB03-003-04-013-F3 ALL MY $0.40 2
6_21 26343-YQ2A-0000 ALL MY $3.00 1
6_22 B3-003-05-012-F0 ALL MY $0.40 3
6_23 B3-003-05-010-F0 ALL MY $0.40 2
6_24 32358-YQ2A-0000 ALL MY $28.00 1
6_25 32361-YQ2A-0000 ALL MY $17.00 1
6_26 FB03-003-04-013-F3 ALL MY $0.40 2
6_27 B3-002-06-010-F0 ALL MY $0.40 2
6_28 32356-YQ2A-0000 ALL MY $5.40 1
6_29 32357-YQ2A-0000 ALL MY $5.40 1
6_30 B3-003-05-010-F0 ALL MY $0.40 2
6_31 B3-003-05-010-F0 ALL MY. $0.40 2

Selected Parts (0)

Estimated Total: $0.00
