1. Frame & Subframe & Swingarm

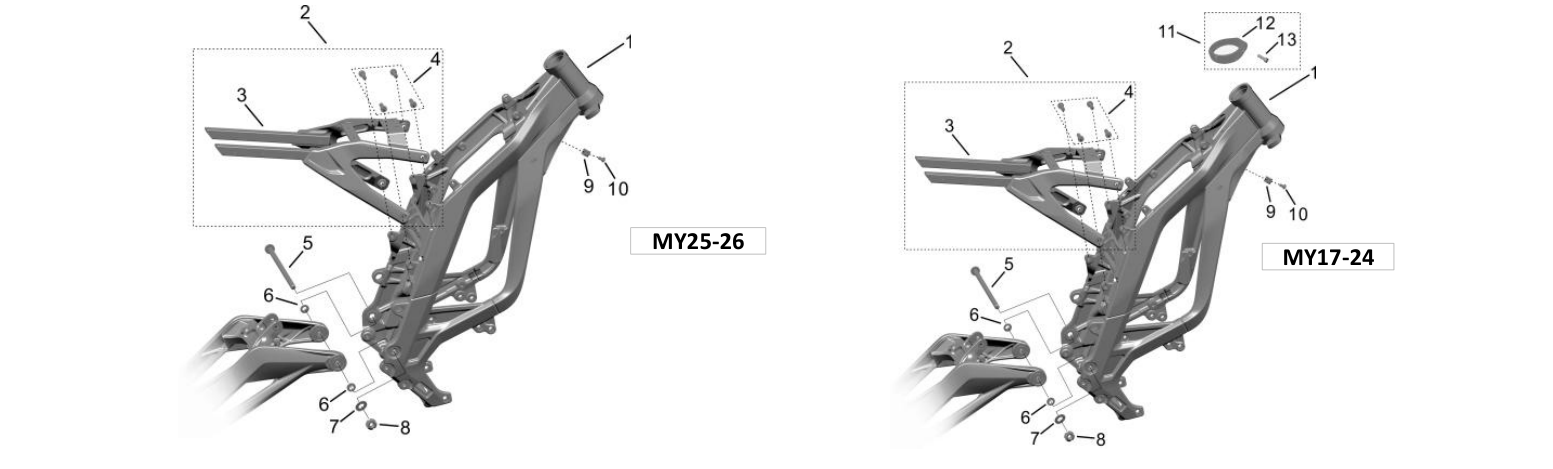

2026 Surron Light Bee X - Frame & Subframe & Swingarm Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
Catalog version V01.2026 includes 2026 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 1_01 | 41100-YQ2B-0000-Y4 | ALL MYReplacement only. Not for sale | $890.00 | 1 |
| 1_01 | 41100-YQ2B-0000-Y11 | ALL MYReplacement only. Not for sale | $890.00 | 1 |
| 1_01 | 41100-YQ2B-0000-Y16 | ALL MYReplacement only. Not for sale | $890.00 | 1 |
| 1_01 | 41100-YQ2B-0000-Y2 | MY17-24Replacement only. Not for sale | $890.00 | 1 |
| 1_01 | 41100-YQ2B-0000-Y19 | MY25Replacement only. Not for sale | $890.00 | 1 |
| 1_01 | 41100-YQ2B-0000-Y23 | MY25Replacement only. Not for sale | $890.00 | 1 |
| 1_01 | 41100-Y029E-0000-Y1 | MY26Replacement only. Not for sale | $890.00 | 1 |
| 1_01 | 41100-Y029E-0000-Y4 | MY26Replacement only. Not for sale | $890.00 | 1 |
| 1_01 | 41100-Y029E-0000-Y16 | MY26Replacement only. Not for sale | $890.00 | 1 |
| 1_01 | 41100-Y029E-0000-Y19 | MY26Replacement only. Not for sale | $890.00 | 1 |
| 1_02 | 41520-YQ2A-Z1 | ALL MY | $275.70 | 1 |
| 1_03 | 41520-YQ2A-0000 | ALL MY | Call for price | 1 |
| 1_04 | B1-009-08-020-F0 | ALL MY | Call for price | 4 |
| 1_05 | 61260-YQ2A-0000 | MY17-25 | $22.00 | 1 |
| 1_05 | 61260-Y029E-0000 | MY26 | $22.00 | 1 |
| 1_06 | 41151-YQ2A-0000 | MY17-25 | $2.00 | 2 |
| 1_06 | 41151-Y029E-0000 | MY26 | $2.00 | 2 |
| 1_07 | B4-001-10-F2 | MY17-25 | $0.40 | 1 |
| 1_07 | FB05-009-F0 | MY26 | $0.40 | 1 |
| 1_08 | B2-013-10-F0 | MY17-25 | $4.50 | 1 |
| 1_08 | FB02-010-12-F2 | MY26 | $4.50 | 1 |
| 1_09 | 81137-YQ2A-0000 | MY17-24 | $0.40 | 1 |
| 1_09 | 81153-NM1A-0000 | MY25 | $0.40 | 1 |
| 1_10 | B3-002-05-010-F0 | ALL MY | $0.40 | 1 |
| 1_11 | 41115-YQ2A-Z1 | MY17-24 | $38.50 | 1 |
| 1_12 | 41115-YQ2A-0000 | MY17-24 | Call for price | 1 |
| 1_13 | FB03-014-07-030-F9 | MY17-24 | Call for price | 1 |
