21. Main Harness & Circuit Breaker

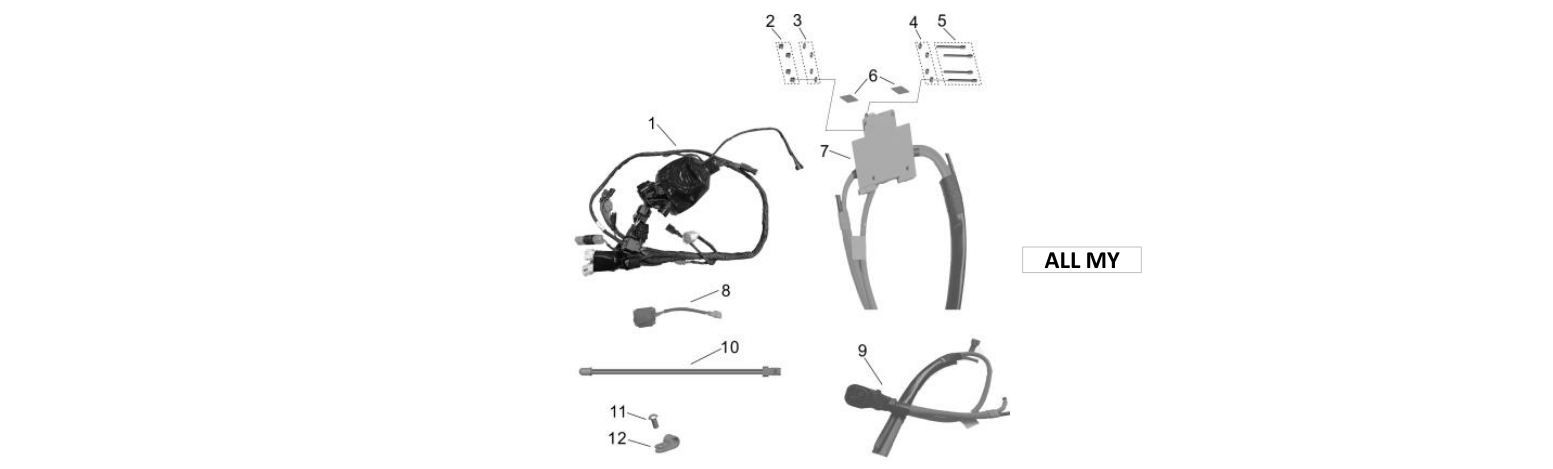

2026 Surron Light Bee X - Main Harness & Circuit Breaker Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
Catalog version V01.2026 includes 2026 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 18_01 | 24100-YQ2A-0200 | MY17-24use for battery 26000-YQ2A-1000 | $72.00 | 1 |
| 18_01 | 24100-YQ2A-0300 | MY17-24use for battery 26000-YQ2A-1200＆ 26000-YQ2A-1300 | $72.00 | 1 |
| 18_01 | 24100-Y029A-0000 | MY25only use for battery 26000-Y029A-0000 ＆ 26000-Y029A-0100 | $72.00 | 1 |
| 18_01 | 24100-Y029E-0100 | MY26MY 2025 NOT supported | $72.00 | 1 |
| 18_02 | B2-008-03-F2 | ALL MY | $0.40 | 4 |
| 18_03 | B4-001-04-F2 | ALL MY | $0.40 | 4 |
| 18_04 | 81125-YQ2A-0100 | ALL MY | $0.40 | 4 |
| 18_05 | B3-001-03-035-F0 | ALL MY | $0.40 | 4 |
| 18_06 | 23515-Y029A-0000 | ALL MYonly use for Circuit Breaker 23500- Y029A-0000 | $0.40 | 2 |
| 18_07 | 23500-YQ2A-0000 | MY17-24LB MY 2025 NOT supported | $18.00 | 1 |
| 18_07 | 23500-Y029A-0000 | MY25LB MY 2024 supported | $18.00 | 1 |
| 18_08 | 21250-YQ2A-0000 | ALL MY | $37.00 | 1 |
| 18_09 | 24110-YQ2A-0000 | MY17-23use for battery 26000-YQ2A-1000 | $78.00 | 1 |
| 18_09 | 24110-Y028A-0000 | MY24use for battery 26000-YQ2A-1200 | $78.00 | 1 |
| 18_09 | 24110-Y029A-0000 | MY25only use for battery 26000-Y029A-0000 ＆ 26000-Y029A-0100 | $78.00 | 1 |
| 18_09 | 24110-Y029E-0000 | MY26MY 2025 NOT supported | $78.00 | 1 |
| 18_10 | 24710-YQ2A-0000 | MY17-23use for battery 26000-YQ2A-1000 | $9.00 | 1 |
| 18_10 | 24710-YQ2A-0100 | MY24-25only use for battery 26000-Y029A-0000＆ 26000-YQ2A-1200 | $9.00 | 1 |
| 18_11 | B3-002-05-008-F0 | ALL MY | $0.40 | 1 |
| 18_12 | 81138-YQ2A-0000 | ALL MY | $0.40 | 1 |
| Not listed | 81153-NM1A-0000 | MY17-24use for battery 26000-YQ2A-1000 | $0.40 | 1 |
| Not listed | 24110-Y028A-0100 | MY24use for battery 24100-YQ2A-0200 to integrated 26000-YQ2A-1200 | $50.00 | 1 |
| Not listed | 24110-Y029A-0100 | MY25use for battery 24100-YQ2A-0200 to integrated 26000-Y029A-0000 | $50.00 | 1 |
