17. (MY17-25) Brake System

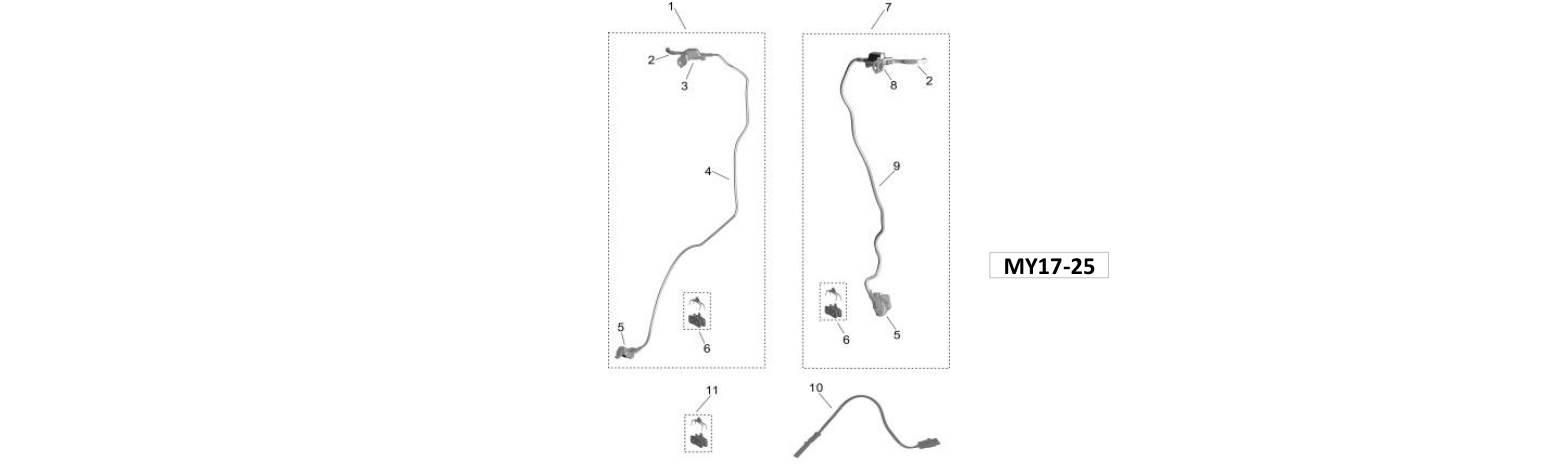

2026 Surron Light Bee X - (MY17-25) Brake System Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
Catalog version V01.2026 includes 2026 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 16_01 | 52200-YQ2F-0000 | MY17-24Replace MY 2024 brake assembly, or individual part replacement not supported | $179.00 | 1 |
| 16_01 | 52200-Y028A-0100 | MY25Replace MY 2024 brake assembly, or individual part replacement not supported | $179.00 | 1 |
| 16_02 | 52111-YQ2B-0000 | MY17-25 | $7.00 | 2 |
| 16_03 | 52210-YQ2B-0000 | MY17-24Limited to mineral oil | $78.00 | 1 |
| 16_03 | 52210-Y028A-0000 | MY25Limited to DOT4 oil | $78.00 | 1 |
| 16_04 | 52240-YQ2A-0000 | MY17-24Limited to mineral oil | $30.00 | 1 |
| 16_04 | 52240-Y028A-0000 | MY25Brake Hose cannot be replaced separately, limited to DOT4 oil | $30.00 | 1 |
| 16_05 | 52290-YQ2A-0100 | MY17-24Limited to mineral oil | $97.00 | 1 |
| 16_05 | 52190-YQ2F-0000 | MY17-24Limited to mineral oil | $97.00 | 1 |
| 16_05 | 52190-Y028A-0000 | MY25Brakes cannot be replaced separately, limited to DOT4 oil | $97.00 | 1 |
| 16_06 | 52191-YQ2B-0100 | MY17-25with Return Spring | $19.00 | 1 |
| 16_07 | 52100-YQ2F-0000 | MY17-24 | $171.00 | 1 |
| 16_07 | 52100-Y028A-0100 | MY25Replace MY 2024 brake assembly, or individual part replacement not supported | $171.00 | 1 |
| 16_08 | 52110-YQ2B-0000 | MY17-24Limited to mineral oil | $78.00 | 1 |
| 16_08 | 52110-Y028A-0000 | MY25Limited to DOT4 oil | $78.00 | 1 |
| 16_09 | 52140-YQ2A-0000 | MY17-24Limited to mineral oil | $17.00 | 1 |
| 16_09 | 52140-Y028A-0000 | MY25Brake Hose cannot be replaced separately, limited to DOT4 oil | $17.00 | 1 |
| 16_10 | 52122-YQ2A-0000 | MY17-25 | $17.00 | 1 |
| 16_11 | 52191-Y028A-0100 | MY17-25 | $19.00 | 1 |
