14. Rear Shock System

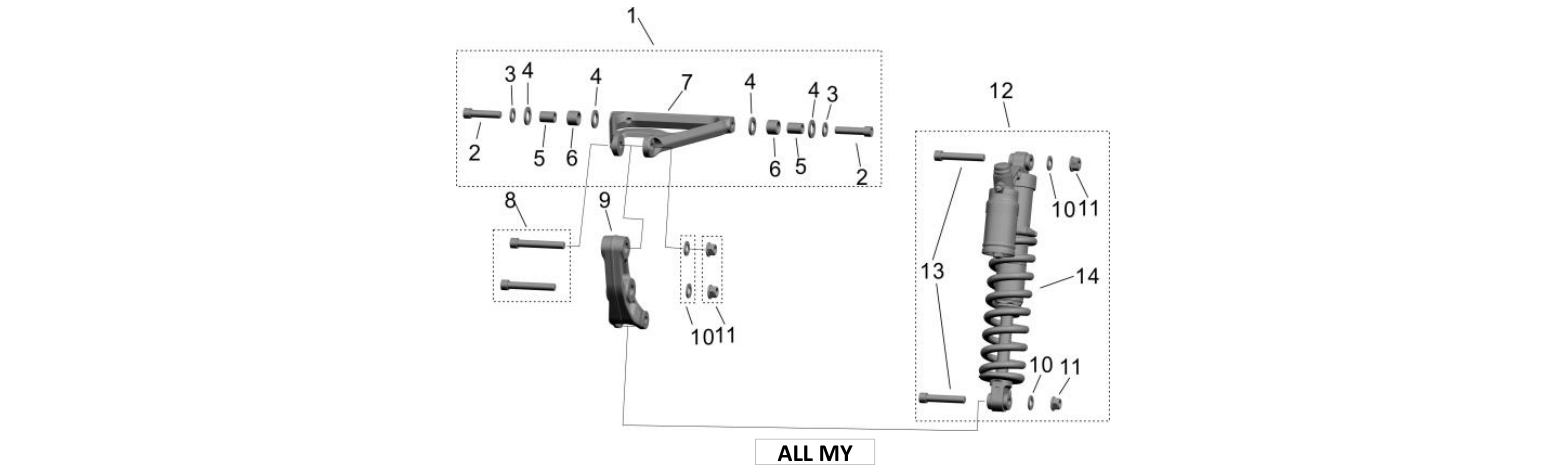

2026 Surron Light Bee X - Rear Shock System Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

Catalog version V01.2026 includes 2026 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.

Click diagram to enlarge

FIND & SELECT YOUR PARTS

DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.

NO.	PART #	DESCRIPTION / YEAR	MSRP	QTY
13_01	55148-YQ2A-Z1	Rear Shock Control Arm Assy.+ ADDALL MY	$80.90	1
13_02	B3-001-08-035-F7	Bolt B3001 M8*35+ ADDALL MY	$0.80	2
13_03	B4-001-08-F2	Washer B4001 d8+ ADDALL MY	$0.40	2
13_04	55163-YQ2A-0000	Nylon Washer (Φ12-Φ20-2)+ ADDALL MY	$0.40	4
13_05	55162-YQ2A-0000	Connector Bushing+ ADDALL MY	$3.40	2
13_06	Z-HK1212-16-12-12	Rear Shock Linkage Connector Bearing+ ADDALL MY	$1.80	2
13_07	55148-YQ2A-0000	Rear Shock Control Arm+ ADDALL MY	$66.50	1
13_08	FB03-018-08-056-043-F7	Control Arm Bolt ( L56-M8)+ ADDALL MY	$1.20	1
13_08	FB03-018-08-056-043-F7	Swingarm Bolt ( L56-M8)+ ADDALL MY	$1.20	1
13_09	55140-YQ2A-0002	Linkage Arm Assy.+ ADDALL MY	$66.50	1
13_10	B4-001-08-F2	Washer B4001 d8+ ADDALL MY	$0.40	4
13_11	B2-006-08-F2	Nut B2006 M8+ ADDALL MY	$0.40	2
13_11	B2-006-08-F2	Nut B2006 M8+ ADDALL MY	$0.40	2
13_12	55110-YQ2A-Z1	Rear Shock Absorber 450LB (KKE) Assy.+ ADDALL MY	$267.00	1
13_13	FB03-018-08-050-037-F7	Screw FB03018 M8*50+ ADDALL MY	$0.80	1
13_13	FB03-018-08-050-037-F7	Screw FB03018 M8*50+ ADDALL MY	$0.80	1
13_14	55110-YQ2A-0600	Rear Shock Absorber 450LB (KKE)+ ADDALL MYLB MY 2024 supported	Call for price	1
