12. Seat

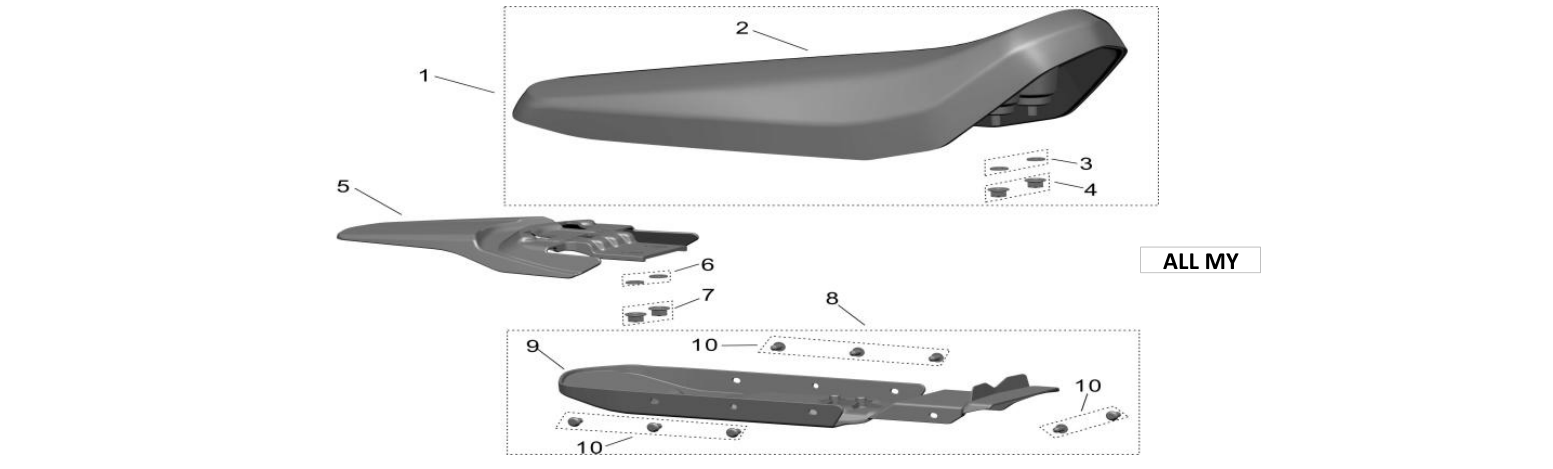

2026 Surron Light Bee X - Seat Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

Catalog version V01.2026 includes 2026 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.

Click diagram to enlarge

FIND & SELECT YOUR PARTS

DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.

NO.	PART #	DESCRIPTION / YEAR	MSRP	QTY
11_01	32300-Y029A-Z1	Seat Assy.+ ADDALL MY	$44.60	1
11_02	32300-Y029A-0000	Seat+ ADDMY25	Call for price	1
11_02	32300-Y029A-0001	Seat+ ADDMY26	Call for price	1
11_03	B4-010-06-F2	Washer B4010 d6+ ADDMY25	$0.40	2
11_03	B4-003-06-F2	Washer B4003 d6+ ADDMY26	$0.40	2
11_04	B2-015-06-F2	Nut B2015 M6+ ADDALL MY	$0.40	2
11_05	31321-YQ2A-0000	Rear Mudguard (Plastic)+ ADDALL MY	$10.80	1
11_06	B4-010-06-F2	Washer B4010 d6+ ADDMY25	$0.40	2
11_06	B4-003-06-F2	Washer B4003 d6+ ADDMY26	$0.40	2
11_07	B2-015-06-F2	Nut B2015 M6+ ADDALL MY	$0.40	2
11_08	31340-YQ2A-Z1	Rear Inner Mudguard Assy.+ ADDALL MY	$20.70	1
11_09	31340-YQ2A-0000	Rear Inner Mudguard (Plastic)+ ADDMY25	Call for price	1
11_09	31340-YQ2A-0001	Rear Inner Mudguard (Plastic)+ ADDMY26	Call for price	1
11_10	B5-004-R5075	Nylon rivet (R5075)+ ADDALL MY	$0.40	8
