16. Steering System & Front Fork

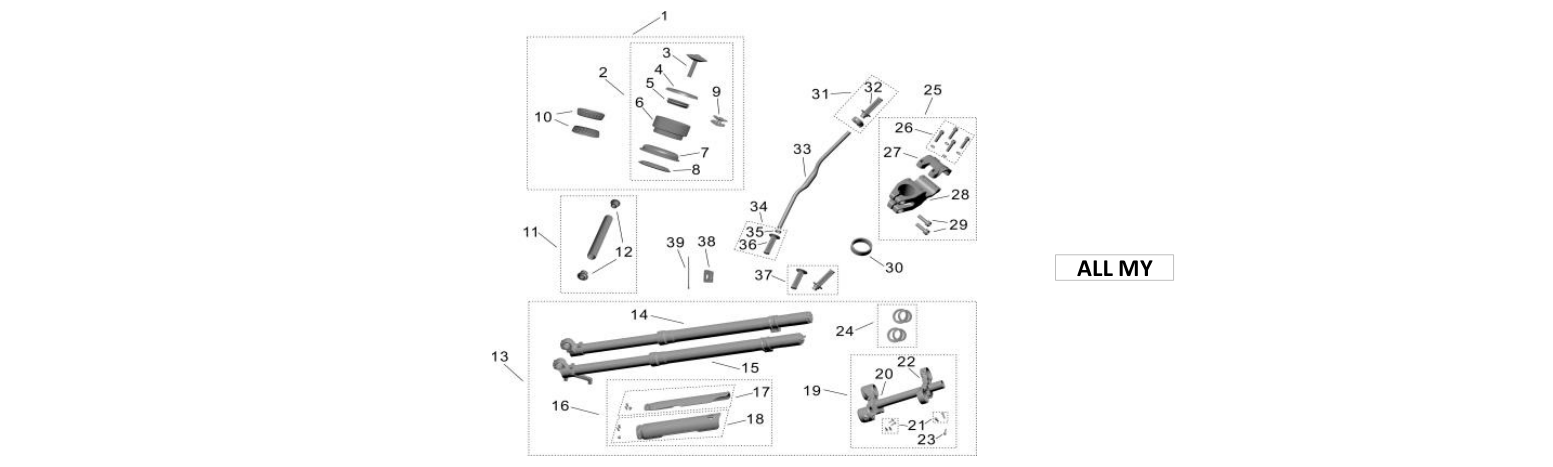

2026 Surron Light Bee X - Steering System & Front Fork Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
Catalog version V01.2026 includes 2026 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 15_01 | 51180-YQ2A-Z1 | ALL MY | $68.00 | 1 |
| 15_02 | 51180-YQ2A-0200 | ALL MYThe price only for Tapered Roller Bearing Headset(without Bearing) | $37.00 | 1 |
| 15_10 | Z-32906X-47-30-12 | ALL MYNeed 2 pieces if order Tapered Roller Bearing Headset Assy. | $13.00 | 2 |
| 15_11 | 51250-YQ1A-0000 | ALL MY | $59.00 | 1 |
| 15_12 | 51263-YQ1A-0000 | ALL MY | $9.20 | 2 |
| 15_13 | 51000-Y029A-0000 | MY25Compatible to old version | $763.00 | 1 |
| 15_13 | 51000-Y029E-0000 | MY26NOT compatible to old version | $763.00 | 1 |
| 15_14 | 54200-Y029A-0000 | ALL MYCannot be purchased separately | Call for price | 1 |
| 15_15 | 54100-Y029A-0000 | MY25Cannot be purchased separately | Call for price | 1 |
| 15_15 | 54100-Y029E-0000 | MY26Cannot be purchased separately | Call for price | 1 |
| 15_16 | 32270-YQ2B-Z1 | ALL MY | $52.00 | 1 |
| 15_17 | 32280-YQ2B-0200 | ALL MYKKE Fork use only | $26.00 | 1 |
| 15_18 | 32270-YQ2B-0200 | ALL MYKKE Fork use only | $26.00 | 1 |
| 15_19 | 51110-YQ2B-Z3 | MY25 | $183.00 | 1 |
| 15_19 | 51110-Y029E-Z1 | MY26 | $183.00 | 1 |
| 15_20 | 51112-YQ2B-0200 | MY25 | $105.00 | 1 |
| 15_20 | 51110-Y029E-0000 | MY26 | $105.00 | 1 |
| 15_21 | B3-001-05-018-F0 | ALL MY | $0.40 | 6 |
| 15_22 | 51121-YQ2B-0200 | MY25 | $76.00 | 1 |
| 15_22 | 51121-Y029E-0000 | MY26 | $76.00 | 1 |
| 15_23 | B3-001-05-016-F0 | ALL MYTogether with the front absorber | $0.40 | 1 |
| 15_24 | 54320-YQ2B-0200 | ALL MY | $47.00 | 2 |
| 15_25 | 51190-YQ2A-Z1 | ALL MY | $65.00 | 1 |
| 15_26 | FB03-009-05-022-F4 | ALL MY | $0.40 | 4 |
| 15_27 | 51164-YQ2A-0001 | ALL MY | Call for price | 1 |
| 15_28 | 51162-YQ2A-0100 | ALL MY | Call for price | 1 |
| 15_29 | B3-001-06-020-F0 | ALL MY | $0.40 | 2 |
| 15_30 | 51195-YQ2A-0000 | ALL MY | $3.80 | 1 |
| 15_31 | 23910-YQ1A-0100 | MY17-24LB MY 2024/2025 not supported | $49.00 | 1 |
| 15_31 | 23910-Y029A-0000 | MY25LB MY 2024 not supported | $68.00 | 1 |
| 15_31 | 23910-YQ5A-0000 | MY26 | $68.00 | 1 |
| 15_32 | 23820-YQ1A-0200 | MY17-24LB MY 2025 not supported | $10.00 | 1 |
| 15_32 | 23820-YQ1A-0100 | MY17-24LB MY 2025 not supported | $10.00 | 1 |
| 15_32 | 23820-YQ5A-0000 | MY25 | $17.00 | 1 |
| 15_33 | 51150-YQ2A-0100 | MY17-24 | $38.00 | 1 |
| 15_33 | 51150-YQ2A-0101 | MY25 | $38.00 | 1 |
| 15_33 | 51150-Y029E-0000 | MY26 | $38.00 | 1 |
| 15_34 | 23810-YQ5A-Z1 | MY25 | $18.70 | 1 |
| 15_35 | 23816-YQ5A-0000 | MY25 | $1.70 | 1 |
| 15_36 | 23810-YQ1A-0200 | MY17-24LB MY 2025 not supported | $10.00 | 1 |
| 15_36 | 23810-YQ1A-0100 | MY17-24LB MY 2025 not supported | $10.00 | 1 |
| 15_36 | 23810-YQ5A-0000 | MY25 | $17.00 | 1 |
| 15_37 | 23800-YQ1A-Z2 | MY17-24 | $20.00 | 1 |
| 15_37 | 23800-YQ1A-Z1 | MY17-24 | $20.00 | 1 |
| 15_37 | 23800-YQ5A-Z1 | MY25 | $34.00 | 1 |
| 15_38 | 52176-Y028A-0000 | MY25 | $2.00 | 1 |
| 15_39 | 51155-YQ2A-0000 | MY17-24 | $0.40 | 1 |
| 15_39 | 95206 | MY25 | $1.20 | 1 |
