2. Swingarm Assy.

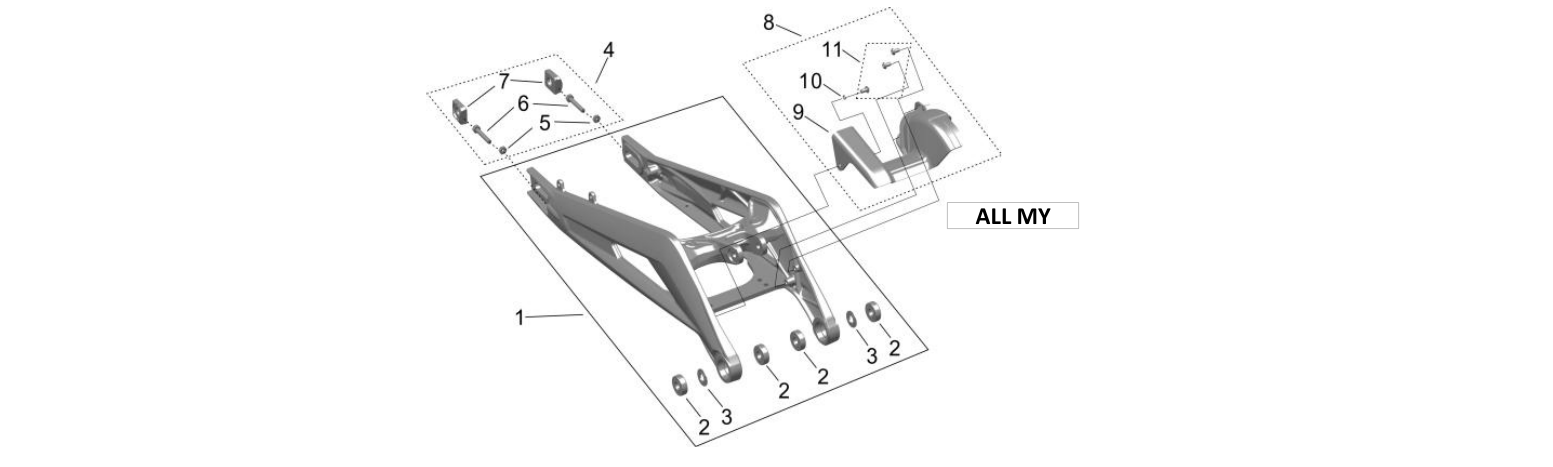

2026 Surron Light Bee X - Swingarm Assy. Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

Catalog version V01.2026 includes 2026 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.

Click diagram to enlarge

FIND & SELECT YOUR PARTS

DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.

NO.	PART #	DESCRIPTION / YEAR	MSRP	QTY
2_01	61000-YQ2A-0000-Y4	Swingarm Assy (Black)+ ADDALL MY	$425.00	1
2_01	61000-YQ2A-0000-Y11	Swingarm Assy (Blue)+ ADDALL MY	$425.00	1
2_01	61000-YQ2A-0000-Y16	Swingarm Assy (Purple)+ ADDALL MY	$425.00	1
2_01	61000-YQ2A-0000-Y19	Swingarm Assy (Olive Green)+ ADDMY25	$425.00	1
2_01	61000-YQ2A-0000-Y23	Swingarm Assy (Pink)+ ADDMY25	$425.00	1
2_01	61000-Y029E-0000-Y1	Swingarm Assy (White)+ ADDMY26	$425.00	1
2_01	61000-Y029E-0000-Y4	Swingarm Assy (Black)+ ADDMY26	$425.00	1
2_01	61000-Y029E-0000-Y16	Swingarm Assy (Purple)+ ADDMY26	$425.00	1
2_01	61000-Y029E-0000-Y19	Swingarm Assy (Olive Green)+ ADDMY26	$425.00	1
2_02	Z-6000-2RS-26-10-08	Swingarm pivot bearing+ ADDMY17-25	$13.50	4
2_02	Z-6001-2RS-28-12-08	Swingarm Assy (Pink)+ ADDMY26	$13.50	4
2_03	FB05-005-10-15-22-2	Washer FB05005 Φ10*Φ15*Φ22-2+ ADDMY17-25	$0.40	2
2_03	FB05-008-F0	Washer FB05008 Φ12.5*Φ23.5*2.2+ ADDMY26	$0.40	2
2_04	61210-YQ2A-Z1	Tensioner Assy.+ ADDALL MY	$24.60	1
2_05	B2-019-06-F2	Nut B2001 M6+ ADDALL MY	$0.40	2
2_06	B1-004-06-035-F0	Bolt B1004 M6*35+ ADDALL MY	$0.40	2
2_07	61210-YQ2A-0000	Tensioner+ ADDALL MY	Call for price	2
2_08	32120-YQ2A-Z1	Mid. Shaft Guard Assy.+ ADDALL MY	$16.10	1
2_09	32120-YQ2A-0000	Mid. Shaft Guard (Plastic)+ ADDALL MY	Call for price	1
2_10	B4-001-06-F2	Washer B4001 d6+ ADDALL MY	$0.40	1
2_11	B3-002-05-010-F0	Screw B3002 M5*10+ ADDALL MY	$0.40	3
