60. 100/80-17 Supermoto Front Wheel Assy.

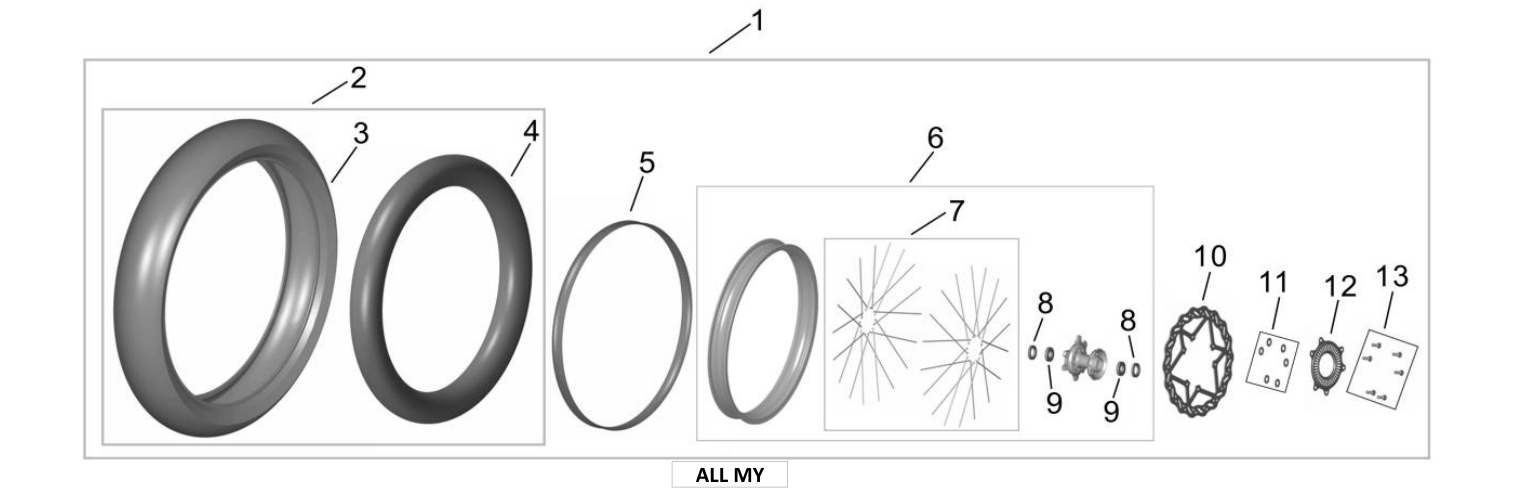

2026 Surron Ultra Bee - 100/80-17 Supermoto Front Wheel Assy. Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

2026 Ultra Bee catalog includes MY23-24, MY25, MY26 and ALL MY parts. Match the year and variant shown on each row before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.

Click diagram to enlarge

FIND & SELECT YOUR PARTS

DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.

NO.	PART #	DESCRIPTION / YEAR	MSRP	QTY
Not listed	51200-YQ5A-Z5	Supermoto Front and Rear Wheel Assy.+ ADDALL MY	$685.00	1
60_01	51200-YQ5A-Z4	FRONT Wheel Assy.+ ADDALL MY	$325.00	1
60_02	51231-YQ5A-Z4	FRONT MT Tyre & Inner Tube+ ADDALL MY	$138.00	1
60_03	51231-YQ5A-0200	ST Tyre 100/80-17 (E4)+ ADDALL MY	Call for price	1
60_04	51232-YQ5A-0200	Inner Tube 110/70-17+ ADDALL MY	Call for price	1
60_05	51266-YS1G-0000	17in Rim Band 30+ ADDALL MY	$4.50	1
60_06	51270-YQ5A-0100	Front wheel rim assy-2517+ ADDALL MY	$202.00	1
60_07	51290-YQ5A-0100	Wheel Spokes 29183 Set+ ADDALL MY	$0.40	36
60_08	B7-001-25-37-07	Seal Ring B7001 D2537+ ADDALL MY	$4.90	1
60_09	Z-6904-37-20-09	Bearing Z6904+ ADDALL MY	$8.20	1
60_10	52171-YQ5A-0000	Brake Disc+ ADDALL MY	$64.00	1
60_11	B4-001-06-F4	Washer B4001 D6+ ADDALL MY	$0.40	6
60_12	52172-YQ5A-0100	Sensor Gear 241+ ADDALL MY	$25.50	1
60_13	B3-007-06-016-F0	Screw B3007 M6*16+ ADDALL MY	$0.40	6
