61. 130/70-17 Supermoto Rear Wheel Assy.

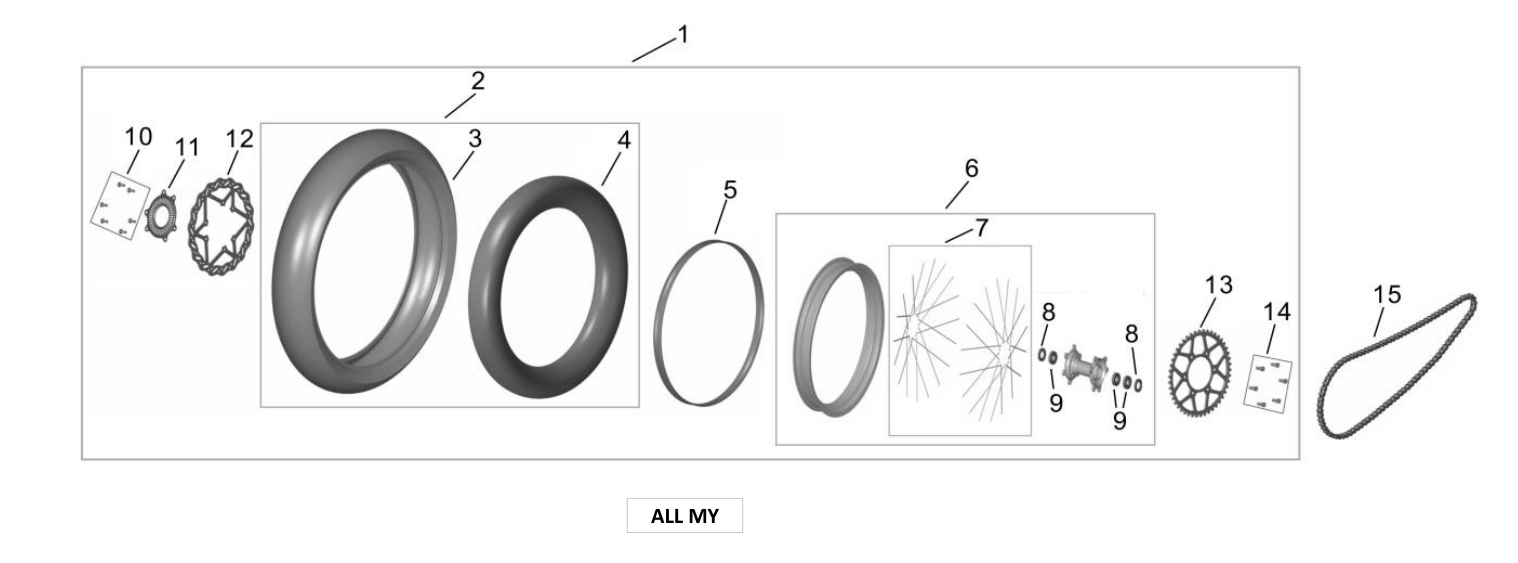

2026 Surron Ultra Bee - 130/70-17 Supermoto Rear Wheel Assy. Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

2026 Ultra Bee catalog includes MY23-24, MY25, MY26 and ALL MY parts. Match the year and variant shown on each row before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.

Click diagram to enlarge

FIND & SELECT YOUR PARTS

DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.

NO.	PART #	DESCRIPTION / YEAR	MSRP	QTY
61_01	51300-YQ5A-Z4	REAR Wheel Assy.+ ADDALL MY	$472.00	1
61_02	51331-YQ5A-Z4	REAR MT Tyre & Inner Tube+ ADDALL MY	$200.00	1
61_03	51331-YQ5A-0200	ST Tyre 130/70-17 (E4)+ ADDALL MY	Call for price	1
61_04	51332-YQ5A-0200	Inner Tube 130/70-17+ ADDALL MY	Call for price	1
61_05	51366-YS1G-0000	17in Rim Band 50+ ADDALL MY	$4.90	1
61_06	51370-YQ5A-0100	Front wheel rim assy- 3517+ ADDALL MY	$380.00	1
61_07	51290-YQ5A-0100	Wheel Spokes 29183 Set+ ADDALL MY	$0.40	36
61_08	B7-001-25-42-07	Seal Ring B7001 d2542+ ADDALL MY	$4.90	2
61_09	Z-6004-42-20-12	Bearing Z6004+ ADDALL MY	$8.20	3
61_10	B3-007-06-016-F0	Screw B3007 M6*16+ ADDALL MY	$0.40	6
61_11	52172-YQ5A-0000	Sensor Gear 142+ ADDALL MY	$29.00	1
61_12	52171-YQ5A-0000	Brake Disc+ ADDALL MY	$64.00	1
61_13	13204-YQ5A-0000	REAR Sprocket 46T+ ADDALL MYFor Drive Chain 520-96	$64.00	1
61_14	B3-001-08-016-F0	Screw B3001 M8*16+ ADDALL MY	$0.40	6
61_15	13114-YQ5A-0000	Drive Chain 520-96+ ADDALL MYFor REAR Sprocket 46T	$109.00	1
