38. Front Brake

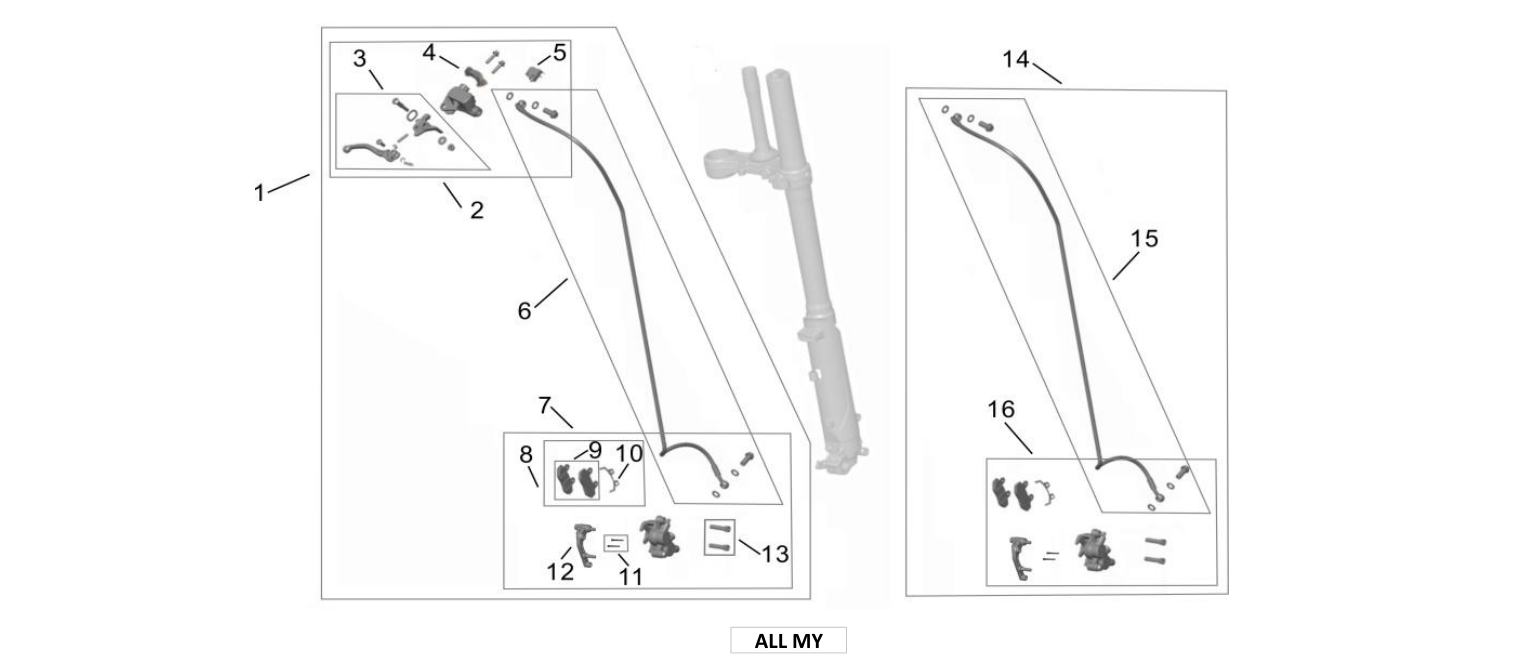

2026 Surron Ultra Bee - Front Brake Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

2026 Ultra Bee catalog includes MY23-24, MY25, MY26 and ALL MY parts. Match the year and variant shown on each row before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.

Click diagram to enlarge

FIND & SELECT YOUR PARTS

DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.

NO.	PART #	DESCRIPTION / YEAR	MSRP	QTY
38_01	52100-YQ5C-0100	Front Brake System Assy.(NEW)+ ADDALL MY	$187.00	1
38_02	52110-YQ5A-0000	Front Brake Cylinder Assy.+ ADDALL MY	$80.00	1
38_03	52111-YQ5A-0000	Front Brake Lever Assy.+ ADDALL MY	$31.50	1
38_04	52113-YQ5C-0000	Brake Cylinder Clamp(without Rearview Mirror Base)+ ADDALL MY	$5.20	1
38_05	52121-YQ5A-0000	Front Brake Switch+ ADDALL MY	$5.20	1
38_06	52140-YQ5A-0100	Front Brake Hose(NEW)+ ADDALL MY	$46.00	1
38_07	52190-YQ5A-0100	Front Brake Caliper Assy.(NEW)+ ADDALL MYNeeds to be used with the 52140-YQ5A- 0100	$80.00	1
38_08	52191-YQ5A-Z1	Front/Rear Brake Pads Assy.+ ADDALL MY	$27.10	1
38_09	52191-YQ5A-0000	Front/Rear Brake Pads+ ADDALL MY	Call for price	1
38_10	52193-YQ5A-0000	Brake Pad Retaining Spring+ ADDALL MY	Call for price	1
38_11	52194-YQ5A-0000	Brake Pad Pin+ ADDALL MY	$2.50	1
38_12	52180-YQ5A-0000	Front Brake Caliper Support+ ADDALL MY	$30.50	1
38_13	B3-001-08-035-F0	Screw B3001 M8*35+ ADDALL MY	$0.40	2
38_14	52190-YQ5A-Z1	Fornt Brake Wheel Cylinder Assy.+ ADDALL MY	$126.00	1
38_15	52140-YQ5A-0100	Fornt Brake Hose+ ADDALL MY	Call for price	1
38_16	52190-YQ5A-0100	Fornt Brake Caliper(NEW)+ ADDALL MY	Call for price	1
