5. Front Fork

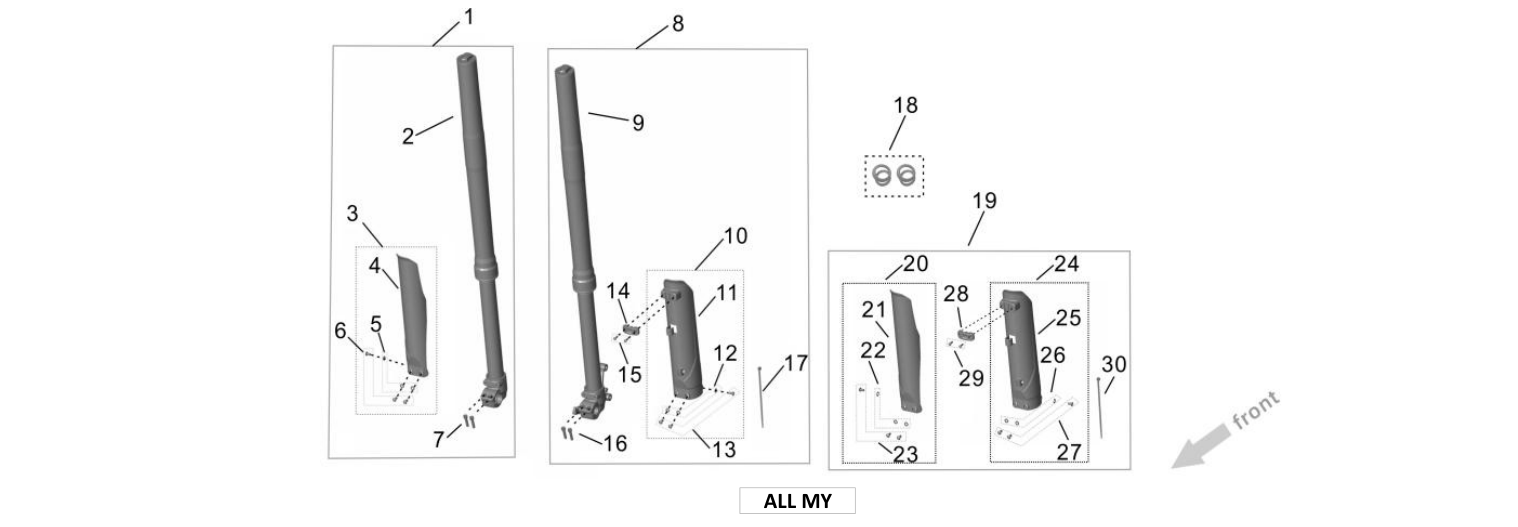

2026 Surron Ultra Bee - Front Fork Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

2026 Ultra Bee catalog includes MY23-24, MY25, MY26 and ALL MY parts. Match the year and variant shown on each row before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.

FIND & SELECT YOUR PARTS
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
NO. PART # DESCRIPTION / YEAR MSRP QTY
5_01 54200-YQ5A-Z2 MY25 $417.00 1
5_01 54200-YQ5A-Z1 MY23-24 $417.00 1
5_02 54200-YQ5A-0001 MY25 $406.00 1
5_02 54200-YQ5A-0000 MY23-24 $406.00 1
5_03 32281-YQ5A-Z1 ALL MY $16.40 1
5_04 32281-YQ5A-0000 ALL MY $14.00 1
5_05 B4-001-05-F2 ALL MY $0.40 3
5_06 B3-002-05-012-F0 ALL MY $0.40 3
5_07 B3-001-06-025-F0 ALL MY $0.80 2
5_08 54100-YQ5A-Z2 MY25 $417.00 1
5_08 54100-YQ5A-Z1 MY23-24 $417.00 1
5_09 54100-YQ5A-0001 MY25 $406.00 1
5_09 54100-YQ5A-0000 MY23-24 $406.00 1
5_10 32271-YQ5A-Z1 ALL MY $16.40 1
5_11 32271-YQ5A-0000 ALL MY $14.00 1
5_12 B4-001-05-F2 ALL MY $0.40 3
5_13 B3-002-05-012-F0 ALL MY $0.40 3
5_14 32272-YQ5A-0000 ALL MY $1.60 1
5_15 B3-002-04-012-F0 ALL MY $0.40 2
5_16 B3-001-06-025-F0 ALL MY $0.80 2
5_17 81147-YQ2A-0000 ALL MY $0.40 1
5_18 54320-YQ5A-0000 ALL MY $20.00 2
5_19 32270-YQ5A-Z1 ALL MY $35.60 1
5_20 32281-YQ5A-Z1 ALL MY $16.40 1
5_21 32281-YQ5A-0000 ALL MY $14.00 1
5_22 B4-001-05-F2 ALL MY $0.40 3
5_23 B3-002-05-012-F0 ALL MY $0.40 3
5_24 32271-YQ5A-Z1 ALL MY $16.40 1
5_25 32271-YQ5A-0000 ALL MY $14.00 1
5_26 B4-001-05-F2 ALL MY $0.40 3
5_27 B3-002-05-012-F0 ALL MY $0.40 3
5_28 32272-YQ5A-0000 ALL MY $1.60 1
5_29 B3-002-04-012-F0 ALL MY $0.40 2
5_30 81147-YQ2A-0000 ALL MY $0.40 1
