45. Handguard

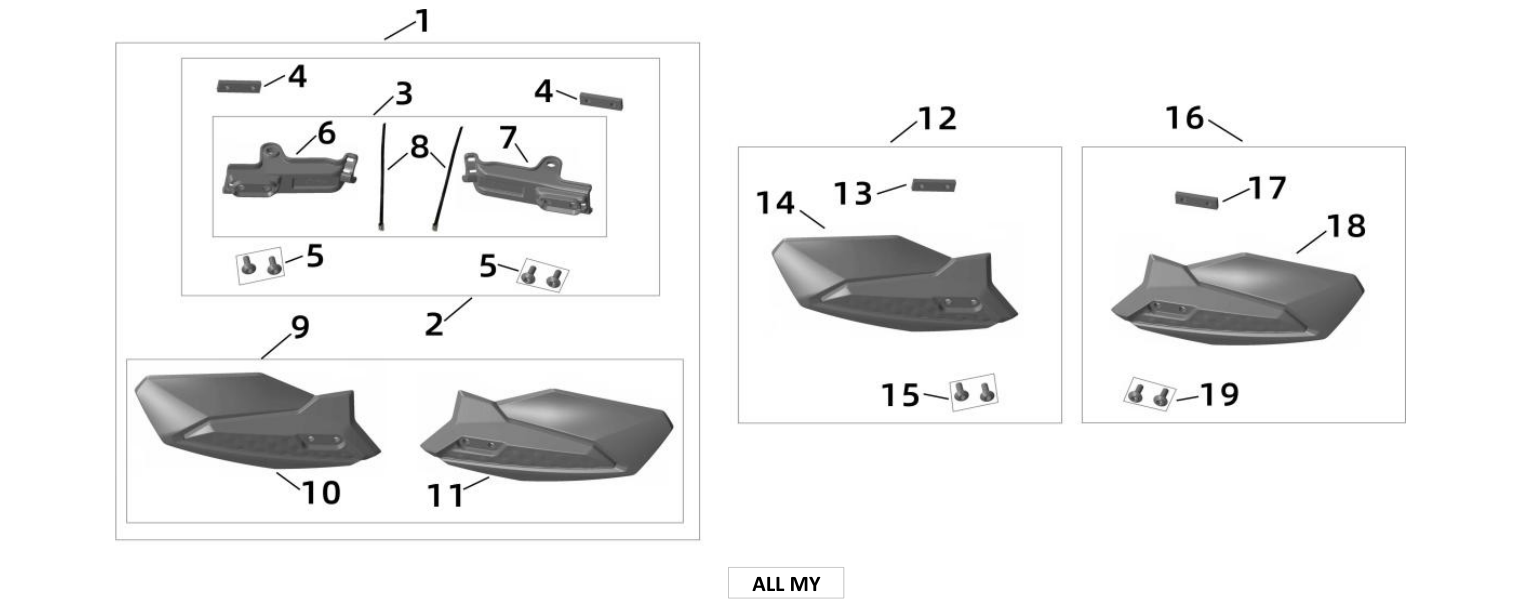

2026 Surron Ultra Bee - Handguard Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
2026 Ultra Bee catalog includes MY23-24, MY25, MY26 and ALL MY parts. Match the year and variant shown on each row before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 45_01 | 32380-YQ5A-Z1 | MY23-24Required quantity is not listed; request starts at 1 for confirmation. | $55.40 | Not listed |
| 45_01 | 32380-YQ5A-Z1-Y4 | MY25 | $55.40 | 1 |
| 45_02 | 32382-YQ5A-Z1 | ALL MY | $21.40 | 1 |
| 45_03 | 32382-YQ5A-Z2 | ALL MY | $15.60 | 1 |
| 45_04 | 32385-YQ5A-0000 | ALL MY | $2.10 | 2 |
| 45_05 | FB03-001-06-016-F0 | ALL MY | $0.40 | 4 |
| 45_06 | 32392-YQ5A-0000 | ALL MY | $6.60 | 1 |
| 45_07 | 32382-YQ5A-0000 | ALL MY | $6.60 | 1 |
| 45_08 | 95206 | ALL MY | $1.20 | 2 |
| 45_09 | 32381-YQ5A-Z1 | MY23-24Required quantity is not listed; request starts at 1 for confirmation. | $34.00 | Not listed |
| 45_09 | 32381-YQ5A-Z1-Y4 | MY25 | $34.00 | 1 |
| 45_10 | 32391-YQ5A-0100-Y4 | ALL MY | $17.00 | 1 |
| 45_11 | 32381-YQ5A-0100-Y4 | ALL MY | $17.00 | 1 |
| 45_12 | 32391-YQ5A-Z2 | MY23-24 | $19.90 | 1 |
| 45_12 | 32391-YQ5A-Z2-Y4 | MY25 | $19.90 | 1 |
| 45_13 | 32385-YQ5A-0000 | ALL MY | $2.10 | 1 |
| 45_14 | 32391-YQ5A-0100-Y4 | ALL MY | $17.00 | 1 |
| 45_15 | FB03-001-06-016-F0 | ALL MY | $0.40 | 2 |
| 45_16 | 32381-YQ5A-Z2 | MY23-24 | $19.90 | 1 |
| 45_16 | 32381-YQ5A-Z2-Y4 | MY25 | $19.90 | 1 |
| 45_17 | 32385-YQ5A-0000 | ALL MY | $2.10 | 1 |
| 45_18 | 32381-YQ5A-0100-Y4 | ALL MY | $17.00 | 1 |
| 45_19 | FB03-001-06-016-F0 | ALL MY | $0.40 | 2 |
