9. Mid-Shaft

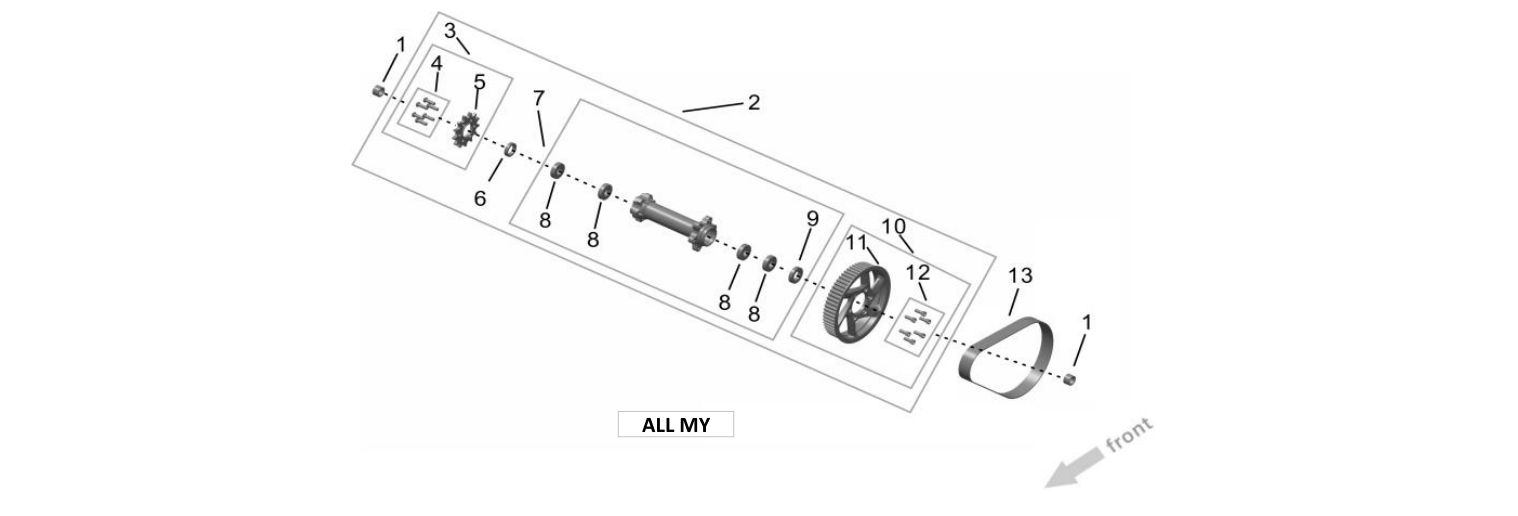

2026 Surron Ultra Bee - Mid-Shaft Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

2026 Ultra Bee catalog includes MY23-24, MY25, MY26 and ALL MY parts. Match the year and variant shown on each row before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.

Click diagram to enlarge

FIND & SELECT YOUR PARTS

DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.

NO.	PART #	DESCRIPTION / YEAR	MSRP	QTY
9_01	61233-YQ5A-0000	Mid. Shaft Bushing+ ADDALL MY	$3.80	2
9_02	61280-YQ5A-Z1	Mid. Shaft Assy.+ ADDMY23-24	$209.00	1
9_02	61280-YQ5A-Z2	Mid. Shaft Assy.+ ADDMY25NOT compatible to old version unless change MY25 belt and pulley also	$225.00	1
9_03	13105-YQ5A-Z1	Mid. Shaft output sprocket Assy.+ ADDALL MY	$15.20	1
9_04	FB03-017-06-020-F7	Screw FB03017 M6*20+ ADDALL MY	$0.40	6
9_05	13105-YQ5A-0000	Mid. Shaft Output Sprocket+ ADDALL MY	Call for price	1
9_06	B7-001-20-28-06	Seal Ring B7001 d2028+ ADDALL MY	$0.40	1
9_07	61280-YQ5A-0000	Mid. Shaft Assy.+ ADDALL MY	$99.00	1
9_08	Z-6002-2RS-32-15-09	Bearing Z6002 d1532+ ADDALL MY	$9.70	4
9_09	B7-001-20-33-07	Seal Ring B7001 d2033+ ADDALL MY	$0.40	1
9_10	13202-YQ5A-Z1	Rear Pulley Assy.+ ADDMY23-24	$105.90	1
9_10	13202-YQ5A-Z2	Rear Pulley Assy.+ ADDMY25	$117.40	1
9_11	13202-YQ5A-0000	Rear Pulley+ ADDMY23-24	Call for price	1
9_11	13202-YQ5A-0100	Rear Pulley+ ADDMY25Ultra Bee MY 2024 not supported	Call for price	1
9_12	B3-001-06-016-F0	Screw B3001 M6*16+ ADDALL MY	$0.40	6
9_13	13111-YQ5A-0000	Primary Drive Belt (Conti)+ ADDMY23-24	$92.00	1
9_13	13111-YQ5A-0200	Primary Drive Belt (Gates)+ ADDMY23-24	$92.00	1
9_13	13111-YQ5A-0300	Primary Drive Belt (Dayco)+ ADDMY25Ultra Bee MY 2024 not supported	$95.00	1
