37. Rear Brake

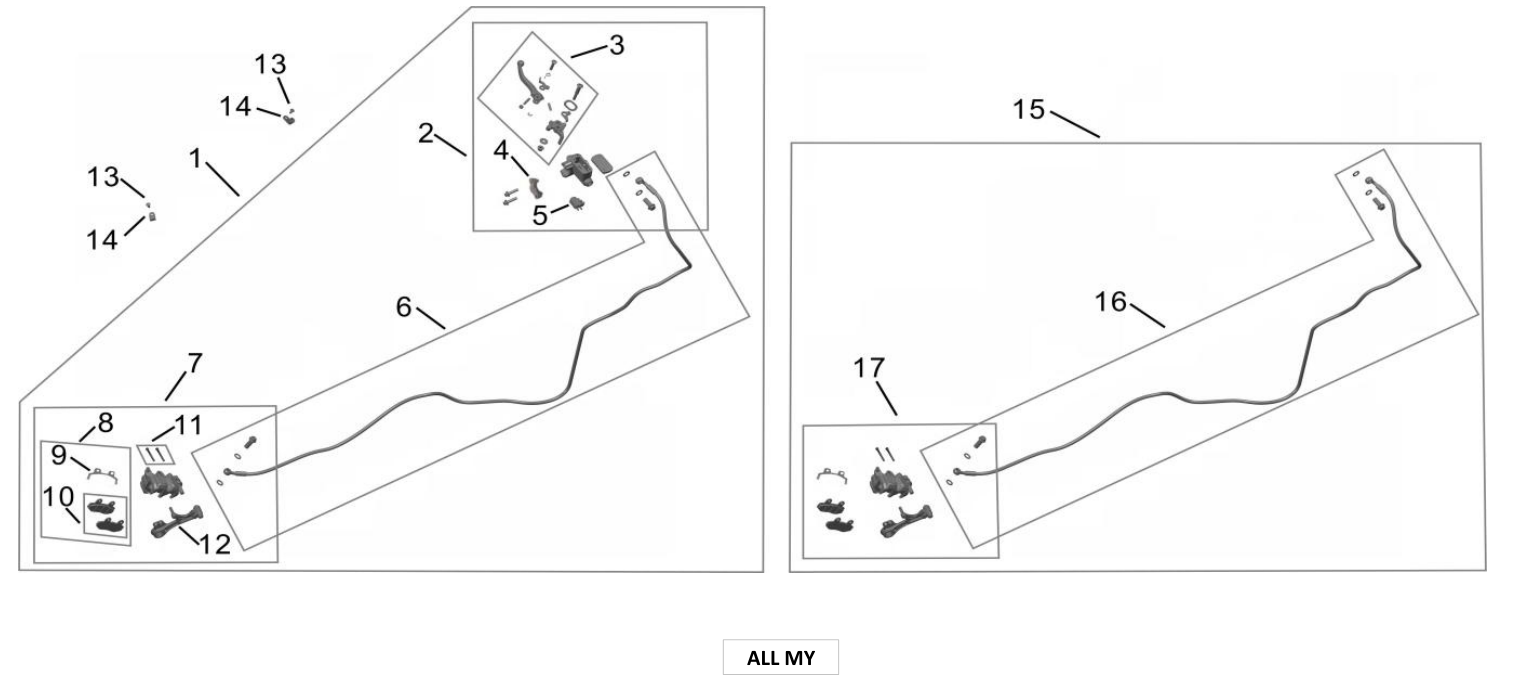

2026 Surron Ultra Bee - Rear Brake Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
2026 Ultra Bee catalog includes MY23-24, MY25, MY26 and ALL MY parts. Match the year and variant shown on each row before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 37_01 | 52200-YQ5C-0100 | ALL MY | $314.00 | 1 |
| 37_02 | 52210-YQ5A-0000 | ALL MY | $89.00 | 1 |
| 37_03 | 52211-YQ5A-0000 | ALL MY | $35.00 | 1 |
| 37_04 | 52113-YQ5C-0000 | ALL MY | $5.20 | 1 |
| 37_05 | 52221-YQ5A-0000 | ALL MY | $5.20 | 1 |
| 37_06 | 52240-YQ5A-0000 | ALL MY | $57.00 | 1 |
| 37_07 | 52290-YQ5A-0100 | ALL MY | $82.50 | 1 |
| 37_08 | 52191-YQ5A-Z1 | ALL MY | $27.10 | 1 |
| 37_09 | 52193-YQ5A-0000 | ALL MY | Call for price | 1 |
| 37_10 | 52191-YQ5A-0000 | ALL MY | Call for price | 1 |
| 37_11 | 52194-YQ5A-0000 | ALL MY | $2.40 | 1 |
| 37_12 | 52280-YQ5A-0000 | ALL MY | $31.00 | 1 |
| 37_13 | B3-002-05-010-F0 | ALL MY | $0.40 | 2 |
| 37_14 | 81137-YQ2A-0000 | ALL MY | $0.40 | 2 |
| 37_15 | 52290-YQ5A-Z1 | ALL MY | $139.50 | 1 |
| 37_16 | 52240-YQ5A-0000 | ALL MY | Call for price | 1 |
| 37_17 | 52290-YQ5A-0100 | ALL MY | Call for price | 1 |
