6. Swingarm

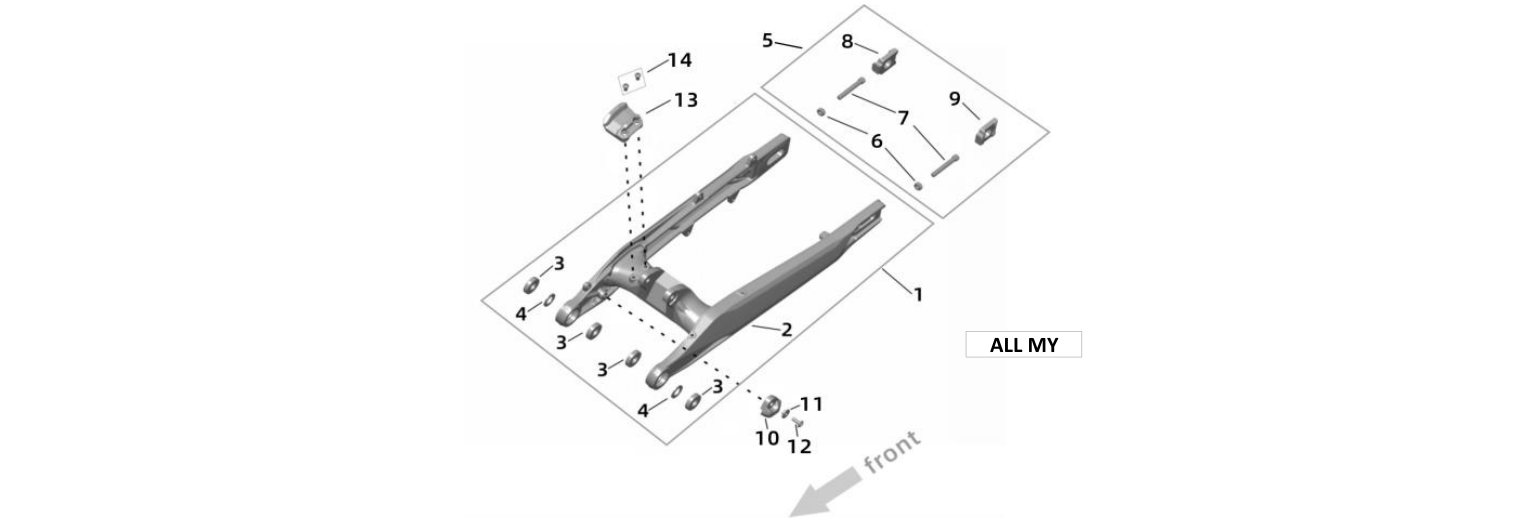

2026 Surron Ultra Bee - Swingarm Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
2026 Ultra Bee catalog includes MY23-24, MY25, MY26 and ALL MY parts. Match the year and variant shown on each row before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 6_01 | 61000-YQ5A-Z2-Y4 | ALL MY | $497.00 | 1 |
| 6_01 | 61000-YQ5A-Z1-Y15 | MY23-24 | $497.00 | 1 |
| 6_01 | 61000-YQ5A-Z2-Y22 | MY25 | $497.00 | 1 |
| 6_02 | 61100-YQ5A-0001-Y4 | ALL MY | $483.00 | 1 |
| 6_02 | 61100-YQ5A-0001-Y15 | MY23-24 | $483.00 | 1 |
| 6_02 | 61100-YQ5A-0001-Y22 | MY25 | $483.00 | 1 |
| 6_03 | Z-6000-2RS-32-15-08 | ALL MY | $3.80 | 4 |
| 6_04 | 61235-YQ5A-0000 | ALL MY | $2.00 | 2 |
| 6_05 | 61210-YQ5A-Z1 | ALL MY | $12.60 | 1 |
| 6_06 | B2-019-08-F2 | ALL MYFB02-009-08-F2 | $0.40 | 2 |
| 6_07 | FB01-016-08-055-F2 | ALL MY | $0.40 | 2 |
| 6_08 | 61220-YQ5A-0000 | ALL MY | $5.50 | 1 |
| 6_09 | 61210-YQ5A-0000 | ALL MY | $5.50 | 1 |
| 6_10 | 61239-YQ5A-0000 | ALL MY | $5.00 | 1 |
| 6_11 | 61241-YQ5A-0000 | ALL MY | $0.80 | 1 |
| 6_12 | FB03-001-06-016-F0 | ALL MY | $0.40 | 1 |
| 6_13 | 61237-YQ5A-0000 | ALL MY | $5.50 | 1 |
| 6_14 | B3-002-06-012-F0 | ALL MY | $0.40 | 2 |
