4. Triple Clamp

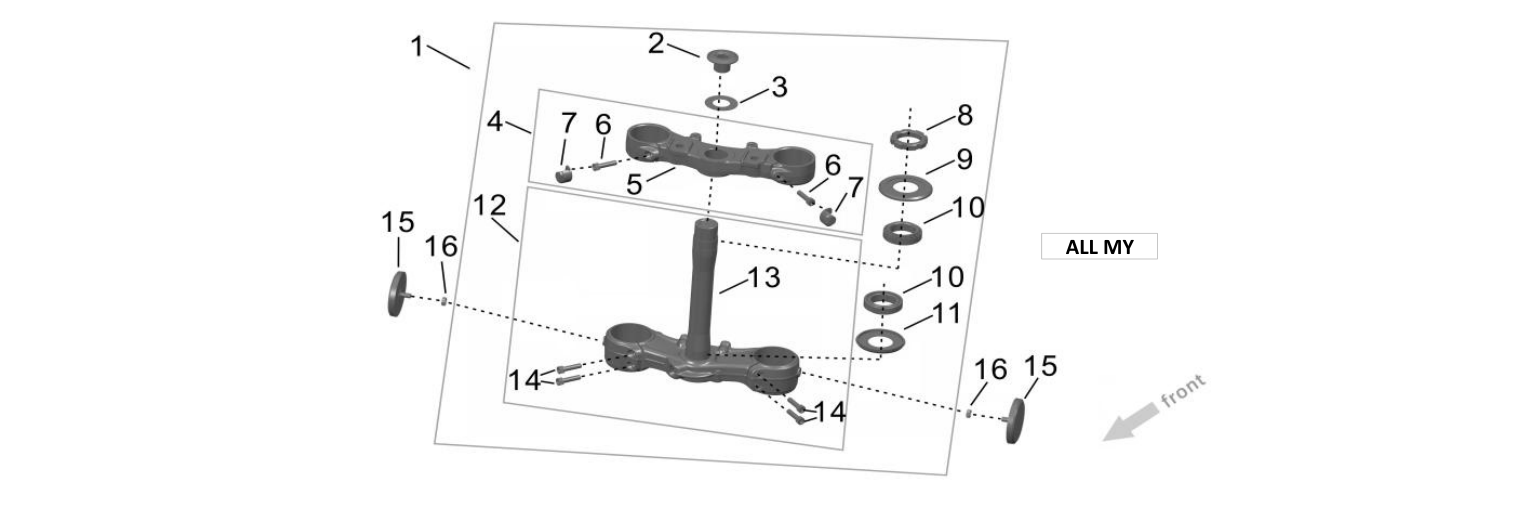

2026 Surron Ultra Bee - Triple Clamp Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

2026 Ultra Bee catalog includes MY23-24, MY25, MY26 and ALL MY parts. Match the year and variant shown on each row before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.

Click diagram to enlarge

FIND & SELECT YOUR PARTS

DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.

NO.	PART #	DESCRIPTION / YEAR	MSRP	QTY
4_01	51110-YQ5A-Z1	Steering Column Assy.+ ADDALL MY	$222.00	1
4_02	51123-YQ5A-0000	Steering Head Nut+ ADDALL MY	$0.80	1
4_03	51131-YQ5A-0000	Steering Head Gasket TOP+ ADDALL MY	$1.20	1
4_04	51121-YQ5A-Z1	Upper Steering Head Plate & Screw+ ADDALL MY	$87.00	1
4_05	51121-YQ5A-0000	Upper Steering Head Plate+ ADDALL MY	Call for price	1
4_06	B3-001-06-025-F2	Screw B3001 M6*25+ ADDALL MY	$0.80	2
4_07	32334-YQ5A-0000	Battery Cap Protection Block+ ADDALL MY	$2.50	2
4_08	51133-YS1A-0000	Steering Head Adjust Nut+ ADDALL MY	$2.80	1
4_09	51126-YS1A-0000	Steering Head Cover+ ADDALL MY	$3.00	1
4_10	Z-32906X-47-30-12	Bearing Z332906X d3047+ ADDALL MY	$13.00	1
4_11	51127-YQ5A-0000	Steering Head Support Gasket+ ADDALL MY	$3.00	1
4_12	51110-YQ5A-Z2	Lower Steering Head Plate & Screw+ ADDALL MY	$117.70	1
4_13	51110-YQ5A-0000	Lower Steering Head Plate+ ADDALL MY	Call for price	1
4_14	B3-001-06-025-F2	Screw B3001 M6*25+ ADDALL MY	$0.80	4
4_15	22910-YQ2B-0000	Front Side Reflector+ ADDALL MY	$2.50	2
4_16	B2-001-06-F2	Nut B2001 M6+ ADDALL MY	$0.40	2
