Product Description

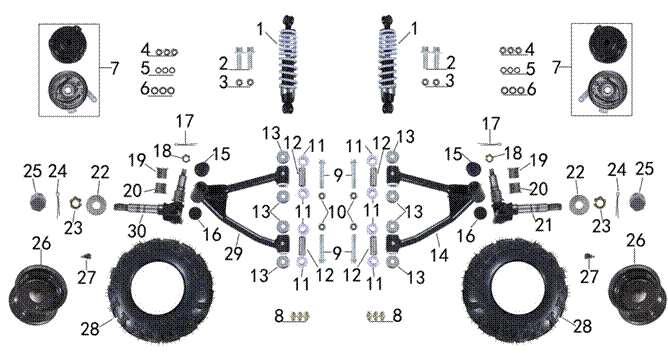

Ref. No. | Part # | Description |
1 | 112936 | Spring Coil Suspension(Single); 243┬▒1mm |
2 | 105004 | Hex Flange Bolt; M10x40x1.25 |
3 | 105277 | Locknut; M8 |
4 | 105253 | Hex Flange Bolt; M10x1.25 |
5 | 104884 | Spring Washer; M8 |
6 | 106932 | Flat Washer; φ8x20x1.5 |
7 | 112954 | Drum Brake Assembly – Front Left and Right Set |
8 | 108287 | Grease Fitting; M6x9 |
9 | 105027 | Hex Flange Bolt; M10×1.25×70 |
10 | 105254 | Locknut; M10×1.25 |
11 | 112930 | Nylon Bushing; φ30×φ25×φ18×20 |
12 | 112931 | Front Rocker Arm Spacer; φ17.7×φ10×49 |
13 | 112934 | Rocker Arm Sealing Cover; φ37×φ10 |
14 | 602437 | Left A-Arm; 0.8kg for MudHawk 6 |
15 | 112937 | Metal Tube Rubber Cap |
16 | 112955 | Metal Tube Rubber Cap |
17 | 105338 | Cotter Pin; φ2.5×30 |
18 | 105321 | Castle Nut; M10×1.5 |
19 | 112932 | Spindle Spacer; φ25.5×φ21×φ15.5×20 |
20 | 112933 | Steering Shaft Bushing; φ25.5×φ21×φ17×20 |
21 | 112912 | Left Spindle |
22 | 111607 | Flat Washer; φ40×φ14×2 |
23 | 105325 | Castle Nut; M14×1.5 |
24 | 105340 | Cotter Pin; φ3×40 |
25 | 108326 | Dust Cover |
26 | 110120 | 7ΓÇ¥ Rim; 7ΓÇ¥ |
27 | 100537 | Valve Stems |
28 | 110120 | 7ΓÇ¥ Rim; 7ΓÇ¥ |
29 | 602439 | Right A-Arm for MudHawk 6 |
30 | 602441 | Right Spindle for MudHawk 6 |
