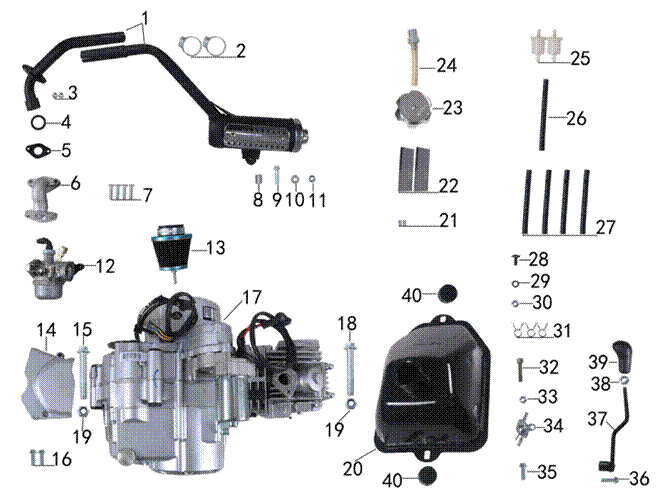

Product Description
|
Ref. No. |
Part # | Description |
| 1 | 112943 | Exhaust Pipe Assembly |
| 2 | 113708 | Muffler Clamp; φ30 |
| 3 | 600791 | Locknut; M6 |
| 4 | 102419 | Muffler Gasket; OD： 31.5mm ID: 23.5mm |
| 5 | 106945 | Intake Manifold Gasket |
| 6 | 600689 | Intake Manifold |
| 7 | 105712 | Hex Nut; M8×20 |
| 8 | 112944 | Muffler Spacer; φ20*φ8*19 |
| 9 | 105223 | Hex Flange Bolt; M8x35 |
| 10 | 106932 | Flat Washer; φ8x20x1.5 |
| 11 | 105276 | Locknut; M8 |
| 12 | 101333 | Manual Choke Carburetor; PZ19 |
| 13 | 101495 | Cone Shape Air Filter Assembly |
| 14 | 110975 | Engine Sprocket Covers |
| 15 | 104928 | Hex Flange Bolt; M8x105 |
| 16 | 105712 | Hex Nut; M8×20 |
| 17 | 602106 | 110cc Auto w/Reverse, Elec. Start Engine Assembly |
| 18 | 104925 | Hex Flange Bolt; M8x115 |
| 19 | 105276 | Locknut; M8 |
| 20 | 102297 | Fuel Tank-ATV; @50 |
| 21 | 115016 | Fuel Tank Installation Spacer; φ8*φ10*9 |
| 22 | 115015 | Sponge Mat; 55*20*5 |
| 23 | 101678 | Fuel Tank Cap |
| 24 | 600566 | Fuel Tank Cap Vent Tube |
| 25 | 600801 | Fuel Filter Universal |
| 26 | 100271 | Fuel Line; φ4.5*φ8.5*200 |
| 27 | 100269 | Fuel Line; φ4.5*φ8.5*100 |
| 28 | 600680 | Cross Large Flat Head bolt; M6x20 |
| 29 | 105450 | Flat Washer; φ6*φ16*1.5 |
| 30 | 105273 | Locknut; M6 |
| 31 | 101449 | Pinch Clamp; Φ8 |
| 32 | 600728 | Column Hex Socket Bolt; M6x16 |
| 33 | 105272 | Locknut; M6 |
| 34 | 102241 | Fuel  Valve / Petcock/Fuel Pump |
| 35 | 105204 | Hex Flange Bolt; M8x20 |
| 36 | 105141 | Hex Flange Bolt; M6x20 |
| 37 | 602449 | Gear Shifter Rod |
| 38 | 105487 | Hex Nut; M10*1.5 |
| 39 | 101088 | Gear Shifter Handle for ATA 135 DU and more |
| 40 | 600710 | Fuel Tank Panel Washer |
