Product Description
Massimo UTV Plow Mounts
UTV Front-Mount Plow Mount:
- KFI UTV Front-Mount Plow Mount - #SEE CHART BELOW - Most $99.95+ US MSRP
NOTE: Mounts listed below will use the new style #10-6300 or old style #10-5635 UTV push tubes.
UTV Model Specific Plow Mount Specifications:
- 100% MADE IN USA
- Front-Mount System
- Plate constructed from Grade 50 Steel
- All Pin Tabs are constructed from 1/4" Thick Grade 50 Steel
- All Plow tabs are tapered to help reduce hang-ups while trail riding
- Unlike all other Plow competitors our Mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
| Massimo UTV's | Year | Model Specific Mount |
|---|---|---|
| Knight 500 and 700 | ALL | 10-6245 |
| MSU-500 | ALL | 10-5555 |
| MSU-700 | ALL | 10-5555 |
| MSU-700 4 | ALL | 10-5555 |
| T-Boss 550 | ALL | 10-6010** |
| T-Boss 750 | ALL | 10-6010** |
MOUNT # NOTES:
** = Recommend also purchasing the #10-5270 Plow Pulley if using STEEL cabled winches or #10-6270 Plow Pulley is using SYNTHETIC cabled winches.
Pro-S Steel Blades

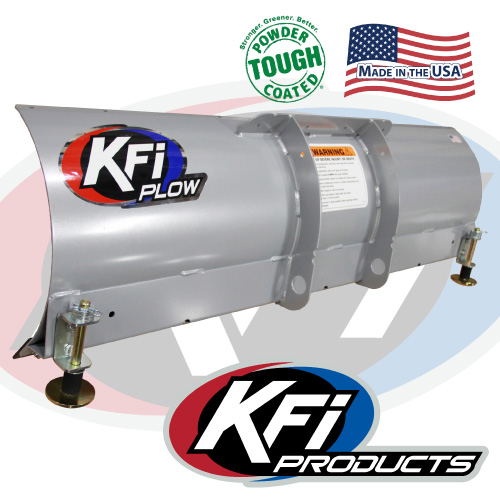

Straight Plow Blades:
- 60" ATV / UTV Pro-S Series Plow Blade (Straight) - #10-5060
- 66" UTV Pro-S Series Plow Blade (Straight) - #10-5066
- 72" UTV Pro-S Series Plow Blade (Straight) - #10-5072
Straight Blade Specifications:
- 100% MADE IN USA
- Pushes snow straight ahead or to the sides up to 25 degrees
- Added gussets for the wider width
- The 66" & 72" blades include a 7" high 2-ply top rubber flap
- Measures 16” Vertical blade face height with an approximate 21” height with snow flap
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3"-diameter grade-50 steel skid plates
- Blade Constructed of 11 ga steel
- 3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
- Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
- 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
- 2-Year KFI Warranty
Pro-Poly Blades
UTV Pro-Poly Plow Blade:
- 60" ATV / UTV Pro-Poly Series Plow Blade - #10-5860
- 66" UTV Pro-Poly Series Plow Blade - #10-5866
- 72" UTV Pro-Poly Series Plow Blade - #10-5872
UTV Poly Blade Specifications:
- Includes a 7" high 2-ply top rubber flap
- 100% MADE IN USA
- Dual Curvature face for supreme snow moving
- Measures 21” Vertical blade face height with an approximate 27” height with snow flap
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3"-diameter grade-50 steel skid plates
- Flexible Heavy Duty Black Poly face
- 3/16” Grade 50 Steel Rib and Frame construction
- Unlike all other Plow competitors our Plows are metal bead blasted before they arePowder Coated Black for supreme durability
- 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
- Complete installation instructions included
- Works with KFI ATV & UTV Tubes
- Includes Plow Markers
- 2-Year KFI Warranty
PRO 2.0 Square Push Tube #10-6300
NEW PRO 2.0 UTV PUSH TUBE - #10-6300
- Improved Manufacturing
- Easier Install For All Plow Accessories
- Added 2.5" Of Overall Length
- Works With All KFI Plows
- Front Mount Design with 30"+ of lift height
- 100% MADE IN USA
- Heavy Duty 1-1/2" 12 Gage Square Steel Tubing
- Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
- 6" Diameter POM Injection Molded Rotator Bushing
- Easy-Pull Pin Blade angle adjustment
- Multi-position Plow Lift Bracket
- 6 five degree blade pitch adjustments
- 3 blade angle positions that rotate the blade up to 25 Degrees
- Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- 2-Year KFI Warranty
