Massimo UTV Plow Mounts

UTV Front-Mount Plow Mount:

• KFI UTV Front-Mount Plow Mount - #SEE CHART BELOW - Most $99.95+ US MSRP

NOTE: Mounts listed below will use the new style #10-6300 or old style #10-5635 UTV push tubes.

UTV Model Specific Plow Mount Specifications:

• 100% MADE IN USA
• Front-Mount System
• Plate constructed from Grade 50 Steel
• All Pin Tabs are constructed from 1/4" Thick Grade 50 Steel
• All Plow tabs are tapered to help reduce hang-ups while trail riding
• Unlike all other Plow competitors our Mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder Coated Black for supreme durability
• Complete installation instructions included
• All mounting hardware included
• Satisfaction guaranteed

MOUNT # NOTES:
** = Recommend also purchasing the #10-5270 Plow Pulley if using STEEL cabled winches or #10-6270 Plow Pulley is using SYNTHETIC cabled winches.

Pro-S Steel Blades

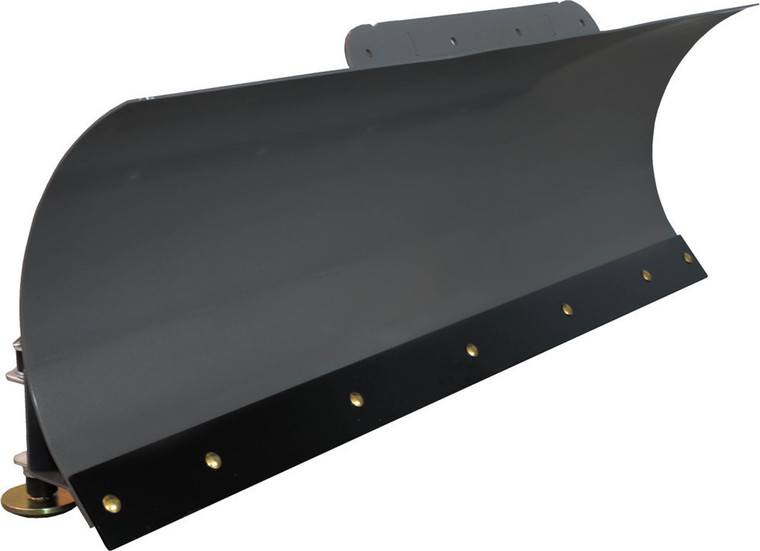

Straight Plow Blades:

• 60" ATV / UTV Pro-S Series Plow Blade (Straight) - #10-5060
• 66" UTV Pro-S Series Plow Blade (Straight) - #10-5066
• 72" UTV Pro-S Series Plow Blade (Straight) - #10-5072

Straight Blade Specifications:

• 100% MADE IN USA
• Pushes snow straight ahead or to the sides up to 25 degrees
• Added gussets for the wider width
• The 66" & 72" blades include a 7" high 2-ply top rubber flap
• Measures 16” Vertical blade face height with an approximate 21” height with snow flap
• Fully-adjustable blade skids with bolt-on brackets
• Heavy duty 3"-diameter grade-50 steel skid plates
• Blade Constructed of 11 ga steel
• 3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
• Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
• 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
• Wear Bar attached with Heavy Duty Grade 8 Bolts
• 2-Year KFI Warranty

Pro-Poly Blades

UTV Pro-Poly Plow Blade:

• 60" ATV / UTV Pro-Poly Series Plow Blade - #10-5860
• 66" UTV Pro-Poly Series Plow Blade - #10-5866
• 72" UTV Pro-Poly Series Plow Blade - #10-5872

UTV Poly Blade Specifications:

• Includes a 7" high 2-ply top rubber flap
• 100% MADE IN USA
• Dual Curvature face for supreme snow moving
• Measures 21” Vertical blade face height with an approximate 27” height with snow flap
• Fully-adjustable blade skids with bolt-on brackets
• Heavy duty 3"-diameter grade-50 steel skid plates
• Flexible Heavy Duty Black Poly face
• 3/16” Grade 50 Steel Rib and Frame construction
• Unlike all other Plow competitors our Plows are metal bead blasted before they arePowder Coated Black for supreme durability
• 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
• Wear Bar attached with Heavy Duty Grade 8 Bolts
• Complete installation instructions included
• Works with KFI ATV & UTV Tubes
• Includes Plow Markers
• 2-Year KFI Warranty

PRO 2.0 Square Push Tube #10-6300

NEW PRO 2.0 UTV PUSH TUBE - #10-6300

• Improved Manufacturing
• Easier Install For All Plow Accessories
• Added 2.5" Of Overall Length
• Works With All KFI Plows
• Front Mount Design with 30"+ of lift height
• 100% MADE IN USA
• Heavy Duty 1-1/2" 12 Gage Square Steel Tubing
• Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
• 6" Diameter POM Injection Molded Rotator Bushing
• Easy-Pull Pin Blade angle adjustment
• Multi-position Plow Lift Bracket
• 6 five degree blade pitch adjustments
• 3 blade angle positions that rotate the blade up to 25 Degrees
• Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder Coated Black for supreme durability
• Complete installation instructions included
• All mounting hardware included
• 2-Year KFI Warranty
