Benelli Zafferano Cylinder Head (Free Shipping)

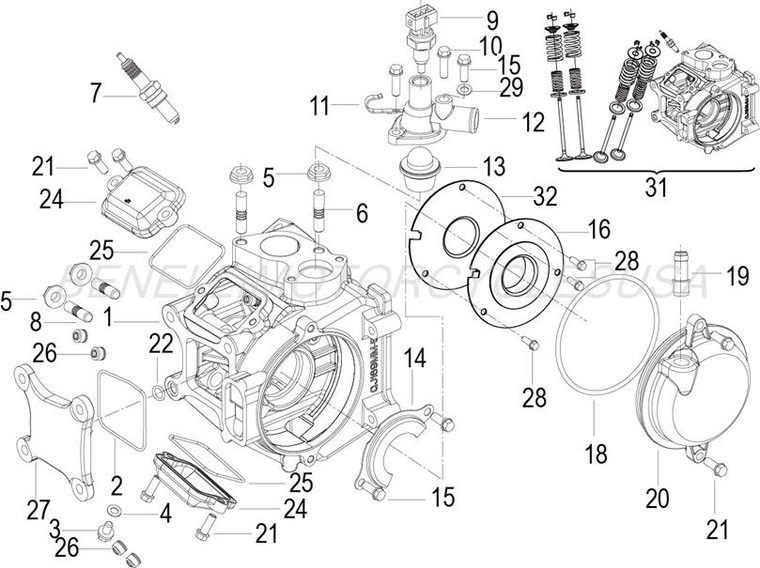

| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 109055090011 | CYLINDER HEAD | ASM | 1 | Pc. | $218.00 |
| 2 | 110045090000 | O-RING | 1.8×63.6 | 1 | Pc. | $11.00 |
| 3 | 12007505011X | BOLT | 1 | Pc. | $1.50 | |
| 4 | 150013070000 | WASHER | 1 | Pc. | $1.50 | |
| 5 | B0417080005H | NUT | M8 | 4 | Pcs. | $1.50 |
| 6 | 10004609001X | INTAKE STUD | M8×41 | 2 | Pcs. | $3.50 |
| 7 | 299073160000 | SPARK PLUG | NGK CR8E | 1 | Pc. | $12.00 |
| 8 | 12003505011X | EXHAUST STUD | M8×36.5 | 2 | Pcs. | $3.50 |
| 9 | 270013160002 | WATER TEMPERATURE SENSOR | 1 | Pc. | $39.00 | |
| 10 | B0107060206H | BOLT | M6×20 | 2 | Pcs. | $1.50 |
| 11 | 100175050000 | CLIP | 1 | Pc. | $3.50 | |
| 12 | 100085050011 | THERMOSTAT COVER | 1 | Pc. | $13.00 | |
| 13 | 279165050000 | THERMOSTAT | 1 | Pc. | $36.00 | |
| 14 | 110035090000 | CAMSHAFT RETAINER PLATE | 1 | Pc. | $8.00 | |
| 15 | B0107060126H | BOLT | M6×12 | 3 | Pcs. | $1.50 |
| 16 | 100395090000 | RETAINER PLATE COVER | 1 | Pc. | $14.00 | |
| 18 | 100025050000 | O-RING | 92.5X3.5 | 1 | Pc. | $11.00 |
| 19 | 159095050000 | BREATHER FITTING | 1 | Pc. | $4.00 | |
| 20 | 100025090030 | CAMSHAFT SPROCKET COVER | 1 | Pc. | $21.00 | |
| 21 | B0107060166H | FLANGE BOLT | M6×16 | 6 | Pcs. | $1.50 |
| 22 | B190100860A0 | O-RING | 8.6×1.9 | 1 | Pc. | $1.50 |
| 24 | 120025090010 | VALVE ADJUSTMENT INSPECTION COVER | 2 | Pcs. | $13.00 | |
| 25 | 120115090000 | O-RING | 1.8×60.078 | 2 | Pcs. | $11.00 |
| 26 | 120015090000 | VALVE STEM SEAL | 4 | Pcs. | $2.50 | |
| 27 | 110025090010 | CYLINDER HEAD INSPECTION COVER | SILVER | 1 | Pc. | $18.00 |
| 28 | B1308040100H | SCREW W/WASHER | M4×10 | 3 | Pcs. | $1.50 |
| 29 | 130013050000 | WASHER | 1 | Pc. | $1.50 |
Everything listed in this schematic will come with this package.
