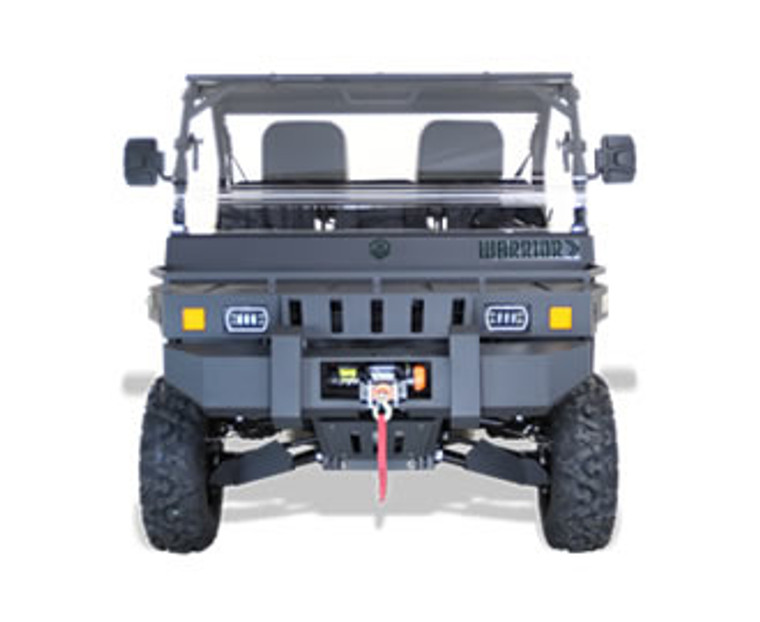

Bennche Warrior 1000 Parts

Name: Bennche Warrior 1000 Parts
Brand: Bennche
Availability: OutOfStock

Bennche

SPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU

(No reviews yet) Write a Review

Availability:: Please call to order parts. 320-358-1994

Overview
Reviews

Product Description

Bennche Parts : UTV : Warrior 1000

Click to Enlarge

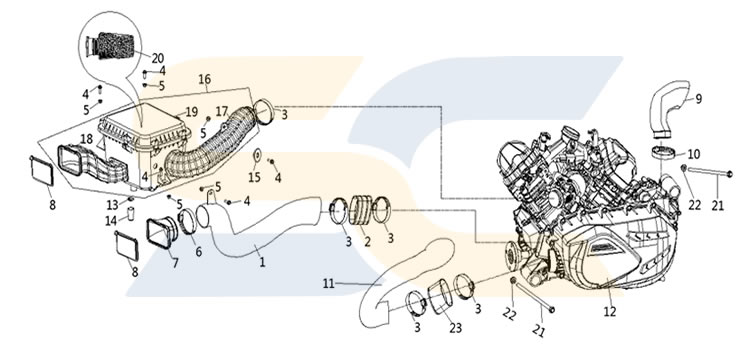

AIR FILTER & ENGINE

Ref# Part Price Qty

14607030000

CVT Air Inlet Pipe

$33.17

10907030020

Clamp 64-76

$2.70

14507030210

Clamp 70-89

$4.31

14607030030

CVT Air Inlet Vent

$10.00

14607030040

CVT Air Inlet Pipe Filter

$5.91

14707040040

Rear Exhuast Pipe, CVT

$15.65

10907040020

Clamp 51-70

$2.70

14707040030

Front Exhuast Pipe, CVT

$28.15

41000409113

Engine Assy

$2,372.90

21040401601

Clamp 12-22

$3.23

21040401501

Air Filter Catch Hose

$2.78

10110340310

Door Limited Strip Bushing

$3.23

21040401005

Air Filter Assy

$64.43

21040401015

Air Filter Inlet Pipe

$52.40

21040401025

Air Filter Exhaust Pipe

$55.90

21040401035

Air Filter Body

$56.57

21040401012

Filter Element

Quantity	Price
1 – 4	$16.00
5 – 9	$14.00
10 +	$12.00

01256101306

Hex Flange Bolt 10x130x1.25

$1.91

04622100026

Hex Locking Nut 10X1.25

$3.23

13207030010

CVT Exhaust Pipe Boot

$1.88

04612060025

Hex Locking Nut 6

$3.23

01224060165

Hex Bolt 6X16

$3.23

Click to Enlarge

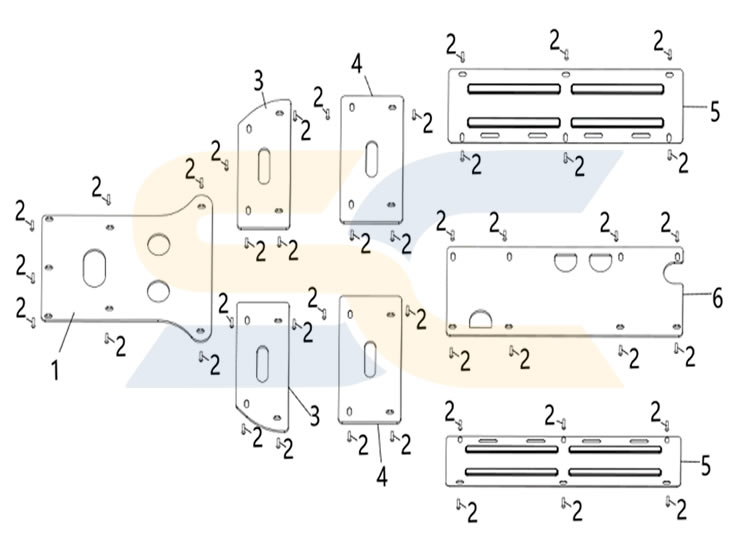

BOTTOM COVER PIECES

Ref#	Part	Price
1	14608010061 Bottom Board, Front	$17.52
2	03414060164 Socket Pan Head Screws 6X16	$1.91
3	14608010081 Bottom Board, Middle Front	$23.73
4	14608010041 Bottom Board, Middle	$17.52
5	14608010050 Side Bottom Board, Rear	$20.62
6	14608010091 Bottom Board, Middle Rear	$22.85

Click to Enlarge

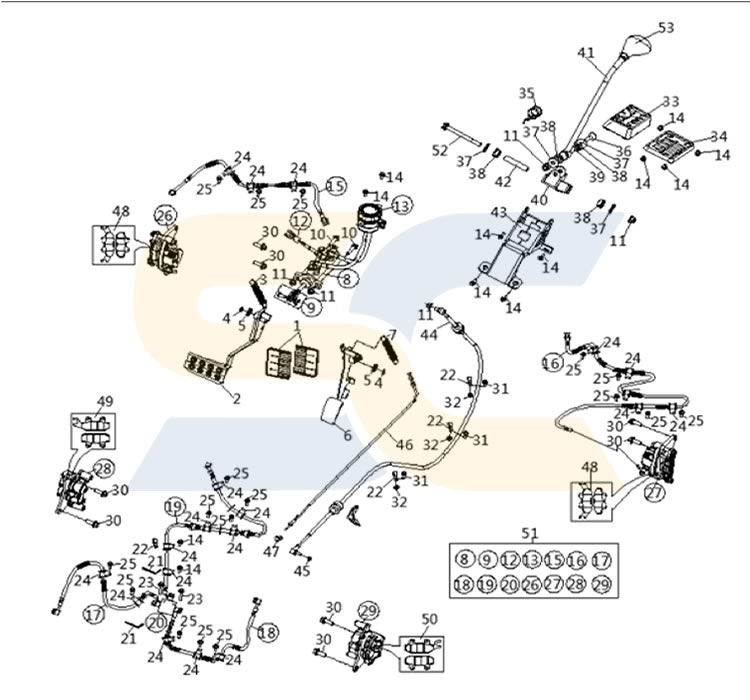

BRAKES

Ref#	Part	Price
1	14606100000 Mud Shield	$4.26
2	14606080000 Brake Pedal	$17.05
3	10706030020 Spring Brake Pedal	$3.23
4	07031120004 Elastic Snap Ring 12	$3.23
5	06219152805 Washer 15X28X2	$3.23
6	14611010100 Throttle Pedal	$17.28
7	10906100020 Throttle Return Spring	$10.00
9	15106010470 Brake Rod Of Master Cylinder	$5.38
10	01224080355 Hex Bolt 8X35	$1.91
11	04612080025 Hex Locking Nut 8	$3.23
12	10909050010 Brake Connector	$10.00
13	15106010440 Oil Cup, Brake System	$18.71
14	01224060165 Hex Bolt 6X16	$3.23
15	14606010160 Front Brake Hose, Driver	$19.35
16	14606010170 Front Brake Hose, Passenger	$21.50
17	14606010260 Rear Brake Hose, Driver	$12.00
18	14606010250 Rear Brake Hose, Passenger	$21.50
19	14606010240 Rear Hose, Brake Assy	$17.87
20	10906010450 3-Way Connector	$18.83
21	21040402401 Wire Holder	$2.91
22	10109380010 Wire Harness Clamp	$3.23
23	01224060305 Hex Bolt 6X30	$3.23
24	10406010090 Brake Fuel Hose Clamp	$3.23
26	14706010040 Front Brake Caliper, Driver	$42.96
27	14706010050 Front Brake Caliper, Passenger	$160.00
28	14606010140 Rear Brake Caliper, Driver	$82.33
29	14606010150 Rear Brake Caliper, Passenger	$82.33
32	04512060027 Rivet Nut 6	$3.23
33	14710360000 Gear Shift Plate	$6.83
34	14710360140 Rubber Support	$4.51
35	14711060150 Return Spring	$1.76
36	01214080655 Hex Flange Bolt	$1.91
37	06119092005 Washer 20X8.5X2	$1.91
38	13205050060 Steering Nylon Sleeve	$3.07
39	14711060130 Gear Shift Neck Bushing, Shorter	$2.81
40	14711060110 Shift Arm Universal Joint Pin	$27.35
41	14711060140 Gear Shift Neck Bushing (Long)	$3.94
42	14711060000 Gear Shift Lever	$13.77
43	14708220000 Gear Shifter Bracket	$61.60
44	14711030000 Gear Shift Cable	$26.28
45	04512060025 Hex Locking Nut 6	$3.23
46	14611010010 Throttle Cable	$14.69
47	21040505601 Copper Buckle	$10.00
48	15106010060 Brake Pad Set, Front	$20.53
49	14606010650 Rear Brake Pad Set, Driver	$25.08
50	14606010660 Rear Brake Pad Set, Passenger	$25.08
51	14706010000 Brake System Assy	$227.65
52	01214080855 Hex Flange Bolt M8X85	$1.91
53	14611120080 Gear Shift Ball	$14.16

Click to Enlarge

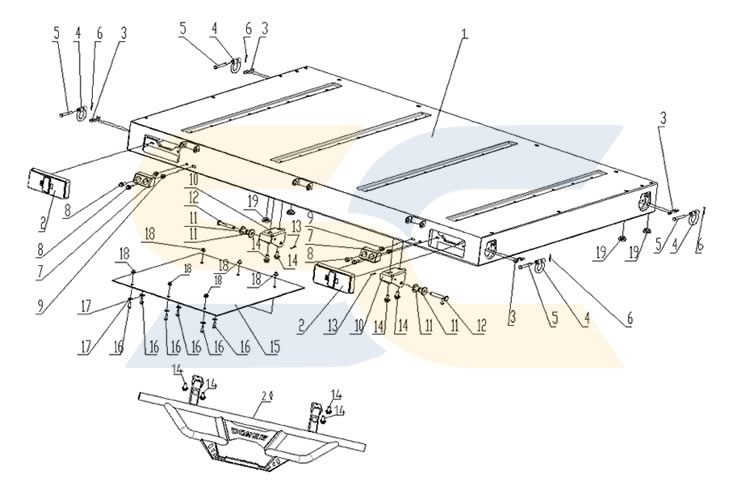

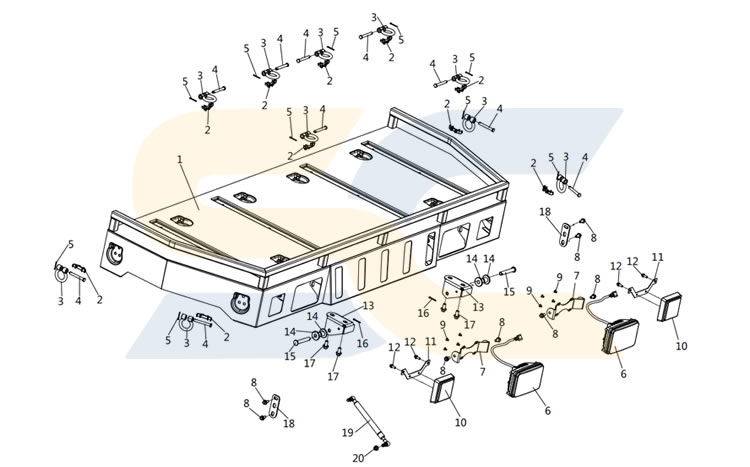

CARGO BED BOARD

Ref#	Part	Price
1	14710150290 Bed Bottom	$600.00
2	14609070120 Tail Light	$47.02
3	14610470090 Hook Bracket	$3.23
4	14710470130 Hook Ring	$11.32
5	14610470110 Hook Pin	$5.53
7	14610151110 Plate, Cargo Bed Board	$3.23
8	012140802551 Hex Bolt 8X25	$3.23
9	04612080025 Hex Locking Nut 8	$3.23
10	14600150120 Hinge Bracket	$19.27
11	14610470070 Nylon Bushing, Hinge Pin	$3.12
12	14610470060 Hinge Pin	$11.80
14	01264100205 Hex Bolt 10x20x1.25	$3.23
15	14610150380 Heat Insulation, Dump Bed	$28.90
16	01224060205 Hex Bolt 6X20	$3.23
17	06119061805 Washer 6.5x18x1	$3.23
18	04512060027 Rivet Nut 6	$3.23
19	10114090120 Seat Bottom Rubber, Outside	$3.23
20	14708360000 Rear Bumper	$119.00

Click to Enlarge

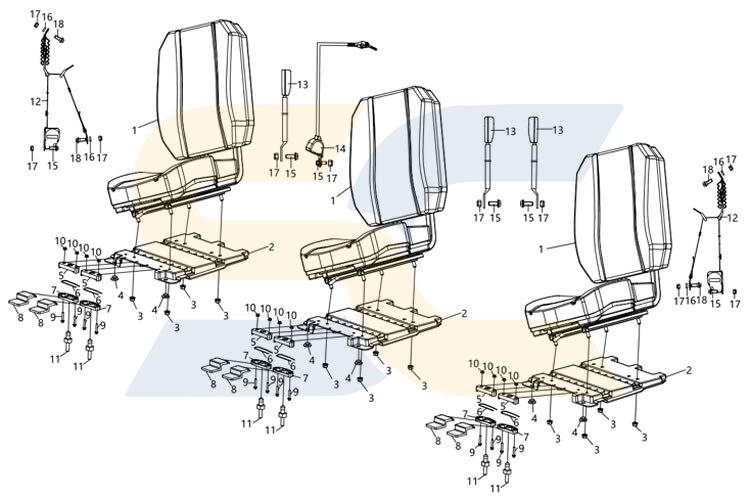

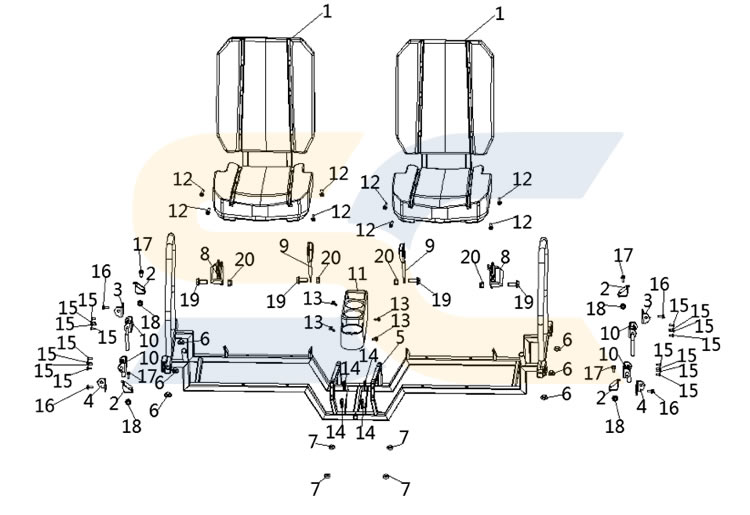

CARGO BED SEATS

Ref#	Part	Price
1	14714090010 Seat Assy	$299.00
2	14710530060 Mounting, Seat	$9.77
3	14710530070 Adjusting Plate, Seat, Driver	$6.08
4	14710530080 Adjudting Plate, Seat, Passenger	$6.08
5	14710530090 Seat Bracket	$205.72
6	10114090120 Seat Bottom Rubber, Outside	$3.23
8	16611090090 Seat Belt	$16.02
9	16611090030 Seat Belt Mounting Buckle	$6.83
10	14710150310 Cargo Bed Handle	$11.61
11	14710350010 Cup Base	$30.00
12	01214080506 Bolt M8x50	$1.91
16	01224080206 Bolt M8x20	$1.91
17	01256120306 Bolt M12x30	$1.91
18	04622120026 Hex Locking Nut 12X1.25	$1.91
20	04212110021 Hex Locking Nut 11	$1.91

Click to Enlarge

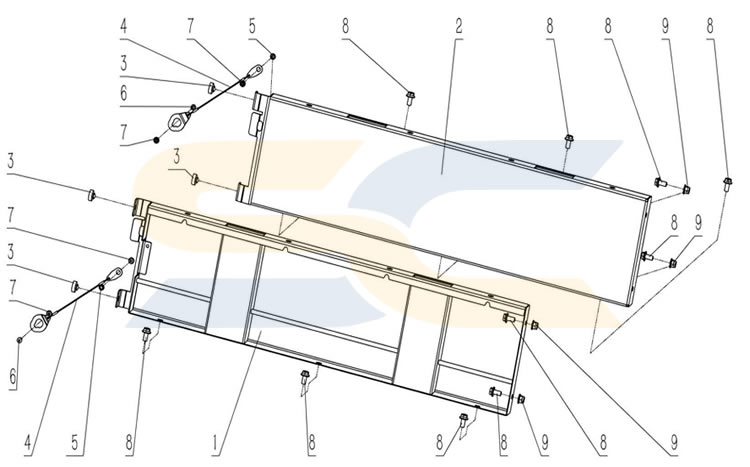

CARGO BED SIDE BOARD

Ref#	Part	Price
1	14710150230 Side Panel, Cargo Bed, Passenger	$86.29
2	14710150220 Side Panel, Cargo Bed, Driver	$86.29
4	14610150152 Cable, Tailgate	$8.80
5	03144060205 Step Bolt 6X20	$3.23
6	01224060165 Hex Bolt 6X16	$3.23
7	04612060025 Hex Locking Nut 6	$3.23
8	01264100205 Hex Bolt 10x20x1.25	$3.23
9	04622100025 Hex Locking Nut 10	$1.91

Click to Enlarge

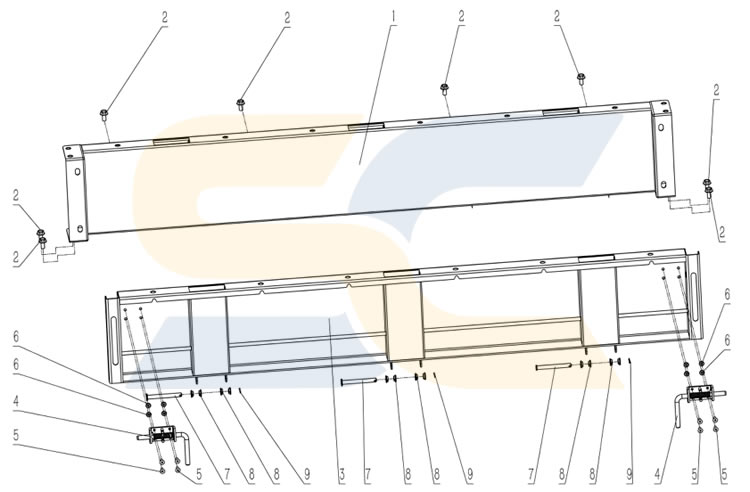

CARGO TAILGATE

Ref#	Part	Price
1	14710150350 Front Board, Cargo Bed	$117.81
2	01264100205 Hex Bolt 10x20x1.25	$3.23
3	14710150360 Rear Door, Cargo Bed	$117.03
4	14610150220 Door Latch, Tailgate	$9.65
6	04612060025 Hex Locking Nut 6	$3.23
7	14610150370 Hinge Pin, Tailgate	$6.74
8	14610150120 Nylon Bushing, Hinge Pin	$1.91

Click to Enlarge

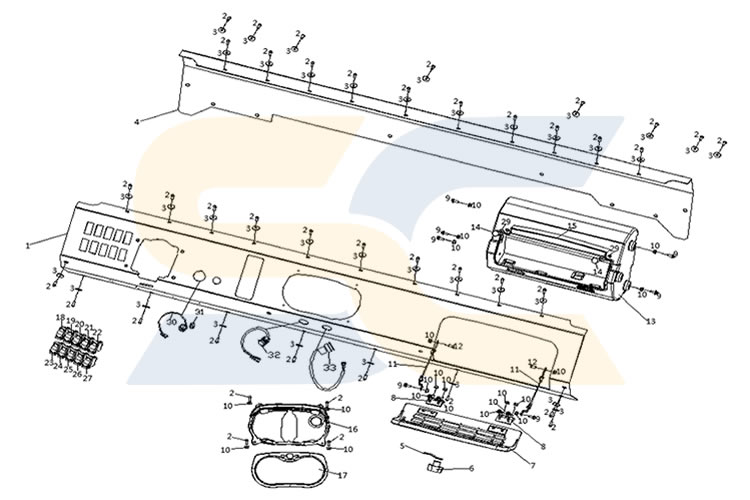

DASHBOARD

Ref#	Part	Price
1	14710270010 Dashboard	$108.59
4	14710270020 Panel Cover	$60.40
5	13210150410 Lock Bracket, Tool Box	$3.23
6	13210260120 Lock, Glove Box	$18.83
7	14710150240 Box Cap	$11.67
8	13210150420 Hinge, Glove Box	$4.06
9	01224060165 Hex Bolt 6X16	$3.23
10	04612060025 Hex Locking Nut 6	$1.91
11	13210150291 Cable, Glove Box	$3.07
12	03144060205 Step Bolt 6X20	$1.91
13	14610150250 Glove Box	$33.45
14	14610340370 Bolt, Glove Box	$1.91
15	14610150260 Seal Strap, Glove Box	$4.06
16	14710020000 Bracket, Instrument Panel	$5.19
17	14709160000 Instrument Panel	$89.99
18	14609190051 Switch, Low/High Beam	$2.10
19	14609190100 Switch, Hazard Lights	$18.39
20	14609190030 Switch, Horn	$3.89
21	14609190020 Switch, Turn Signal Light	$18.39
22	14609190010 Switch, Top Light	$18.39
23	14609190090 Switch, Front Winch	$18.39
24	14609190040 Switch, Dump Bed Motor	$18.39
25	14609190060 Switch, 2WD/4WD Drive	$18.39
26	14609190070 Switch, Front Diff Lock	$18.39
27	14609190080 Switch, Rear Drive Control	$18.39
30	10109430000 Push Start Button	$24.91
31	14609430010 Rubber Cushion, Start Button	$1.91
32	13609300000 DC Socket	$21.50
33	14709300010 USB BASE	$15.36

Click to Enlarge

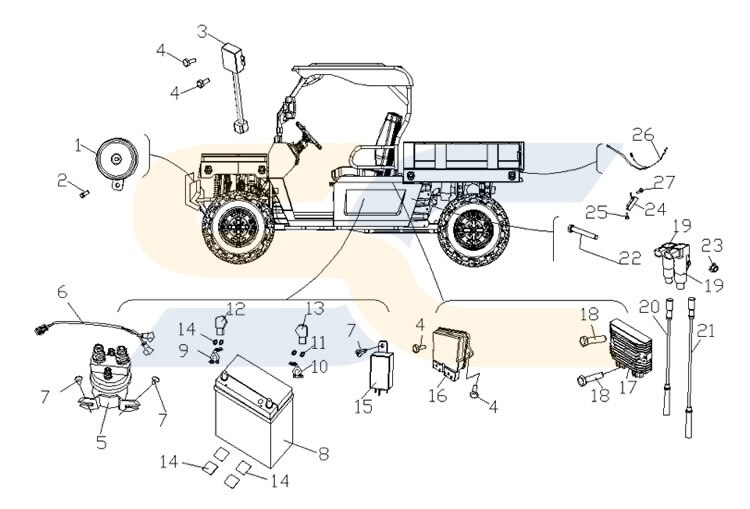

ELECTRICAL PARTS 1

Ref#	Part	Price
1	10409100000 Horn	$7.10
2	01214080165 Hex Bolt 8X16	$1.91
3	21050904103 Reverse Speed Controller	$81.29
5	14109350001 Starter Relay	$50.05
6	14209010180 Starter Relay Connector Wire	$3.87
7	03714630205 Tapping Screws St6.3_20	$1.91
8	10909090000 Battery	$161.90
9	10909090210 Battery Mounting Clip, Positive	$4.84
10	10909090220 Battery Mounting Clip, Negative	$4.31
11	06619061001 Spring Washer 6	$3.23
12	10909010010 Waterproof Cover (Black)	$3.23
13	10909010020 Waterproof Cover (Red)	$3.23
14	10409090020 Rubber Cusion, Battery	$3.23
15	10109270000 Flasher	$18.00
22	01224060751 Hex Bolt 6X75	$3.23
23	04612060025 Hex Locking Nut 6	$1.91
24	14109220010 Mounting Bracket, Ignition Coil	$5.86
26	14609070160 Tail Light Cable	$18.63
27	01224080106 Bolt 8x20	$1.91
4	01224060165 Hex Bolt 6X16	$3.23

Click to Enlarge

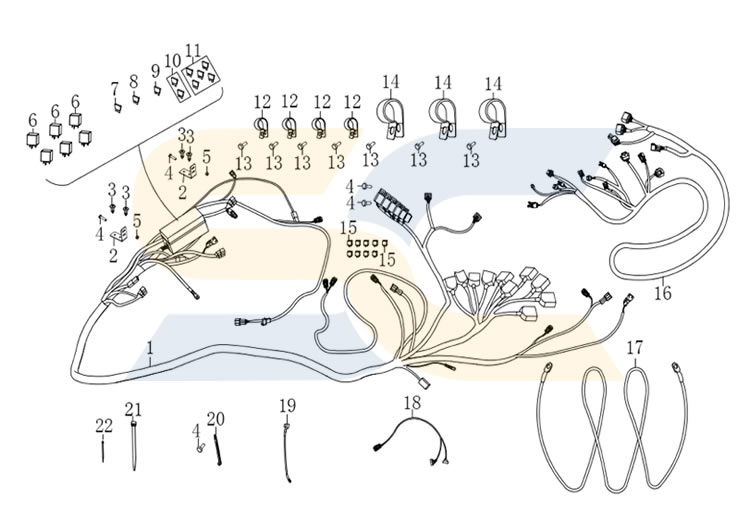

ELECTRICAL PARTS 2

Ref#	Part	Price
2	14609010150 Fuse Box Bracket	$6.03
3	03714630205 Tapping Screws St6.3_20	$1.91
4	01224060165 Hex Bolt 6X16	$3.23
6	10409340000 Diverter Relay (Four Prong)	$13.99
7	10909010050 Fuse 10A, Red	$1.91
8	10909010030 Fuse 30A, Green	$1.91
9	10909010230 Fuse 40A, Orange	$1.91
10	10909010070 Fuse 20A, Yellow	$1.91
11	10909010040 Fuse 15A, Blue	$1.91
12	10109380020 Wire Harness Mounting Clamp 2-20	$1.91
15	10109330000 Solenoid, 2WD/4WD	$4.31
16	14609410000 Engine Wire Harness	$45.96
17	14609010140 Negative Wire	$4.31
18	13203100170 2WD/4WD Wire	$6.00
19	14609010130 Starter Wire Harness	$19.45
20	21040402401 Wire Holder	$2.91
21	90103040030 Nylon Cable Ties W8X250Mm	$1.91
5	04612060025 Hex Locking Nut 6	$3.23

Click to Enlarge

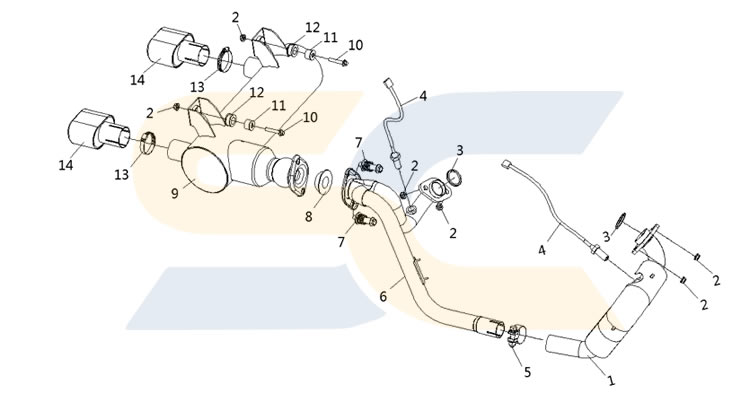

EXHAUST

Ref#	Part	Price
1	14707010060 Front Exhaust Pipe	$50.21
2	04512080025 Hex Locking Nut 8	$3.23
3	21040400101 Exhaust Gasket	$4.24
4	21040400701 Oxygen Sensor	$120.00
5	14107010080 Middle Clamp Of Muffler ÃŽÂ¦46.	$5.40
6	14707010070 Rear Exhaust Pipe	$42.67
7	14107010150 Bolt, Exhaust	$5.53
8	14107010530 Graphite Seal Cartridge	$12.00
9	14707010020 Muffler	$186.98
10	01224080355 Hex Bolt 8X35	$1.91
12	13607010140 Muffler Sleeve- Not Available	$1.91
13	14607010700 Clamp	$1.91
14	14607010100 Muffler End Cover	$29.01
11	13607010190 Muffler Bushing - Not Available	$3.07

Click to Enlarge

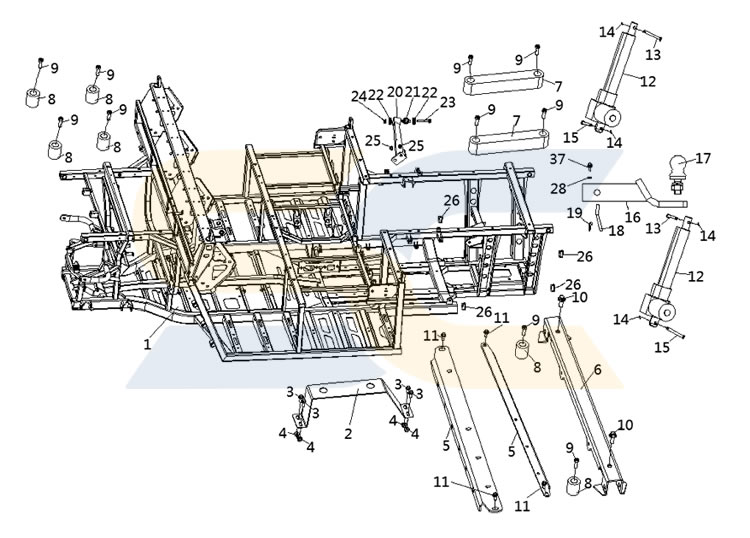

FRAME

Ref#	Part	Price
1	14708010000 Frame Assy	$888.31
2	14609090150 Battery Box Bracket	$15.70
3	01224060165 Hex Bolt 6X16	$3.23
4	04612060025 Hex Locking Nut 6	$1.91
5	14709390020 Cross Bar	$18.77
6	14608560010 Rear Beam	$29.35
7	14610470030 Cargo Bed Support	$11.71
8	14610470080 Elastic Support	$5.92
9	01824080125 Allen Step Bolt M8_12	$1.91
10	01256100206 Hex Bolt 10x20x1.25	$1.91
11	01214080165 Hex Bolt 8X16	$1.91
13	10908410010 Upper Pin, Electric Lift	$1.91
15	10908410020 Lower Pin, Electric Lift	$1.91
16	10908420080 Winch Pothook w ball	$60.00
18	10908420030 Tow Ball Fixed Pin	$3.69
19	10908420040 Tow Ball Pin	$1.91
20	15108260000 Right Mounting Bracket, Engine	$9.94
21	21040401801 Exhaust Shock Absorbers	$4.15
22	10402070000 Engine Rubber	$1.91
24	04622100026 Hex Locking Nut 10X1.25	$3.23
25	01225100206 Hex Bolt 10X20X1.5	$1.91
26	10908010040 Frame Plug, Lower 37X57Mm	$1.91
27	01214080205 Hex Bolt 8X20	$3.23
28	01214080205 Nut 8	$3.23

Click to Enlarge

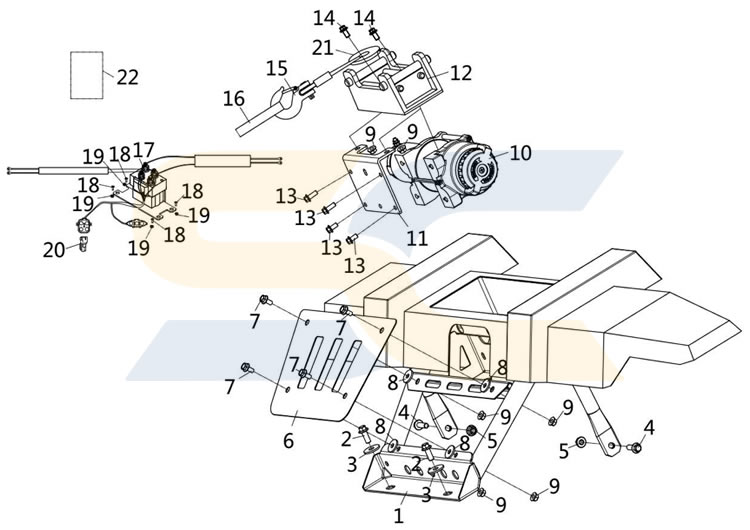

FRONT BUMPER & WINCH

Ref#	Part	Price
1	14708110010 Front Bumper	$175.97
2	01264100205 Hex Bolt 10x20x1.25	$3.23
3	06119113005 Washer 11x30x2	$1.91
4	01264100355 Hex Bolt 10x35x1.25	$1.91
5	04622100025 Hex Locking Nut 10	$1.91
6	14700560110 Lower Guard Board (Black)	$33.36
7	01214080165 Hex Bolt 8X16	$1.91
8	10114100030 Rubber Washer For Step Bolt	$1.91
9	04612080025 Hex Locking Nut 8	$3.23
12	14614150100 Winch Front Roller Bracket	$4.91
13	012140802551 Hex Bolt 8X25	$3.23
15	10914150080 Hook, Winch	$6.08
16	10914150090 Winch Wire	$1.91
17	14614150360 Winch Relay	$50.05
18	01224060255 Hex Bolt 6X25	$1.91
19	04612060025 Hex Locking Nut 6	$1.91
21	10914060100 Winch Protection Pad	$5.53
22	10914050050 Winch User Manual	$2.83
14	01214080205 Hex Bolt 8X20	$3.23

Click to Enlarge

FRONT HOOD

Ref#	Part	Price
1	14708120010 Front Storage Rack	$543.00
2	14710470090 Hook Bracket	$1.88
3	14710470130 Hook Ring	$11.32
4	14610470110 Hook Pin	$5.53
5	05011250255 Cotter Pin 2.5X25	$1.91
6	14709060030 Headlight	$100.00
7	14709060040 Mounting, Headlight	$4.46
8	01214080165 Hex Bolt 8X16	$1.91
9	03124040105 Counter Sunk head screw M4X10	$1.91
10	14609120000 Front Turning Signal	$55.90
11	14600570200 Turn Signal Lamp Bracket	$6.08
12	01224060165 Hex Bolt 6X16	$3.23
13	14600150120 Hinge Bracket	$19.27
14	14610470070 Nylon Bushing, Hinge Pin	$3.12
15	14610470060 Hinge Pin	$11.80
17	01264100205 Hex Bolt 10x20x1.25	$3.23
18	14610470051 Fixing Link, Front Cargo Bed	$7.28
19	14610470200 Spring, Front Hood	$25.08
20	04612080025 Hex Locking Nut 8	$3.23

Click to Enlarge

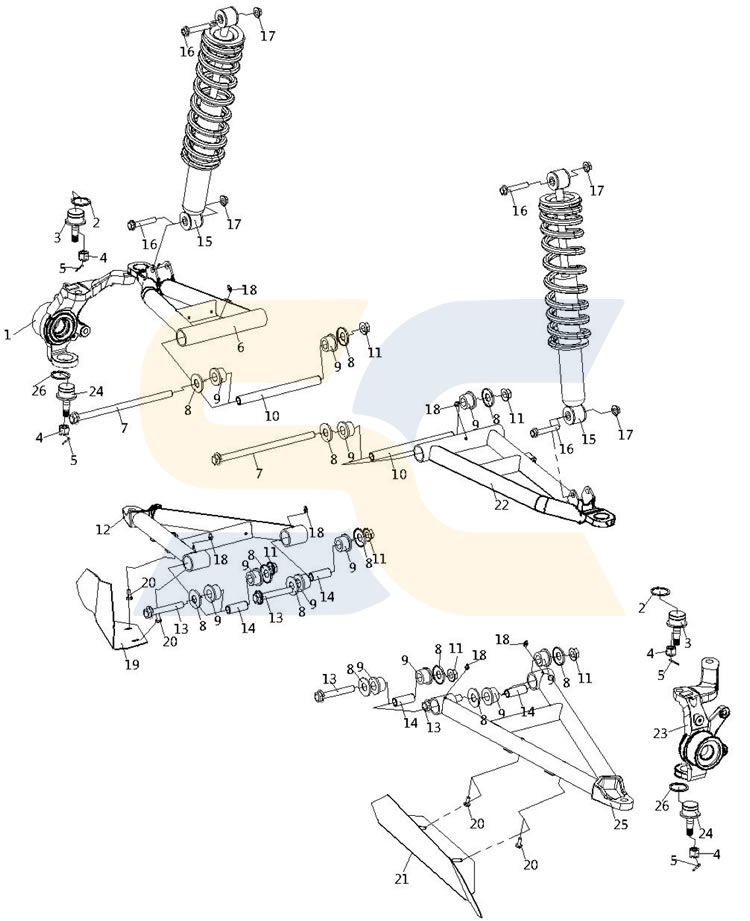

FRONT SUSPENSION

Ref#	Part	Price
1	14605220000 Front Steering Knuckle, Passenger	$100.00
2	07031320004 Snap Ring 32	$2.99
3	10401180000 Ball Joint 32	$31.45
4	04724120025 Nut 12X1.25	$1.91
5	05011250255 Cotter Pin 2.5X25	$1.91
6	14601070050 Front Uper A-Arm, Passenger	$59.90
7	01256122356 Hex Bolt 12x235x1.25	$5.53
8	13601070030 A-Arm Nylon Sleeve Cover	$1.91
10	14601070080 Uppper A-Arm Inner Sleeve	$24.91
12	14601090000 Front Lower A-Arm, Passenger	$48.08
13	01256120806 Hex Bolt 12x80x1.25	$3.23
14	14601070010 A-Arm Inner Sleeve	$10.99
15	14701010070 Front Shock (Black)	$56.31
16	01256100556 Hex Bolt 10x55x1.25	$1.91
17	04622100026 Hex Locking Nut 10X1.25	$3.23
19	14701080090 A-Arm Guard Board 1	$22.00
21	14701090080 A-Arm Guard Board 2	$22.00
23	14605210000 Front Steering Knuckle, Driver	$75.78
24	10401190000 Ball Joint 34	$31.45
26	07031340004 Snap Ring 34	$2.99

Click to Enlarge

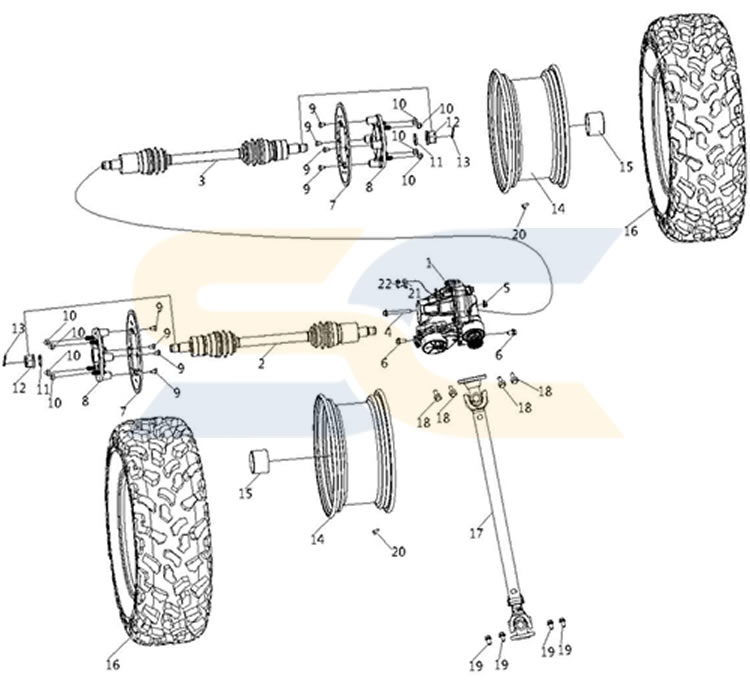

FRONT WHEEL

Ref#	Part	Price
5	04622100026 Hex Locking Nut 10X1.25	$3.23
6	01256100956 Hex Bolt 10X95X1.25	$1.91
7	15106010020 Front Brake Disc	$28.21
8	15101030000 Front Wheel Hub	$50.00
9	01826080205 Allen T Type Bolt 8X20	$6.00
10	04322120021 Nut 12x1.25, Wheel	$2.46
11	15101230010 Front Butterfly Washer	$4.31
12	0481222022 Slotted Nut 22	$4.31
13	05011400405 Cotter Pin 4.0X40	$3.23
14	10905030280 Front Rim 14X7.5	$98.89
15	10405230020 Wheel Cap	$6.37
16	16605300010 Front Tire 27X9-14	$127.67
17	14603110001 Front Transmission Shaft	$82.12
18	01144080206 Hex Bolt 8X20X1.0	$1.91
19	01566100206 Hex Bolt 10X20X1.25	$1.91
20	10405230030 Valve Stem	$1.91
21	10406010090 Brake Fuel Hose Clamp	$1.91

Click to Enlarge

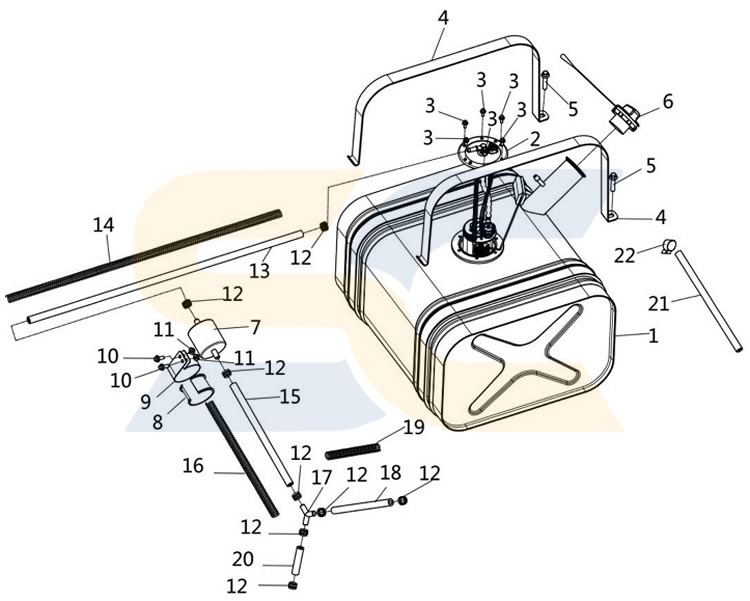

FUEL TANK

Ref#	Part	Price
1	14604010003 Fuel Tank 48L	$56.42
2	10904080001 Fuel Pump	$129.00
3	01224050125 Hex Bolt 5X12	$1.91
5	01224080355 Hex Bolt 8X35	$1.91
6	14604020000 Fuel Tank Cap	$10.29
7	10904060001 Fuel Filter	$4.80
8	10904010140 Rubber Lining	$9.50
9	10904060011 Fuel Filter Bracket	$1.91
10	01224060165 Hex Bolt 6X16	$3.23
11	04612060025 Hex Locking Nut 6	$1.91
12	11912010030 Hose Clamp 14.5Mm	$3.23
13	10404040500 Fuel Hose 7.5X14.5 L=390MM	$16.00
14	10904040080 Fuel Hose Protection Spring L=650Mm	$1.91
15	10404040500 Fuel Hose 7.5X14.5 L=1000Mm	$16.00
17	21040402501 Y-Shaped Connector	$3.64
18	10404040500 Fuel Hose 7.5X14.5 L=150Mm	$16.00
19	10904040070 Fuel Hose Protection Spring L=150Mm	$1.91
20	10404040500 Fuel Hose 7.5X14.5 L=1000Mm	$16.00
21	10404040490 Fuel Hose,	$14.34
22	14604070050 Clamp 12	$1.91

Click to Enlarge

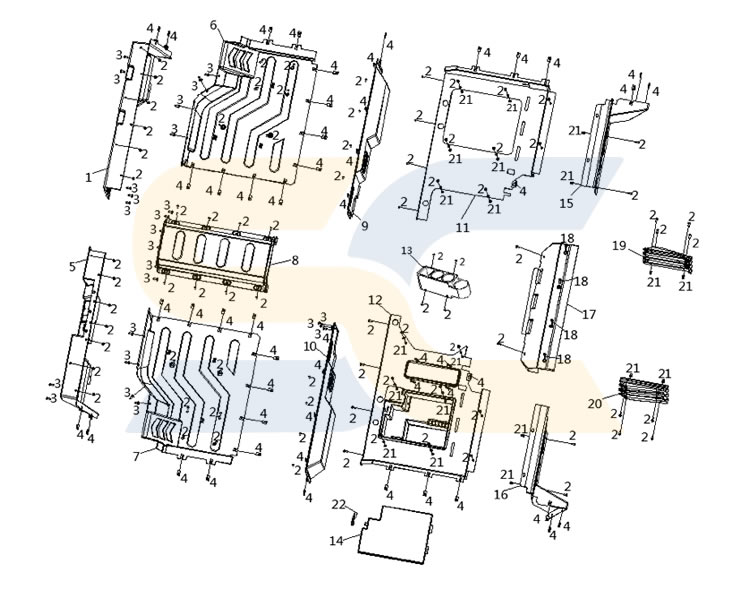

INTERIOR PLASTIC

Ref#	Part	Price
1	14610380020 Front Mudguard, Passenger	$30.72
3	10410190000 Push Pin	$1.91
4	04922060025 Plate Nut (Long) 6	$1.91
5	14610380010 Front Mudguard, Driver	$34.13
7	14610080030 Footrest Board, Driver	$28.44
8	14610080020 Footrest Board, Middle	$23.89
9	14610280020 Vent Board, Passenger	$28.33
10	14610280010 Vent Board, Driver	$29.69
11	14610280050 Bottom Board, Passenger	$27.64
12	14610280040 Bottom Board, Driver	$36.86
13	14710350010 Cup Base	$30.00
14	14609090140 Battery Box Cover	$11.95
15	14610330040 Rear Mudguard, Passenger	$23.89
16	14610330030 Rear Mudguard, Driver	$24.57
17	14610280060 Rear Guard, Middle	$17.07
18	01224060165 Hex Bolt 6X16	$3.23
19	14610330020 Rear Board, Passenger	$11.71
20	14610330010 Rear Board, Driver	$11.56
21	04512060027 Rivet Nut 6	$3.23
22	13610630071 Storage Box Rubber Strip	$2.46

Click to Enlarge

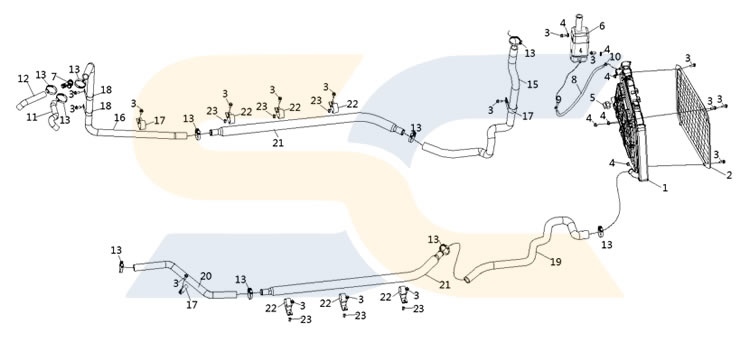

RADIATOR

Ref#	Part	Price
1	21051101405 Dual Fan Radiator With Fans	$184.33
2	14712020030 Radiator Protection Net	$45.05
3	01224060165 Hex Bolt 6X16	$3.23
4	04612060025 Hex Locking Nut 6	$1.91
6	14612040000 Auxiliary Water Tank	$12.29
7	16612050410 Three Links	$4.06
8	15112050080 Hose 6.5X1.5 L=1000Mm	$23.00
11	14712050050 Water Tube 1	$4.87
12	14712050060 Water Tube 2	$3.71
13	10912070000 Clamp 20-32	$1.91
15	14712050030 Hot Water Tube Front	$16.89
16	14712050040 Hot Water Tube Rear	$20.02
17	10109380030 Wire Harness Mounting Clamp 3	$3.23
18	10912050030 Water Outlet Pipe Clamp	$3.23
19	14712050010 Cooling Water Tube 1	$13.14
20	14712050020 Cooling Water Tube 2	$11.71
21	14712050110 Connector Tube, Aluminum	$21.90
23	04512060027 Rivet Nut 6	$3.23

Click to Enlarge

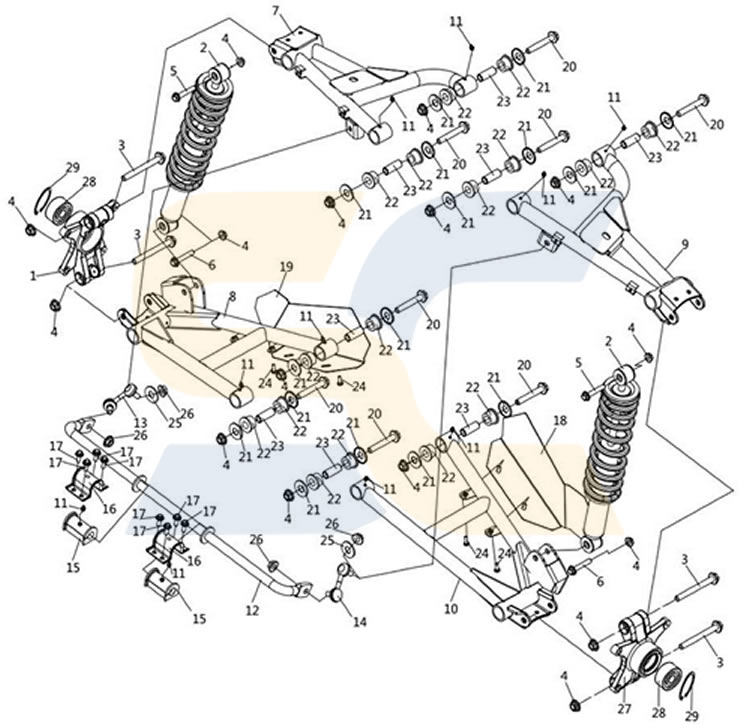

REAR SUSPENSION

Ref#	Part	Price
1	15101200130 Knuckle Assy	$60.49
2	14701020090 Rear Shock (Black)	$62.06
3	01256121156 Hex Bolt 12X115X1.25	$3.00
4	04622120026 Hex Locking Nut 12X1.25	$1.91
6	01256120656 Hex Bolt 12X65X1.25	$2.52
7	14601110000 Rear Upper A-Arm, Passenger	$35.04
8	14601130000 Rear Lower A-Arm, Passenger	$47.32
9	14601100000 Rear Upper A-Arm, Driver	$35.04
10	14601120000 Rear Lower A-Arm, Driver	$47.32
12	14601210061 Anti-Sway Bar	$25.03
13	10101210050 Swing Bar Link, Passenger	$9.94
14	10101210010 Swing Bar Link, Driver	$9.94
15	15101210040 Rubber Cussion, Anti-Sway Bar	$6.74
16	15101210030 Bracket, Anti-Sway Bar	$4.31
17	01214080205 Hex Bolt 8X20	$3.23
18	14701080090 A-Arm Guard Board 1	$22.00
19	14701090080 A-Arm Guard Board 2	$22.00
20	01256120806 Hex Bolt 12x80x1.25	$2.07
21	13601070030 A-Arm Nylon Sleeve Cover	$1.91
25	06119122205 Washer 12.5x22x1.5	$1.91
26	04522120026 Hex Locking Nut 12X1.25	$1.91
27	15101200140 Knuckle Assy, Passenger	$60.49
28	09560306342 Bearing DAC306342	$31.40
29	07011630004 C-Clamp 63	$1.91

Click to Enlarge

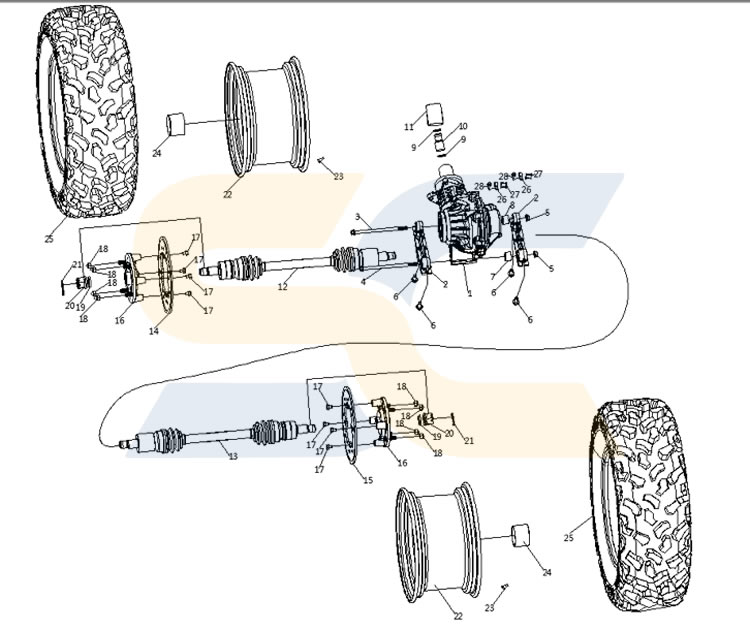

REAR WHEEL

Ref#	Part	Price
1	14603120100 Rear Differential	$371.62
2	14103120100 Mounting, Rear Differential	$21.84
3	1256101806 Bolt 10x180x1.25	$2.46
4	01256101856 Hex Bolt 10X185X1.25	$2.46
5	04622100026 Hex Locking Nut 10X1.25	$3.23
6	01256100206 Hex Bolt 10x20x1.25	$1.91
7	14103120111 Front Bushing, Rear Differential	$2.46
8	14103120121 Rear Bushing, Rear Differential	$2.52
9	14603130020 Spring	$3.23
10	14603130000 Rear Transmisson Shaft	$52.44
11	14603130010 Protect Cover, Transmission Shaft	$3.69
12	14601240001 Rear C.V Shaft, Driver	$98.95
13	14601250001 Rear C.V Shaft, Passenger	$158.95
14	10106010340 Rear Brake Disc, Driver	$20.14
15	10106010350 Rear Brake Disc, Passenger	$28.67
16	15101040000 Rear Wheel Hub	$54.06
17	90101-115-0000 Allen T Type Bolt 8X20	$6.00
18	04322120021 Nut 12x1.25, Wheel	$2.46
19	15101250010 Front Butterfly Washer	$4.31
20	0481224022 Slotted Nut 24	$4.31
22	10905040210 Rear Rim 14X9	$180.00
23	10405230030 Valve Stem	$1.91
24	10405230020 Wheel Cap	$6.37
25	16607020130 Rear Tire 27X11-14	$124.28
26	10406010090 Brake Fuel Hose Clamp	$1.91
28	01224060205 Hex Bolt 6X20	$3.23

Click to Enlarge

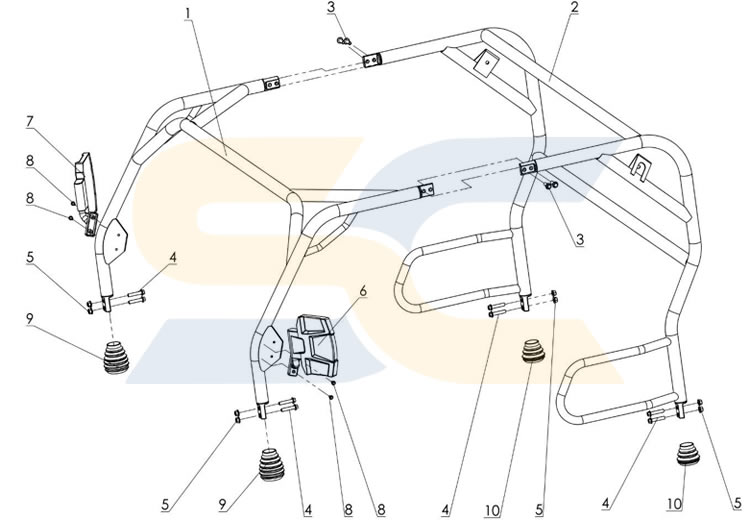

ROLL CAGE

Ref#	Part	Price
1	14708050000 Anti-Roll Bar, Front	$113.66
2	14708060000 Anti-Roll Bar, Rear	$144.01
3	01264100355 Hex Bolt 10x35	$1.91
4	01254100505 Hex Bolt 10x50	$1.91
5	04622100025 Hex Locking Nut 10	$1.91
6	15105140000 Mirror, Driver	$35.49
7	15105150000 Mirror, Passenger	$44.59
8	01224060165 Hex Bolt 6X16	$3.23
9	13208050010 Boot, Anti-Roll Bar	$4.80
10	14608060060 Connecting Cover, Rear Rollbar	$4.80

Click to Enlarge

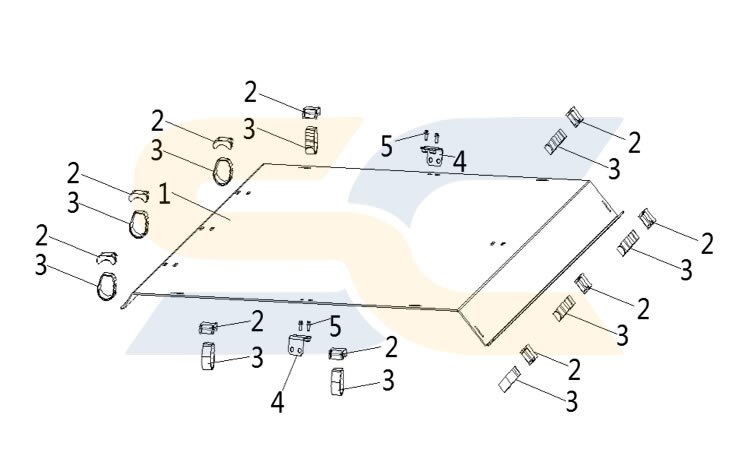

ROOF

Ref#	Part	Price
2	14714100090 Rubber Mounting, Roof	$3.69
3	14714100030 Clamp, Roof	$1.91
4	14714100120 Fixed Plate, Roof	$6.74
5	01254100405 Bolt 10X40X1.25	$1.91

Click to Enlarge

SEATS

Ref#	Part	Price
1	14714090000 Seat (Black)	$299.00
1	14714090000 Seat (Tan)	$299.00
3	04612100026 Hex Locking Nut 10X1.5	$1.91
4	10114090120 Seat Bottom Rubber, Outside	$3.23
5	10714090450 Seat Switch Box (Up)	$3.07
6	10714090100 Seat Switch Spring	$5.00
7	10714090470 Seat Switch Box (Down)	$3.76
8	10714090461 Seat Switch Box (Middle)	$5.00
10	04612060025 Hex Locking Nut 6	$1.91
11	10114090111 Seat Installing Pin	$2.70
12	16611090000 Seat Belt	$32.19
13	16611090030 Seat Belt Mounting Buckle	$6.83
14	16611090090 Middle Seat Belt	$16.02
15	01244110302 Hex Bolt 11X30	$1.91
16	10911090080 Safety Belt Spacing Ring	$3.23
17	04212110021 Hex Locking Nut 11	$1.91
18	01824110302 Hex T Type Bolt 11X30	$1.91

Click to Enlarge

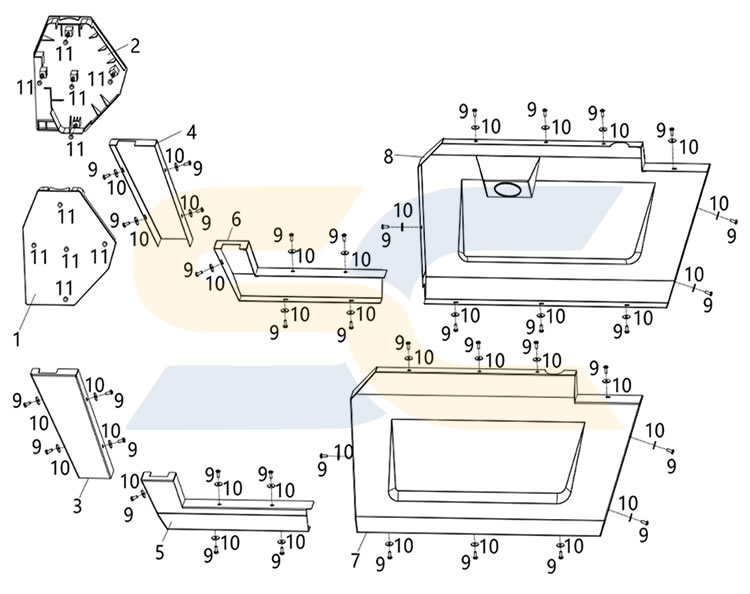

SIDE COVER PARTS

Ref#	Part	Price
1	14710290010 Front Cover, Driver (Black)	$15.72
2	14710290020 Front Cover, Passenger (Black)	$15.83
3	14710060010 Side Panel I, Driver (Black)	$27.90
4	14710070010 Side Panel I, Passenger (Black)	$27.90
5	14710060020 Side Panel II, Driver (Black)	$31.83
6	14710070020 Side Panel II, Passenger (Black)	$31.83
7	14710060030 Side Panel III, Driver (Black)	$80.08
11	13610202260 Round Rubber Pad	$5.00

Click to Enlarge

STEERING

Ref#	Part	Price
2	01214080955 Hex Bolt 8X95	$1.91
3	01214080805 Hex Bolt 8X80	$1.91
4	01214080205 Hex Bolt 8X20	$3.23
5	04612080025 Hex Locking Nut 8	$3.23
6	10105100070 Steering Tie Rod, Driver	$6.74
8	06119122505 Washer 12x25x1.5	$1.91
9	06619121905 Spring Washer 12	$1.91
10	04724120025 Nut 12X1.25	$1.91
11	05011320255 Cotter Pin 3.2X25	$3.23
12	10905100090 Steering Tie Rod, Passenger	$9.23
13	13205270021 Universal Joint, Power Steering	$16.51
14	01224080355 Hex Bolt 8X35	$1.91
15	14605270010 EPS Motor	$574.21
16	14605270060 Upper Bracket, EPS Motor	$12.97
17	14605270040 Lower Bracket, EPS Motor	$16.04
18	01214080255 Hex Bolt 8X25	$3.23
19	14605270030 Steering Shaft	$55.13
20	14705050040 Cover, Steering	$4.31
22	13205090080 Steering Wheel	$27.08
23	13205090050 Steering Wheel Cover	$3.07
24	13205090060 Steering Wheel Cover	$3.07
25	03714300105 Tapping screws ST3.0×10	$3.07
26	13205090020 Center Cap, Steering Wheel	$10.00
27	03344060201 Hex Screws 5X20	$1.91
28	13205090040 Shaft, Steering Wheel	$15.70
29	09560061804 Bearing 61804-2Rz	$4.06
30	07031200004 Elastic Snap Ring 20	$3.23
31	04622120026 Hex Locking Nut 12X1.25	$1.91
33	14609040000 Ignition Switch	$23.21
34	03124060125 Cross Counter Sunk Screw 6x12	$1.91
35	13205050070 Steering Inner Bush	$3.23
36	13205050060 Steering Nylon Sleeve	$3.07
37	13208400001 Adjusting Spring, Steering Wheel	$30.00
38	01824060125 T Bolt 6X12	$3.23
39	04612060025 Hex Locking Nut 6	$1.91
40	13205270052 EPS Controller	$220.00
50	X106KA15 Key Blank See Image	$4.85

Product Videos

Custom Field

Product Reviews

Write a Review

Bennche Warrior 1000 Parts

Product Description

Bennche Parts : UTV : Warrior 1000

Product Videos

Custom Field

Product Reviews

Write a Review

Bennche

Bennche Warrior 1000 Parts

Recommended
