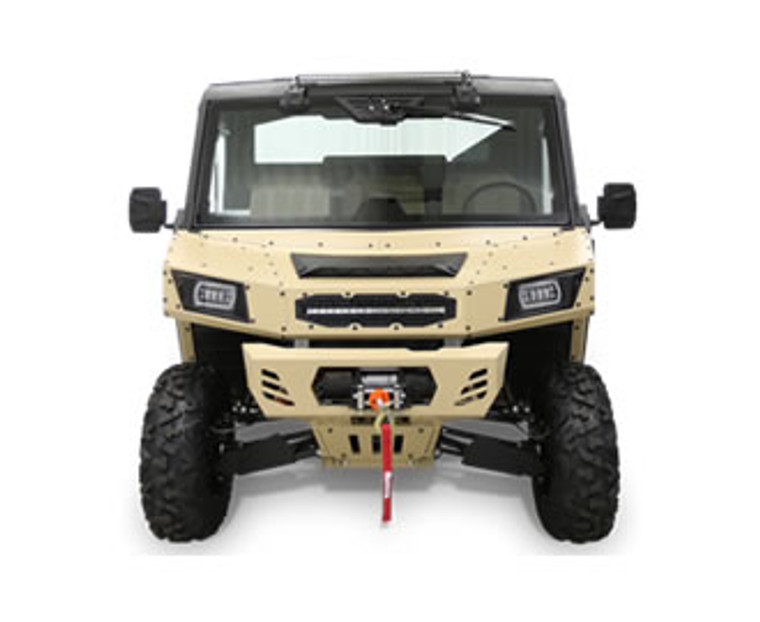

Bennche Warrior Max 1000 Parts

Name: Bennche Warrior Max 1000 Parts
Brand: Bennche
Availability: OutOfStock

Bennche

SPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU

(No reviews yet) Write a Review

Availability:: Please call to order parts. 320-358-1994

Overview
Reviews

Product Description

Bennche Parts : UTV : Warrior Max 1000

Click to Enlarge

AIR INTAKE

Ref# Part Price Qty

21040401035

Air Filter Body

$56.57

21040401012

Air Filter

Quantity	Price
1 – 4	$16.00
5 – 9	$14.00
10 +	$12.00

21051300201

Air Filter Outlet Pipe

$28.08

21140400201

Air Filter Inlet Pipe

$28.08

16607030000

CVT Inlet Pipe

$27.62

16607040000

CVT Outlet Pipe

$11.68

16607050060

Lower Inlet Box, Connecting Sleeve

$39.67

16607050150

Fixed Plate

$4.80

16607050140

Cushion

$1.91

16607050071

Connecting Sleeve

$6.01

16607050010

Inlet Connecting Pipe

$20.29

16607050100

Sealing Sleeve

$5.40

16607050030

Upper Inlet Box, Connecting Sleeve

$9.83

16607050020

Upper Inlet Box

$24.29

16607050090

Air-Inlet Grille

$5.51

16607050040

Rubber Valve

$4.51

16610090010

Heat Insulation, Middle Seat

$55.24

16608630010

Heat Insulation, Upper Gearbox

$34.48

16608630020

Heat Insulation, Right Gearbox

$17.52

16608630030

Upper Bracket, Heat Insulation, Gearbox

$4.80

16608630040

Front Bracket, Heat Insulation, Gearbox

$6.01

16607030030

Clamp 80-100

$2.07

16607050120

Clamp 110-130

$2.51

10907040020

Clamp 51-70

$2.70

01254060206

Bolt M6X20

$1.91

04612060025

Hex Locking Nut 6

$3.23

01256100206

Hex Bolt 10x20x1.25

$1.91

01224080166

Bolt M8X16

$1.91

4512080127

Rivet Nut M8

$1.91

04512060027

Rivet Nut 6

$3.23

03414060204

Pan Head Screws 6X20

$1.91

01254060166

Bolt M6X16

$1.91

Click to Enlarge

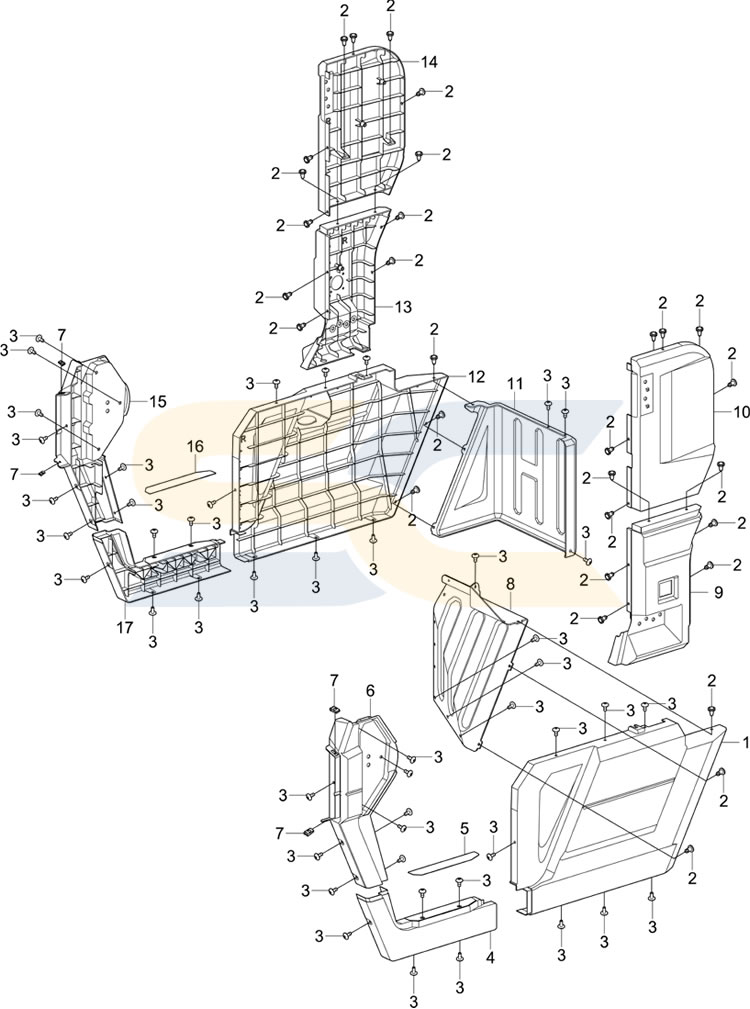

BODY PANELS (OUTER)

Ref#	Part	Price
1	16610290110 Rear Guardboard, Driver, Lower	$29.30
2	15110190000 Push Pin M8X15M	$3.00
4	16610290030 Front Guardboard, Driver, Middle	$12.52
5	16610290171 Pedal, Driver	$7.81
6	16610290010 Front Guardboard, Driver	$14.74
7	04922060025 Plate Nut (Long) 6	$1.91
8	16610330030 Rear Fender, Driver	$32.26
9	16610290130 Rear Guardboard, Driver, Middle	$12.52
10	16610290150 Rear Guardboard, Driver, Upper	$12.52
12	16610290120 Rear Guardboard, Passenger, Lower	$29.30
13	16610290140 Rear Guardboard, Passenger, Middle	$12.52
14	16610290160 Rear Guardboard, Passenger, Upper	$12.52
15	16610290020 Front Guardboard, Passenger	$14.74
16	16610290181 Pedal, Passenger	$7.81
17	16610290040 Front Guardboard, Passenger, Middle	$16.73

Click to Enlarge

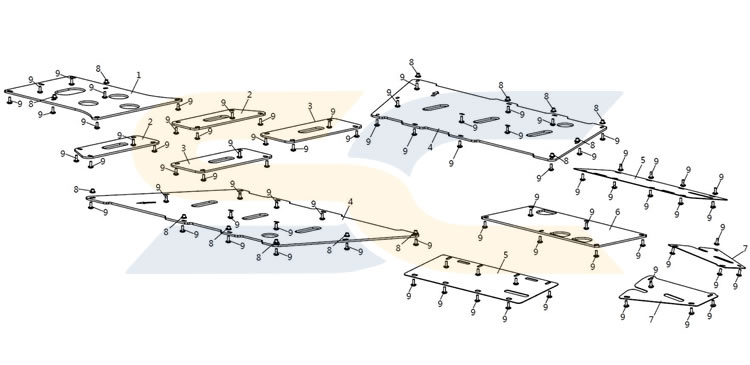

BOTTOM COVER PIECES

Ref#	Part	Price
1	14608010061 Bottom Board, Front	$17.52
2	14608010081 Bottom Board, Middle Front	$23.73
3	14608010041 Bottom Board, Middle	$17.52
4	16608010130 Bottom Board,Mid-Side	$35.41
5	16508010110 Bottom Board, Rear	$15.02
6	16508010120 Bottom Board, Middle Rear	$14.74
7	16608010140 Bottom Board,Bottom	$10.13
8	04512060127 Rivet Nut M6	$1.91

Click to Enlarge

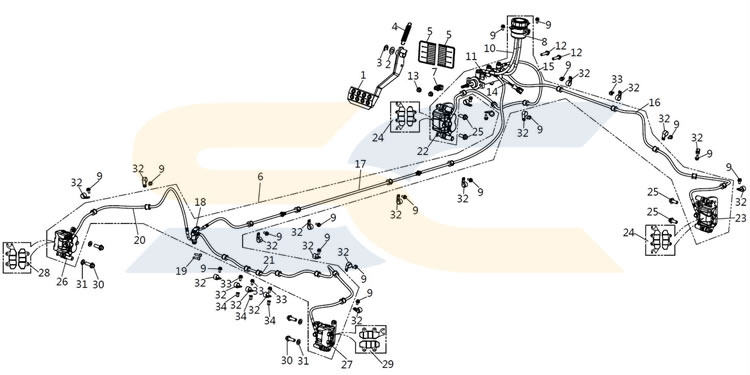

BRAKES

Ref#	Part	Price
1	14606080000 Brake Pedal	$17.05
2	06219152805 Washer 15X28X2	$3.23
3	07031120004 Elastic Snap Ring 12	$1.91
4	10706030020 Spring Brake Pedal	$3.23
5	14606100000 Mud Shield	$4.26
6	16506010000 Brake System	$205.81
7	15106010470 Brake Rod Of Master Cylinder	$5.38
8	15106010440 Oil Cup, Brake System	$18.71
9	01254060126 Bolt M6X12	$1.91
10	16506010410 Oil Hose (L=240Mm)	$4.80
13	04612080026 Locking Nut M8	$1.91
14	10909050010 Brake Connector	$10.00
15	16506010160 Front Left Hose, Brake Assy - unavailable	$19.99
16	16506010170 Front Right Hose, Brake Assy - unavailable	$19.99
17	16506010240 Rear Hose, Brake Assy	$21.41
18	10906010450 3-Way Connector	$18.83
19	03344060206 Cap Screws M6x20	$1.91
20	16506010260 Rear Left Hose, Brake Assy	$8.09
21	16506010250 Rear Right Hose, Brake Assy	$13.34
22	14706010040 Front Brake Caliper, Driver	$42.96
23	14706010050 Front Brake Caliper, Passenger	$160.00
24	15106010060 Brake Pad Set, Front	$20.53
26	14606010140 Rear Brake Caliper, Driver	$82.33
27	14606010150 Rear Brake Caliper, Passenger	$82.33
28	14606010650 Rear Brake Pad Set, Driver	$25.08
29	14606010660 Rear Brake Pad Set, Passenger	$25.08
30	01256100306 Caliper Mounting Bolt	$1.91
31	06119102005 Caliper Mounting Bolt Washer	$1.91
32	10406010090 Brake Fuel Hose Clamp	$1.91
33	01224060165 Hex Bolt 6X16	$3.23
34	04512060027 Rivet Nut 6	$3.23

Click to Enlarge

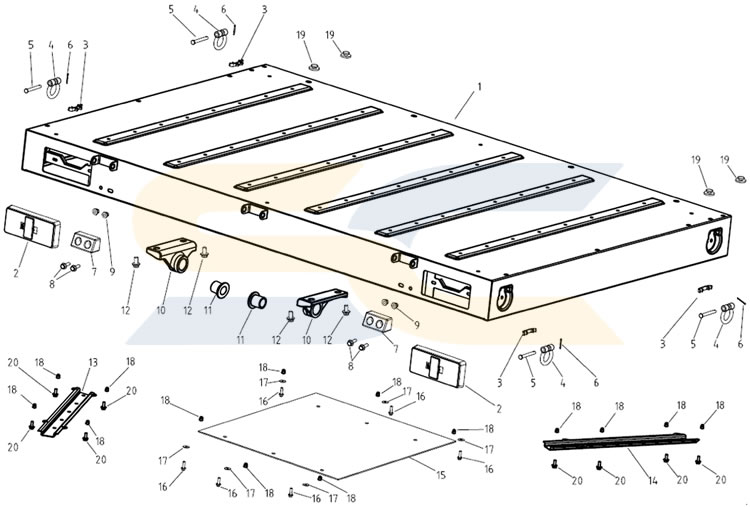

CARGO BED BOARD

Ref#	Part	Price
1	14710150290 Bed Bottom	$600.00
2	14609070120 Tail Light	$47.02
3	14610470090 Hook Bracket	$3.23
4	14710470130 Hook Ring	$11.32
5	14610470110 Hook Pin	$5.53
7	14610151110 Plate, Cargo Bed Board	$3.23
8	012140802551 Hex Bolt 8X25	$3.23
9	04612080025 Hex Locking Nut 8	$3.23
10	16610151120 Dump Bed Hinge	$5.51
11	16610151130 Bushing, Dump Bed Hinge	$5.51
12	01256100306 Bolt M10×30×1.25	$1.91
13	17110151520 Elastic Support Plate, Dump Bed, Driver	$10.41
14	17110151530 Elastic Support Plate, Dump Bed, Passenger	$10.41
15	14610150380 Heat Insulation, Dump Bed	$28.90
17	6119061805 Washer 6.5X18X1	$1.91
18	04512060027 Rivet Nut 6	$3.23
19	10114090120 Seat Bottom Rubber, Outside	$3.23
20	01224060205 Hex Bolt 6X20	$3.23

Click to Enlarge

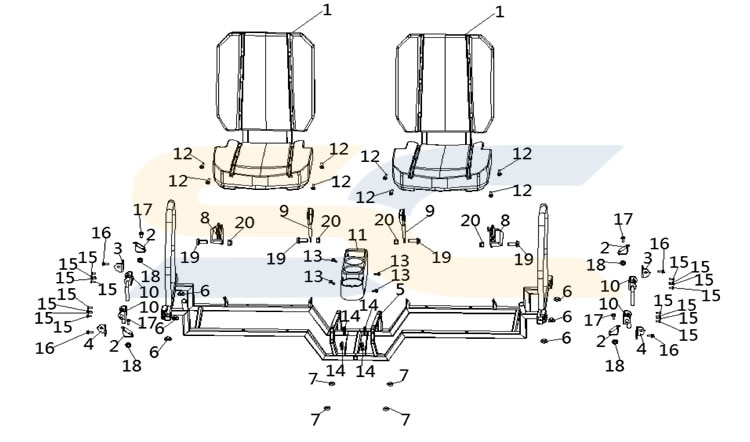

CARGO BED SEATS

Ref#	Part	Price
1	14714090010 Seat Assy	$299.00
2	14710530060 Mounting, Seat	$9.77
3	14710530070 Adjusting Plate, Seat, Driver	$6.08
4	14710530080 Adjudting Plate, Seat, Passenger	$6.08
5	14710530090 Seat Bracket	$205.72
6	10114090120 Seat Bottom Rubber, Outside	$3.23
8	16611090090 Seat Belt	$16.02
9	16611090030 Seat Belt Mounting Buckle	$6.83
10	14710150310 Cargo Bed Handle	$11.61
11	14710350010 Cup Base	$30.00
12	01214080506 Bolt M8x50	$1.91
16	01224080206 Bolt M8x20	$1.91
17	01256120306 Bolt M12x30	$1.91
18	04622120026 Hex Locking Nut 12X1.25	$1.91
20	04212110021 Hex Locking Nut 11	$1.91

Click to Enlarge

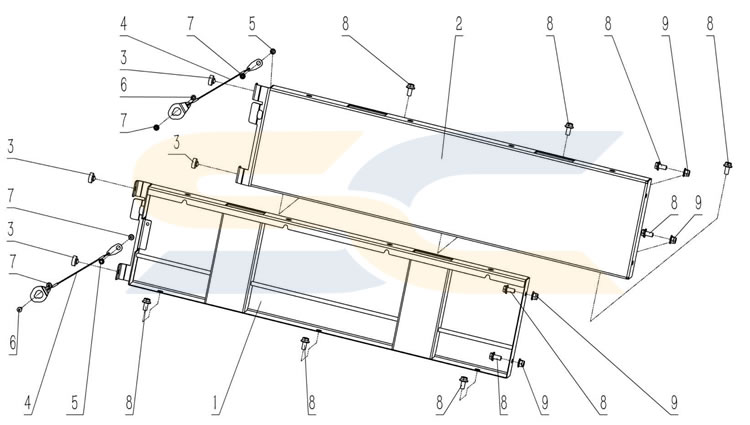

CARGO BED SIDE BOARD

Ref#	Part	Price
1	14710150210 Right Board, Cargo Bed	$69.76
2	14710150200 Left Board, Cargo Bed	$103.92
4	14610150152 Cable, Tailgate	$8.80
5	03144060205 Step Bolt 6X20	$3.23
6	01224060165 Hex Bolt 6X16	$3.23
7	04612060025 Hex Locking Nut 6	$3.23
8	01264100205 Hex Bolt 10x20x1.25	$3.23
9	04622100025 Hex Locking Nut 10	$1.91

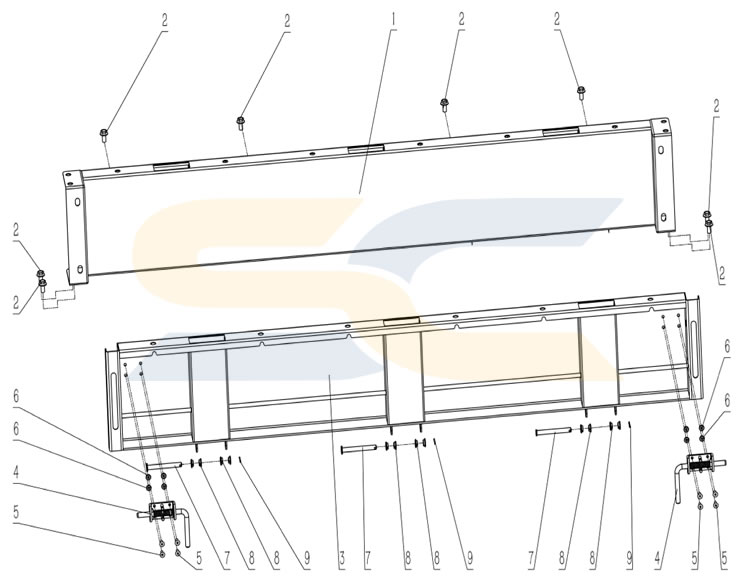

Click to Enlarge

CARGO TAILGATE

Ref#	Part	Price
1	14710150330 Front Board, Cargo Bed	$122.79
2	01264100205 Hex Bolt 10x20x1.25	$3.23
3	14710150340 Rear Door, Cargo Bed	$137.63
4	14610150220 Door Latch, Tailgate	$9.65
5	03354060150 Allen Head Screw M6x15	$3.23
6	04612060025 Hex Locking Nut 6	$3.23
7	14610150370 Hinge Pin, Tailgate	$6.74
8	14610150120 Nylon Bushing, Hinge Pin	$1.91

Click to Enlarge

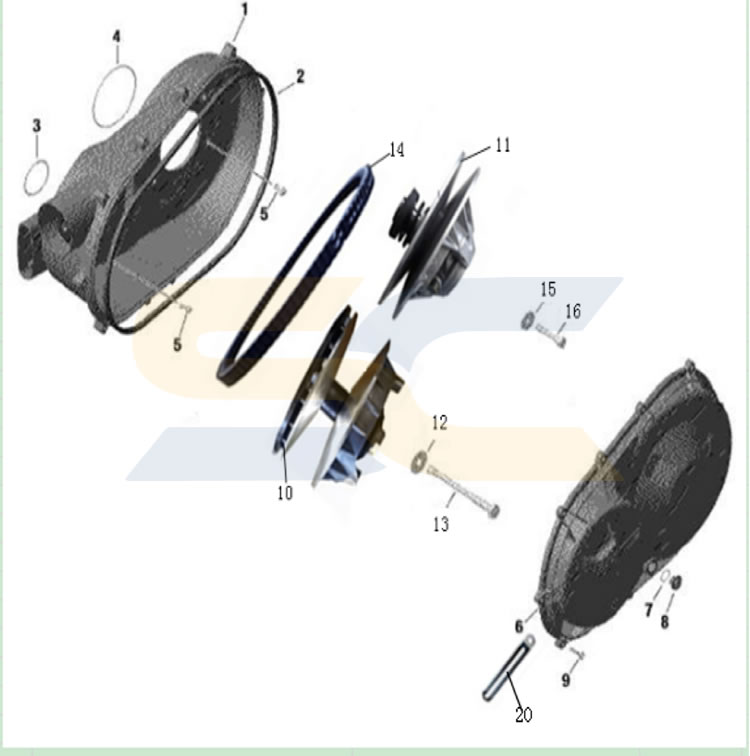

CLUTCH

Ref#	Part	Price
1	21140300101 CVT Air Guide	$35.41
2	21140300201 Gasket	$10.13
4	21140300301 O-Ring ï¿½ï¿½110	$3.00
5	1314060181 Screw M6X18	$1.91
6	21140300401 Variator Cover	$31.42
7	21140300501 O-Ring ï¿½ï¿½1	$1.91
8	21140300601 Cap	$1.91
9	01314060351 Screw M6X35	$1.91
11	21140301501 Driven Wheel Assy	$382.69
14	21140301101 Drive Belt - No longer available	$195.78
15	21140301201 Collar Washer	$3.51
16	21140301301 Heat Insulation, Starter Motor	$5.70
	21140300801 Adjusting Washer	$2.07
18	21140301601 Rubber Cap (Big)	$1.91
19	21140301701 Rubber Cap (Small)	$1.91
20	21040402401 Wire Holder	$2.91

Click to Enlarge

CRANKASE ASSY

Ref#	Part	Price
3	21040105801 Plug Screw Nut 1/4	$3.23
4	21040105601 Plug Screw Nut 1/2	$3.33
5	21040105701 Plug Screw Nut 1/8	$3.23
6	21050105502 Drive Pin 5x11	$3.23
7	21040106301 Needle Pin 6x10	$3.23
8	90803-010-0000 Dowel Pin 10x16	$3.75
9	21040106001 Plain Bearing A (No Hole)	$9.99
11	21040106201 Oil Seal 10x25x5	$2.73
12	21050301211 Insert Pin	$8.00
13	21050301301 Stud M8X69	$1.91
14	21040107401 Sealing Ring _8	$3.23
15	01224080161 Hex Bolt 8X16	$3.00
16	21050301601 Gasket	$7.22
17	01224060251 Hex Bolt 6X25	$3.23
18	01214080651 Hex Bolt 8x65	$3.23
20	21040106501 Valve Plate	$18.11
21	21040106601 Reed Valve Stop	$2.54
22	01224060161 Hex Bolt 6X16	$3.23
23	21040106901 Gasket, PTO Case Cover	$9.22
24	21050302400 Left Cover Assy	$25.94
25	21040107101 Bearing Sleeve ( 1 pc)	$9.16
27	21040105701 Plug Screw Nut 1/8	$3.23
28	21040107201 Hose Outlet Nut1/4	$2.91
29	01224060351 Hex Bolt 6X35	$3.23
30	21040206301 Anti-Vibration Mount	$6.00
31	90101120650 Insert Pin 10x1.5-17K	$5.00
32	21050302411 Slip Insert	$5.51
14	21040106301 Needle Pin 6x10	$3.23

Click to Enlarge

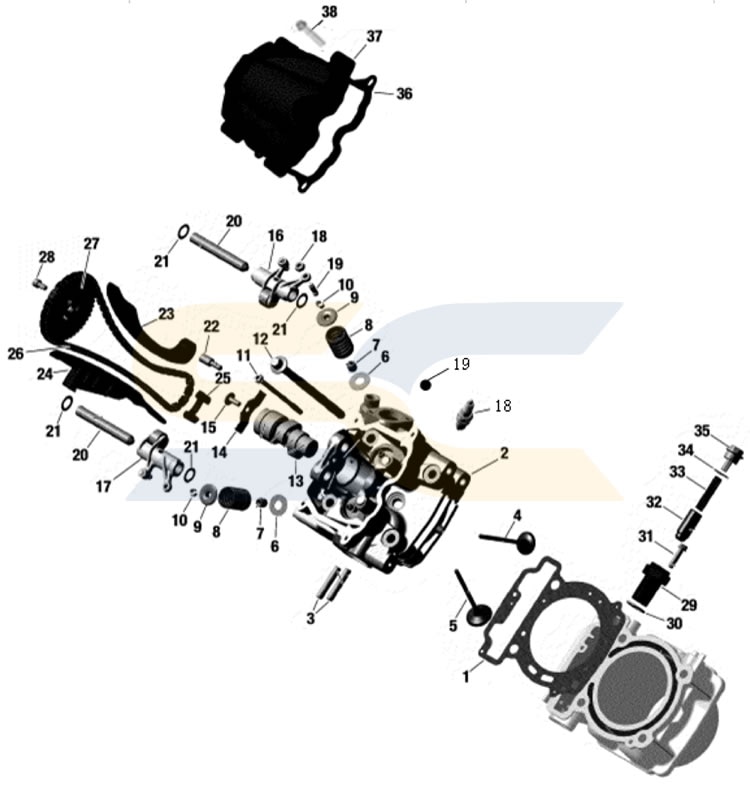

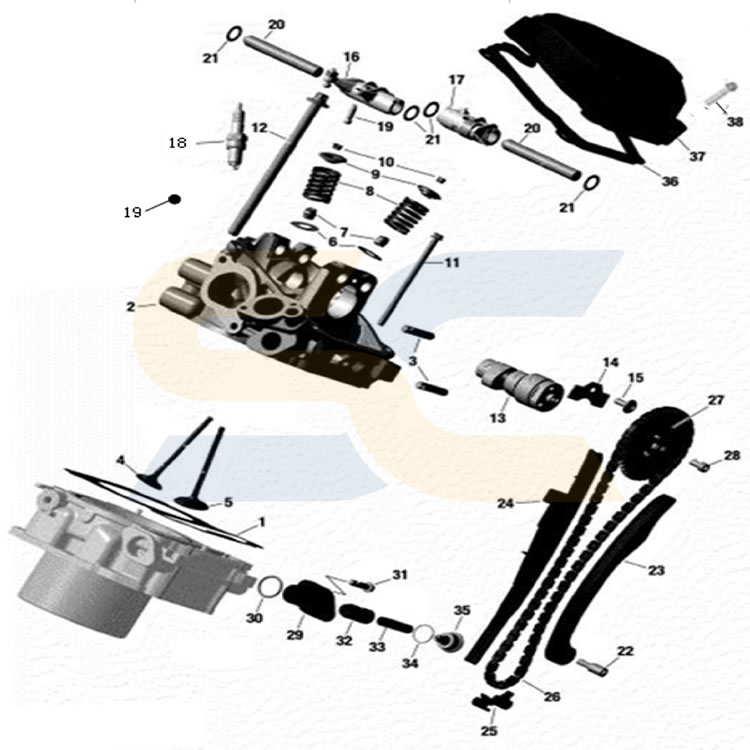

CYLINDER HEAD ASSY 1

Ref#	Part	Price
1	21040100101 Cylinder Head Gasket	$20.00
3	21040100501 Stud 8x45	$3.23
4	21040100701 Exhaust Valve 27	$11.64
5	21040100601 Inlet Valve, 31	$11.64
6	21040100801 Thrust Washer	$3.23
7	21040100901 Valve Stem Seal	$2.70
8	21040101001 Valve Spring	$3.23
9	21040101101 Valve Spring Retainer	$3.23
10	21040101201 Cotter Valve	$3.23
12	21050101201 Screw M10x159	$8.00
14	21040101601 Holding Guard	$3.40
15	01224060161 Hex Bolt 6X16	$3.23
16	21040203301 Index Spring	$3.23
17	21040203401 Step Ring	$3.15
18	33300-010-0000 Spark Plug, DCPR7E	$8.99
19	21040100401 Steel Ball S_5.159	$3.23
20	21040103101 Pin #12, Small	$4.31
21	21040103201 Flat Washer 18.6x12.4x0.5	$3.23
22	21040101701 Bearing Screw M6	$3.23
24	21050102401 Chain Guide	$3.00
25	21040102001 Chain Guide	$3.23
26	21050102601 Silent Chain 118	$28.08
27	21050102701 Camshaft Sprocket (42 Teeth)	$7.22
28	21050102801 Screw M6X12	$1.91
29	21040102401 Chain Tensioner Housing	$8.98
30	21040102501 O-Ring 21X2.5	$3.40
31	01224060221 Hex Bolt 6X22	$3.23
32	21040102601 Chain Tensioner Plunger	$8.00
33	21040102901 Spring	$3.23
34	21040102701 O-Ring 17x2	$7.00
35	21040102801 Plug Screw	$2.78
37	21040103901 Valve Cover	$11.59
38	01224060251 Hex Bolt 6X25	$3.23

Click to Enlarge

CYLINDER HEAD ASSY 2

Ref#	Part	Price
1	21040100101 Cylinder Head Gasket	$20.00
3	21040100501 Stud 8x45	$3.23
4	21040100701 Exhaust Valve 27	$11.64
5	21040100601 Inlet Valve, 31	$11.64
6	21040100801 Thrust Washer	$3.23
7	21040100901 Valve Stem Seal	$2.70
8	21040101001 Valve Spring	$3.23
9	21040101101 Valve Spring Retainer	$3.23
10	21040101201 Cotter Valve	$3.23
12	21050101201 Screw M10x159	$8.00
14	21040101601 Holding Guard	$3.40
15	01224060161 Hex Bolt 6X16	$3.23
16	21040103301 Rocker Arm Inlet	$25.08
17	21040103401 Rocker Arm Exhaust	$25.08
18	33300-010-0000 Spark Plug, DCPR7E	$8.99
19	21040100401 Steel Ball S_5.159	$3.23
20	21040103101 Pin #12, Small	$4.31
21	21040103201 Flat Washer 18.6x12.4x0.5	$3.23
22	21040101701 Bearing Screw M6	$3.23
24	21050102401 Chain Guide	$3.00
25	21040102001 Chain Guide	$3.23
26	21050102601 Silent Chain 118	$28.08
27	21050102701 Camshaft Sprocket (42 Teeth)	$7.22
28	21050102801 Screw M6X12	$1.91
29	21040102401 Chain Tensioner Housing	$8.98
30	21040102501 O-Ring 21X2.5	$3.40
31	01224060221 Hex Bolt 6X22	$3.23
32	21040102601 Chain Tensioner Plunger	$8.00
33	21040102901 Spring	$3.23
34	21040102701 O-Ring 17x2	$7.00
35	21040102801 Plug Screw	$2.78
37	21040103901 Valve Cover	$11.59
38	01224060251 Hex Bolt 6X25	$3.23

Click to Enlarge

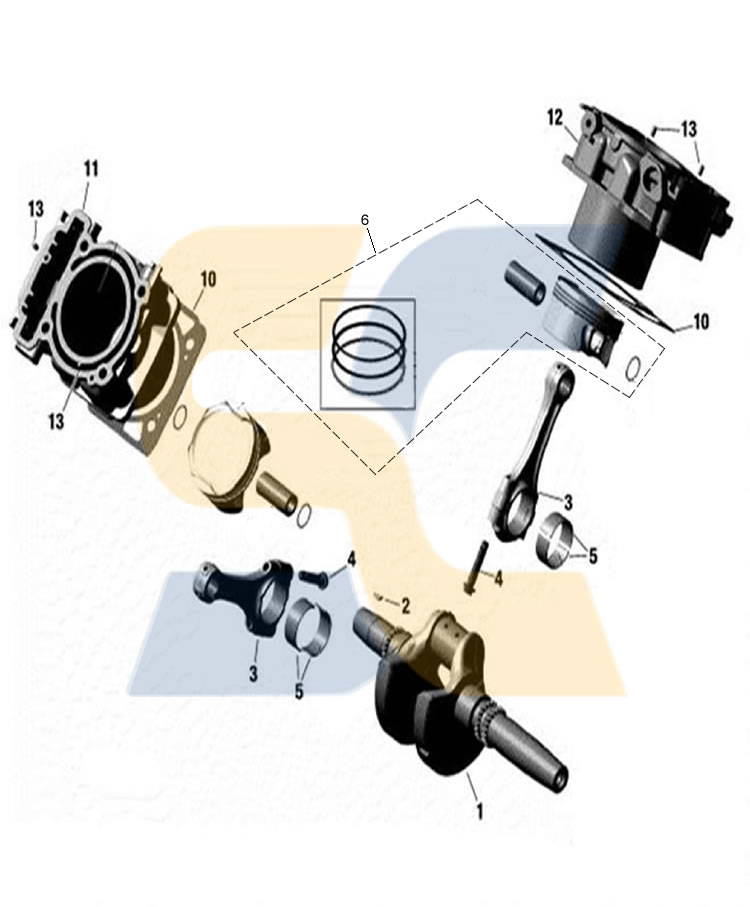

CYLINDER HEAD ASSY 3

Ref#	Part	Price
2	21040107701 Woodruff Key 4x5	$3.00
4	21050400231 Connecting Rod Screw M9x1/45	$1.91
6	21050400600-Kit Piston Kit, ODES UTV 1000	$49.99
10	21140101101 Gasket	$6.00
11	21050401101 Cylinder With Sleeve, Front	$75.83
12	21050401201 Cylinder With Sleeve, Rear See Image	$37.07
13	21050105502 Drive Pin 5X11	$3.23
3	21050400200 Connecting Rod Assy	$33.67

Click to Enlarge

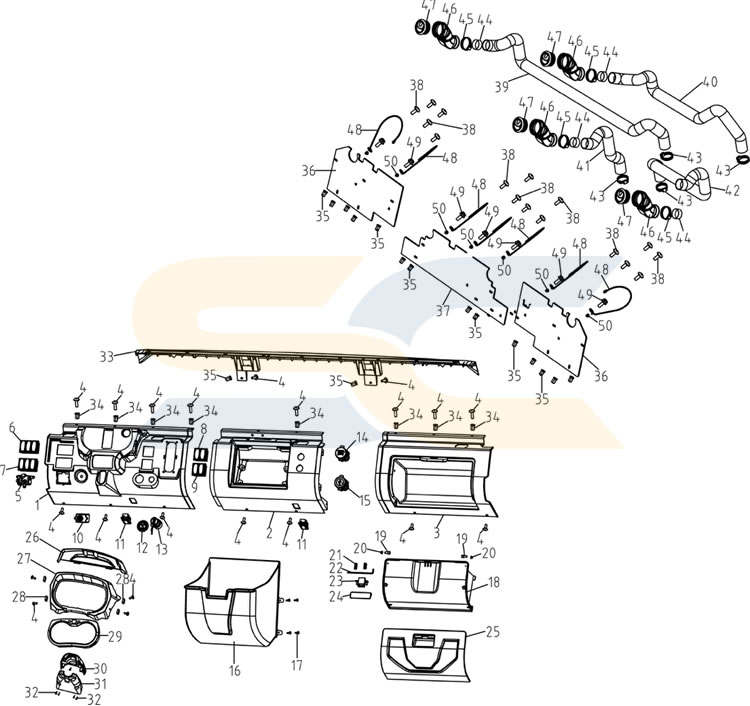

DASHBOARD

Ref#	Part	Price
1	16610270060 Cover, Dashboard, Left	$31.51
2	16610270070 Cover, Dashboard, Middle	$24.29
3	16610270080 Cover, Dashboard, Right	$29.85
5	10909320000 2WD/4WD Switch	$11.40
6	16609190010 Switch (Winch, Rear Differential Lock, Top Light)	$14.46
7	16609190060 Switch (Wiper, Heater)	$12.52
8	16609190030 Switch (Headlight, Turning Light)	$10.13
9	16609190040 Switch (Horn, Emergency)	$10.13
11	14109190160 Seat Heating Switch	$5.12
12	10109430000 Push Start Button	$24.91
13	16509040000 Ignition Switch	$13.99
14	13609300000 DC Socket	$21.50
15	14709300010 USB BASE	$15.36
18	16610150250 Glove Box	$26.70
19	03344080255 Cap Screws 8x25	$1.91
20	04612080025 Hex Locking Nut 8	$3.23
21	16610150290 Return Spring	$2.51
22	16610150280 Spindle, Glove Box Lock	$1.91
23	16610150260 Bolt, Glove Box Lock	$2.07
24	16610150270 Handle, Glove Box Lock	$5.51
25	16610150240 Glove Box Cap	$14.74
26	16609160070 Dashboard Cover	$12.24
27	16609160220 Instrument Base	$8.97
28	04922060025 Plate Nut (Long) 6	$1.91
30	16610210020 Upper Cover	$5.12
31	16610210030 Lower Cover	$5.12
32	03714480125 Tapping Screws ST4.8x12	$1.91
33	16610270090 Pinboard	$22.80
34	04512060027 Rivet Nut 6	$3.23
35	04512060127 Rivet Nut M6	$1.91
36	16610270020 Backboard, Side	$13.90
37	16610270030 Backboard, Middle	$17.25
38	03414060204 Pan Head Screws 6X20	$1.91
39	17114310010 Air Duct, Silica Gel, Left	$28.08
40	17114310020 Air Duct, Silica Gel, Middle Left	$28.08
41	17114310030 Air Duct, Silica Gel, Middle Right	$28.08
43	16607050080 Clamp 27-51	$1.91
44	17114310050 Bushing, Air Duct	$4.21
45	12304010090 Clamp 40-60	$2.07
46	17114310060 Air Duct Transfer Pipe	$10.41
47	17114310070 Adjustable Air Outlet	$4.80
48	16607050130 Retaining Clip	$2.51
49	01254060166 Bolt M6X16	$1.91
50	04612060026 Locking Nut M6	$1.91

Click to Enlarge

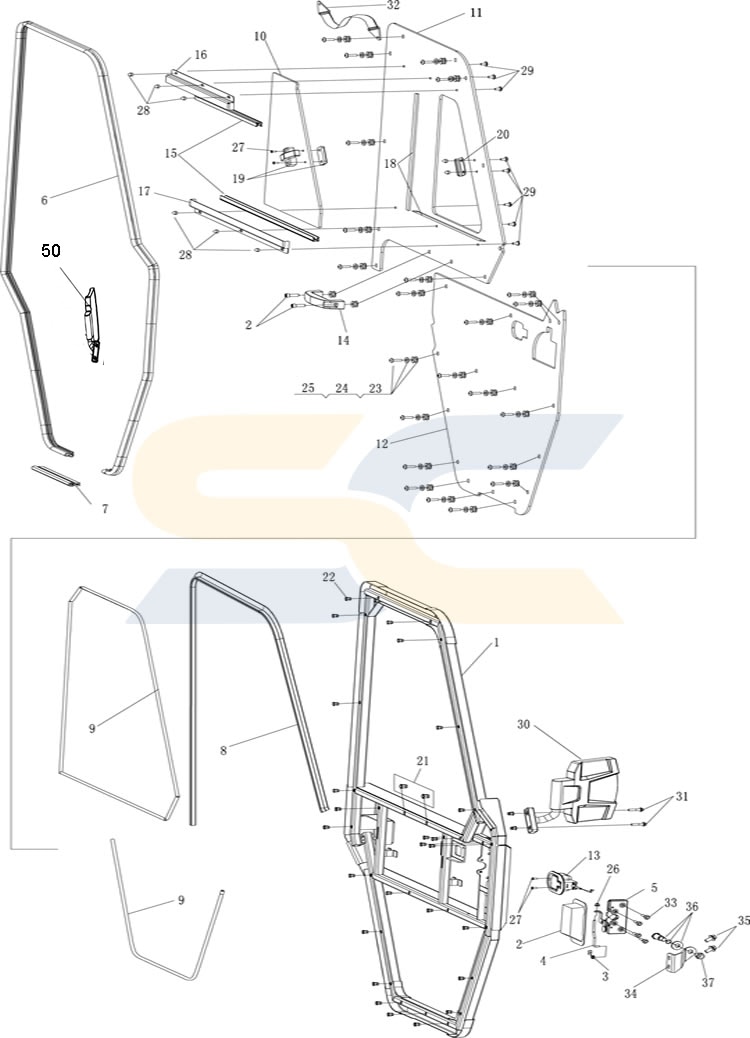

DOOR

Ref#	Part	Price
1	17110340600 Door Inner Frame, Passenger	$201.33
2	16610342200 Door Handle, Driver	$100.00
2	16610343200 Door Handle, Passenger	$99.00
3	16614100070 Clamp, Handle, Driver	$35.00
3	16614100090 Clamp, Handle, Passenger	$2.07
4	16614100100 Connecting Rod	$10.00
5	16510342100 Door Lock, Driver	$25.03
5	16510343100 Door Lock, Passenger	$25.03
6	17110340910 Sealing Strip, Glass Door	$70.00
7	16510340910 Sealing Strip, Door	$35.00
8	17110340540 Sealing Strip, Windshield	$15.00
9	17110340140 Waterproof Strip, Side Door	$60.00
10	17110340320 Front Door Push-Pull Window	$150.00
11	17110340310 Front Door Upper Window	$130.47
12	17110340330 Front Door Lower Window	$300.00
15	16510340940 Window Mud Track	$10.00
16	17110341000 Front Window Upper Guide	$35.00
17	17110341010 Front Window Lower Guide	$45.00
18	17110340530 Push-Pull Window Cushion	$3.51
19	17110341020 Push-Pull Window Lock	$18.00
20	17110341030 Push-Pull Window Lock Position Plate	$5.40
23	17110341040 Window Rubber Cushion	$1.91
25	03414060254 Hexagon Flange Screw	$1.91
26	4612050025 Hexagon Lock Nut	$1.91
27	03124040165 Cross Shape Bolt	$1.91
28	4312060014 Cap Nut	$1.91
30	15105140000 Mirror, Driver	$35.49
31	1224060305 Hexagon Flange Bolt	$1.91
34	17110340510 Front Door Latch Fixation Plate (Left)	$35.00
34	17110340520 Front Door Latch Fixation Plate (Right)	$9.83
36	16510340490 Latch	$40.00
37	04212120021 Hexagon Flange Nut	$5.00
50	15105150000 Mirror, Passenger	$44.59

Click to Enlarge

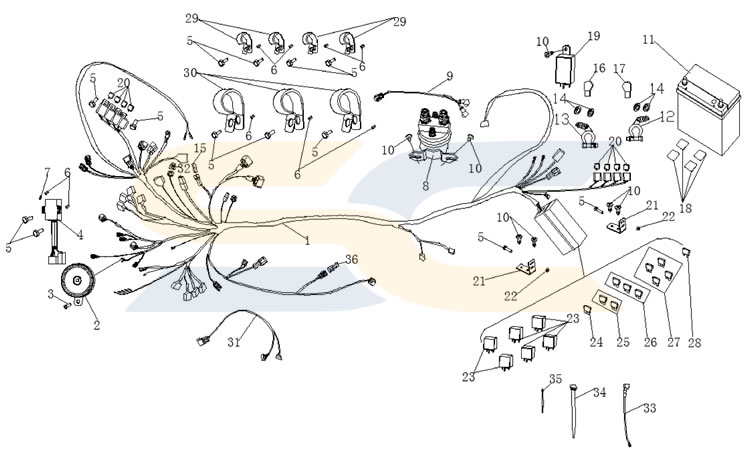

ELECTRICAL PARTS 1

Ref#	Part	Price
2	10409100000 Horn	$7.10
3	01214080165 Hex Bolt 8X16	$1.91
4	21140400302 Shift Controller	$51.35
5	01224060165 Hex Bolt 6X16	$3.23
6	04512060127 Rivet Nut M6	$1.91
7	06819060004 External Teeth Lock Washer	$1.91
8	14109350001 Starter Relay	$50.05
9	14209010180 Starter Relay Connector Wire	$3.87
10	03714630205 Tapping Screws St6.3x20	$1.91
11	10909090000 Battery	$161.90
12	10909090210 Battery Mounting Clip, Positive	$4.84
13	10909090220 Battery Mounting Clip, Negative	$4.31
14	06619061001 Spring Washer 6	$3.23
15	17109160250 Connecting Plug, Odometer	$3.51
16	10909010010 Waterproof Cover (Black)	$3.23
17	10909010020 Waterproof Cover (Red)	$3.23
18	10409090020 Rubber Cusion, Battery	$3.23
19	10109270000 Flasher	$18.00
20	10109330000 Solenoid, 2WD/4WD	$4.31
21	14609010150 Fuse Box Bracket	$6.03
22	04612060025 Hex Locking Nut 6	$3.23
23	10409340000 Diverter Relay (Four Prong)	$13.99
24	10909010050 Fuse 10A, Red	$1.91
25	10909010040 Fuse 15A, Blue	$1.91
26	10909010070 Fuse 20A, Yellow	$1.91
27	10909010030 Fuse 30A, Green	$1.91
28	10909010230 Fuse 40A, Orange	$1.91
29	10109380030 Wire Harness Mounting Clamp 3	$3.23
31	13203100170 2WD/4WD Wire	$6.00
32	17109560030 Battery Seal Connecting Plug	$3.51
33	14609010130 Starter Wire Harness	$19.45
34	90103040030 Nylon Cable Ties W8X250Mm	$1.91
36	16514240090 Camera Seal Connecting Plug	$2.51

Click to Enlarge

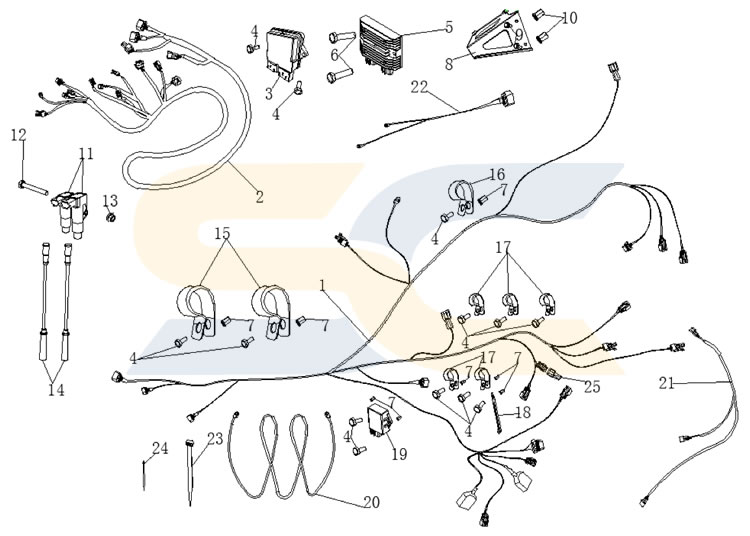

ELECTRICAL PARTS 2

Ref#	Part	Price
1	16509020111 Wiring Harness, Rear	$77.24
2	16609410000 Engine Wiring Harness	$63.88
3	21140400101 ECU- Not Available	$120.00
4	01224060165 Hex Bolt 6X16	$3.23
6	01214060356 Bolt M6x35	$1.91
7	04512060127 Rivet Nut M6	$1.91
8	16509210010 Regulator Bracket	$23.91
9	01224080166 Bolt M8X16	$1.91
10	04512060127 Rivet Nut M6	$1.91
12	1224060751 Bolt M6X75	$1.91
13	04612060026 Locking Nut M6	$1.91
15	15109380040 Mounting Clamp 42, Wiring Harness	$2.51
17	10109380010 Wire Harness Clamp	$3.23
19	16608250030 Rear Differential Lock Controller	$27.06
20	14609010140 Negative Wire	$4.31
21	14609070160 Tail Light Cable	$18.63
22	16509210020 Wire, Voltage Regulator	$18.91
23	90103040030 Nylon Cable Ties W8X250Mm	$1.91
25	16514240090 Camera Seal Connecting Plug	$2.51

Click to Enlarge

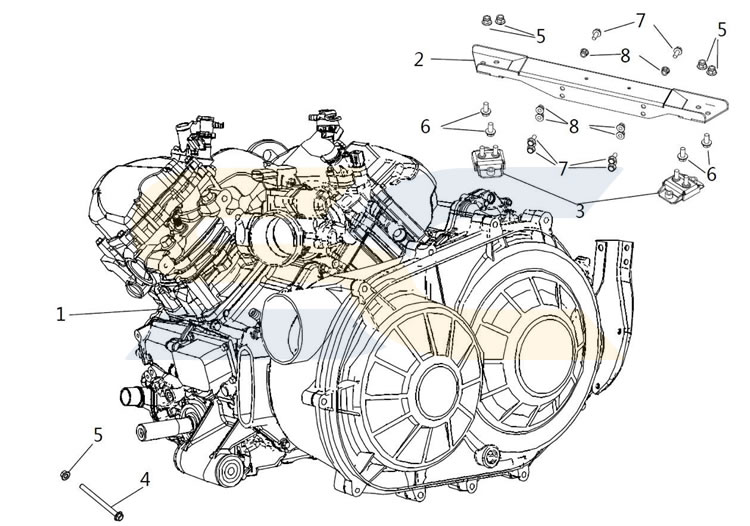

ENGINE

Ref#	Part	Price
1	41000409101 Engine Assy	$2,710.18
2	16608250010 Rear Differential Mounting	$15.57
3	16608250020 Shock Absorber	$15.57
4	1256101306 Bolt M10X130X1.25	$2.07
5	04622100026 Hex Locking Nut 10X1.25	$3.23
6	01256100206 Hex Bolt 10x20x1.25	$1.91
7	01224080206 Bolt M8x20	$1.91
8	04612080026 Locking Nut M8	$1.91

Click to Enlarge

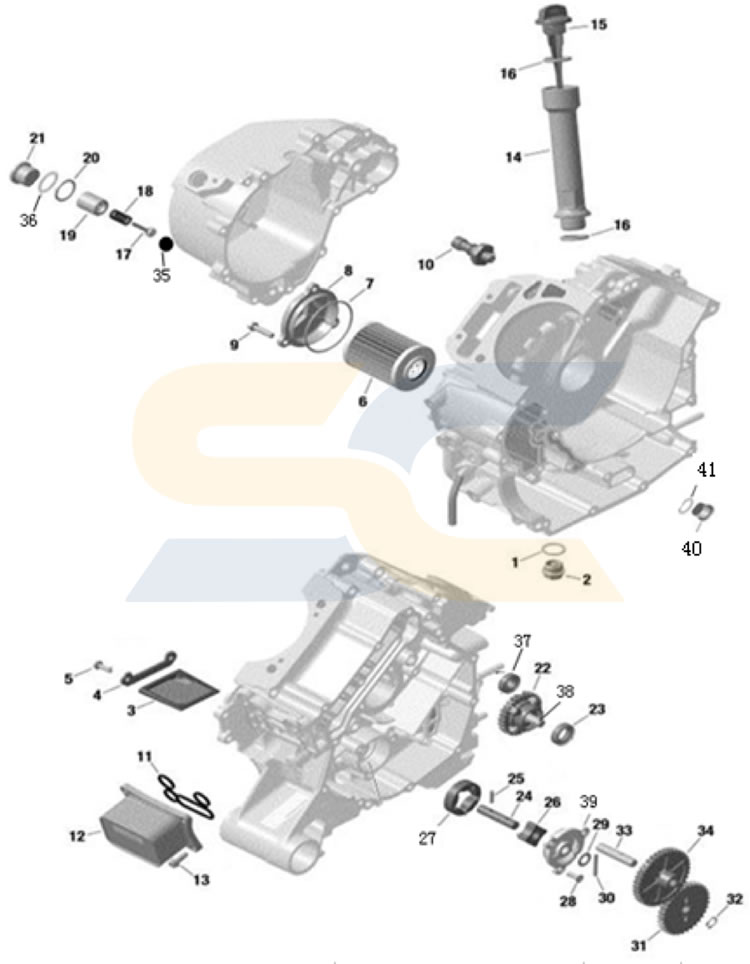

ENGINE LUBRICATION ASSY

Ref# Part Price Qty

21050600101

O-Ring 24X18X1

$1.91

21050600201

Drain Plug M18x1.5

$8.00

21040111401

Oil filter screen

$3.51

21050904801

Sieve Cover

$1.91

01223050161

Hex Bolt 5X16

$3.23

15200-010-0000

Oil Filter ( With O-Ring)

Quantity	Price
1 – 9	$7.99
10 +	$6.00

21040111701

O-Ring 61.5X2.4

$2.23

21040111801

Oil Filter Cover

$11.47

01224060181

Hex Flange Bolt 6X25

$3.23

21050601101

Oil Seal

$3.00

21050601201

Oil Radiator

$42.64

01224060161

Hex Bolt 6X16

$3.23

21050601401

Oil Level Pipe

$17.47

21050601501

Oil Dipstick

$10.00

21040112001

O-Ring

$3.23

21040110401

Pressure Relief Valve

$3.23

21040110501

Compression Spring

$3.23

21040110601

Housing Valve

$3.23

21040205801

Spacer 20x12.5x1

$3.23

21040110801

Screw Plug 22x1.5

$4.24

21050602211

Idler Gear 28 Teeth

$4.21

21050602221

Oil Seal 15X26X7

$5.00

21040112801

Oil Pump Shaft

$3.68

21040112701

Needle Pin 4x16

$3.23

21040112601

Oil Pump Rotor

$3.40

03424050161

Screw 5x16

$3.23

21040113001

Thrust Washer

$3.23

21040113101

Needle Pin

$3.23

21040113201

Oil Pump Gear, 33 Teeth

$19.99

21040105901

Location Pin

$4.13

21040113401

Idle Gear, 38T

$8.98

21040110301

Cushion

$4.00

21040500601

O-Ring 22.5x2.7

$3.23

9360006200

Ball Bearing 6200-2RZ

$5.51

21040516601

Bearing Pin

$2.70

21040112901

Oil Pump Cover

$18.14

21140101901

Copper Washer ï¿½ï¿½12.9Xï

$2.07

Click to Enlarge

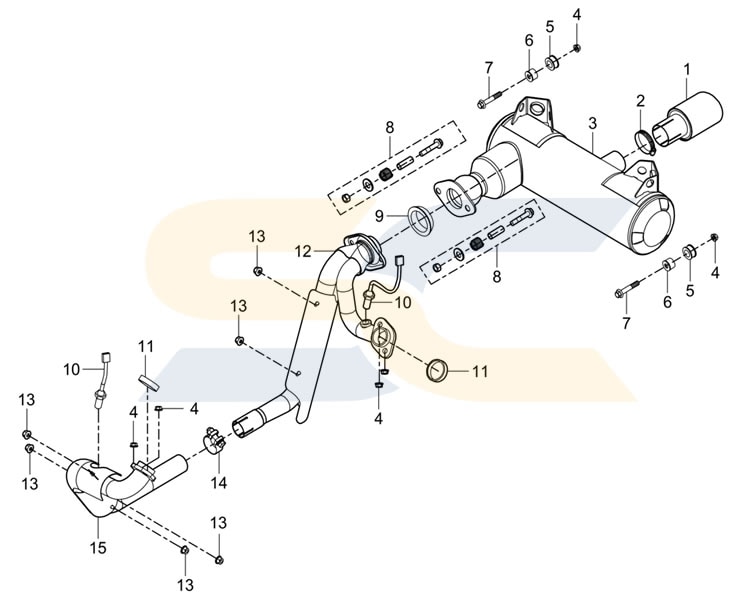

EXHAUST

Ref#	Part	Price
1	14607010100 Muffler End Cover	$29.01
2	14607010700 Clamp	$1.91
3	16607010200 Muffler	$101.79
4	04512080025 Hex Locking Nut 8	$3.23
5	13607010140 Muffler Sleeve- Not Available	$1.91
6	13607010140 Neck Bushing, Muffler- Not Available	$3.07
7	01224080355 Hex Bolt 8X35	$1.91
8	14107010150 Bolt, Exhaust	$5.53
9	14107010530 Graphite Seal Cartridge	$12.00
10	21040400701 Oxygene Sensor	$120.00
11	21040400101 Exhaust Gasket	$4.24
12	16607010070 Rear Exhaust Pipe	$30.40
13	04512060025 Hex Locking Nut 6	$3.23
14	10907010080 Clamp, Exhaust	$4.84
15	14707010060 Front Exhaust Pipe	$50.21

Click to Enlarge

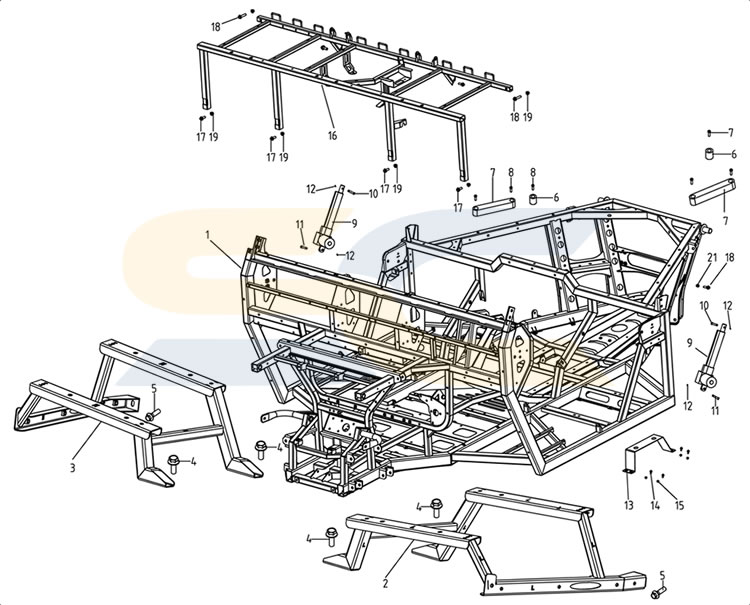

FRAME

Ref#	Part	Price
1	16508010000 Frame Assy	$1,071.27
4	01224080166 Bolt M8X16	$1.91
5	01254060206 Bolt M6X20	$1.91
6	14610470080 Elastic Support	$5.92
7	14610470030 Cargo Bed Support	$11.71
8	01824080125 Allen Step Bolt M8x12	$1.91
10	10908410010 Upper Pin, Electric Lift	$1.91
11	10908410020 Lower Pin, Electric Lift	$1.91
13	14609090150 Battery Box Bracket	$15.70
14	01254060166 Bolt M6X16	$1.91
15	04612060026 Locking Nut M6	$1.91
16	16508010300 Seat Bracket	$246.86
17	01224080206 Bolt M8x20	$1.91
18	01214080406 Bolt M8X40	$1.91
19	04612080026 Locking Nut M8	$1.91
9	01824080125 Allen Step Bolt M8x12	$1.91
4	01254060206 Bolt M6X20	$1.91

Click to Enlarge

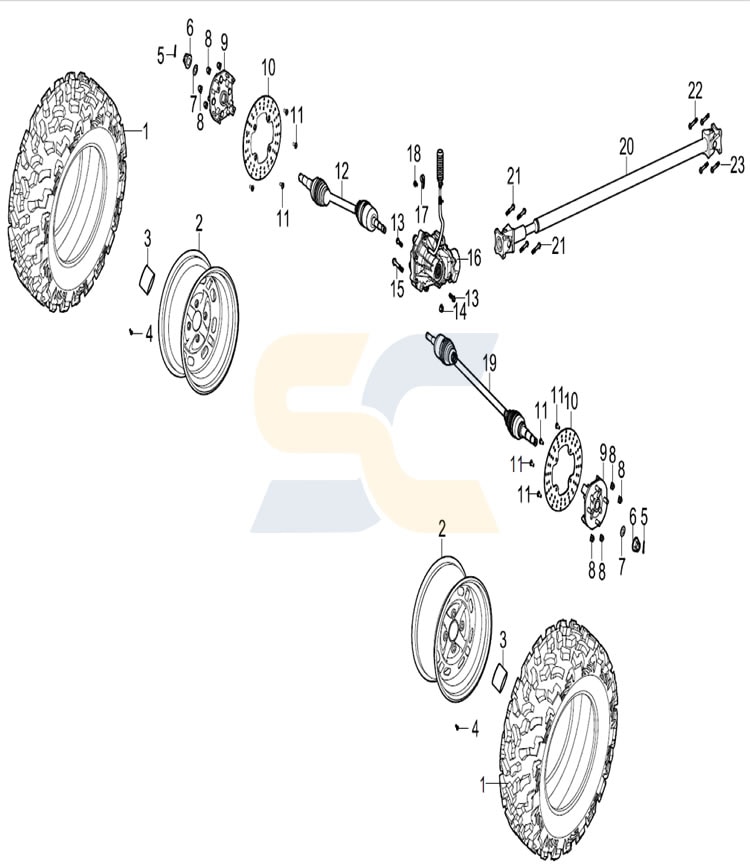

FRONT DRIVE SYSTEM

Ref#	Part	Price
1	16605300010 Front Tire 27X9-14	$127.67
2	10905030280 Front Rim 14X7.5	$98.89
3	10405230020 Wheel Cap	$6.37
4	10405230030 Valve Stem	$1.91
6	04812220022 Nut 22x1.5	$4.31
7	15101230010 Front Butterfly Washer	$4.31
8	04322120021 Nut 12x1.25, Wheel	$2.46
9	15101030000 Front Wheel Hub	$50.00
10	15106010020 Front Brake Disc	$28.21
11	01826080205 Allen T-Type Bolt 8x20	$6.00
11	1144080206 Bolt 8X20X1.0	$1.91
13	1256100956 Bolt M10X95X1.25	$1.91
14	04622100026 Hex Locking Nut 10X1.25	$3.23
17	10406010090 Brake Fuel Hose Clamp	$1.91
20	14603110001 Front Transmission Shaft	$82.12
21	01144080206 Hex Bolt 8X20X1.0	$1.91
22	01566100206 Hex Bolt 10X20X1.25	$1.91
17	01254060126 Bolt M6X12	$1.91

Click to Enlarge

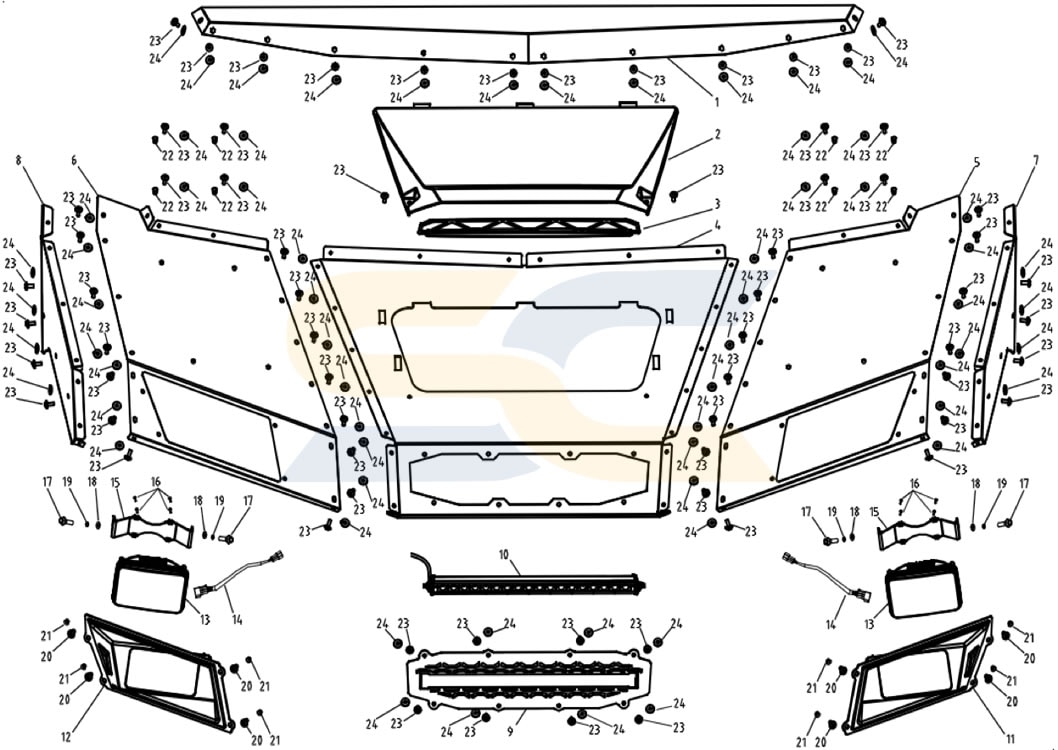

FRONT HOOD

Ref#	Part	Price
1	17110270180 Windshield Front Board (Yellow)	$27.26
2	17110030080 Front Cover Air Flow Hood	$21.97
3	17110030090 Front Cover Air Flow Grill	$23.91
4	17110270130 Front Hood (Yellow)	$78.13
5	17110270140 Upper Fender, Driver (Yellow)	$47.64
6	17110270150 Upper Fender, Passenger (Yellow)	$47.64
7	17110270160 Front Side Board, Driver (Yellow)	$24.65
8	17110270170 Front Side Board, Passenger (Yellow)	$24.65
9	17110030070 Front Grill	$28.55
10	17109570000 Led Grill Light Bar	$58.02
13	14709060030 Headlight	$100.00
14	17109060150 Headlight Wire Harness	$5.51
15	14709060040 Mounting, Headlight	$4.46
16	03174040104 Screw M4X10	$1.91
17	01224080206 Bolt M8x20	$1.91
18	06219092205 Flat Washer 8.5x22x2	$1.91
19	06619081405 Spring Washer	$1.91
20	03414060204 Pan Head Screws 6X20	$1.91
21	04612060026 Locking Nut M6	$1.91
22	04512060127 Rivet Nut M6	$1.91
24	06769061814 Paper Washer	$1.91

Click to Enlarge

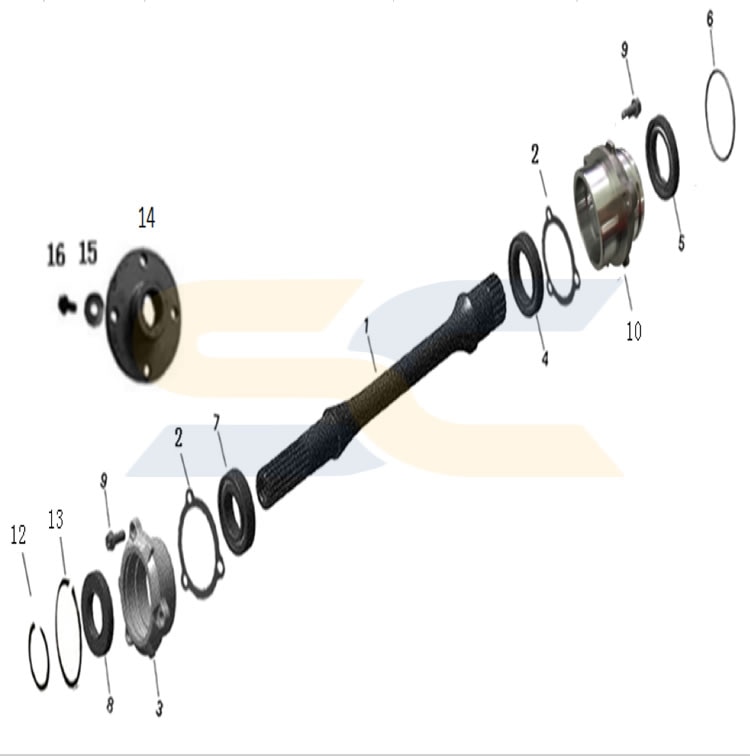

FRONT OUTPUT SHAFT

Ref#	Part	Price
1	21051000101 Drive Shaft	$25.03
2	21040116201 Gasket	$8.99
3	21040115501 Bearing Cover	$8.98
4	09160061906 Ball Bearing 6906	$10.21
5	21040115701 Oil Seal 30x47x7	$4.82
6	21140101601 O-Ring 52.5x2.15	$3.00
7	09160006005 Ball Bearing 6005	$16.72
8	21040116101 Oil Seal 25x47x7	$9.94
9	01224060161 Hex Bolt 6X16	$3.23
12	21040206101 Drive Shaft Check Ring	$3.23
13	7011470001 C-Clamp 47	$1.91
14	21040206402 Front Output Shaft Flange	$17.92
15	60214291235 Washer 29.5X12.5X3.5	$1.91
16	21051001501 Bolt 12x1.25x25	$2.70
12	21051001501 Bolt 12x1.25x25	$2.70
14	21040206101 Drive Shaft Check Ring	$3.23

Click to Enlarge

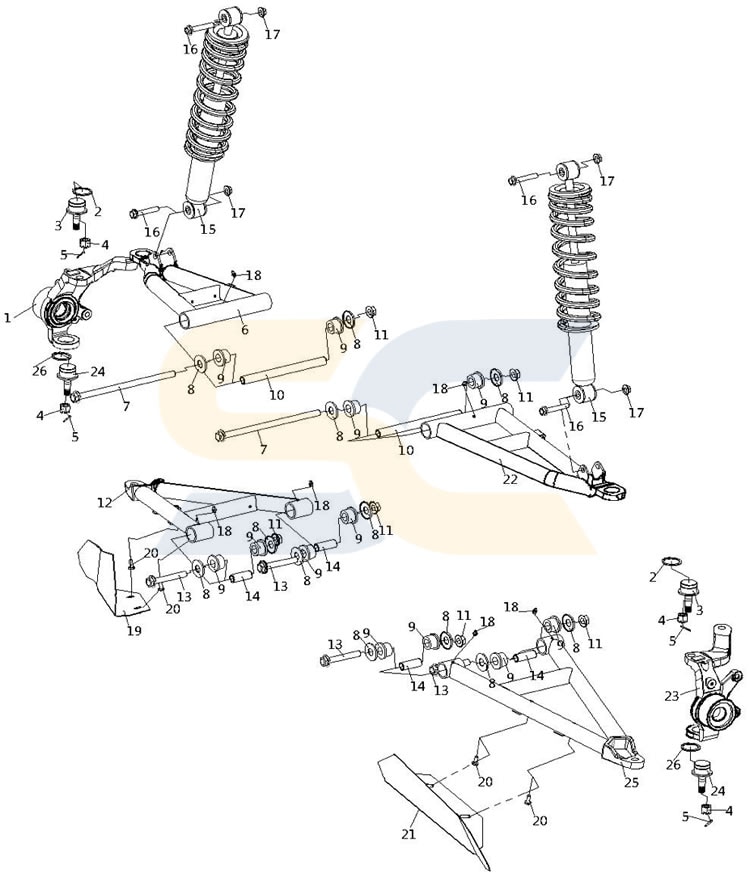

FRONT SUSPENSION

Ref#	Part	Price
1	14605220000 Front Steering Knuckle, Passenger	$100.00
2	07031320004 Snap Ring 32	$2.99
3	10401180000 Ball Joint 32	$31.45
4	4724120025 Castle Nut 12X1.25	$1.91
6	14601070050 Front Uper A-Arm, Passenger	$59.90
7	01256122356 (7) Bolt 12X235X1.25	$5.51
8	13601070030 A-Arm Nylon Sleeve Cover	$1.91
10	14601070080 Uppper A-Arm Inner Sleeve	$24.91
11	04622120026 Hex Locking Nut 12X1.25	$1.91
12	14601090000 Front Lower A-Arm, Passenger	$48.08
13	1256120806 Bolt M12X80X1.25	$2.07
14	14601070010 A-Arm Inner Sleeve	$10.99
15	14601010030 Front Shock (Black)	$134.22
16	01256100556 Hex Bolt 10x55x1.25	$1.91
17	04622100026 Hex Locking Nut 10X1.25	$3.23
19	14701080090 A-Arm Guard Board 1	$22.00
20	3114060165 Bolt M6X16	$1.91
21	14701090080 A-Arm Guard Board 2	$22.00
23	14605210000 Front Steering Knuckle, Driver	$75.78
24	10401190000 Ball Joint 34	$31.45
26	7031340004 Snap Ring 34	$1.91

Click to Enlarge

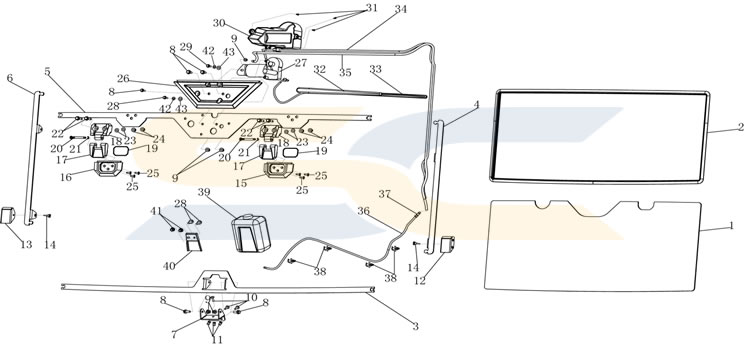

FRONT WINDSHIELD

Ref# Part Price Qty

16614110100

Front Windshield

$591.50

16614110171

Sealing Strip, Windshield - No Longer Available

$25.03

16614110140

Inner Frame, Lower

$42.64

16614110110

Inner Frame, Driver

$22.53

16614110130

Inner Frame, Upper

$22.53

16614110120

Inner Frame, Passenger

$42.64

16614110200

Mounting Bracket

$13.07

01214080205

Hex Bolt 8X20

$3.23

04612080025

Hex Locking Nut 8

$3.23

03414060204

Pan Head Screws 6X20

$1.91

04512060127

Rivet Nut M6

$1.91

16614100130

Roof Connector, Driver

$9.83

16614100140

Roof Connector, Passenger

$9.83

16614110150

Hinge Mount, Driver

$4.00

16614110160

Hinge Mount, Passenger

$4.00

16614110260

Lower Hinge, Windshield

$4.00

16614110250

Upper Hinge, Windshield

$4.00

16614110180

Seal Ring

$1.91

16614110270

Hinge Shaft

$1.91

07031090004

Snap Clip

$1.91

01224080306

Bolt M8x30

$1.91

16614110290

Hinge Gasket, Windshield

$1.91

04612080026

Locking Nut M8

$1.91

03414080254

Pan Head Screw M8x25

$1.91

16614110190

Mounting Bracket, Wiper Motor

$6.65

01254060166

Bolt M6X16

$1.91

16614110850

Motor Cover

$4.00

03714350125

Tapping Screw ST3.5X12

$1.91

16614140020

Wiper Arm

$15.57

16614140010

Wiper Blade

$12.52

16614140610

Connecting Wire, Motor

$9.83

16614110840

Glass Water Pipe (Long)

$5.51

16614110830

Glass Water Pipe (Short)

$3.00

16614110820

Connector, Glass Water Pipe

$1.91

16614110860

Clamp, Glass Water Pipe

$1.91

16614110810

Bracket, Glass Water Jug

$5.51

04612060026

Locking Nut M6

$1.91

01254060206

Washer 6x18x1

$1.91

10914110060

Rubber Blanket 7x20x2

$1.91

Click to Enlarge

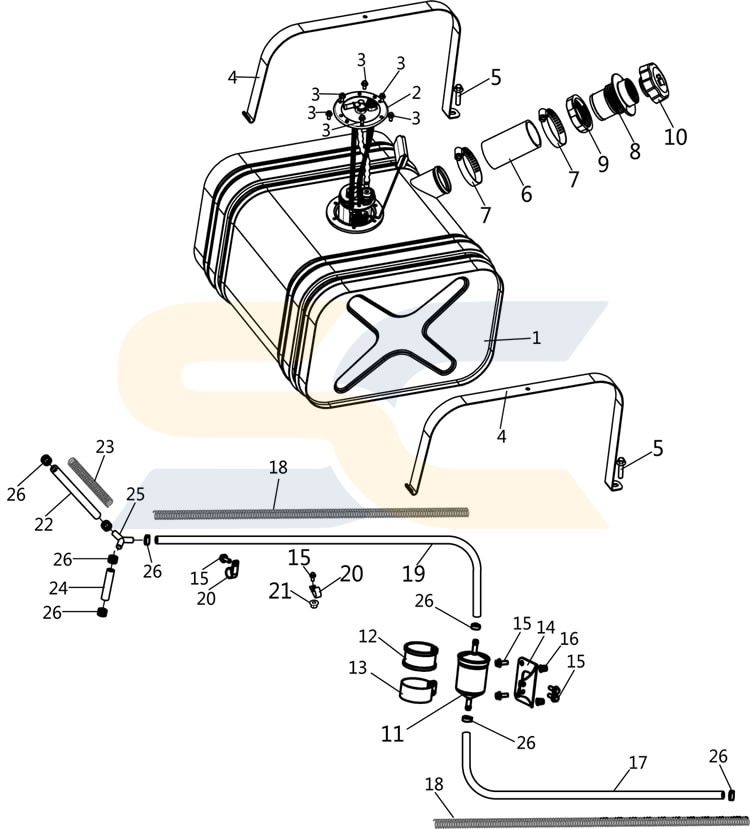

FUEL TANK

Ref#	Part	Price
1	16604010001 Fuel Tank	$56.36
2	10904080001 Fuel Pump	$129.00
3	01224050125 Hex Bolt 5X12	$1.91
5	01214080506 Bolt M8x50	$1.91
6	16604010100 Connecting Pipe, Fuel Tank	$5.00
7	10907040020 Clamp 51-70	$2.70
8	16604010080 Fuel Tank Neck	$4.51
9	16604010090 Nut	$3.00
10	16604020000 Fuel Tank Cap	$5.08
11	10904060001 Fuel Filter	$4.80
12	10904010140 Rubber Lining	$9.50
13	10904060011 Fuel Filter Bracket	$1.91
14	16504060020 Mounting Bracket, Fuel Filter	$7.22
15	01254060166 Bolt M6X16	$1.91
16	04512060127 Rivet Nut M6	$1.91
17	10404040500 Fuel Hose 7.5X14.5 L=1000Mm	$16.00
18	10904040080 Fuel Hose Protection Spring L=650Mm	$1.91
19	10404040500 Fuel Hose 7.5X14.5 L=1000Mm	$16.00
20	10109380020 Wire Harness Mounting Clamp 2-20	$1.91
21	04612060026 Locking Nut M6	$1.91
22	10404040500 Fuel Hose 7.5X14.5 L=1000Mm	$16.00
23	10904040070 Fuel Hose Protection Spring L=150Mm	$1.91
25	21040402501 Y-Shaped Connector	$3.64
26	11912010030 Hose Clamp 14.5Mm	$3.23

Click to Enlarge

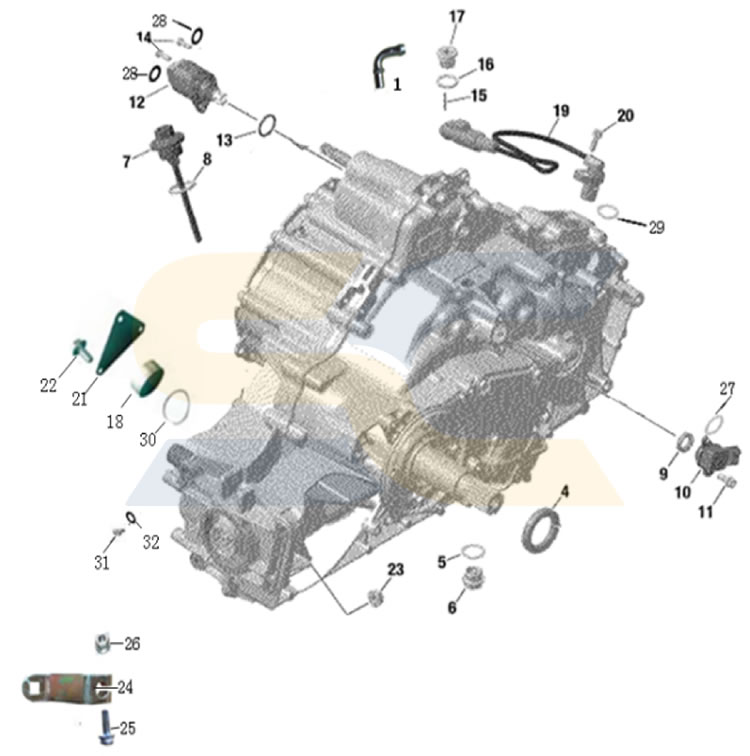

GEARBOX 1

Ref#	Part	Price
1	21050905901 Breather Pipe	$5.51
4	21040201801 Oil Seal 32x47x7	$9.94
5	21050600101 O-Ring 24X18X1	$1.91
6	21050600201 Drain Plug M18x1.5	$8.00
8	21040112001 O-Ring	$3.23
9	21140200401 Oil Seal 12x20x5	$3.91
10	21140200501 Angle Rotation Sensor	$49.32
11	01224060161 Hex Bolt 6X16	$3.23
13	21160102801 O-Ring 17.8x3.3	$1.91
14	03344050141 Screw M5X14	$1.91
18	21140210301 Position Switch	$5.40
19	21050904201 Speed Sensor	$25.85
20	01224060161 Hex Bolt 6X16	$3.23
21	21140210202 Actuator Assy	$6.65
22	01314060252 Screw M6X25	$1.91
23	04112080021 Hex Nut 8	$3.23
24	21050905603 Rocker Arm	$7.81
25	01314060351 Screw M6X35	$1.91
26	04633060023 Hex Flanged Elastic Nut 6	$3.23
27	21040102701 O-Ring 17x2	$7.00
29	21050904211 O-Ring 13X1.9	$1.91
30	21040115801 O-Ring 47x2	$3.23
31	21140207001 Screw M6X8	$1.91

Click to Enlarge

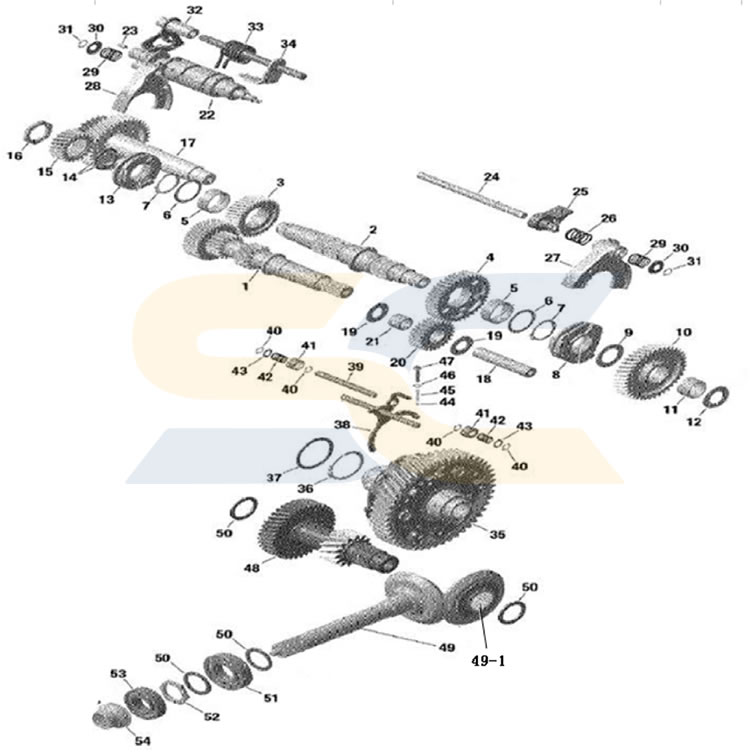

GEARBOX 2

Ref#	Part	Price
13	21140202801 Shifting Sleeve	$28.74
27	21140204101 Shift Fork Assy	$11.40
40	07021101004 Circlip 10	$3.23
43	21040113001 Thrust Washer 17x10.2x1	$3.23
47	01224060301 Screw M6X30	$1.91
51	21140207401 Ball Bearing 6207 C3	$23.91
54	21140206702 Shifting Sleeve Kit	$10.99

Click to Enlarge

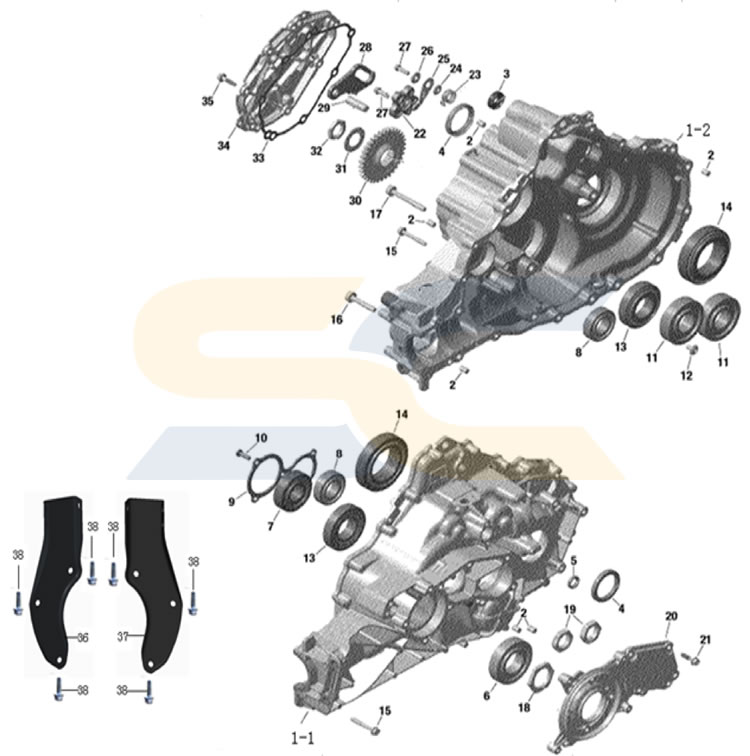

GEARBOX 3

Ref#	Part	Price
1-1	21140207101 Left Cover, Gearbox Assy	$102.15
1-2	21140207201 Right Cover, Gearbox Assy	$106.07
2	21040105401 Center Pin 8x12	$3.23
3	21040200701 Oil Seal 12x28x7	$4.47
6	21140207401 Ball Bearing 6207 C3	$23.91
7	21140207501 Ball Bearing 6305	$11.40
8	21140207601 Ball Bearing 6205	$10.99
9	21140207701 Retaining Plate	$6.94
10	21140207801 Screw M6X20	$1.91
11	21140207901 Ball Bearing 6306 C3	$11.96
12	21040203001 Bearing Set Plate	$3.23
13	21050907321 Ball bearing 30207	$23.08
14	21140208101 Ball Bearing 32011X/J	$14.46
15	1314060451 Screw M6X45	$1.91
16	1314080451 Screw M8X45	$1.91
17	1314080651 Screw M8X65	$1.91
20	21140208401 Bearing Cover, Left	$14.46
21	1314060251 Screw M6X25	$1.91
22	21140208501 Index Washer	$26.70
23	21140208601 Spring	$3.51
24	21040203401 Step Ring	$3.15
25	21050909401 Index Lever Assy	$4.00
26	21040203601 Washer	$3.23
27	01224060201 Screw M6X20	$1.91
29	21140208801 Needle Pin	$5.00
30	21140208901 Gear	$28.08
31	21140209001 Spring Washer 44x24x2	$3.51
32	21140209101 Nut M22	$5.51
33	21140209201 Gasket, Right Cover	$3.00
34	21140209301 Gearbox Cover	$14.46
35	01314060252 Screw M6X25	$1.91
36	21140209401 Hang Bracket, Left	$6.65
37	21140209501 Hang Bracket, Right	$6.65
38	1225080251 Bolt M8X25	$1.91

Click to Enlarge

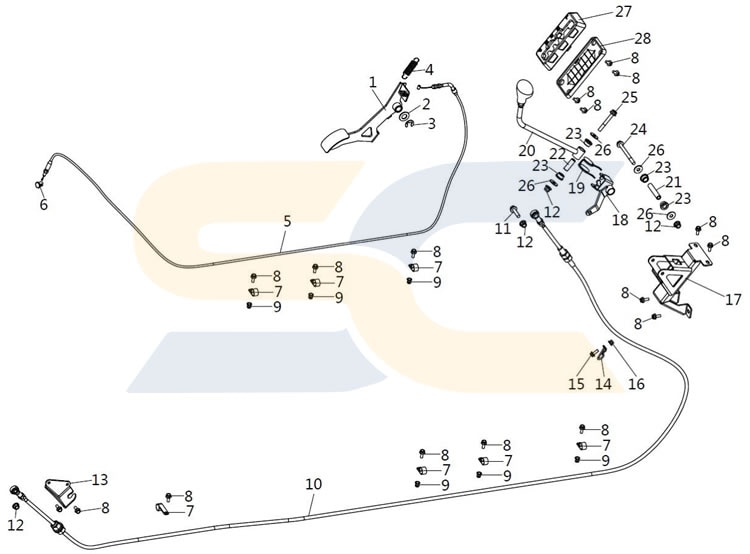

GEARSHIFT ASSY

Ref#	Part	Price
1	14611010100 Throttle Pedal	$17.28
2	06219152805 Washer 15X28X2	$3.23
3	07031120004 Elastic Snap Ring 12	$1.91
4	10906100020 Throttle Return Spring	$10.00
5	14611010010 Throttle Cable	$14.69
6	21040505601 Copper Buckle	$10.00
7	10109380010 Wire Harness Clamp	$3.23
8	01254060166 Bolt M6X16	$1.91
9	04512060027 Rivet Nut 6	$3.23
10	16511030000 Gear Shift Cable	$26.97
11	01224080356 Bolt M8X35	$3.00
12	04612080026 Locking Nut M8	$1.91
13	16611060020 Fixed Plate, Gear Shift Cable	$4.80
14	14711060090 Clamp, Gear Shift Cable	$2.07
15	01254060206 Bolt M6x20	$1.91
16	04612060026 Locking Nut M6	$1.91
17	14708220000 Gear Shifter Bracket	$61.60
18	14711060110 Shift Arm Universal Joint Pin	$27.35
19	14711060150 Return Spring	$1.76
20	14711060000 Gear Shift Lever	$13.77
21	14711060140 Gear Shift Neck Bushing (Long)	$3.94
22	14711060130 Gear Shift Neck Bushing, Shorter	$2.81
23	13205050060 Steering Nylon Sleeve	$3.07
24	01214080856 Bolt M8X85	$1.91
25	01214080656 Bolt M8X65	$1.91
26	06219092205 Bolt 8.5x22x2	$1.91
27	16610360000 Handle Shifting Plate	$5.70
28	14710360140 Rubber Support	$4.51

Click to Enlarge

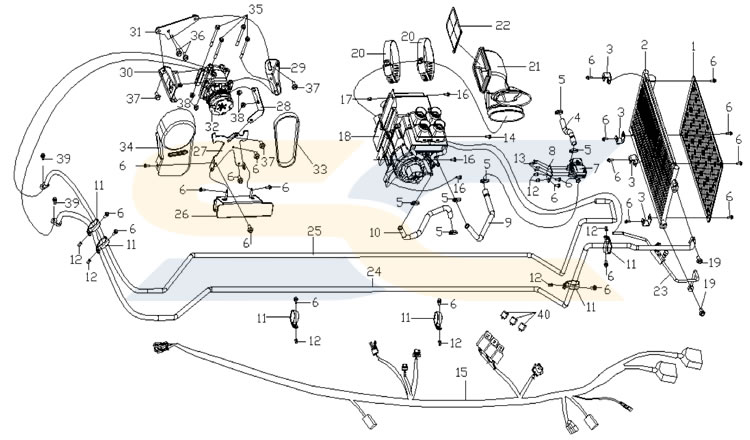

HVAC

Ref#	Part	Price
1	16612020030 Radiator Protection Net	$35.41
2	16614250300 Condenser	$80.08
3	16614250750 Mounting Plate, Condenser	$5.40
4	16612050241 Solenoid Valve, Water Inlet Pipe	$4.00
5	21040104902 Clamp	$3.23
6	01224060165 Hex Bolt 6X16	$3.23
7	16514250500 Electric Water Valve	$27.99
8	16514250720 Fixed Plate, Electric Water Valve	$4.00
9	16612050251 Water Inlet Pipe, Warm Air Blower	$4.80
10	16612050220 Water Inlet Pipe, Warm Air Blower	$4.80
12	04512060027 Rivet Nut 6	$3.23
13	3714420125 Tapping Screws ST4.2X12	$1.91
15	16509074210 AC Harness	$28.36
16	01214080165 Hex Bolt 8X16	$1.91
17	04512080027 Rivet Nut M8	$1.91
19	01254060206 Bolt M6x20	$1.91
20	16607050120 Clamp 110-130	$2.51
21	16614250870 Air Intake Pipe, Air Conditioning	$28.92
22	16614250880 Filter Screen	$5.51
24	16614250410 Compressor Pipe, Condenser	$24.84
25	16614250420 Compressor Pipe, Evaporator	$33.36
26	16614252081 Hear Insulation, Belt	$33.09
27	16614252020 Supporting Plate, Compressor	$28.08
28	16614252030 Lower Adjusted Bracket	$6.65
29	16614252040 Upper Adjusted Bracket	$21.97
30	16614252060 Shaft Bracket	$35.04
31	16614252070 Main Fixed Plate	$41.71
32	16614252010 Compressor	$188.10
33	16614252050 Compressor Belt	$12.52
34	16614250090 Compressor Cover	$9.83
35	01214081056 Bolt M8X105	$1.91
36	01225100206 Hex Bolt 10X20X1.5	$1.91
38	04612080026 Locking Nut M8	$1.91
39	01224080256 Bolt M8×25	$1.91
40	10109330000 Solenoid, 2WD/4WD	$4.31

Click to Enlarge

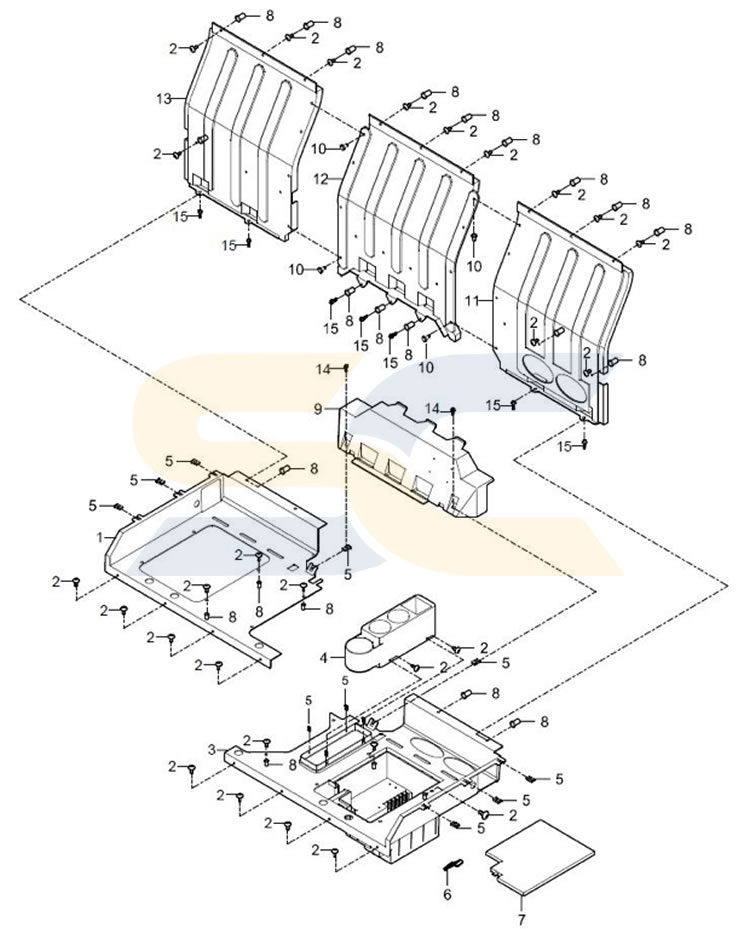

INTERIOR PLASTIC

Ref#	Part	Price
1	14610380020 Front Mudguard, Passenger	$30.72
3	16610380010 Front Mudguard, Driver	$7.22
4	15110190000 Push Pin M8X15M	$3.00
5	14610080030 Footrest Board, Driver	$28.44
6	04922060025 Plate Nut (Long) 6	$1.91
7	14610080020 Footrest Board, Middle	$23.89
8	14610080010 Footrest Board, Passenger	$28.44
9	16610280110 Front Cover	$1.91
10	14610280020 Vent Board, Passenger	$28.33
11	14610280010 Vent Board, Driver	$29.69
12	16510280130 Windshield, Seat Frontguard	$4.21

Click to Enlarge

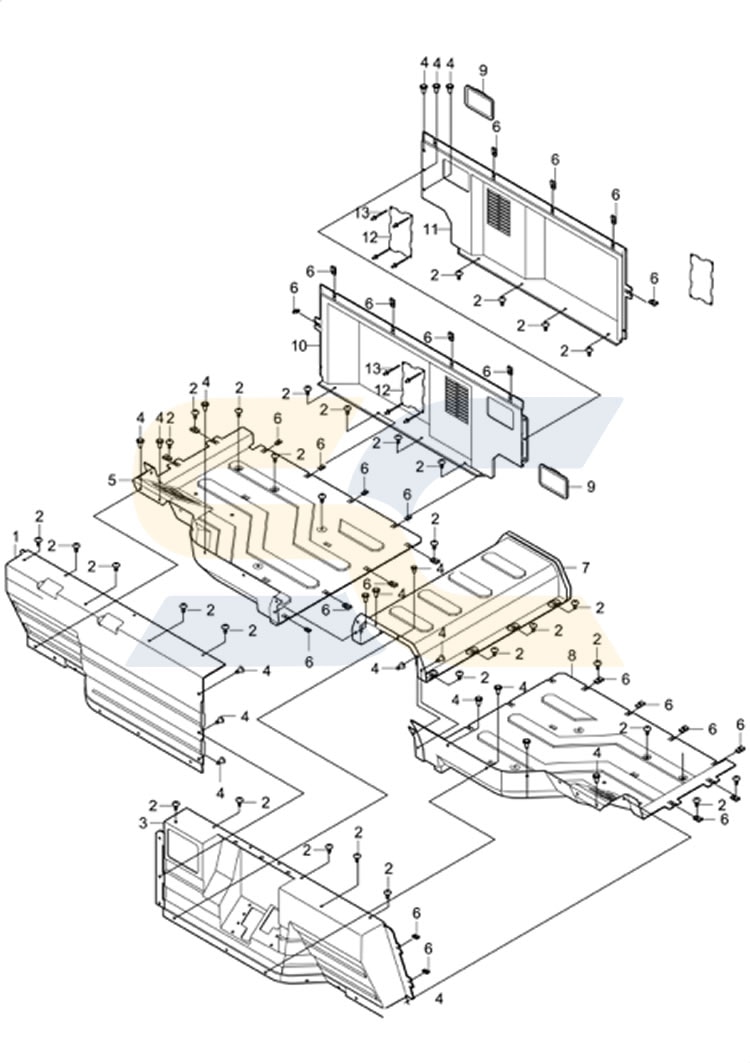

INTERIOR PLASTIC 2

Ref#	Part	Price
1	14610280050 Bottom Board, Passenger	$27.64
3	16610280040 Front Guard, Seat, Driver	$27.64
4	14710350010 Cup Base	$30.00
5	04922060025 Plate Nut (Long) 6	$1.91
6	13610630071 Storage Box Rubber Strip	$2.46
7	14609090140 Battery Box Cover	$11.95
8	04512060027 Rivet Nut 6	$3.23
9	16610280060 Rear Guard, Seat	$25.85
10	15110190000 Push Pin	$3.00
11	16610120010 Back Guard board, Driver	$31.89
12	16610120030 Back Guard board, Passenger	$31.89
13	16610120020 Back Guard board, Middle	$34.48
14	01224060165 Hex Bolt 6X16	$3.23
15	01224060205 Hex Bolt 6X20	$3.23
16	21040402401 Wire Holder	$2.91

Click to Enlarge

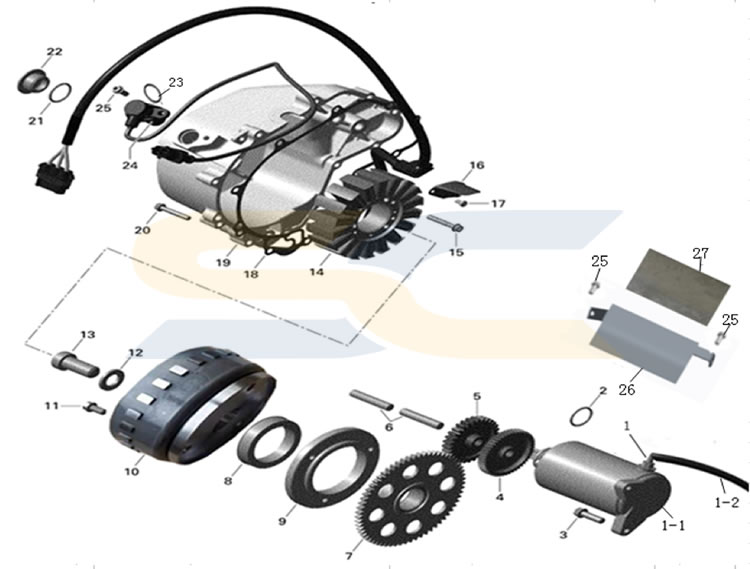

MAGNETO

Ref#	Part	Price
1-2	21040109113 Starter Wire 1.8M	$22.30
2	21040109118 O-Ring 23.8x3.1	$3.23
3	2224080251 Bolt M8X25	$1.91
4	21040109201 Double Gear 49T/11T	$20.96
5	21040109301 Gear, 30 Teeth	$22.44
6	21040105901 Location Pin	$4.13
8	21040109501 One-Way Bearing (Housing Not included)	$55.69
9	21040109601 Housing, One-Way Bearing	$20.16
10	21041000701 Flywheel (Used With 21040109702)	$164.83
11	3344080161 Screw M8X16	$1.91
12	21040109901 Shim 30x16.5x3	$2.78
13	3344160357 Screw M16X35	$2.07
14	21040109702 Stator Plate	$210.00
15	01224060351 Hex Bolt 6X35	$3.23
16	21040110101 Cable Inner Cover	$3.23
17	3113040081 Screw M4X8	$1.91
18	21040111301 Gasket, Generator	$17.35
19	22040110201 Cover	$55.11
20	01224060351 Hex Bolt 6X35	$3.23
21	21040111101 O-Ring	$3.23
22	21040111201 Screw Plug	$3.23
23	21040111001 O-Ring 16x2	$3.23
24	21040110901 Crankshaft Position Sensor Assembly	$20.96
25	01224060161 Hex Bolt 6X16	$3.23
26	21140301301 Heat Insulation, Starter Motor	$5.70
27	10414130010 Brake Cable-Heat Insulation Film (Thin)	$22.69

Click to Enlarge

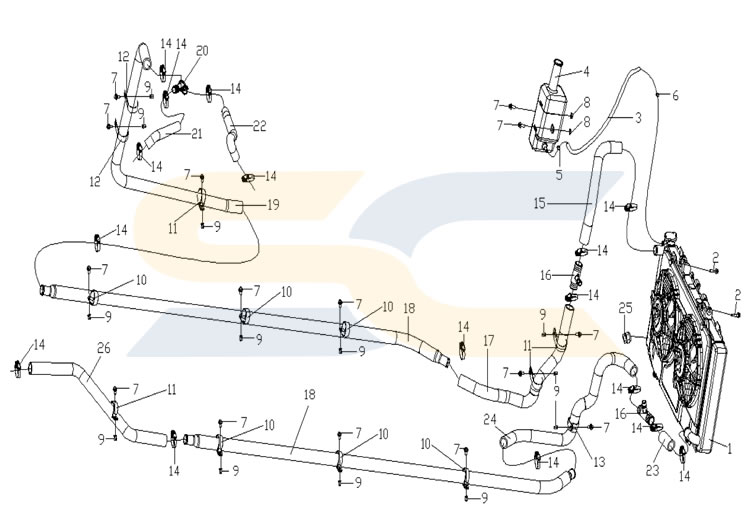

RADIATOR

Ref#	Part	Price
1	21051101405 Dual Fan Radiator With Fans	$184.33
3	10404040490 Fuel Hose, 6.5X12 (L=1000Mm)	$4.84
4	14612040000 Auxiliary Water Tank	$12.29
7	01224060165 Bolt 6X16	$3.23
8	04612060025 Hex Locking Nut 6	$3.23
9	04512060027 Rivet Nut 6	$3.23
11	10109380030 Wire Harness Mounting Clamp 3	$3.23
12	10912050030 Water Outlet Pipe Clamp	$3.23
13	14712050430 Clip 33	$1.91
14	10912070000 Clamp 20-32	$1.91
15	16612050030 Hot Water Pipe, Front	$7.22
16	16612050420 T-Joint	$3.91
17	16612050230 Hot Water Pipe, Middle	$11.40
18	14712050110 Connector Tube, Aluminum	$21.90
19	14712050040 Hot Water Tube Rear	$20.02
20	16612050410 Y-Joint	$4.06
21	14712050060 Water Tube 2	$3.71
22	14712050050 Water Tube 1	$4.87
23	16612050010 Cold Water Pipe, Front	$18.07
24	16612050210 Cold Water Pipe, Middle	$13.07
26	14712050020 Cooling Water Tube 2 (Rear)	$11.71

Click to Enlarge

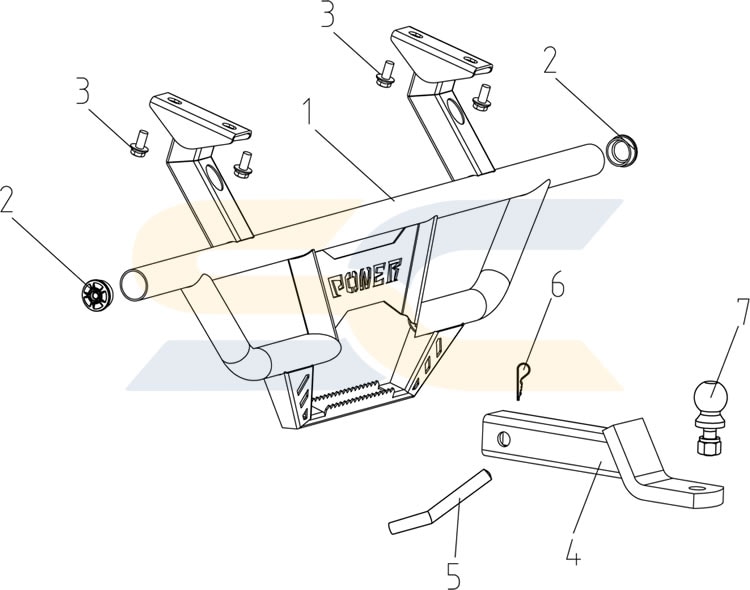

REAR BUMPER

Ref#	Part	Price
1	14708360020 Rear Bumper (Yellow)	$92.71
1	14708360030 Rear Bumper (Green)	$92.71
1	14708360000 Rear Bumper (Black)	$119.00
2	14708360010 Bump Plug	$1.91
3	01256100206 Hex Bolt 10x20x1.25	$1.91
4	10908420080 Winch Pothook w ball	$60.00
5	10908420030 Tow Ball Fixed Pin	$3.69
6	10908420040 Tow Ball Pin	$1.91

Click to Enlarge

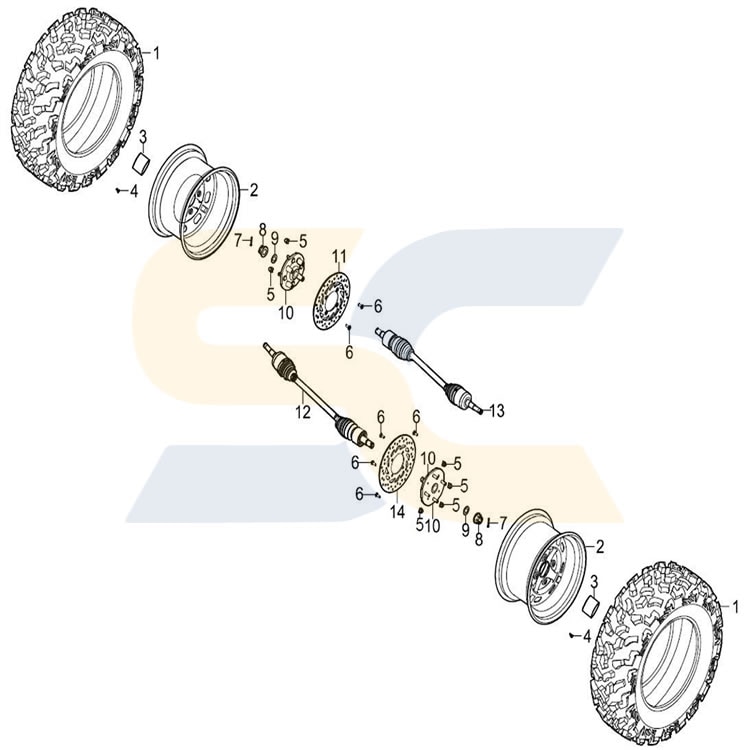

REAR DRIVE SYSTEM

Ref#	Part	Price
1	16605310010 Rear Tire 27X11-14	$124.33
2	10905040210 Rear Rim 14X9	$180.00
3	10405230020 Wheel Cap	$6.37
4	10405230030 Valve Stem	$1.91
5	04322120021 Nut 12x1.25, Wheel	$2.46
6	1824080205 T-Type Bolt M8X20	$1.91
8	04812240022 (8) Nut M24X1.5	$4.31
9	15101250010 Front Butterfly Washer	$4.31
10	15101040000 Rear Wheel Hub	$54.06
11	10106010350 Rear Brake Disc, Passenger	$28.67
12	16601240000 Rear C.V Shaft, Driver	$73.32
13	16601250000 Rear C.V Shaft, Passenger	$73.32
14	10106010340 Rear Brake Disc, Driver	$20.14

Click to Enlarge

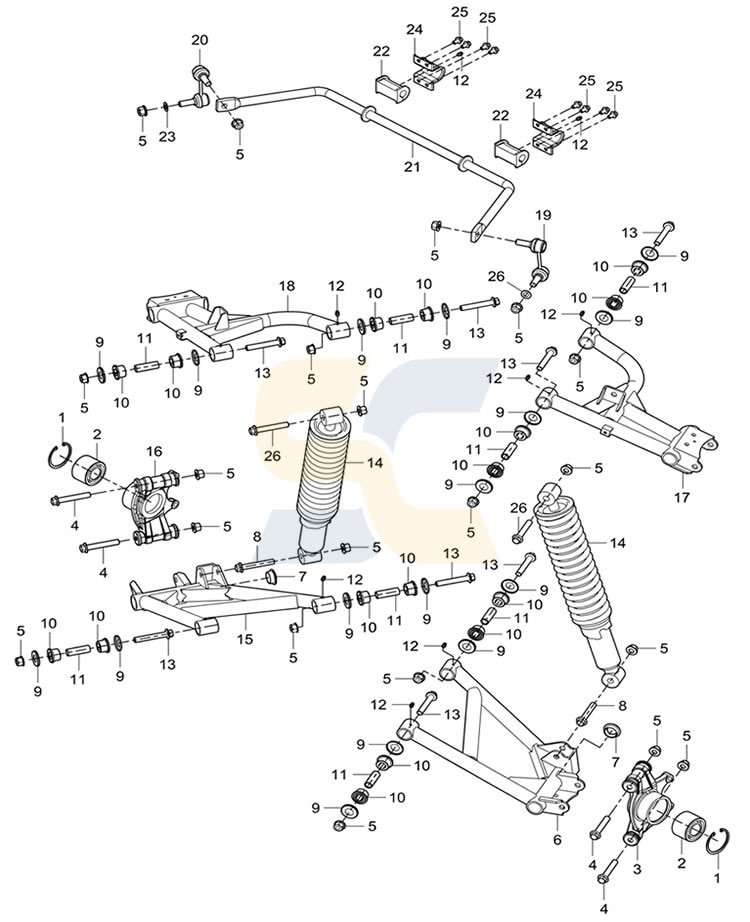

REAR SUSPENSION SYSTEM

Ref#	Part	Price
1	7011630004 C-Clamp 63	$1.91
2	9560306342 Bearing DAC306342	$31.42
3	16601200050 Knuckle Assy, Driver	$60.51
4	1256121256 Bolt M12X125X1.25	$2.51
5	04622120026 Hex Locking Nut 12X1.25	$1.91
6	16601120030 Rear Lower A-Arm, Driver	$104.88
7	16601070040 Swing Arm Plug	$1.91
8	01256120656 Bolt M12X65X1.25	$2.52
9	13601070030 A-Arm Nylon Sleeve Cover	$1.91
11	14601070010 A-Arm Inner Sleeve	$10.99
13	01256120806 Hex Bolt 12x80x1.25	$2.07
14	16501020090 Rear Shock Absorber	$62.10
15	16601130030 Rear Lower A-Arm, Passenger	$104.88
16	16601200060 Knuckle Assy, Passenger	$60.51
17	16601100020 Rear Upper A-Arm, Driver	$93.07
18	16601110020 Rear Upper A-Arm, Passenger	$93.07
19	10101210010 Swing Bar Link, Driver	$9.94
20	10101210050 Swing Bar Link, Passenger	$9.94
21	16601210060 Sway Bar	$25.03
22	15101210040 Rubber Cussion, Anti-Sway Bar	$6.74
23	6119122205 Washer 12.5X22X1.5	$1.91
24	15101210030 Bracket, Anti-Sway Bar	$4.31
25	01224080206 Bolt M8x20	$1.91
26	1256120706 Bolt M12X70X1.25	$1.91

Click to Enlarge

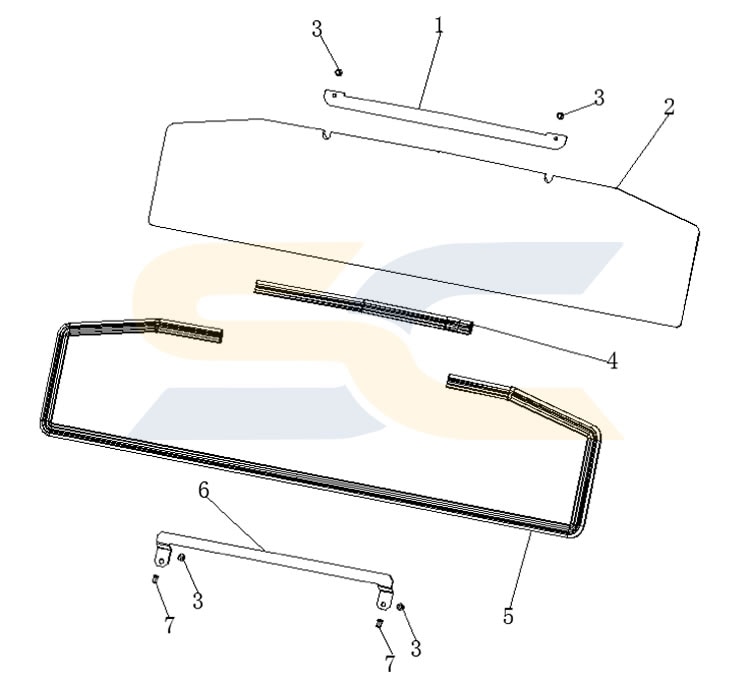

REAR WINDSHIELD

Ref# Part Price Qty

01224080166

Bolt M8X16

$1.91

04512060127

Rivet Nut M6

$1.91

Click to Enlarge

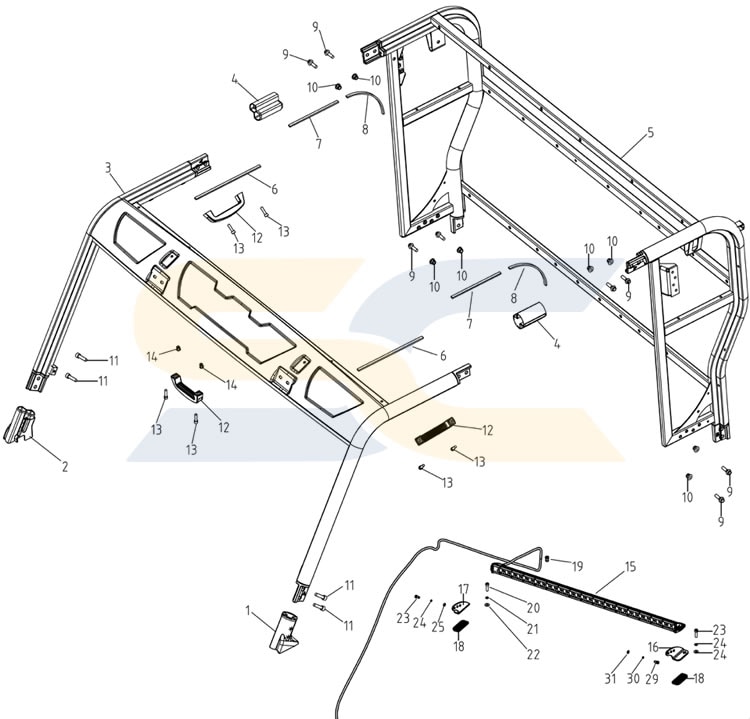

ROLL CAGE

Ref#	Part	Price
1	16608050090 Front Roll Bar Boot, Driver	$7.81
2	16608050100 Front Roll Bar Boot, Passenger	$7.81
3	16608050010 Front Roll Bar Assy	$245.84
4	16608050110 Upper Roll Bar Boot	$6.01
5	16608060010 Rear Roll Bar Assy	$279.85
6	16614100040 Sealing Strip (L=1000Mm)	$4.51
9	01264100355 Hex Bolt 10x35x1.25	$1.91
10	04622100025 Hex Locking Nut 10	$1.91
11	01256100356 Cap Screws M10x35	$1.91
12	16614100050 Hand Grip	$7.58
13	03344080255 Cap Screws 8x25	$1.91
14	04512080027 Rivet Nut M8	$1.91
15	16509280070 Led Light Bar	$68.15
16	15109280080 Bracket, Light Bar, Driver	$1.91
17	15109280130 Bracket, Light Bar, Passenger	$1.91
18	16509280090 Light Bar Shock Pad	$1.91
19	10109290040 Water-Proof Mounting, Led Light Bar Cable	$1.91
20	03344080351 Allen Screw M8x35	$3.23
21	06619081401 Spring Washer 8	$1.91
22	06119091601 Washer 8.5x16x1	$1.91
23	03344050101 Cap Screws M5×10	$1.91
24	06619050805 Spring Washer 5	$1.91
25	06119051801 Washer 5	$1.91

Click to Enlarge

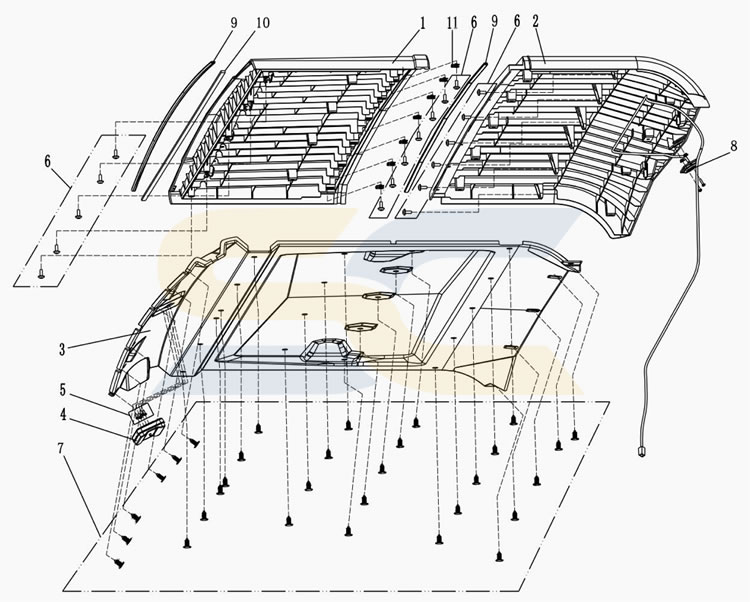

ROOF

Ref#	Part	Price
1	16614100010 Front Roof	$60.15
2	16614100030 Rear Roof	$72.07
3	16514100061 Roof Lining	$81.14
3-1	16610280180 Left Board Lining	$23.21
3-2	16610280280 Right Board Lining	$23.21
4	15109550000 Reading Light	$9.83
5	03174040104 Screw M4X10	$1.91
7	16510340420 Plastic Push Pin	$1.91
8	15109540000 Dump Bed Light	$30.03
9	16614100110 Front Sealing Strip	$4.51
10	16614100040 Sealing Strip (L=1000Mm)	$4.51
11	04922060025 Plate Nut (Long) 6	$1.91
12	16609550030 Fixed Plate, Reading Light	$5.40

Click to Enlarge

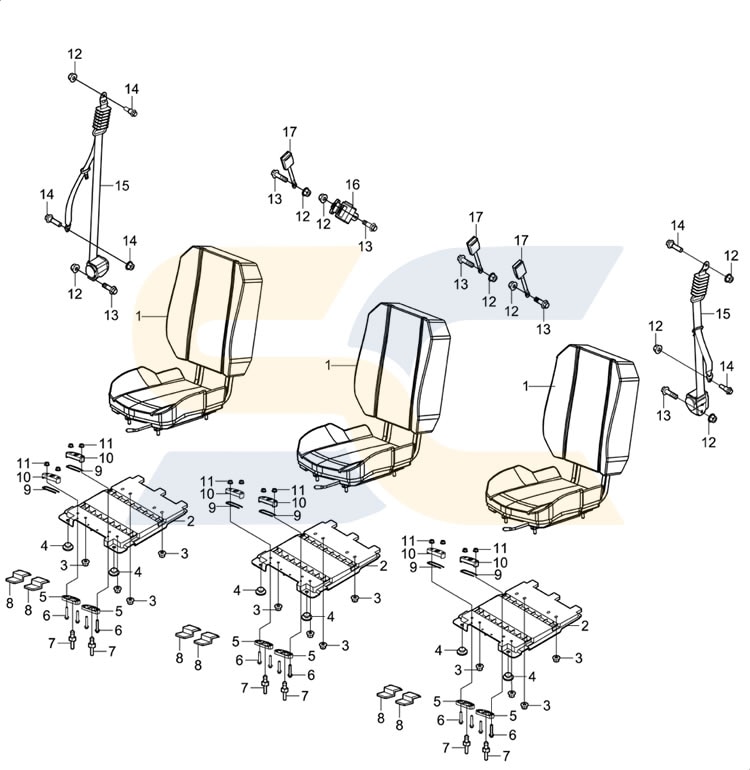

SEATS

Ref#	Part	Price
1-1	14714090000 Seat (Black)	$299.00
3	4612100026 Locking Nut M10X1.5	$1.91
4	10114090120 Seat Bottom Rubber, Outside	$3.23
5	10714090470 Seat Switch Box (Down)	$3.76
6	03414060354 Screws M6ï¿½	$1.91
7	10114090111 Seat Installing Pin	$2.70
8	10714090461 Seat Switch Box (Middle)	$5.00
9	10714090100 Seat Switch Spring	$5.00
10	10714090450 Seat Switch Box (Up)	$3.07
11	04612060025 Hex Locking Nut 6	$1.91
12	04212110021 Hex Locking Nut 11	$1.91
13	1244110302 Bolt M11X30	$1.91
14	1824110302 T-Type Bolt M11X30	$1.91
15	16611090000 Seat Belt	$32.19
16	16611090090 Seat Belt	$16.02
17	16611090030 Seat Belt Mounting Buckle	$6.83
6	10714090450 Seat Switch Box (Up)	$3.07
8	10714090470 Seat Switch Box (Down)	$3.76

Click to Enlarge

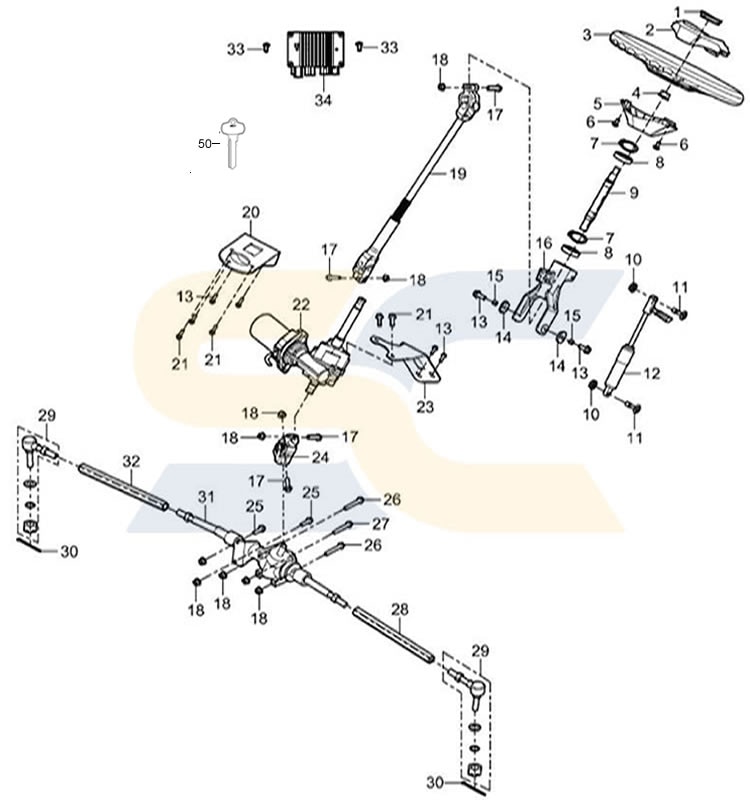

STEERING SYSTEM

Ref#	Part	Price
1	15105090020 Steering Wheel Center Cap	$1.91
2	15105090050 Steering Wheel Cover	$3.00
3	13205090080 Steering Wheel	$27.08
4	04622120026 Hex Locking Nut 12X1.25	$1.91
5	15105090060 Steering Wheel Cover	$3.00
6	03714350101 Tapping Screw ST3.5X10	$1.91
7	07031200007 Elastic Snap Ring 20	$1.91
8	9560061804 Bearing 61804-2RZ	$4.21
9	13205090040 Shaft, Steering Wheel	$15.70
10	04612060025 Hex Locking Nut 6	$1.91
11	1824060125 T-Bolt M6X12	$1.91
12	13208400001 Adjusting Spring, Steering Wheel	$30.00
13	012140802551 Hex Bolt 8X25	$3.23
14	13205050060 Steering Nylon Sleeve	$3.07
15	13205050070 Steering Inner Bush	$3.23
17	01224080355 Hex Bolt 8X35	$1.91
18	04612080025 Hex Locking Nut 8	$3.23
19	16605270030 Steering Shaft	$39.67
20	14605270040 Lower Bracket, EPS Motor	$16.04
21	01224080166 Bolt M8X16	$1.91
22	14605270010 EPS Motor	$574.21
23	14605270060 Upper Bracket, EPS Motor	$12.97
24	13205270021 Universal Joint, Power Steering	$16.51
25	1214080205 Bolt M8X20	$1.91
26	1214080955 Bolt M8X95	$1.91
27	1214080805 Bolt M8X80	$1.91
28	10105100070 Steering Tie Rod, Driver	$6.74
32	10905100090 Steering Tie Rod, Passenger	$9.23
33	1224060125 Bolt M6X12	$1.91
34	13205270052 EPS Controller	$220.00
50	X106KA15 Key Blank See Image	$4.85
19	13205090040 Shaft, Steering Wheel	$15.70

Click to Enlarge

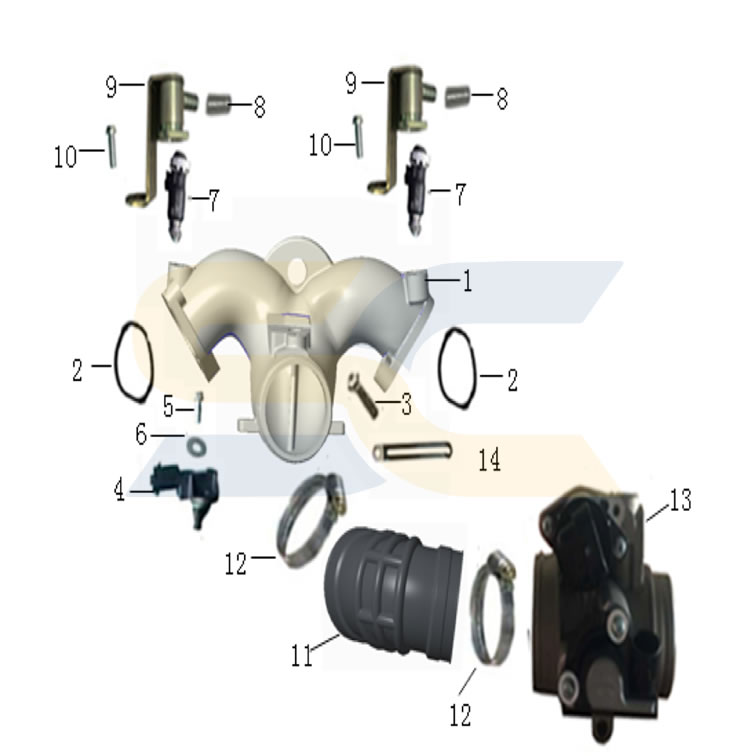

THROTTLE BODY

Ref#	Part	Price
1	21051101701 Air Intake	$58.91
2	21040114501 Manifold gasket	$3.51
3	02224080251 Hex Bolt 8x25	$3.23
4	21040114601 Pressure And Temp Sensor	$75.68
5	01224060161 Hex Bolt 6X16	$3.23
6	6222061704 Washer 6X17	$1.91
8	21040114911 Fuel Injector Cap	$3.23
9	21040115103 Injection Valve Cap	$17.20
10	01224060161 Hex Bolt 6X16	$3.23
11	21051101101 Intake Neck	$10.00
12	21051101201 Clamp 60-80	$1.91
13	21051101301 Throttle Body- No Longer Available	$199.99
14	21040402401 Wire Holder	$2.91
15	21040402601 Ventilation Valve	$13.99
16	10404040480 Fuel Hose 4.5x8 (L=400MM)	$9.79
17	10404040490 Fuel Hose 6.5x12 (L=550MM)	$4.84
18	10404040500 Fuel Hose 7.5X14.5 L=150Mm	$16.00
20	11912010030 Hose Clamp 14.5Mm	$3.23
21	10404070010 Clamp 8.5-9.5	$3.23
22	21040402501 Y-Shaped Connector	$3.64

Click to Enlarge

WATER COOLING ASSY

Ref#	Part	Price
1	21040113501 Intermediate Shaft	$5.44
2	21040113001 Thrust Washer	$3.23
3	21040113601 Water Pump Gear Z=20	$9.16
4	21040113701 Needle Pin 4x20	$3.23
5	21040113801 Pump Gear,15 Teeth	$9.16
6	07021101004 Snap Ring 10	$3.23
8	21040114001 Water Pump Shaft	$11.38
9	21040113901 Rotary Seal	$18.35
10	21140100701 Water Impeller	$4.21
12	21140100501 Gasket	$4.21
13	06150061201 Gasket RingÊ6	$3.23
15	21040104701 Copper Washer 18x12.4x2	$2.91
16	21040104801 Plug Screw 12x15	$2.91
18	21040104201 Thermostat Gasket	$3.07
19	21040104301 Thermostat Cover	$9.11
20	01224060251 Hex Bolt 6X25	$3.23
21	06150061201 Gasket Ring 6	$3.23
22	21040104401 Screw 6x10	$3.23
24	21040104001 Thermostat	$16.14
27	21040103001 Water Temperature Sensor	$20.96
28	21040104361 Housing Cap	$3.23

Click to Enlarge

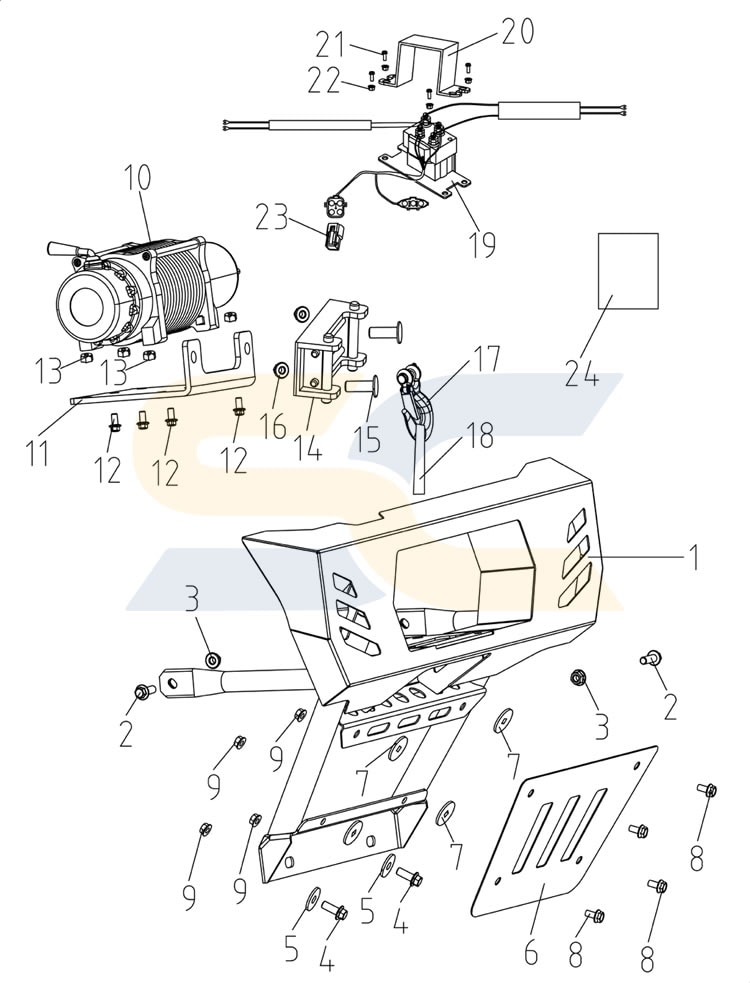

WINCH ASSY

Ref#	Part	Price
1	17108110110 Front Bumper (Green)	$125.01
2	01264100355 Hex Bolt 10x35	$1.91
3	04622100025 Locking Nut M10x1.25	$1.91
4	01264100205 Hex Bolt 10x20x1.25	$3.23
5	06119113005 Washer 11x30x2	$1.91
6	14700560100 Lower Guard Board (Yellow)	$40.04
6	14700560110 Lower Guard Board (Black)	$33.36
6	14700560120 Lower Guard Board (Green)	$40.04
7	10114100030 Rubber Washer For Step Bolt	$3.23
8	01224080256 Bolt M8x25	$1.91
9	04612080026 Locking Nut M8	$1.91
10	17114150010 Winch	$171.40
11	17114150030 Mounting Plate, Winch	$17.52
12	01224080206 Bolt M8x20	$1.91
13	04212080021 Nut M8	$1.91
14	17114150020 Winch Cable	$24.65
15	03144100201 Round Square Bolt M10x20	$1.91
16	04212100021 Locking Nut M10	$1.91
17	10914150080 Hook, Winch	$6.08
18	10914150090 Anchor Rope	$1.91
19	10914150010 Winch Relay Cover	$4.51
20	10914150010 Winch Relay Cover	$4.51
22	04612060026 Locking Nut M6	$1.91
24	17114150050 Winch User Manual	$1.91

Product Videos

Custom Field

Product Reviews

Write a Review

Bennche Warrior Max 1000 Parts

Product Description

Bennche Parts : UTV : Warrior Max 1000

Product Videos

Custom Field

Product Reviews

Write a Review

Bennche

Bennche Warrior Max 1000 Parts

Recommended
