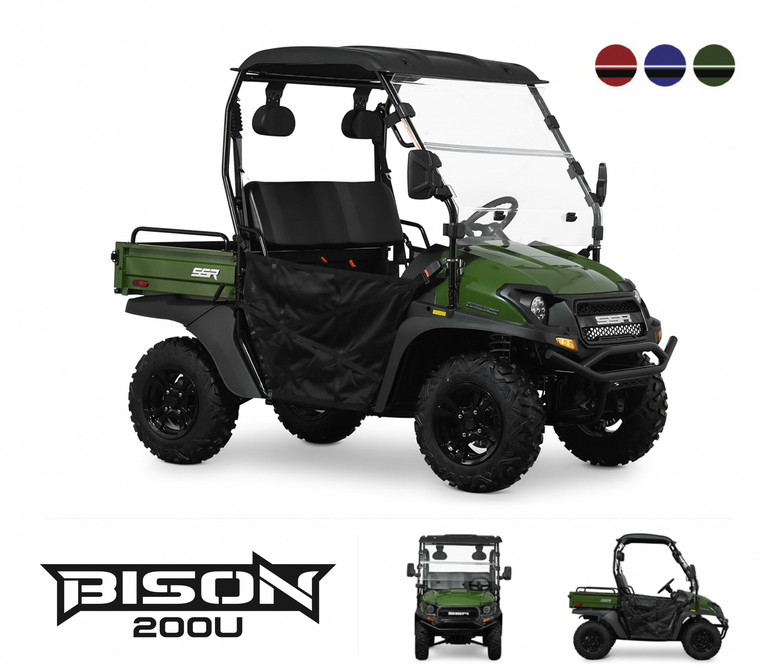

(BISON 200U/BISON 200P) Full Parts Schematics
SSRCALL TO ORDER (320)-358-1994
(No reviews yet)
Write a Review
SSR
(BISON 200U/BISON 200P) Full Parts Schematics
| 2021-2023 BISON 200U/P (SRU200U/P) | ||||||
  |
||||||
| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU5300010 | FRAME | *OVERSIZE* | 1 | Pc. | $931.00 |
| 2 | 1MU5130200 | RUBBER GROMMET | 2 | Pcs. | $8.00 | |
| 3 | 1MU603301001 | FRAME PLUG 1 | 60X40 | 4 | Pcs. | $7.00 |
| 4 | 1MU708730001 | FRAME PLUG II | 40X20 | 2 | Pcs. | $4.00 |
| 5 | 1MU7014000 | TRAILER HITCH W/ BALL | 1 | Pc. | $96.00 | |
| 6 | 1MU708070002 | TRAILER HITCH PIN | 1 | Pc. | $8.00 | |
| 7 |
9501304075000000
|
HITCH PIN CLIP | 4X75 | 1 | Pc. | $3.50 |
| 8 | 1NUX611100 | WARNING LABELS | BISON 200U | 1 | Set | $54.00 |
| 8 | 1NUX611101 | WARNING LABELS | BISON 200P | 1 | Set | $47.00 |
| FRONT COWLING & HOOD | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU6011410 | HOOD LATCH | 2 | Pcs. | $8.00 | |
| 2 | 1MU6011500 | HOOD LATCH RING | 4 | Pcs. | $2.00 | |
| 3 | 1MU60112041 | HOOD | RED | 1 | Pc. | $77.00 |
| 3 | 1MU60112072 | HOOD | BLUE | 1 | Pc. | $77.00 |
| 3 | 1MU601120633 | HOOD | GREEN | 1 | Pc. | $77.00 |
| 3 | 1MU60112034 | HOOD | CEMENT GRAY (P) | 1 | Pc. | $77.00 |
| 4 | 1MU60111041 | LOWER HOOD | RED *OVERSIZE* | 1 | Pc. | $131.00 |
| 4 | 1MU60111072 | LOWER HOOD | BLUE *OVERSIZE* | 1 | Pc. | $131.00 |
| 4 | 1MU601110633 | LOWER HOOD | GREEN *OVERSIZE* | 1 | Pc. | $131.00 |
| 4 | 1MU60111034 | LOWER HOOD | CEMENT GRAY (P) *OVERSIZE* | 1 | Pc. | $131.00 |
| 5 |
9312306000105300
|
CLIP NUT | M6 | 9 | Pcs. | $1.50 |
| 6 | 1MU6011300 | RUBBER GROMMET | 2 | Pcs. | $2.00 | |
| 7 |
9276360160111300
|
BUTTON HEAD ALLEN BOLT | M6X16 | 6 | Pcs. | $1.50 |
| 8 |
9271342160002300
|
ST SCREW | ST4.2X16 | 6 | Pcs. | $1.50 |
| 9 | 1MU514040123 | REVERSE ALARM BRACKET | 1 | Pc. | $7.00 | |
| 10 |
9271348160006300
|
ST SCREW | ST4.8X16 | 6 | Pcs. | $1.50 |
| 11 | 2MU6021100 | GRILL | BLACK *OVERSIZE* | 1 | Pc. | $77.00 |
| 12 |
9397342000002300
|
CLIP NUT | ST4.2 | 9 | Pcs. | $1.50 |
| 13 |
9271342130006300
|
ST SCREW | ST4.2X13 | 16 | Pcs. | $1.50 |
| 14 | 1MU5660400 | RUBBER GROMMET | 2 | Pcs. | $2.00 | |
| 15 | 1MU6140810 | REFLECTOR STICKER | AMBER | 2 | Pcs. | $7.00 |
| 16 | 2MU6021200 | GRILL MOUNTING PLATE | 1 | Pc. | $60.00 | |
| 17 | 2MU6021300 | SSR GRILL LOGO | 1 | Pc. | $41.00 | |
| 18 |
9271342100002300
|
ST SCREW | ST4.2X10 | 16 | Pcs. | $1.50 |
| 19 |
9402308000031300
|
WASHER | M8 | 2 | Pcs. | $1.50 |
| 20 | 1NU6137600 | FUEL INJECTION EMBLEM | 2 | Pcs. | $33.00 | |
| 21 | 1MU8020510 | LED HEADLIGHT | 2 | Pcs. | $124.00 | |
| 22 | 1MU8020100 | RIGHT FRONT LED TURN SIGNAL | 1 | Pc. | $69.00 | |
| 23 | 1MU8020200 | LEFT FRONT LED TURN SIGNAL | 1 | Pc. | $69.00 | |
| FENDERS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU603111001 | RIGHT REAR UPPER FENDER | FOR P MODEL (U MODEL W/ BED) | 1 | Pc. | $35.00 |
| 2 | 1MU602811001 | LEFT REAR UPPER FENDER | FOR P MODEL (U MODEL W/ BED) | 1 | Pc. | $35.00 |
| 3 |
9276360160111300
|
BUTTON HEAD ALLEN BOLT | M6X16 | 14 | Pcs. | $1.50 |
| 4 | 1MU602710001 | LEFT REAR FRONT FENDER | 1 | Pc. | $35.00 | |
| 5 | 1MU602910001 | RIGHT REAR FRONT FENDER | 1 | Pc. | $35.00 | |
| 6 | 2MU601810001 | RIGHT FRONT FENDER | 1 | Pc. | $39.00 | |
| 7 |
9275360250111300
|
BUTTON HEAD ALLEN BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 8 |
9271348160006300
|
ST SCREW | ST4.8X16 | 6 | Pcs. | $1.50 |
| 9 |
9271348190006300
|
ST SCREW | ST4.8X19 | 4 | Pcs. | $1.50 |
| 10 |
9312306000105300
|
CLIP NUT | M6 | 2 | Pcs. | $1.50 |
| 11 | 2MU601710001 | LEFT FRONT FENDER | 1 | Pc. | $39.00 | |
| INSTRUMENT PANEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU6014120 | INSTRUMENT PANEL | *OVERSIZE* | 1 | Pc. | $89.00 |
| 2 | 1MU5650100 | PARKING BRAKE BOOT | 1 | Pc. | $24.00 | |
| 3 |
9271348160006300
|
ST SCREW | ST4.8X16 | 11 | Pcs. | $1.50 |
| 4 | 1MU6014500 | SWITCH COVER | 8 | Pcs. | $4.00 | |
| 5 | 1MU601421001 | STEERING SHAFT COVER | 1 | Pc. | $11.00 | |
| 6 |
9397342000002300
|
CLIP NUT | ST4.2 | 10 | Pcs. | $1.50 |
| 7 | 1MU601460002 | SWITCH PLATE | 1 | Pc. | $14.00 | |
| 8 |
9271348190006300
|
ST SCREW | ST4.8X19 | 2 | Pcs. | $1.50 |
| 9 | 1MU601440001 | GLOVEBOX | 1 | Pc. | $18.00 | |
| 10 |
9276360160111300
|
BUTTON HEAD ALLEN BOLT | M6X16 | 7 | Pcs. | $1.50 |
| 11 |
9271342130006300
|
ST SCREW | ST4.2X13 | 5 | Pcs. | $1.50 |
| 12 | 1MU6032100 | PARKING BRAKE BRACKET | 1 | Pc. | $24.00 | |
| 13 |
9928042000000000
|
ZIP TIE | 4X200 | 3 | Pcs. | $1.50 |
| FLOOR PANELS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU602410001 | LEFT MUDGUARD | 1 | Pc. | $39.00 | |
| 2 |
9271348160006300
|
ST SCREW | ST4.8X16 | 10 | Pcs. | $1.50 |
| 3 | 1MU6011300 | RUBBER GROMMET | 2 | Pcs. | $2.00 | |
| 4 |
9276360160111300
|
BUTTON HEAD ALLEN BOLT | M6X16 | 8 | Pcs. | $1.50 |
| 5 |
9271348190006300
|
ST SCREW | ST4.8X19 | 2 | Pcs. | $1.50 |
| 6 | 1MU602310001 | REAR FLOOR | 1 | Pc. | $59.00 | |
| 7 |
9397342000002300
|
CLIP NUT | ST4.2 | 4 | Pcs. | $1.50 |
| 8 | 1MU602510001 | RIGHT MUDGUARD | 1 | Pc. | $39.00 | |
| FLOOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU601610001 | FOOTREST PANEL | *OVERSIZE* | 1 | Pc. | $63.00 |
| 2 |
9397342000002300
|
CLIP NUT | ST4.2 | 30 | Pcs. | $1.50 |
| 3 | 1MU6016300 | RUBBER SHROUD RETAINER | 1 | Pc. | $11.00 | |
| 4 | 1MU6016210 | RUBBER BRAKE/THROTTLE SHROUD | 1 | Pc. | $18.00 | |
| 5 |
9402310000031300
|
WASHER | 10MM | 8 | Pc. | $1.50 |
| 6 |
9271348190006300
|
ST SCREW | ST4.8X19 | 2 | Pcs. | $1.50 |
| 7 |
9276360160111300
|
BUTTON HEAD ALLEN BOLT | M6X16 | 10 | Pcs. | $1.50 |
| 8 |
9402305000031300
|
WASHER | M5 | 4 | Pcs. | $1.50 |
| 9 | 1MU601510001 | MAIN FLOOR | *OVERSIZE* | 1 | Pc. | $77.00 |
| 10 |
9271348160006300
|
ST SCREW | ST4.8X16 | 13 | Pcs. | $1.50 |
| 11 | 1EU6110110 | WARNING PLATE | 1 | Pc. | $13.00 | |
| 12 |
9441004013000000
|
RIVIT | 4X13 | 4 | Pcs. | $1.50 |
| CHASSIS GUARD | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU602610001 | CHASSIS GUARD | *OVERSIZE* | 1 | Pc. | $96.00 |
| 2 |
9276360160111300
|
BUTTON HEAD ALLEN BOLT | M6X16 | 18 | Pcs. | $1.50 |
| 3 | 1MU602210001 | STORAGE BIN | 1 | Pc. | $59.00 | |
| 4 | 1MU6180800 | HEAT INSULATION FILM | 1 | Pc. | $18.00 | |
| 5 |
9402308000031300
|
WASHER | M8 | 18 | Pcs. | $1.50 |
| 6 | 1MU6152100 | TOOL KIT | 1 | Kit | $39.00 | |
| 7 | 1NU6150400 | OWNER'S MANUAL | BISON 200U | 1 | Pc. | $33.00 |
| 7 | 1NU6150300 | OWNER'S MANUAL | BISON 200P | 1 | Pc. | $33.00 |
| MUFFLER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1ME1471500 | CAP NUT | M6X1.0 | 2 | Pcs. | $2.00 |
| 2 | 1MF1471100 | EXHAUST HEADER PIPE | 1 | Pc. | $63.00 | |
| 3 | 1MF1475100 | OXYGEN SENSOR | 1 | Pc. | $124.00 | |
| 4 | 1ME147140001 | MUFFLER GASKET | 1 | Pc. | $2.50 | |
| 5 | 1MF1471200 | PACKING GASKET | 2 | Pcs. | $7.00 | |
| 6 | 1MF1471000 | MUFFLER | 1 | Pc. | $327.00 | |
| 7 |
9330310015261300
|
FLANGE LOCKNUT | M10 | 2 | Pcs. | $2.50 |
| 8 |
9402310000031300
|
WASHER | M10 | 4 | Pcs. | $1.50 |
| 9 | 1MU502010005 | HEAT INSULATING WASHER | 2 | Pcs. | $4.00 | |
| 10 | 1MU5010100 | RUBBER DAMPER A | 2 | Pcs. | $6.00 | |
| 11 | 1MU5010200 | RUBBER DAMPER B | 2 | Pcs. | $6.00 | |
| 12 |
9153310060285300
|
FLANGE BOLT | M10X60 | 2 | Pcs. | $2.50 |
| 13 | 1MF1471500 | MUFFLER TIP | 1 | Pc. | $69.00 | |
| 14 |
9401306000031300
|
WASHER | M6 | 3 | Pcs. | $1.50 |
| 15 |
9403106000000000
|
LOCK WASHER | M6 | 3 | Pcs. | $1.50 |
| 16 |
9151306016161300
|
ALLEN BOLT | M6X16 | 3 | Pcs. | $1.50 |
| 17 | 1MF1462100 | MUFFLER SPRING | 2 | Pcs. | $2.50 | |
| 18 | 1MF1463100 | SLEEVE | 2 | Pcs. | $3.50 | |
| FUEL TANK | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MQ1391200 | QUICK DISCONNECT | 7.89 | 2 | Pcs. | $18.00 |
| 2 | 1MQ139310001 | HOSE CLAMP | 15.3 | 8 | Pcs. | $2.50 |
| 3 | 1MF1392410 | FUEL HOSE I | 1 | Pc. | #N/A | |
| 4 | 1MQ1392000 | FUEL FILTER | 1 | Pc. | $39.00 | |
| 4 | 1MQ1392010 | FUEL FILTER | AFTER: L06UALA22P1006101 | 1 | Pc. | $39.00 |
| 5 | 1MF1392300 | FUEL HOSE II | 1 | Pc. | #N/A | |
| 6 | 1MQ1391300 | "T" FITTING | 1 | Pc. | $13.00 | |
| 7 | 1MQ1392100 | FUEL HOSE III | 1 | Pc. | $11.00 | |
| 8 | 1MF1392200 | FUEL HOSE IIII | 1 | Pc. | #N/A | |
| 9 |
9214350160011300
|
PHILLIPS BOLT | M5X16 | 10 | Pcs. | $1.50 |
| 10 |
9403105000000000
|
LOCK WASHER | M5 | 4 | Pcs. | $1.50 |
| 11 |
9402305000031300
|
WASHER | M5 | 10 | Pcs. | $1.50 |
| 12 | 1MU8065000 | FUEL LEVEL SENSOR | 1 | Pc. | $24.00 | |
| 13 |
9960018265000000
|
O-RING | 26.5X1.8 | 1 | Pc. | $2.00 |
| 14 | 1MF1394000 | FUEL TANK | 1 | Pc. | $131.00 | |
| 15 | 1ME2413010 | FUEL TANK CAP | 1 | Pc. | $27.00 | |
| 16 | 1MF1391000 | FUEL PUMP | 1 | Pc. | $60.00 | |
| 17 |
9673310000005300
|
SPRING HOSE CLAMP | 10 | 1 | Pc. | $1.50 |
| 18 | 1ME2400400 | FUEL HOSE IIIII | 2 | Pcs. | $7.00 | |
| 19 |
9673309000005300
|
SPRING HOSE CLAMP | 9 | 4 | Pcs. | $1.50 |
| 20 | 1ME2443000 | ONE-WAY VALVE | 1 | Pc. | $14.00 | |
| 21 | 1MU6180100 | LOWER FUEL TANK DAMPER | 4 | Pcs. | $1.50 | |
| 22 | 1ME2411600 | FUEL TANK STRAP DAMPER | 2 | Pcs. | $14.00 | |
| 23 |
9330308013241300
|
FLANGE LOCKNUT | M8 | 2 | Pcs. | $2.00 |
| 24 | 1ME2411500 | FUEL TANK MOUNTING BRACKET | 2 | Pcs. | $18.00 | |
| 25 | 1MQ1391210 | QUICK DISCONNECT 90 DEGREE | 1 | Pc. | $11.00 | |
| 26 | 1MFX139200 | FUEL FILTER ASSY | 1 | Assy. | $112.00 | |
| 27 | 1MFX244300 | ONE-WAY VALVE ASSY | 1 | Assy. | #N/A | |
| FRONT SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MUX542301 | FRONT LEFT SHOCK ABSORBER/STRUT ASSY | 1 | Assy. | $272.00 | |
| 2 | 1MUX542501 | FRONT RIGHT SHOCK ABSORBER/STRUT ASSY | 1 | Assy. | $272.00 | |
| 3 |
9330314021361300
|
FLANGE NUT | M14 | 2 | Pcs. | $2.50 |
| 4 | 1MU5427000 | BEARING | DAC3506437 | 2 | Pcs. | $45.00 |
| 5 |
9430164000000000
|
CIRCLIP | 64 | 2 | Pcs. | $2.50 |
| 6 | 1MU5455300 | FRONT BRAKE ROTOR | 2 | Pcs. | $69.00 | |
| 7 | 1MU545510001 | FRONT WHEEL HUB | 2 | Pcs. | $96.00 | |
| 8 | 1MU555520001 | WHEEL STUD | M12X36 | 8 | Pcs. | $2.50 |
| 9 |
9151308020281300
|
BOLT | M8X20 | 8 | Pcs. | $1.50 |
| 10 | 1MU5426000 | GREASE FITTING | M6 | 2 | Pcs. | $1.50 |
| 11 | 1MU5424000 | BALL JOINT | 2 | Pcs. | $36.00 | |
| 12 | 1MU5423200 | MOUNTING PLATE | 2 | Pcs. | $18.00 | |
| 13 |
9254360160101300
|
BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 14 |
9383310016261300
|
CASTLE NUT | M10 | 2 | Pcs. | $1.50 |
| 15 |
9500325025002300
|
COTTER PIN | 2.5X25 | 2 | Pcs. | $1.50 |
| 16 | 2MU5431010 | RIGHT FRONT A-ARM | 1 | Pc. | $77.00 | |
| 17 |
9330312018261300
|
FLANGE LOCKNUT | M12 | 4 | Pcs. | $3.50 |
| 18 | 1MU5412000 | BUSHING | 4 | Pcs. | $11.00 | |
| 19 | 1MU5410100 | FLANGE BOLT | M12X75 | 4 | Pcs. | $6.00 |
| 20 | 2MU5411010 | LEFT FRONT A-ARM | 1 | Pc. | $77.00 | |
| 21 | 1MUX542020 | UPPER PIVOT ASSY | 2 | Assy. | $14.00 | |
| 22 | 1MU5450100 | WHEEL MOUNTING SHAFT | 2 | Pcs. | $63.00 | |
| 23 | 1MUX541100 | LEFT A-ARM W/ BUSHING | 1 | Assy. | $89.00 | |
| 24 | 1MUX543100 | RIGHT A-ARM W/ BUSHING | 1 | Assy. | $89.00 | |
| REAR SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU551020001 | FLANGE BOLT | M10X80 | 4 | Pcs. | $2.50 |
| 2 | 1MU551030001 | REAR UPPER A-ARM BUSHING | 20 | Pcs. | $8.00 | |
| 3 | 1MU5510500 | REAR LOWER A-ARM COLLAR | 4 | Pcs. | $6.00 | |
| 4 | 1MU5531000 | RIGHT REAR UPPER A-ARM | 1 | Pc. | $74.00 | |
| 5 | 1MU5511000 | LEFT REAR UPPER A-ARM | 1 | Pc. | $74.00 | |
| 6 |
9330310015261300
|
FLANGE LOCKNUT | M10 | 14 | Pcs. | $2.50 |
| 7 | 1MU5533020 | RIGHT REAR LOWER A-ARM | 1 | Pc. | $89.00 | |
| 8 | 1MU5513020 | LEFT REAR LOWER A-ARM | 1 | Pc. | $89.00 | |
| 9 | 1MU5514600 | SPACER | 2 | Pcs. | $7.00 | |
| 10 | 1MU551430001 | BOLT | M10X135 | 2 | Pcs. | $4.00 |
| 11 | 1MU5520100 | FLANGE BOLT | M10X50 | 4 | Pcs. | $3.50 |
| 12 | 1MU55210021 | REAR SHOCK ABSORBER | 2 | Pcs. | $125.00 | |
| 13 | 1MU5514500 | LOWER A-ARM SPACER SPACER | 2 | Pcs. | $7.00 | |
| 14 | 1MU5515000 | OIL SEAL | 61.5X43X12 | 2 | Pcs. | $2.50 |
| 15 | 1MU551410001 | KNUCKLE | 2 | Pcs. | $112.00 | |
| 16 | 1MU5517000 | BEARING | DAC3405824 | 2 | Pcs. | $33.00 |
| 17 | 1MU5516000 | OIL SEAL | 58X41.2X12 | 2 | Pcs. | $2.50 |
| 18 |
9430158000000000
|
CIRCLIP | 58 | 2 | Pcs. | $2.50 |
| 19 | 1MU551420002 | FLANGE BOLT | M10X110 | 2 | Pcs. | $6.00 |
| 20 | 1MU555510001 | REAR WHEEL HUB | 2 | Pcs. | $89.00 | |
| 21 | 1MU5555400 | REAR BRAKE ROTOR | 2 | Pcs. | $69.00 | |
| 22 | 1MU555520001 | WHEEL STUD | M12X36 | 8 | Pcs. | $2.50 |
| 23 |
9151308020281300
|
BOLT | M8X20 | 8 | Pcs. | $1.50 |
| 24 | 1MUX551400 | REAR HUB ASSY | 2 | Assy. | $272.00 | |
| 25 | 1MU551010002 | FLANGE BOLT | M10X174 | 2 | Pcs. | $7.00 |
| 26 | 1MU5510400 | UPPER A-ARM SPACER | 2 | Pcs. | $8.00 | |
| 27 | 1MU5555300 | OIL SEAL | ?? | 2 | Pcs. | $2.50 |
| STEERING | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU5652000 | PARKING BRAKE CABLE | 2 | Pcs. | $60.00 | |
| 2 |
9186308016266300
|
FLANGE BOLT | M8X16 | 2 | Pcs. | $1.50 |
| 3 | 1MU5650300 | PIVOT BOLT | 1 | Pc. | $7.00 | |
| 4 | 1MU5650200 | PARKING BRAKE SPRING | 1 | Pc. | $2.00 | |
| 5 | 1MU5650400 | BUSHING | 1 | Pc. | $1.50 | |
| 6 |
9330306010141300
|
FLANGE LOCKNUT | M6 | 1 | Pc. | $1.50 |
| 7 | 1MU5651000 | PARKING BRAKE HANDLE | 1 | Pc. | $77.00 | |
| 8 |
9401312000031300
|
WASHER | M12 | 1 | Pc. | $1.50 |
| 9 |
9403112000000000
|
LOCK WASHER | M12 | 1 | Pc. | $1.50 |
| 10 | 1MU5610910 | BUSHING B | 1 | Pc. | $8.00 | |
| 11 |
9153310020285300
|
FLANGE BOLT | M10X20 | 8 | Pcs. | $3.50 |
| 12 | 2MU5613000 | STEERING COLUMN | 1 | Pc. | $140.00 | |
| 13 | 2MU5610100 | STEERING WHEEL COUPLER | 1 | Pc. | $72.00 | |
| 14 |
9350312018261300
|
NUT | M12 | 1 | Pc. | $2.00 |
| 15 | 1MU5611000 | STEERING WHEEL | 1 | Pc. | $89.00 | |
| 16 |
9218250200100000
|
ALLEN BOLT | M5X20 | 6 | Pcs. | $1.50 |
| 17 | 2MU5610200 | STEERING WHEEL RING | 1 | Pc. | $33.00 | |
| 18 |
9431116000000000
|
CIRCLIP | 16 | 2 | Pcs. | $1.50 |
| 19 | 1MU561603002 | BRAKE PEDAL | 1 | Pc. | $79.00 | |
| 20 | 1MU5610400 | BRAKE PEDAL SPRING | 1 | Pc. | $4.00 | |
| 21 |
9500325025002300
|
COTTER PIN | 2.5X25 | 2 | Pcs. | $1.50 |
| 22 | 1MU5610300 | THROTTLE SPRING | 1 | Pc. | $4.00 | |
| 23 | 1MU5614010 | THROTTLE PEDAL | 1 | Pc. | $69.00 | |
| 24 | 1MU5625000 | THROTTLE CABLE | 1 | Pc. | $48.00 | |
| 25 |
9340312018261300
|
NUT | M12 | 1 | Pc. | $2.00 |
| 26 | 1MU561070002 | STEERING RACK BRACKET | 2 | Pcs. | $2.50 | |
| 27 | 1MU5610810 | BUSHING A | 1 | Pc. | $8.00 | |
| 28 | 1MU5612000 | STEERING RACK | 1 | Assy. | $168.00 | |
| 29 |
9401310000031300
|
WASHER | M10 | 4 | Pcs. | $1.50 |
| 30 |
9173310055281300
|
BOLT | M10X55 | 2 | Pcs. | $2.00 |
| 31 |
9383310016261300
|
CASTLE NUT | M10 | 2 | Pcs. | $1.50 |
| 32 |
9330310015261300
|
FLANGE LOCKNUT | M10 | 4 | Pcs. | $2.50 |
| 33 | 1MU5617000 | TIE ROD END | 2 | Pcs. | $45.00 | |
| 34 | 2MU5610600 | HORN SWITCH | 1 | Pc. | $41.00 | |
| 35 | 2MU5183000 | STEERING COLUMN COVER | 1 | Pc. | $24.00 | |
| 36 |
9214340060002300
|
PHILLIPS BOLT | M4X6 | 2 | Pcs. | $1.50 |
| 37 | 2MU5619000 | COLUMN COVER BRACKET | 1 | Pc. | $11.00 | |
| 38 |
9402306000031300
|
WASHER | M6 | 1 | Pc. | $1.50 |
| 39 | 1MU8061000 | HORN SWITCH ASSY | 1 | Assy. | $59.00 | |
| FRONT WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU545030001 | LUG NUT | 8 | Pcs. | $6.00 | |
| 2 | 1MU5456110 | WHEEL CENTER CAP | 2 | Pcs. | $18.00 | |
| 3 | 1MU54560012 | FRONT/REAR WHEEL | ALUMINIUM - BLACK | 2 | Pcs. | $153.00 |
| 4 |
9925241208060000
|
FRONT/REAR TIRE | 24X8-12 OFFROAD (U) | 2 | Pcs. | $105.00 |
| 4 |
9921241208040000
|
FRONT/REAR TIRE | 24X8-12 STREET (P) | 2 | Pcs. | $105.00 |
| 5 | 1MU5554000 | VALVE STEM | TR414 | 2 | Pcs. | $7.00 |
| 6 | 1MUX546320 | FRONT RIGHT WHEEL ASSY | INC. TIRE | 1 | Assy. | $319.00 |
| 7 | 1MUX546120 | FRONT LEFT WHEEL ASSY | INC. TIRE | 1 | Assy. | $319.00 |
| 8 |
9500340032002300
|
COTTER PIN | 4X32 | 2 | Pcs. | $1.50 |
| 9 | 1MU5450400 | CASTLE NUT | M20 | 2 | Pcs. | $4.00 |
| 10 |
9408320000001300
|
WASHER | M20 | 2 | Pcs. | $2.00 |
| REAR WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU545030001 | LUG NUT | 8 | Pcs. | $6.00 | |
| 2 | 1MU5456110 | WHEEL CENTER CAP | 2 | Pcs. | $18.00 | |
| 3 | 1MU54560012 | FRONT/REAR WHEEL | ALUMINIUM - BLACK | 2 | Pcs. | $153.00 |
| 4 |
9925241208060000
|
FRONT/REAR TIRE | 24X8-12 OFFROAD (U) | 2 | Pcs. | $105.00 |
| 4 |
9921241208040000
|
FRONT/REAR TIRE | 24X8-12 STREET (P) | 2 | Pcs. | $105.00 |
| 5 | 1MU5554000 | VALVE STEM | TR414 | 2 | Pcs. | $7.00 |
| 6 | 1MUX546430 | RIGHT REAR WHEEL ASSY | INC. TIRE | 1 | Assy. | $319.00 |
| 7 | 1MUX546230 | LEFT REAR WHEEL ASSY | INC. TIRE | 1 | Assy. | $319.00 |
| 8 |
9500340032002300
|
COTTER PIN | 4X32 | 2 | Pcs. | $1.50 |
| 9 | 1MU5450400 | CASTLE NUT | M20 | 2 | Pcs. | $4.00 |
| 10 |
9408320000001300
|
WASHER | M20 | 2 | Pcs. | $2.00 |
| 11 | 1MU5710600 | CLAMP | 1 | Pc. | #N/A | |
| 12 | 1MU5710800 | BOOT | 1 | Pc. | #N/A | |
| 13 | 1MU5710900 | CIRCLIP A | 1 | Pc. | #N/A | |
| 14 | 1MU5710010 | REAR AXLE ASSY | 2 | Assy. | $188.00 | |
| SEAT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU5820010 | HEADREST ASSY | 2 | Pcs. | $63.00 | |
| 2 | 1MU5810210 | SEAT MOUNTING PIN | 2 | Pcs. | $8.00 | |
| 3 |
9186306016166300
|
FLANGE BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 4 | 1MU5810100 | SEAT CATCH | 2 | Pcs. | #N/A | |
| 5 | 1MU5810000 | SEAT | *OVERSIZE* | 1 | Assy. | $180.00 |
| 6 | 1MU5831000 | BACKREST | *OVERSIZE* | 1 | Pc. | $171.00 |
| 7 |
9330306010141300
|
FLANGE LOCKNUT | M6 | 6 | Pcs. | $1.50 |
| 8 | 1MU6180900 | HEAT INSULATION FILM (SEAT) | 2 | Pcs. | $21.00 | |
| 9 |
9276360160111300
|
BUTTON HEAD ALLEN BOLT | M6X16 | 6 | Pcs. | $1.50 |
| SHIFTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU5362000 | SHIFTER CABLE | 2 | Pcs. | $69.00 | |
| 2 | 1MU5661010 | SHIFTER ASSY | 1 | Assy. | $89.00 | |
| 3 | 1MU6014900 | SHIFTER INDICATOR | 1 | Pc. | $69.00 | |
| 4 | 1MU5660100 | SHIFTER PIVOT PIN | 1 | Pc. | $21.00 | |
| 5 |
9500325025002300
|
COTTER PIN | 2.5X25 | 1 | Pc. | $1.50 |
| ENGINE MOUNTING BRACKETS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MG1000000 | ENGINE ASSY | *OVERSIZE* | 1 | Assy. | $939.00 |
| 2 | 1MU501040001 | FLANGE BOLT | M10X191 | 1 | Pc. | $8.00 |
| 3 | 1MU5015000 | FRONT ENGINE MOUNTING BRACKET | 1 | Pc. | $24.00 | |
| 4 |
9330308013241300
|
FLANGE NUT | M8 | 4 | Pcs. | $2.00 |
| 5 | 2MU5015000 | ENGINE MOUNTING DAMPER | 1 | Pc. | $21.00 | |
| 6 |
9330310015261300
|
FLANGE LOCKNUT | M10 | 7 | Pcs. | $2.50 |
| 7 | 1MU5018010 | LOWER ENGINE MOUNTING BRACKET | 1 | Pc. | $59.00 | |
| 8 | 1MU551420002 | FLANGE BOLT | M10X110 | 1 | Pc. | $6.00 |
| 9 | 1MU5010200 | RUBBER DAMPER B | 2 | Pcs. | $6.00 | |
| 10 | 1MU5010100 | RUBBER DAMPER A | 2 | Pcs. | $6.00 | |
| 11 |
9402310000031300
|
WASHER | M10 | 2 | Pcs. | $1.50 |
| 12 | 1MU501070001 | FLANGE BOLT | M10X142 | 2 | Pcs. | $4.00 |
| 13 | 1MU5010300 | SPECIAL BOLT | M14X79 | 2 | Pcs. | $18.00 |
| 14 | 1MU5016000 | REAR LEFT ENGINE MOUNTING BRACKET | 1 | Pc. | $23.00 | |
| 15 | 1MU5017000 | REAR RIGHT ENGINE MOUNTING BRACKET | 1 | Pc. | $24.00 | |
| 16 | 1MU6180400 | HEAT INSULATION FILM (ENGINE) | 1 | Pc. | $18.00 | |
| ELECTRICAL COMPONENTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU8270010 | MAIN WIRE HARNESS | 1 | Pc. | $229.00 | |
| 2 | 1MU8081000 | STARTER WIRE I | POSITIVE (+) | 1 | Pc. | $36.00 |
| 3 | 1MU8082000 | STARTER WIRE II | NEGATIVE (-) | 1 | Pc. | $69.00 |
| 4 | 1ME8189200 | STARTER WIRE III | (+) TO STARTER | 1 | Pc. | $63.00 |
| 5 | 1MU8052000 | HEADLIGHT SWITCH | 1 | Pc. | $24.00 | |
| 6 | 1MU8053000 | HIGH/LOW HEADLIGHT SWITCH | 1 | Pc. | $24.00 | |
| 7 | 1MU8059000 | TURN SIGNAL SWITCH | 1 | Pc. | $27.00 | |
| 8 | 1MU8051000 | IGNITION SWITCH | 1 | Pc. | $63.00 | |
| 9 | 1MU8064000 | HORN | 1 | Pc. | $39.00 | |
| 10 | 1MU8101000 | BATTERY STRAP | 2 | Pcs. | $11.00 | |
| 11 | 1MU8031200 | LCD METER | 1 | Pc. | $180.00 | |
| 12 | 2MU5081100 | METER MOUNTING PLATE | 1 | Pc. | $39.00 | |
| 13 |
9271342130006300
|
ST SCREW | ST4.2X13 | 7 | Pcs. | $1.50 |
| 14 | 1MU8020800 | TURN SIGNAL RELAY | LED | 1 | Pc. | $42.00 |
| 15 | 1MU8091000 | REVERSE ALARM | 1 | Pc. | $57.00 | |
| 16 | 1MF8147300 | REGULATOR/RECTIFIER | 1 | Pc. | $104.00 | |
| 17 | 1MU8018000 | NEUTRAL LIGHT | 1 | Pc. | $21.00 | |
| 18 | 1MU8063000 | ACCY POWER SOCKET | 1 | Pc. | $48.00 | |
| 19 | 1MF8146110 | ECU | 1 | Pc. | $235.00 | |
| 20 | 1MU8085000 | PARKING SWITCH | 1 | Pc. | $23.00 | |
| 21 | 1MU8095000 | STARTER RELAY | 1 | Pc. | $39.00 | |
| 22 | 2MU8093000 | SPEEDOMETER SENSOR | 1 | Pc. | $69.00 | |
| 23 | 1MU8284000 | SPEED SENSOR HARNESS | 1 | Pc. | $36.00 | |
| 24 |
9186306016166300
|
BOLT | M6X16 | 5 | Pcs. | $1.50 |
| 25 | 1MU8283010 | EFI WIRE HARNESS | 1 | Pc. | $59.00 | |
| 26 | 1MU8283100 | FUEL PUMP SUB WIRE HARNESS | 1 | Pc. | $59.00 | |
| 27 | 1MQ8147100 | RELAY | 2 | Pcs. | $42.00 | |
| 30 | YTX9-BS | BATTERY | YTX9-BS | 1 | Pc. | $83.00 |
| BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU5635000 | LEFT FRONT BRAKE HOSE | 1 | Pc. | $45.00 | |
| 2 | 1MU5632000 | BRAKE MASTER CYLINDER ASSY | 1 | Assy. | $131.00 | |
| 3 | 1MU5636000 | RIGHT FRONT BRAKE HOSE | 1 | Pc. | $48.00 | |
| 4 |
9184308030261300
|
BOLT | M8X30 | 2 | Pcs. | $1.50 |
| 5 |
9330308013241300
|
FLANGE LOCKNUT | M8 | 2 | Pcs. | $2.00 |
| 6 | 1MU5632700 | PLUNGER | 1 | Pc. | $21.00 | |
| 7 |
9500320025002300
|
COTTER PIN | 2.0X25 | 1 | Pc. | $1.50 |
| 8 | 2MU5650600 | RUBBER CLAMP INSERT | 2 | Pcs. | $2.50 | |
| 9 |
9184306012161300
|
FLANGE BOLT | M6X12 | 6 | Pcs. | $1.50 |
| 10 | 1MU5631100 | BRAKE HOSE CLAMP | 8 | Pcs. | $3.50 | |
| 11 |
9151308025281300
|
BOLT | M8X25 | 2 | Pcs. | $1.50 |
| 12 |
9403108000000000
|
LOCK WASHER | M8 | 8 | Pcs. | $1.50 |
| 13 |
9401308000031300
|
WASHER | M8 | 8 | Pcs. | $1.50 |
| 14 | 1MU5642000 | MIDDLE BRAKE HOSE | 1 | Pc. | $69.00 | |
| 15 | 1MU5641000 | RIGHT REAR BRAKE HOSE | 1 | Pc. | $57.00 | |
| 16 | 1MU5639000 | LEFT REAR BRAKE HOSE | 1 | Pc. | $57.00 | |
| 17 | 1MU5455300 | FRONT BRAKE ROTOR | 2 | Pcs. | $69.00 | |
| 18 | 1MU5555400 | REAR BRAKE ROTOR | 2 | Pcs. | $69.00 | |
| 19 | 1MU5633000 | LEFT FRONT BRAKE CALIPER ASSY | 1 | Assy. | $86.00 | |
| 20 | 1MU5634000 | RIGHT FRONT BRAKE CALIPER ASSY | 1 | Assy. | $86.00 | |
| 21 | 1MU5637000 | LEFT REAR BRAKE CALIPER ASSY | 1 | Assy. | $121.00 | |
| 22 | 1MU5638000 | RIGHT REAR BRAKE CALIPER ASSY | 1 | Assy. | $121.00 | |
| 23 |
9214350300012300
|
BOLT | M5X30 | 2 | Pcs. | $1.50 |
| 24 |
9151308020281300
|
BOLT | M8X20 | 4 | Pcs. | $1.50 |
| 25 | 1MU5632400 | REAR BRAKE RESERVOIR HOSE | 1 | Pc. | $18.00 | |
| 26 | 1MU5632300 | FRONT BRAKE RESERVOIR HOSE | 1 | Pc. | $18.00 | |
| 27 | 1MU5631020 | COMPLETE BRAKE ASSY | 1 | Assy. | $385.00 | |
| 28 | 1MU5633200 | FRONT/REAR BRAKE PAD SET | 4 | Set | $24.00 | |
| 29 | 2MU5650500 | BRAKE HOSE CLAMP | 2 | Pcs. | $4.00 | |
| 31 | 1MU563250001 | BRAKE LIGHT SWITCH | NOT PICTURED | 1 | Pc. | $42.00 |
| SEAT BELT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU7150010 | SEAT BELT ASSY | 2 | Assy. | $83.00 | |
| 2 | 1MU7155000 | SEAT BELT LATCH | 2 | Pcs. | $48.00 | |
| 3 | 1MU7150100 | BOLT | 7/16X28 | 2 | Pcs. | $2.00 |
| 4 | 1MU7150200 | LOCK WASHER | ? | 8 | Pcs. | $1.50 |
| 5 | 1MU7150300 | FABRIC WASHER | ? | 8 | Pcs. | $2.00 |
| 6 | 1MU7150400 | NUT | 7/16 | 8 | Pcs. | $2.00 |
| 7 | 1MU7150500 | BOLT A | ? | 2 | Pcs. | $2.00 |
| 8 | 1MU7150600 | SPACER | 4 | Pcs. | $1.50 | |
| 9 | 1MU7150700 | BOLT | 7/16X25 | 2 | Pcs. | $2.00 |
| 10 | 1MU7150900 | BOLT B | 7/16X35 | 2 | Pcs. | $2.00 |
| ROLL CAGE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU521007001 | RIGHT CAGE SUPPORT | *OVERSIZE* | 1 | Pc. | $150.00 |
| 2 | 1MU524007001 | LEFT CAGE SUPPORT | *OVERSIZE* | 1 | Pc. | $150.00 |
| 3 | 1MU522000003 | MIDDLE FRONT CAGE | 1 | Pc. | $23.00 | |
| 4 | 1MU523000003 | MIDDLE REAR CAGE | 1 | Pc. | $18.00 | |
| 5 | 1MU583010002 | BACKREST MOUNTING BRACKET | 2 | Pcs. | $23.00 | |
| 6 |
9218310035346300
|
ALLEN BOLT | M10X35X1.25 | 8 | Pcs. | $2.00 |
| 7 |
9186310045281300
|
FLANGE BOLT | M10X45X1.25 | 4 | Pcs. | $3.50 |
| 8 |
9330310015261300
|
FLANGE LOCKNUT | M10X1.25 | 8 | Pcs. | $2.50 |
| 9 |
9186310016286300
|
FLANGE BOLT | M10X16 | 4 | Pcs. | $1.50 |
| 10 |
9186306016166300
|
FLANGE BOLT | M6X16 | 8 | Pcs. | $1.50 |
| 11 |
9332310016361300
|
LOCKNUT | M10X1.5 | 8 | Pcs. | $2.00 |
| 12 | 2MUX7021010 | REARVIEW MIRROR KIT | 1 | Kit | $96.00 | |
| 13 | 2MUX702111 | LEFT REARVIEW MIRROR | 1 | Pc. | $59.00 | |
| 14 | 2MUX702112 | RIGHT REARVIEW MIRROR | 1 | Pc. | $59.00 | |
| 15 | 1FL1200090 | MIRROR CLAMP | 4 | Pcs. | $8.00 | |
| 16 | 1MUX702114 | CLAMP SHIM | 4 | Pcs. | $3.50 | |
| 17 | 2MUX702115 | REARVIEW MIRROR BOLT | 4 | Pcs. | $2.00 | |
| FRONT BUMPER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU525002002 | FRONT BUMPER | *OVERSIZE* | 1 | Pc. | $124.00 |
| 2 |
9186308055261300
|
FLANGE BOLT | M8X55 | 2 | Pcs. | $2.00 |
| 3 |
9153310020285300
|
FLANGE BOLT | M10X20 | 2 | Pcs. | $3.50 |
| 4 | 1MU5000100 | BUMPER PLUG | RUBBER | 2 | Pcs. | $1.50 |
| 5 |
9330308013241300
|
FLANGE LOCKNUT | M8 | 2 | Pcs. | $2.00 |
| REAR SWAY BAR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU5561000 | REAR SWAY BAR | 1 | Pc. | $69.00 | |
| 2 | 1MU5560200 | SWAY BAR BUSHING | 2 | Pcs. | $8.00 | |
| 3 | 1MU556010002 | SWAY BAR BUSHING HOLDER | 2 | Pcs. | $8.00 | |
| 4 |
9186308020261300
|
FLANGE BOLT | M8X20 | 4 | Pcs. | $2.00 |
| 5 |
9330310015261300
|
FLANGE LOCKNUT | M10 | 4 | Pcs. | $2.50 |
| 6 | 1MU5563000 | RIGHT PIVOT BOLT | 1 | Pc. | $54.00 | |
| 7 | 1MU5562000 | LEFT PIVOT BOLT | 1 | Pc. | $54.00 | |
| CARGO BED (U MODEL) | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU5920000 | CARGO BED ASSY | BLACK *OVERSIZE* | 1 | Assy. | $647.00 |
| 1 | 1MU59200041 | CARGO BED ASSY | RED *OVERSIZE* | 1 | Assy. | $647.00 |
| 1 | 1MU59200072 | CARGO BED ASSY | BLUE *OVERSIZE* | 1 | Assy. | $647.00 |
| 1 | 1MU59200063 | CARGO BED ASSY | GREEN *OVERSIZE* | 1 | Assy. | $647.00 |
| 2 | 1MU5921000 | BED FRONT | *OVERSIZE* | 1 | Pc. | $124.00 |
| 3 |
9186308045261300
|
FLANGE BOLT | M8X45 | 4 | Pcs. | $2.00 |
| 4 |
9330308013241300
|
FLANGE LOCKNUT | M8 | 9 | Pcs. | $2.00 |
| 5 | 1MU5922010 | BED BOTTOM / SIDES | BLACK *OVERSIZE* | 1 | Pc. | $364.00 |
| 5 | 1MU59220141 | BED BOTTOM / SIDES | RED *OVERSIZE* | 1 | Pc. | $364.00 |
| 5 | 1MU59220172 | BED BOTTOM / SIDES | BLUE *OVERSIZE* | 1 | Pc. | $364.00 |
| 5 | 1MU59220163 | BED BOTTOM / SIDES | GREEN *OVERSIZE* | 1 | Pc. | $364.00 |
| 6 | 1MU5924000 | TAILGATE | BLACK *OVERSIZE* | 1 | Pc. | $168.00 |
| 6 | 1MU59240041 | TAILGATE | RED *OVERSIZE* | 1 | Pc. | $168.00 |
| 6 | 1MU59240072 | TAILGATE | BLUE *OVERSIZE* | 1 | Pc. | $168.00 |
| 6 | 1MU59240063 | TAILGATE | GREEN *OVERSIZE* | 1 | Pc. | $168.00 |
| 7 |
9330306010141300
|
FLANGE LOCKNUT | M6 | 20 | Pc. | $1.50 |
| 8 | 1MU6011300 | RUBBER GROMMET | 4 | Pc. | $2.00 | |
| 9 | 1MU5650300 | PIVOT BOLT | 4 | Pcs. | $7.00 | |
| 10 | 1MU5903600 | TAILGATE SUPPORT CORD | 2 | Pcs. | $11.00 | |
| 11 | 1MU5900100 | LATCH AXLE BOLT | 2 | Pcs. | $6.00 | |
| 12 |
9501304075000000
|
HITCH PIN CLIP | 4X75 | 2 | Pcs. | $3.50 |
| 13 | 1MU5902000 | CARGO BED LIFTING SHOCK | 2 | Pcs. | $51.00 | |
| 14 |
9500301830000000
|
HITCH PIN | 1.8X30 | 4 | Pcs. | $2.00 |
| 15 | 1MU590100001 | RUBBER STOPPER | 4 | Pcs. | $6.00 | |
| 16 |
9350308013245300
|
NUT | M8 | 4 | Pcs. | $1.50 |
| 17 |
9186308020261300
|
FLANGE BOLT | M8X20 | 5 | Pcs. | $2.00 |
| 18 | 1MU5910600 | BED LATCH BRACKET | 2 | Pcs. | $6.00 | |
| 19 |
9186306016166300
|
BOLT | M6X16 | 20 | Pcs. | $1.50 |
| 20 | 1MU5925010 | BED LATCH ASSY | 1 | Assy. | $45.00 | |
| 21 | 1MU5910730 | BED LATCH HANDLE COVER | 2 | Pcs. | $2.50 | |
| 22 | 1MU5910500 | SPRING | 2 | Assy. | $2.50 | |
| 23 | 2MU5903900 | LATCH PLATE | 2 | Pcs. | $4.00 | |
| 24 | 2MU590370002 | BUSHING | 2 | Pcs. | $7.00 | |
| 25 |
9184306035166300
|
BOLT | M6X35 | 4 | Pcs. | $1.50 |
| 26 | 2MU590300002 | BED LATCH | 2 | Pcs. | $33.00 | |
| 27 | 1MU5900200 | RUBBER DAMPER | 2 | Pcs. | $2.00 | |
| 28 | 1MU6140910 | REFLECTOR STICKER | RED | 4 | Pcs. | $7.00 |
| 29 | 1MU708760001 | FRAME PLUG | 50X25 | 2 | Pcs. | $2.50 |
| 30 | 1MU5319000 | HANDRAIL | 2 | Pcs. | $48.00 | |
| 31 | 1MU603111001 | RIGHT REAR UPPER FENDER | 1 | Pc. | $35.00 | |
| 32 | 1MU602811001 | LEFT REAR UPPER FENDER | 1 | Pc. | $35.00 | |
| 33 |
9276360160111300
|
BOLT | M6X16 | 8 | Pcs. | $1.50 |
| 34 | 1MU8020300 | LEFT LED TAILLIGHT | 1 | Pc. | $69.00 | |
| 35 | 1MU8020400 | RIGHT LED TAILLIGHT | 1 | Pc. | $69.00 | |
| 36 |
9397342000002300
|
CLIP NUT | ST4.2 | 4 | Pcs. | $1.50 |
| 37 |
9271348160006300
|
ST SCREW | ST4.8X16 | 4 | Pcs. | $1.50 |
| 38 | 2MU6134200 | SIDE SSR LOGO | CHROME | 2 | Pcs. | $39.00 |
| 39 | 2MU6134100 | REAR SSR LOGO | CHROME | 1 | Pc. | $39.00 |
| REAR SEAT BACKREST (P MODEL) | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MUX708500 | REAR SEAT BACKREST ASSY | *OVERSIZE* | 1 | Assy. | $188.00 |
| 2 | 1MU5831000 | BACKREST | *OVERSIZE* | 1 | Pc. | $171.00 |
| 3 |
9275360450111300
|
BOLT | M6X45 | 4 | Pcs. | $1.50 |
| 4 | 1MU708502002 | REAR SEAT BACKREST BRACKET | 1 | Pc. | $39.00 | |
| BASEPLATE (P MODEL) | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MUX708101 | REAR SEAT DECK ASSY | *OVERSIZE* | 1 | Assy. | $235.00 |
| 2 | 1MU708101002 | REAR SEAT DECK | *OVERSIZE* | 1 | Pc. | $188.00 |
| 3 | 1MU7087100 | PLUG | 20X20 | 6 | Pcs. | $1.50 |
| 4 | 1MU7080100 | FRONT LATCH BRACKET | 2 | Pcs. | $8.00 | |
| 5 |
9186306016161300
|
FLANGE BOLT | M6X16 | 4 | Pcs. | $1.50 |
| REAR FOOTREST (P MODEL) | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MUX708040 | FOOTREST ASSY | *OVERSIZE* | 1 | Assy. | $218.00 |
| 2 | 1MU7084000 | FOOTREST | *OVERSIZE* | 1 | Pc. | $133.00 |
| 3 | 1MU7088010 | LEFT FOOTREST MOUNTING BRACKET | 1 | Pc. | $54.00 | |
| 4 | 1MU7089010 | RIGHT FOOTREST MOUNTING BRACKET | 1 | Pc. | $54.00 | |
| 5 |
9186308040266300
|
FLANGE BOLT | M8X40 | 2 | Pcs. | $2.00 |
| 6 |
9186306016166300
|
BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 7 | 1MU7087200 | PLUG | 25X25 | 2 | Pcs. | $2.00 |
| REAR SEAT BASE PLATE (P MODEL) | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MUX708201 | SEAT BASE ASSY W/ CUSHION | 1 | Assy. | $338.00 | |
| 2 | 1MU5831000 | SEAT BASE | 1 | Pc. | $171.00 | |
| 3 | 1MU7082010 | SEAT BASE FRAME | 1 | Pc. | $188.00 | |
| 4 | 1MU7080900 | SEAT BASE BACKING | 1 | Pc. | $77.00 | |
| 5 |
9275360450111300
|
BOLT | M6X45 | 4 | Pcs. | $1.50 |
| 6 | 1MU7080800 | RUBBER DAMPER | 2 | Pcs. | $4.00 | |
| 7 |
9271348190006300
|
ST SCREW | ST4.8X19 | 18 | Pcs. | $1.50 |
| 8 |
9153006020108201
|
BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 9 |
9350006100108200
|
NUT | M6 | 2 | Pcs. | $1.50 |
| REAR SEAT ASSY (P MODEL) | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MUX708500 | REAR SEAT BACKREST ASSY | *OVERSIZE* | 1 | Assy. | $188.00 |
| 2 | 1MUX708101 | REAR SEAT DECK ASSY | *OVERSIZE* | 1 | Assy. | $235.00 |
| 3 | 1MUX708201 | SEAT BASE ASSY W/ CUSHION | *OVERSIZE* | 1 | Assy. | $338.00 |
| 4 | 1MUX708040 | FOOTREST ASSY | *OVERSIZE* | 1 | Assy. | $218.00 |
| 5 | 1MU7086030 | SEATING CENTER HANDRAIL | 1 | Pc. | $77.00 | |
| 6 |
9186308050266300
|
FLANGE BOLT | M8X50 | 6 | Pcs. | $2.00 |
| 7 |
9330308013241300
|
FLANGE LOCKNUT | M8 | 8 | Pcs. | $2.00 |
| 8 | 1MU7083010 | FOOTREST SUPPORT BRACKET | 1 | Pc. | $77.00 | |
| 9 |
9186308040266300
|
FLANGE BOLT | M8X40 | 18 | Pcs. | $2.00 |
| 10 |
9501304075000000
|
HITCH PIN CLIP | 4X75 | 4 | Pcs. | $3.50 |
| 11 | 1MU708070002 | TRAILER HITCH PIN | 1 | Pc. | $8.00 | |
| 12 | 1MU708750001 | FRAME PLUG III | 40X25 | 1 | Pc. | $4.00 |
| 13 | 1MU7080610 | SEATING SIDE HANDRAIL | 2 | Pcs. | $63.00 | |
| 14 | 1MU7080210 | BUSHING | 2 | Pcs. | $3.50 | |
| 15 |
9184308025261300
|
FLANGE BOLT | M8X25 | 2 | Pcs. | $2.50 |
| 16 | 1MU5900100 | LATCH AXLE BOLT | 2 | Pcs. | $6.00 | |
| 18 | 1MU7120000 | SEATBELT ASSY | 2 | Assy. | $69.00 | |
| 19 |
9186308020261300
|
FLANGE BOLT | M8X20 | 2 | Pcs. | $2.00 |
| 20 | 1MU7086500 | CENTER HANDRAIL SUPPORT | 1 | Pc. | $21.00 | |
| 21 | 1MU7090100 | CONVEX WASHER | 8 | Pcs. | $2.00 | |
| ROOF | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU7060100 | ROOF | *OVERSIZE* | 1 | Pc. | $150.00 |
| 2 |
9184308025261300
|
FLANGE BOLT | M8X25 | 4 | Pcs. | $2.50 |
| 3 |
9330308013241300
|
FLANGE LOCKNUT | M8 | 4 | Pcs. | $2.00 |
| 4 | 1MU7060600 | ROOF CLAMP | 4 | Pcs. | $18.00 | |
| 7 | 1MU7060400 | ROOF BOLT COVER | 4 | Pcs. | $1.50 | |
| WINDSHIELD | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU7071030 | WINDSHIELD ASSY | INCLUDES CLAMPS *OVERSIZE* | 1 | Assy. | $364.00 |
| 2 | 1MU7072000 | WINDSHIELD CLAMP | 4 | Pcs. | $39.00 | |
| 3 | 1FL1201004 | SAFETY NET DOOR |
BOTH DOORS AND ALL HARDWARE
|
1 | Set | $188.00 |
| 3-1 | 1FL1201004-L | LEFT SAFETY NET DOOR | W/ HARDWARE | 1 | Pc. | $98.00 |
| 3-2 | 1FL1201004-R | RIGHT SAFETY NET DOOR | W/ HARDWARE | 1 | Pc. | $98.00 |
| 4 | 1FL1201089 | SAFETY NET DOOR BUCKLE | 2 | Pcs. | $30.00 | |
| 5 | 1FL1201090 | SAFETY NET DOOR CLAMP | 2 | Pcs. | $18.00 | |
| 6 |
9186306016166300
|
FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 7 |
9330308013241300
|
NUT | M8 | 2 | Pcs. | $1.50 |
| 8 | 1FL1201190 | SAFETY NET LATCH | 2 | Pcs. | $24.00 | |
-
-
-
-
-
Sale
-
Sale
-
-
-
Sale
