(BISON 400) Full Engine Parts Schematics

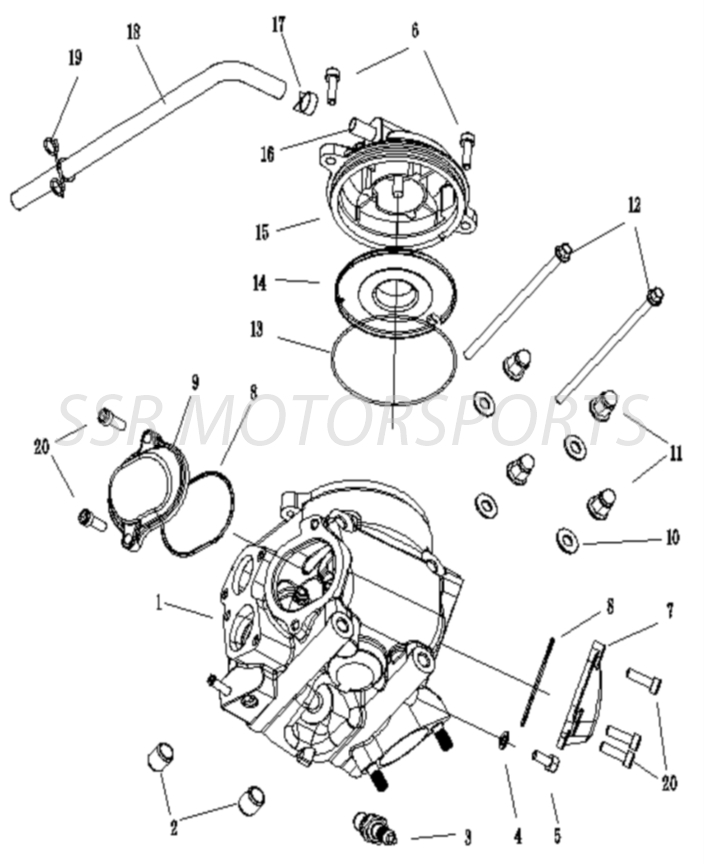

| CYLINDER HEAD | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 2 | 1MQ111820001 | DOWEL PIN | 14X16 | 2 | Pcs. | $1.50 |
| 3 | 1MQ111500002 | SPARK PLUG | DR8EA | 1 | Pc. | $10.00 |
| 4 | 1ME1132100 | COPPER WASHER | M6.5 | 1 | Pc. | $3.50 |
| 5 |
9151306012165300
|
BOLT | M6X12 | 1 | Pc. | $1.50 |
| 6 |
9218460200160000
|
ALLEN BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 7 | 1MQ1118700 | EXHAUST SIDE VALVE COVER | 1 | Pc. | $30.00 | |
| 8 | 1MQ1118800 | O-RING | 57.5X2.3 | 2 | Pcs. | $6.00 |
| 9 | 1MQ1118600 | INTAKE SIDE VALVE COVER | 1 | Pc. | $30.00 | |
| 10 | 1MQ1117700 | WASHER | M8 | 4 | Pcs. | $1.50 |
| 11 | 1MQ1117600 | CAP NUT | M8 | 4 | Pcs. | $1.50 |
| 12 |
9184306130105300
|
FLANGE BOLT | M6X130 | 2 | Pcs. | $2.50 |
| 13 | 1MQ1116900 | O-RING | 95X3.3 | 1 | Pc. | $7.00 |
| 14 | 1MQ1116400 | BREATHER PLATE A | 1 | Pc. | $27.00 | |
| 15 | 1MQ1116800 | BREATHER | 1 | Pc. | $39.00 | |
| 16 | 1MQ111670001 | BREATHER PIPE JOINT | 1 | Pc. | $18.00 | |
| 17 | 1MQ111650001 | SPRING HOSE CLAMP | M13 | 1 | Pc. | $3.50 |
| 18 | 1MQ1116600 | BREATHER HOSE | 1 | Pc. | $30.00 | |
| 19 | 1MQ1373600 | WIRE HOSE CLAMP | 15 | 1 | Pc. | $1.50 |
| 20 |
9184306020362300
|
CASE FLANGE BOLT | M6X20 | 5 | Pcs. | $2.50 |

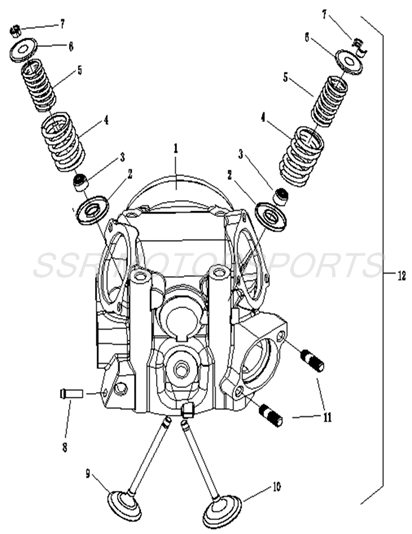

| VALVES | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 2 | 1MQ121170001 | SPRING VALVE SEAT | 2 | Pcs. | $11.00 | |
| 3 | 1MQ1211900 | VALVE STEM SEAL | 2 | Pcs. | $7.00 | |
| 4 | 1MQ1211400 | OUTER SPRING VALVE | 2 | Pcs. | $14.00 | |
| 5 | 1MQ1211300 | INNER SPRING VALVE | 2 | Pcs. | $14.00 | |
| 6 | 1MQ121160001 | VALVE SPRING RETAINER | 2 | Pcs. | $8.00 | |
| 7 | 1MQ121180001 | COLLET | 4 | Pcs. | $4.00 | |
| 8 | 1MQ124930001 | COOLANT FITTING | 1 | Pc. | $13.00 | |
| 9 | 1MQ1212100 | EXHAUST VALVE | 1 | Pc. | $29.00 | |
| 10 | 1MQ1211100 | INTAKE VALVE | 1 | Pc. | $33.00 | |
| 11 |
9120308025100000
|
STUD | M8X25 | 2 | Pcs. | #N/A |
| 12 | 1MQX111100 | CYLINDER HEAD ASSY | W/ VALVES | 1 | Assy. | $364.00 |
| CYLINDER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MQ111210002 | DOWEL PIN | 10X14 | 2 | Pcs. | $1.50 |
| 2 | 1MQ1135110 | CYLINDER BASE GASKET | 1 | Pc. | $11.00 | |
| 3 | 1MQ1131100 | CYLINDER | 1 | Pc. | $131.00 | |
| 4 | 1MQ1118100 | CYLINDER HEAD GASKET | 1 | Pc. | $18.00 | |

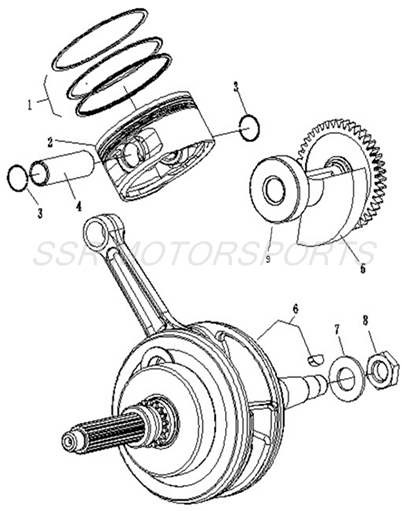

| CRANKSHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MQ1161000 | PISTON RING SET | 1 | Set | $69.00 | |
| 2 | 1MQ1163100 | PISTON | 1 | Pc. | $69.00 | |
| 3 | 1MQ1163400 | PISTON CIRCLIP | 2 | Pcs. | $1.50 | |
| 4 | 1MQ116330001 | PISTON PIN | 1 | Pc. | $14.00 | |
| 5 | 1MQX1145000 | BALANCER SHAFT | 1 | Pc. | $104.00 | |
| 6 | 1MQX1140000 | CRANKSHAFT ASSY | 1 | Assy. | $291.00 | |
| 7 | 1MQ1146200 | WASHER | M16 | 1 | Pc. | $4.00 |
| 8 | 1MQ1146100 | NUT | M16X1 | 1 | Pc. | $4.00 |
| 9 | 93306303P5C3 | BEARING | 6303P5C3 | 2 | Pcs. | $13.00 |
| 10 | 1MQ1143100 | WOODRUFF KEY | 1 | Pc. | $2.50 | |
| CAMSHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MQ1215100 | ROCKER ARM ASSY | 2 | Assy. | $59.00 | |
| 2 | 1MQ1215900 | VALVE ADJUSTING SCREW | 2 | Pcs. | #N/A | |
| 3 | 1MQ1215800 | NUT | M6X0.75 | 2 | Pcs. | #N/A |
| 4 | 1MQ1215200 | ROCKER ARM | 2 | Pcs. | #N/A | |
| 5 | 1MQ121180001 | COLLET | 4 | Pcs. | $4.00 | |
| 6 | 1MQ1215600 | INTAKE ROCKER SHAFT | 1 | Pc. | $24.00 | |
| 7 | 1MQ121160001 | VALVE SPRING RETAINER | 2 | Pcs. | $8.00 | |
| 8 | 1MQ1211300 | INNER SPRING VALVE | 2 | Pcs. | $14.00 | |
| 9 | 1MQ1211400 | OUTER SPRING VALVE | 2 | Pcs. | $14.00 | |
| 10 | 1MQ1211900 | VALVE STEM SEAL | 2 | Pcs. | $7.00 | |
| 11 | 1MQ121170001 | VALVE SPRING SEAT | 2 | Pcs. | $11.00 | |
| 12 | 1MQ121480001 | O-RING | 9X2 | 1 | Pc. | $1.50 |
| 13 | 1MQ1214600 | EXHAUST ROCKER SHAFT | 1 | Pc. | $18.00 | |
| 14 | 1MQ1212100 | EXHAUST VALVE | 1 | Pc. | $29.00 | |
| 15 | 1MQ1211100 | INTAKE VALVE | 1 | Pc. | $29.00 | |
| 16 | 1MQ1219000 | TIMING CHAIN | 1 | Pc. | $59.00 | |
| 17 | 1MQ1217600 | CAM CHAIN SPROCKET | 1 | Pc. | $36.00 | |
| 18 | 1MQ1218400 | BREATHER PLATE B | 1 | Pc. | $13.00 | |
| 19 | 1MQ1218300 | WASHER | M10 | 1 | Pc. | $18.00 |
| 20 |
9153310025282300
|
BOLT | M10X25 | 1 | Pc. | $1.50 |
| 21 |
9151306012161300
|
BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 22 | 1MQ1218200 | LOCKING PLATE | 1 | Pc. | $13.00 | |
| 23 | 1MQ1218100 | CAMSHAFT RETAINER PLATE | 1 | Pc. | $14.00 | |
| 24 | 93306202ZP5 | BEARING | 6202Z/P5 | 1 | Pc. | $23.00 |
| 25 | 1MQ121710001 | CAMSHAFT | 1 | Pc. | $77.00 | |
| 26 | 93306005P5 | BEARING | 6005/P5 | 1 | Pc. | $36.00 |
| 27 | 1MQ1221300 | CAM CHAIN TENTIONER GASKET | 1 | Pc. | $6.00 | |
| 28 | 1MQ1221000 | CAM CHAIN TENSIONER | 1 | Assy. | $35.00 | |
| 29 |
9218460150160000
|
ALLEN BOLT | M6X15 | 2 | Pcs. | $1.50 |
| 30 | 1MQ1224100 | REAR CAM CHAIN GUIDE | 1 | Pc. | $35.00 | |
| 31 | 1MQ122520001 | O-RING | 14.5X1.8 | 1 | Pc. | $1.50 |
| 32 | 1ME122510001 | REAR CHAIN GUIDE PIVOT BOLT | 1 | Pc. | $2.50 | |
| 33 | 1MQ1223100 | FRONT CAM CHAIN GUIDE | 1 | Pc. | $35.00 | |
| 34 | 1MQ1217000 | CAMSHAFT ASSEMBLY | 1 | Pc. | $77.00 | |

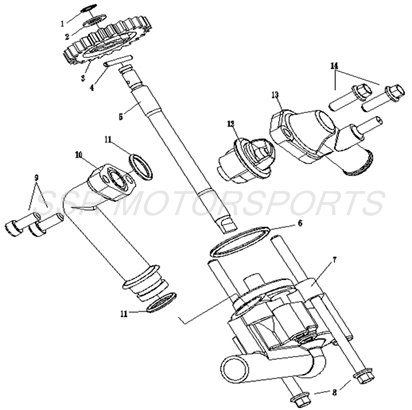

| WATERPUMP & THERMOSTAT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 |
9431108000000000
|
CIRCLIP | M8 | 1 | Pc. | $1.50 |
| 2 | 1MQ1242800 | WASHER | M8 | 1 | Pc. | $1.50 |
| 3 | 1MQ124590001 | IMPELLER SHAFT GEAR | 1 | Pc. | $13.00 | |
| 4 |
9522003022000001
|
DOWEL PIN | C3X22 | 1 | Pc. | $1.50 |
| 5 | 1MQ124260001 | WATER PUMP SHAFT | 1 | Pc. | $21.00 | |
| 6 |
9960026335000001
|
O-RING | 33.5X2.65 | 1 | Pc. | $7.00 |
| 7 | 1MQ124200001 | WATER PUMP ASSY | 1 | Assy. | $69.00 | |
| 8 |
9184306100105300
|
CASE FLANGE BOLT | M6X100 | 2 | Pcs. | $2.00 |
| 9 |
9218460150160000
|
ALLEN BOLT | M6X15 | 2 | Pcs. | $1.50 |
| 10 | 1MQ1244600 | WATER PUMP PIPE | 1 | Pc. | $24.00 | |
| 11 |
9960025155000000
|
O-RING | 15.5X2.5 | 2 | Pcs. | $4.00 |
| 12 | 1MQ1246110 | THERMOSTAT | 1 | Pc. | $45.00 | |
| 13 | 1MQ1246200 | THERMOSTAT HOUSING | 1 | Pc. | $29.00 | |
| 14 |
9218460200160000
|
ALLEN FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |

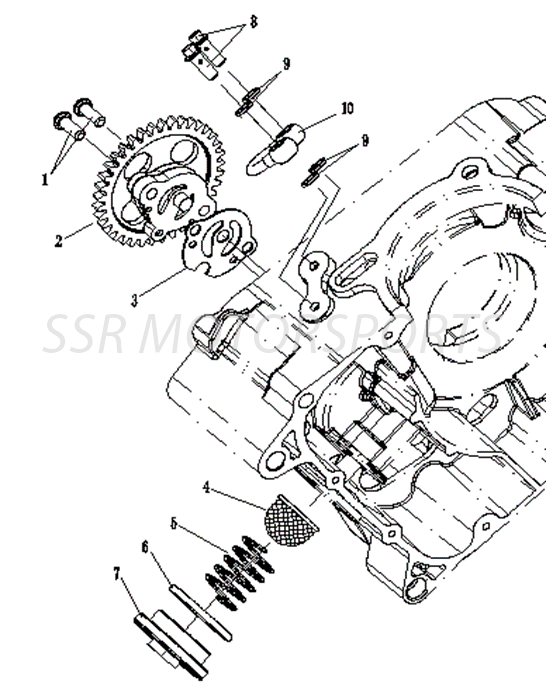

| OIL PUMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 |
9214360250002300
|
SCREW | M6X25 | 2 | Pcs. | $1.50 |
| 2 | 1MQ133100001 | OIL PUMP ASSY | 1 | Assy. | $36.00 | |
| 3 | 1MQ133170001 | OIL PUMP GASKET | 1 | Pc. | $2.50 | |
| 4 | 1MQ134360001 | OIL STRAINER | 1 | Pc. | $4.00 | |
| 5 | 1MQ1343700 | OIL STRAINER SPRING | 1 | Pc. | $2.50 | |
| 6 | 1MQ134330001 | O-RING | 36X3.5 | 1 | Pc. | $1.50 |
| 7 | 1MQ1343100 | OIL DRAIN PLUG | 1 | Pc. | $21.00 | |
| 8 | 1ME1342500 | BANJO BOLT | M12X30X1.25 | 2 | Pcs. | $2.50 |
| 9 | 2MD5375000 | SEALING WASHER | M12 | 4 | Pc. | $1.50 |
| 10 | 1MQ1343200 | U-SHAPED OIL PIPE | 1 | Pc. | $24.00 | |

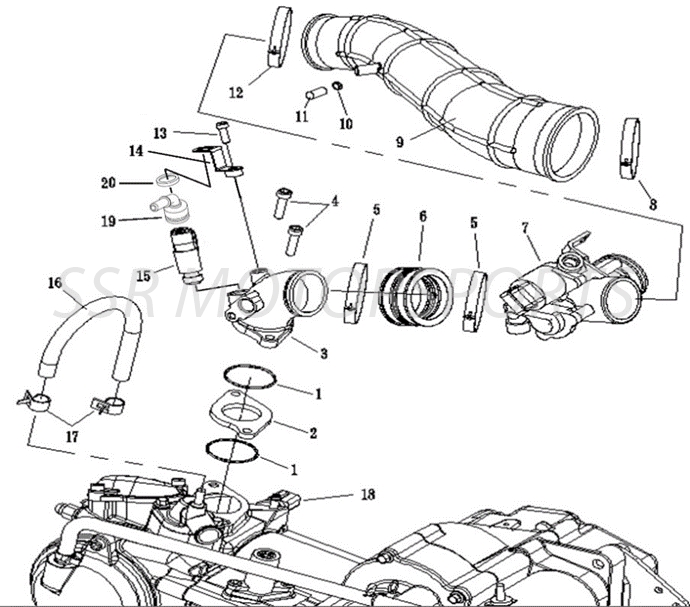

| INTAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MQ1358700 | O-RING | 35X2 | 2 | Pcs. | $4.00 |
| 2 | 1MQ1358600 | INTAKE INSULATOR | 1 | Pc. | $3.50 | |
| 3 | 1MQ1358500 | INTAKE MANIFOLD FLANGE | 1 | Pc. | $57.00 | |
| 4 |
9186306025166300
|
ALLEN BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 5 | 1MQ1371100 | HOSE CLAMP | 2 | Pcs. | $6.00 | |
| 6 | 1MQ1371000 | INTAKE MANIFOLD | 1 | Pc. | $6.00 | |
| 7 | 1MQ1372000 | THROTTLE BODY | 1 | Pc. | $180.00 | |
| 8 | 1MQ1373400 | HOSE CLAMP | 1 | Pc. | $7.00 | |
| 9 | 1MQ1373300 | AIR CLEANER BOOT | 1 | Pc. | $33.00 | |
| 10 | 1MQ1373900 | WIRE HOSE CLAMP | 7.5 | 1 | Pc. | $1.50 |
| 11 | 1MQ1373500 | OUTLET PIPE PLUG | 1 | Pc. | $2.00 | |
| 12 | 1MQ1374100 | HOSE CLAMP | 35-51 | 1 | Pc. | $7.00 |
| 13 |
9186306016166300
|

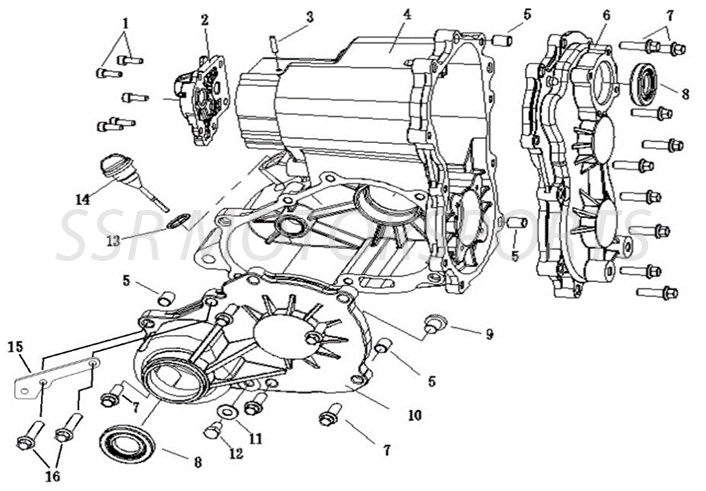

FLANGE BOLT | M6X16 | 1 | Pc. | $1.50 |
| 14 | 1MQ1376400 | FUEL INJECTOR CLAMP | 1 | Pc. | $2.50 | |
| 15 | 1MQ1376200 | FUEL INJECTOR | 1 | Pc. | $77.00 | |
| 16 | 1MQ1248800 | CIRCULATING HOSE | 1 | Pc. | $8.00 | |
| 17 | 1MQ1248900 | SPRING HOSE CLAMP | 11MM | 2 | Pcs. | $1.50 |
| 18 | 1MQ1117800 | COOLANT SENSOR | 1 | Pc. | $59.00 | |
| 19 | 1MQ1376300 | FUEL INJECTOR CAP | 1 | Pc. | $14.00 | |
| 20 | 1MQ1376500 | WASHER | 12X16X2 | 1 | Pc. | $1.50 |
| 21 | 1MQ1376100 | INTAKE AIR PRESSURE/TEMP. SENSOR | 1 | Pc. | $112.00 | |
| 22 | 1MQ1372100 | THROTTLE POSITION SENSOR | 1 | Pc. | $72.00 | |
| CRANKCASE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MQX1511000 | CRANKCASE ASSY | 1 | Assy. | $188.00 | |
| 2 | 1MQ1512000 | RIGHT CRANKCASE HALF | 1 | Pc. | $77.00 | |
| 3 | 1MQ1511000 | LEFT CRANKCASE HALF | 1 | Pc. | $112.00 | |
| 4 | 1MQ1112100 | DOWEL PIN | 10X14 | 4 | Pcs. | $1.50 |
| 5 | 1MQ1511300 | CYLINDER STUD | M8X253.6 | 4 | Pcs. | $11.00 |
| 6 |
9218460150160000
|
ALLEN BOLT | M6X15 | 2 | Pcs. | $1.50 |
| 7 | 1MQ1545700 | RIGHT CRANKCASE PLATE | 1 | Pc. | $11.00 | |
| 8 |
9184306040102300
|
FLANGE BOLT | M6X40 | 18 | Pcs. | $1.50 |
| 9 | 1MQ1548600 | OIL PLUG | 1 | Pc. | $18.00 | |
| 10 |
9960026140000000
|
O-RING | 14X2.65 | 1 | Pc. | $1.50 |
| 11 |
9184306045105300
|
CASE FLANGE BOLT | M6X45 | 2 | Pcs. | $1.50 |
| 12 | 1MQ153671001 | OIL LEVEL DIPSTICK | 1 | Pc. | $24.00 | |
| 13 | 1MQ153660002 | DIPSTICK BASE | 1 | Pc. | $39.00 | |
| 14 |
9960026180000000
|
O-RING | 18X2.65 | 1 | Pc. | $1.50 |
| 15 | 1MQ1545000 | RIGHT ENGINE COVER | 1 | Pc. | $69.00 | |
| 16 | 1MQ1545300 | RIGHT ENGINE COVER GASKET | 1 | Pc. | $23.00 | |
| 17 |
9184306060105300
|
CASE FLANGE BOLT | M6X60 | 2 | Pcs. | $2.00 |
| 18 |
9184306110105300
|
CASE FLANGE BOLT | M6X110 | 2 | Pcs. | $2.50 |
| 19 |
9184306085362300
|
CASE FLANGE BOLT | M6X85 | 2 | Pcs. | $2.00 |
| 20 |
9184306070105300
|
CASE FLANGE BOLT | M6X70 | 1 | Pc. | $2.00 |
| 21 | 1MQ1141500 | OIL SEAL | 30X45X5 | 1 | Pc. | $10.00 |
| 22 | 1MQ1541200 | LEFT ENGINE COVER | 1 | Pc. | $73.00 | |
| 23 | 1MQ1541400 | LEFT ENGINE COVER VENT | 1 | Pc. | $27.00 | |
| 24 |
9184306012102300
|
CASE FLANGE BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 25 | 1MQ1542500 | OIL SEAL | 1 | Pc. | $6.00 | |
| 26 |
9184306065102300
|
CASE FLANGE BOLT | M6X65 | 1 | Pc. | $2.00 |
| 27 | 1ME111210003 | DOWEL PIN | 10X16 | 2 | Pcs. | $1.50 |

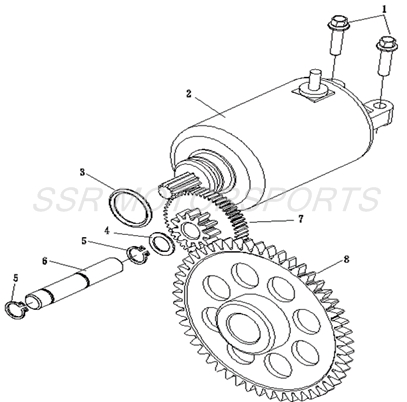

| STARTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 |
9184306025105300
|
CASE FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 2 | 1MQ818900001 | STARTER MOTOR ASSY | 1 | Assy. | $74.00 | |
| 3 | 1MQ8184700 | O-RING | 24.5X3 | 1 | Pc. | $2.00 |
| 4 | 1MQ1552200 | WASHER | M12 | 1 | Pc. | $2.50 |
| 5 |
9431112000000000
|

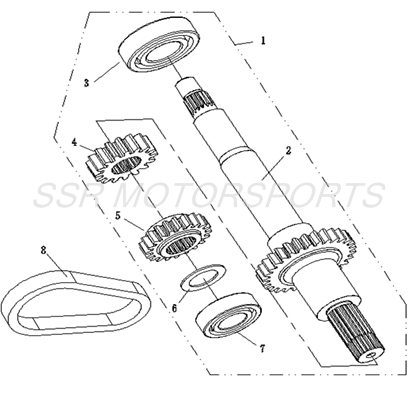

SNAP RING | M12 | 2 | Pcs. | $1.50 |
| 6 | 1MQ155210001 | INTERMEDIATE SHAFT | 1 | Pc. | $24.00 | |
| 7 | 1MQ1551200 | DUPLEX GEAR | 1 | Pc. | $51.00 | |
| 8 | 1MQ155170001 | OUTPUT GEAR UNIT | 1 | Pc. | $51.00 | |
| DRIVE CLUTCH | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MQX1762000 | CLUTCH ASSY | 1 | Assy. | $89.00 | |
| 2 | 1MQ176600001 | DRIVEN CLUTCH ASSY | ?? | 1 | Assy. | $283.00 |
| 3 | 1MQ1761400 | NUT | M14X1 | 2 | Pcs. | $2.50 |
| 4 | 1MQ1761300 | WASHER | M14 | 1 | Pc. | $2.00 |
| 5 | 1MQ1764100 | DRIVE BELT | 23.0X871 | 1 | Pc. | $96.00 |
| ELECTRICAL COMPONENTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MQX8141000 | STATOR W/ FLYWHEEL ASSY | 1 | Assy. | $125.00 | |
| 2 | 1MQ8145000 | FLYWHEEL | 1 | Pc. | $77.00 | |
| 3 | 1MQ8141000 | STATOR | 1 | Pc. | $77.00 | |
| 4 |
9218460300160000
|
CASE FLANGE BOLT | M6X30 | 3 | Pcs. | $1.50 |
| 5 |
9218450120160000
|
ALLEN BOLT | M5X12 | 2 | Pcs. | $1.50 |
| 6 | 1MQ8147300 | REGULATOR/RECTIFIER | 1 | Pc. | $104.00 | |
| 7 |
9186306016166300
|
FLANGE BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 8 | 1MQ8147100 | RELAY | 2 | Pcs. | $42.00 | |
| 9 | 1MQ8146100 | ECU | 1 | Pc. | $235.00 | |
| 10 | 2MU8095000 | STARTER RELAY | 1 | Pc. | $39.00 | |
| 11 | 1MQX8148100 | IGNITION COIL ASSY | 1 | Assy. | $77.00 | |
| 12 |
9218480160260000
|
ALLEN BOLT | M8X16 | 6 | Pcs. | $1.50 |
| 13 | 1MQ1559000 | STARTER CLUTCH | 1 | Assy. | $77.00 | |

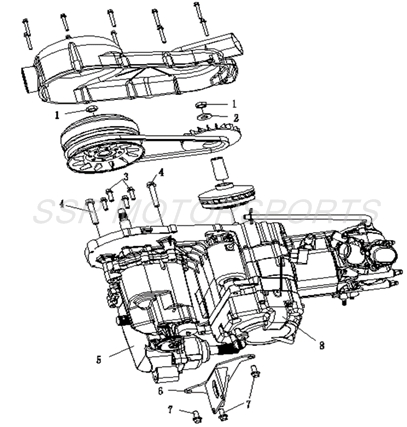

| ENGINE & TRANSMISSION COMPONENTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MQ1761400 | NUT | M14 | 2 | Pcs. | $2.50 |
| 2 | 1MQ1761300 | WASHER | M14 | 1 | Pc. | $2.00 |
| 3 |
9184308025362300
|
FLANGE BOLT | M8X25 | 4 | Pcs. | $1.50 |
| 4 |
9153310060285300
|
FLANGE BOLT | M10X60 | 2 | Pcs. | $2.50 |
| 5 | 1MQ2350000 | TRANSMISSION ASSEMBLY | *OVERSIZE* | 1 | Assy. | $647.00 |
| 6 | 1MQ2355300 | CONNECTING PLATE | 1 | Pc. | $33.00 | |
| 7 |
9153310020285300
|
FLANGE BOLT | M10X20 | 3 | Pcs. | $3.50 |
| 8 | 1MQ1000000 | ENGINE ASSEMBLY | *OVERSIZE* | 1 | Assy. | $1,397.00 |
| GEARBOX | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 |
9218460150160000
|
ALLEN BOLT | M6X15 | 5 | Pcs. | $1.50 |
| 2 | 1MQ235541001 | SHIFTER LINKAGE CAP | 1 | Pc. | $33.00 | |
| 3 | 1MQ235560001 | VENTILATION NIPPLE | 1 | Pc. | $2.50 | |
| 4 | 1MQ235510001 | GEARBOX CASE | 1 | Pc. | $104.00 | |
| 5 | 1ME235530001 | DOWEL PIN | 11X9 | 4 | Pcs. | $2.00 |
| 6 | 1MQ2355200 | LEFT GEARBOX COVER | 1 | Pc. | $69.00 | |
| 7 |
9184308028362300
|
FLANGE BOLT | M8X28 | 16 | Pcs. | $2.50 |
| 8 | 1MQ2354600 | OIL SEAL | 25X47X8 | 3 | Pcs. | $14.00 |
| 9 | 1MQ2355900 | SPACER PIN | 1 | Pc. | $4.00 | |
| 10 | 1MQ235550002 | GEARBOX FRONT COVER | 1 | Pc. | $41.00 | |
| 11 | 1MQ2359300 | CRUSH WASHER | 8.2X16X2 | 1 | Pc. | $1.50 |
| 12 |
9184308016362300
|
OIL DRAIN BOLT | M8X12 | 1 | Pc. | $2.50 |
| 13 |
9960026180000000
|
O-RING | 18X2.65 | 1 | Pc. | $1.50 |
| 14 | 1ME2355530 | OIL LEVEL DIPSTICK | 1 | Pc. | $13.00 | |
| 15 | 2MU5017000 | GEARBOX BRACKET B | 1 | Pc. | $13.00 | |
| 16 |
9184308032361300
|
FLANGE BOLT | M8X32 | 2 | Pcs. | $1.50 |
| SPINDLE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MQ2352000 | SPINDLE ASSY | 1 | Assy. | $118.00 | |
| 2 | 1MQ2352100 | SPINDLE | 1 | Pc. | $89.00 | |
| 3 | 93306205P6 | BEARING | 6205 | 1 | Pc. | $21.00 |
| 4 | 1MQ2352700 | DRIVE GEAR | 1 | Pc. | $39.00 | |
| 5 | 1MQ2352500 | LOW SPEED DRIVE GEAR | 16T | 1 | Pc. | $45.00 |
| 6 | 1MQ2352810 | WASHER 21X30X2 | 21X30X2 | 1 | Pc. | $7.00 |
| 7 | 93306004P6 | BEARING | 6004 | 1 | Pc. | $13.00 |
| 8 | 1MQ2352600 | SPINDLE CHAIN | 1 | Pc. | $59.00 | |

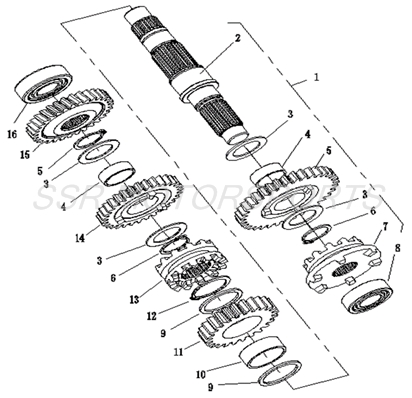

| COUNTER SHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MQ2353000 | COUNTERSHAFT ASSY | 1 | Assy. | $302.00 | |
| 2 | 1MQ2353100 | COUNTERSHAFT | 1 | Pc. | $59.00 | |
| 3 | 1MQ2353420 | WASHER | 25X37X1.2 | 4 | Pcs. | $7.00 |
| 4 |
9971025291000000
|
NEEDLE BEARING | 25X29X10 | 2 | Pcs. | $18.00 |
| 5 | 1MQ2354500 | LOW SPEED DRIVEN GEAR | 35T | 1 | Pc. | $69.00 |
| 6 |
9431211000001100
|
SHAFT SNAP RING | 25X2 | 3 | Pcs. | $1.50 |
| 7 | 1MQ2354800 | LOW SPEED PARKING SHIFT DISC | 1 | Pc. | $77.00 | |
| 8 | 93306004P6 | BEARING | 6004 | 1 | Pc. | $13.00 |
| 9 | 1MQ2353700 | WASHER | 32X39.5X1.8 | 2 | Pcs. | $8.00 |
| 10 |
9971032371300000
|
NEEDLE BEARING | 32X37X13 | 1 | Pc. | $21.00 |
| 11 | 1MQ2354700 | DRIVEN SPROCKET | 1 | Pc. | $63.00 | |
| 12 |
9431232000001100
|
SHAFT SNAP RING | 32 | 1 | Pc. | $1.50 |
| 13 | 1MQ2354900 | REVERSE GEAR SHIFT DISC | 1 | Pc. | $77.00 | |
| 14 | 1MQ2354300 | HIGH SPEED DRIVEN GEAR | 31T | 1 | Pc. | $69.00 |
| 15 | 1MQ2353200 | TRANSITION GEAR A | 1 | Pc. | $72.00 | |
| 16 | 93306204P6 | BEARING | 6204 | 1 | Pc. | $21.00 |

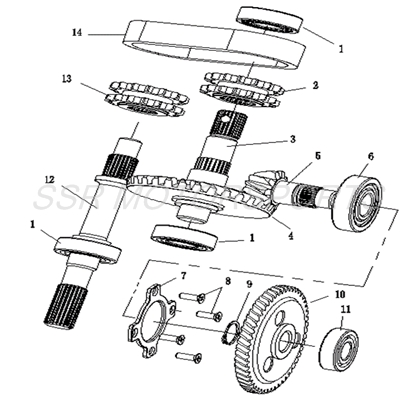

| OUTPUT SHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 93306205P6 | BEARING | 6205 | 3 | Pcs. | $21.00 |
| 2 | 1MQ2356700 | ACTIVE DOUBLE ROW SPROCKET | 1 | Pc. | $57.00 | |
| 3 | 1MQ2356500 | REAR OUTPUT SHAFT | 1 | Pc. | $60.00 | |
| 4 | 1MQ2356600 | BIG BEVEL GEAR | 1 | Pc. | $104.00 | |
| 5 | 1MQ2356100 | SMALL BEVEL GEAR | 1 | Pc. | $89.00 | |
| 6 | 93306305X5 | BEARING | 6305 | 1 | Pc. | $33.00 |
| 7 | 1MQ2356200 | BEARING RETAINER PLATE | 1 | Pc. | $14.00 | |
| 8 |
9254206012161100
|
COUNTERSUNK HEAD SCREW | M6X12 | 4 | Pcs. | $1.50 |
| 9 |
9431225000001100
|
CIRCLIP | 25X2 | 1 | Pc. | $1.50 |
| 10 | 1MQ2356300 | TRANSITION GEAR B | 1 | Pc. | $72.00 | |
| 11 | 93306204P6 | BEARING | 6204 | 1 | Pc. | $21.00 |
| 12 | 1MQ2357100 | FRONT OUTPUT SHAFT | 1 | Pc. | $63.00 | |
| 13 | 1MQ2357200 | DRIVEN DOUBLE ROW SPROCKET | 1 | Pc. | $57.00 | |
| 14 | 1MQ2356800 | DOUBLE ROW CHAIN | 1 | Pc. | $29.00 | |
| 15 | 1MQ2356000 | OUTPUT SHAFT ASSY | 1 | Assy. | $385.00 | |

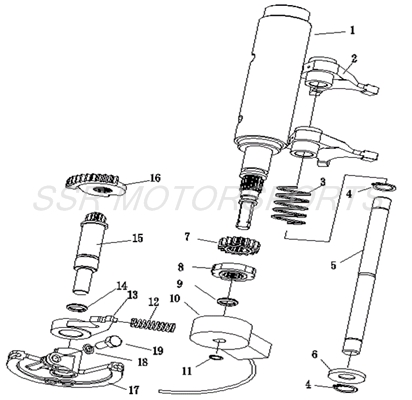

| SHIFT DRUM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MQ235810001 | SHIFT DRUM | 1 | Pc. | $77.00 | |
| 2 | 1MQ235880001 | SHIFT FORK | 2 | Pcs. | $41.00 | |
| 3 | 1MQ2359200 | LOW SPEED FORK SPRING | 1 | Pc. | $2.50 | |
| 4 |
9431112000000000
|
SNAP RING | 12 | 2 | Pcs. | $1.50 |
| 5 | 1MQ235890001 | SHIFT FORK SHAFT | 1 | Pc. | $29.00 | |
| 6 | 1MQ2359400 | SHIFT SPRING RETAINER | 1 | Pc. | $2.00 | |
| 7 | 1MQ235830001 | SHIFT DRIVEN GEAR | 1 | Pc. | $36.00 | |
| 8 | 1MQ235840001 | SHIFT CAM | 1 | Pc. | $30.00 | |
| 9 | 1MQ121480001 | O-RING | 9X1.8 | 1 | Pc. | $1.50 |
| 10 | 2MU8062000 | GEAR POSITION SENSOR | 1 | Pc. | $59.00 | |
| 11 |
9431109000000000
|
CIRCLIP | 9 | 1 | Pc. | $1.50 |
| 12 | 1MQ2358700 | SHIFT LIMITER SPRING | 1 | Pc. | $2.00 | |
| 13 | 1MQ235850001 | SHIFT STOP ROCKER | 1 | Pc. | $35.00 | |
| 14 | 1MQ235950001 | O-RING | 13X1.8 | 1 | Pc. | $1.50 |
| 15 | 1MQ235860001 | SHIFTER SHAFT | 1 | Pc. | $45.00 | |
| 16 | 1MQ235820001 | SHIFTER GEAR | 1 | Pc. | $39.00 | |
| 17 | 1ME235960001 | SHIFTER CABLE ACTUATOR | 1 | Pc. | $54.00 | |
| 18 |
9403306000002300
|
LOCK WASHER | M6 | 1 | Pc. | $1.50 |
| 19 | 915130601562300 | BOLT | M6X15 | 1 | Pc. | $1.50 |
