| 2023 BISON 500U (SRU500U) | ||||||

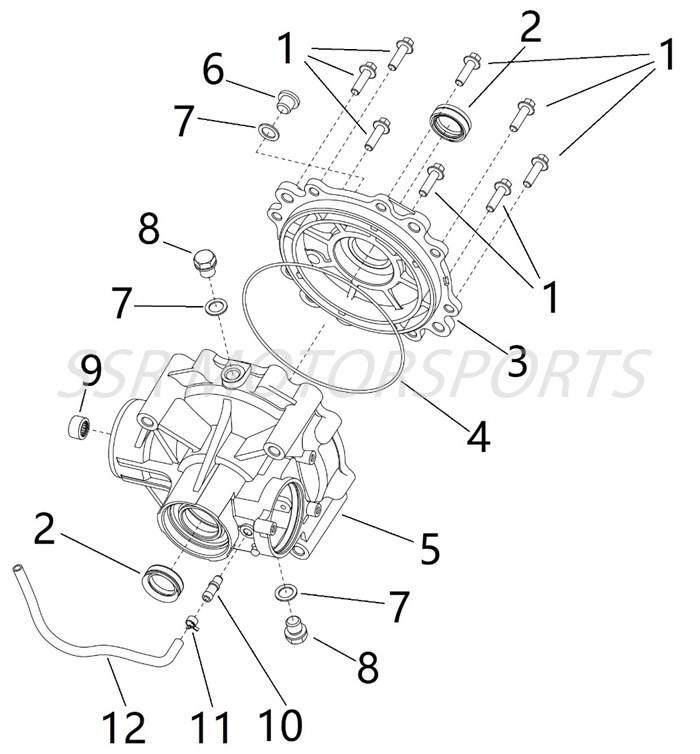

| FRONT DIFFERENTIAL HOUSING | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 |
9184308028362300
|
FLANGE BOLT | M8X28 | 8 | Pcs. | $2.50 |
| 2 | 1MQ4611600 | OIL SEAL | 24X38X8 | 2 | Pcs. | $11.00 |
| 3 | 1MQ4611200 | FRONT DIFF. CAP | 1 | Pc. | $59.00 | |
| 4 | 1MQ2381600 | O-RING | 165X2.65 | 1 | Pc. | $8.00 |
| 5 | 1MQ4611100 | FRONT DIFF. HOUSING | 1 | Pc. | $89.00 | |
| 6 | 1MQ4611400 | OIL LEVEL CHECK BOLT | M14X1.5 | 1 | Pc. | $3.50 |
| 7 | 1MQ4611500 | COPPER WASHER | M14 | 3 | Pcs. | $8.00 |
| 8 | 1MQ4611300 | FILL/DRAIN BOLT | M14X1.5 | 2 | Pcs. | $4.00 |
| 9 | 99710HK1512 | NEEDLE BEARING | HK1512 | 1 | Pc. | $7.00 |
| 10 | 1ME2359800 | VENT HOSE FITTING | 1 | Pc. | $7.00 | |
| 11 | 1MQ4611900 | SPRING HOSE CLAMP | 8 | 1 | Pc. | #N/A |
| 12 | 1MQ4619100 | DIFF. VENT HOSE | 1 | Pc. | #N/A | |

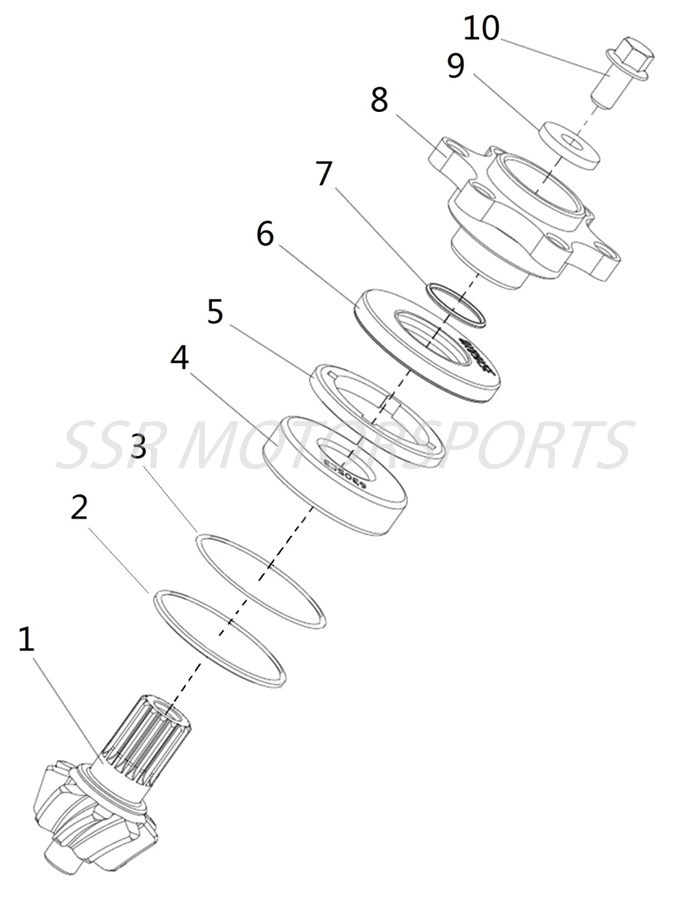

| FRONT DIFFERENTIAL INPUT SHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MQ461210001 | FRONT AXLE DRIVE GEAR | 9T | 1 | Pc. | $41.00 |
| 2 | 1MQ4612700 | WASHER | 56X62X2 | 1 | Pc. | $3.50 |
| 3 | 1MQ461220001 | ADJUSTING WASHER | 53X61.5 | 1 | Pc. | $3.50 |
| 4 | 93306305X5 | BEARING | 6305C3 | 1 | Pc. | $33.00 |
| 5 | 1MQ461230001 | NUT | M65X1.5 LH-T | 1 | Pc. | $8.00 |
| 6 | 1MQ461180001 | OIL SEAL | 35X68X8 | 1 | Pc. | $13.00 |
| 7 | 1MQ461240001 | O-RING | 25X2 | 1 | Pc. | $3.50 |
| 8 | 1MQ461250002 | FRONT AXLE COUPLER | 1 | Pc. | $42.00 | |
| 9 | 1MQ4612600 | WASHER | 10.5X27.5X4 | 1 | Pc. | $3.50 |
| 10 |
9153310020285300
|
FLANGE BOLT | M10X1.25X20 | 1 | Pc. | $3.50 |
| FRONT DIFFERENTIAL OUTPUT SHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MQ4615100 | FRONT DIFF. CASE | 1 | Pc. | $59.00 | |
| 2 | 93306191101 | BEARING | 61911 | 1 | Pc. | $57.00 |
| 3 | 1MQ461560001 | PIN | 5X28 | 2 | Pcs. | $3.50 |
| 4 | 1MQ2386500 | ADJUSTING WASHER | 45X54 | 1 | Pc. | $4.00 |
| 5 | 1MQ4616300 | FRONT RIGHT CONE GEAR | 14T | 1 | Pc. | $59.00 |
| 6 | 1MQ4615300 | PLANETARY CONE SHAFT (LONG) | 1 | Pc. | $10.00 | |
| 7 | 1MQ4615200 | PLANETARY CONE GEAR | 10T | 4 | Pcs. | $14.00 |
| 8 | 1MQ4615500 | SPHERICAL COPPER WASHER | 15X30X0.5 | 4 | Pcs. | $7.00 |
| 9 | 1MQ4615400 | PLANETARY CONE SHAFT (SHORT) | 2 | Pcs. | $14.00 | |
| 10 | 1MQ4616600 | FRONT LEFT OUTPUT CONE GEAR | 1 | Pc. | $23.00 | |
| 11 | 1MQ4616800 | ADJUSTING WASHER | 40X55.5 | 1 | Pc. | $3.50 |
| 12 | 1MQ4616700 | ANTI-ROTATION WASHER | 1 | Pc. | $7.00 | |
| 13 | 1MQ4616910 | CONE WASHER | 40X53X1 | 1 | Pc. | $8.00 |
| 14 | 1MQ4616100 | FRONT AXLE DRIVEN GEAR | 33T | 1 | Pc. | $96.00 |
| 15 |
9153310020285300
|
FLANGE BOLT | M10X1.25X20 | 6 | Pcs. | $2.50 |
| 16 | 93306007 | BEARING | 6007 | 1 | Pc. | $18.00 |
| 17 | 1MQ4616500 | ADJUSTING WASHER | 68X79 | 1 | Pc. | $6.00 |

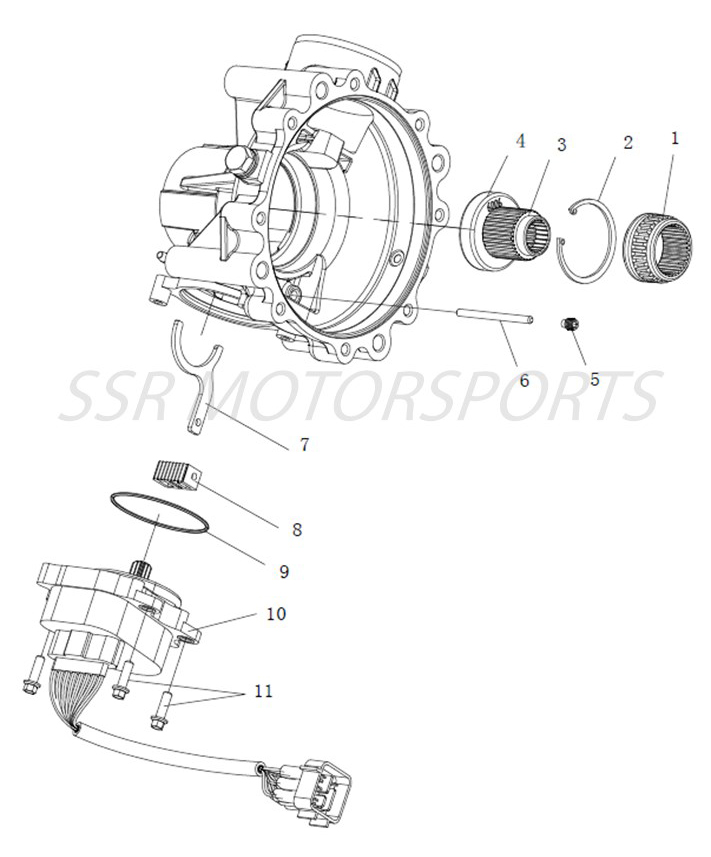

| FRONT DIFFERENTIAL SWITCHING MECHANISM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MQ4616200 | FRONT AXLE SPLINE SLEEVE | 1 | Pc. | $42.00 | |
| 2 |
9430155000000000
|
CIRCLIP | 55 | 1 | Pc. | $4.00 |
| 3 | 1MQ4616400 | FRONT RIGHT OUTPUT SPLINE | 1 | Pc. | $18.00 | |
| 4 | 93306006 | BEARING | 6006 | 1 | Pc. | $13.00 |
| 5 | 1MQ4618600 | ALLEN PIN RETAINER | M8X10 | 1 | Pc. | $3.50 |
| 6 | 1MQ4618500 | PIN | 5X68 | 1 | Pc. | $3.50 |
| 7 | 1MQ4618400 | FRONT AXLE SHIFTING FORK | 1 | Pc. | $10.00 | |
| 8 | 1MQ4618300 | RACK SPLINE | 1 | Pc. | $14.00 | |
| 9 | 1MQ4618200 | O-RING | 68X2 | 1 | Pc. | $3.50 |
| 10 | 1MQ4618100 | SWITCH MOTOR ASSY | 1 | Assy. | $188.00 | |
| 11 |
9184306020362300
|
FLANGE BOLT | M6X20 | 3 | Pcs. | $2.50 |
