| 2023 BISON 500U (SRU500U) | ||||||

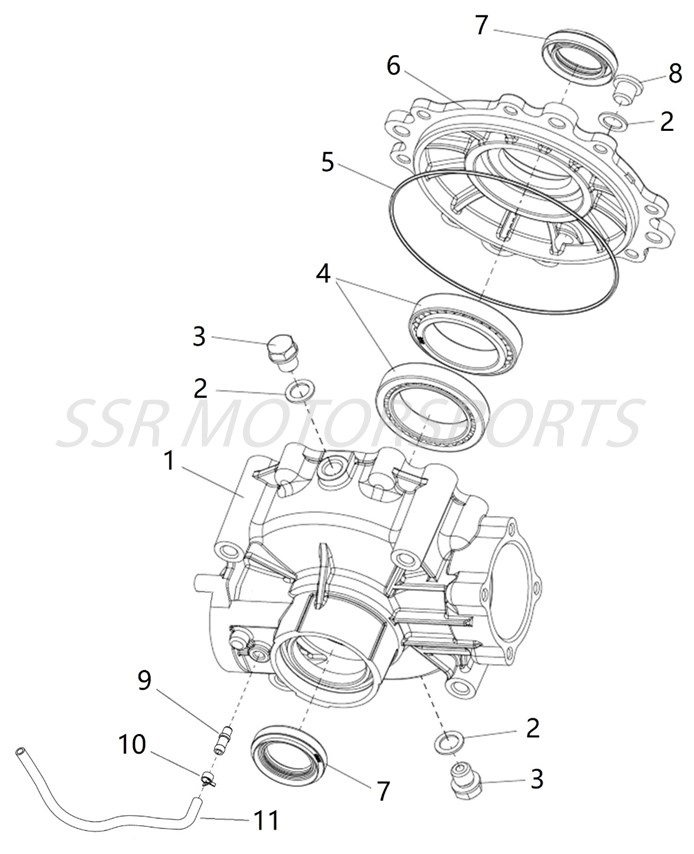

| REAR DIFFERENTIAL HOUSING | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MQ2381100 | REAR DIFF. HOUSING | 1 | Pc. | $96.00 | |
| 2 | 1MQ461150001 | COPPER WASHER | M14 | 3 | Pcs. | $8.00 |
| 3 | 1MQ461130001 | FILL/DRAIN BOLT | M14X1.5 | 2 | Pcs. | $3.50 |
| 4 | 933032911 | TAPER ROLLER BEARING | 32911 | 2 | Pcs. | $42.00 |
| 5 | 1MQ238160001 | O-RING | 165X2.65 | 1 | Pc. | $8.00 |
| 6 | 1MQ2381200 | REAR DIFF. CAP | 1 | Pc. | $51.00 | |
| 7 | 1MQ238140001 | OIL SEAL | 35X54X9/13 | 2 | Pcs. | $11.00 |
| 8 | 1MQ461140001 | OIL LEVEL CHECK BOLT | M14X1.5 | 1 | Pc. | $3.50 |
| 9 | 1ME235980001 | VENT HOSE FITTING | 1 | Pc. | $7.00 | |
| 10 | 1MQ4611900 | SPRING HOSE CLAMP | 8 | 1 | Pc. | #N/A |
| 11 | 1MQ4619100 | DIFF. VENT HOSE | 9X500 | 1 | Pc. | #N/A |

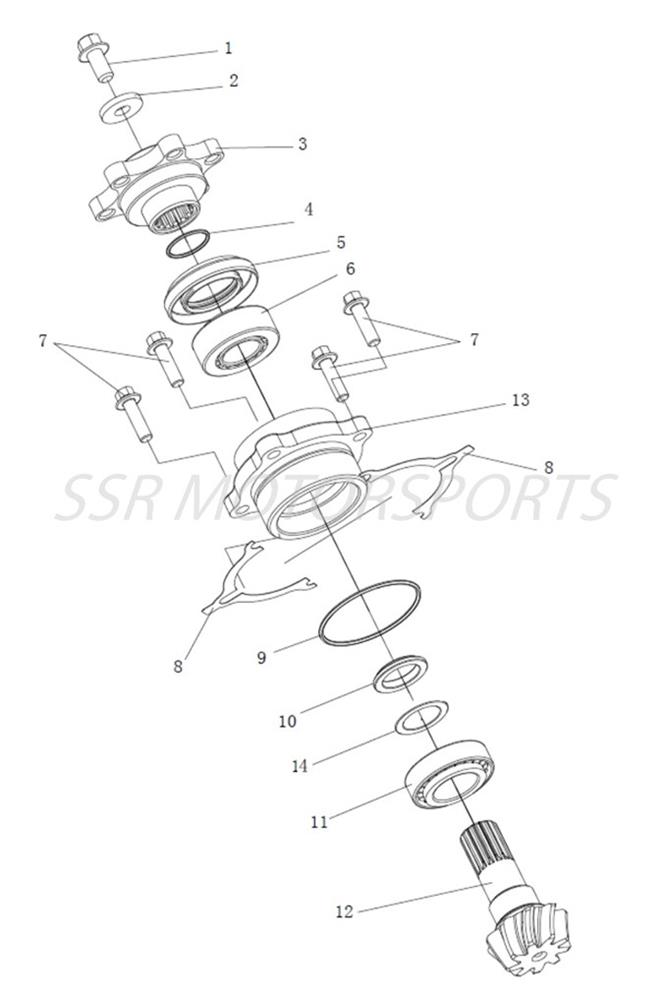

| REAR DIFFERENTIAL INPUT SHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 |
9153310020285300
|
FLANGE BOLT | M10X1.25X20 | 1 | Pc. | $3.50 |
| 2 | 1MQ4612800 | WASHER | 10.5X27.5X4 | 1 | Pc. | $3.50 |
| 3 | 1MQ238240002 | REAR AXLE COUPLER | 1 | Pc. | $61.00 | |
| 4 | 1MQ461240001 | O-RING | 25X2 | 1 | Pc. | $3.50 |
| 5 | 1MQ238230001 | OIL SEAL | 1 | Pc. | $11.00 | |
| 6 | 933033205 | TAPER ROLLER BEARING | 33205 | 1 | Pc. | $51.00 |
| 7 |
9184308032361300
|
FLANGE BOLT | M8X32 | 4 | Pcs. | $2.50 |
| 8 | 1MQ2381500 | ADJUSTING WASHER | 2 | Pcs. | $10.00 | |
| 9 | 1MQ2381800 | O-RING | 63X2.5 | 1 | Pc. | $3.50 |
| 10 | 1MQ238220001 | BUSHING | 25 | 1 | Pc. | $6.00 |
| 11 | 933032006X | TAPER ROLLER BEARING | 32006X | 1 | Pc. | $30.00 |
| 12 | 1MQ238210001 | REAR DIFF. DRIVEN GEAR | 9T | 1 | Pc. | $53.00 |
| 13 | 1MQ2381300 | REAR DIFF. OUTPUT HOLDER | 1 | Pc. | $23.00 | |
| 14 | 1MQ238250001 | ADJUSTING WASHER | 25X36 | 1 | Pc. | $3.50 |
| REAR DIFFERENTIAL OUTPUT SHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 933032911 | TAPER ROLLER BEARING | 32911 | 2 | Pcs. | $42.00 |
| 2 | 1MQ238670001 | ADJUSTING WASHER | 55X67 | 1 | Pc. | $7.00 |
| 3 | 1MQ2385100 | REAR DIFF. CASE | 1 | Pc. | $63.00 | |
| 4 | 1MQ238640001 | COPPER WASHER | 45X54X1 | 2 | Pcs. | $4.00 |
| 5 | 1MQ2386300 | REAR DIFF. OUTPUT GEAR | 1 | Pc. | $45.00 | |
| 6 | 1MQ461550001 | SPHERICAL COPPER WASHER | 15X30X0.5 | 4 | Pcs. | $4.00 |
| 7 | 1MQ4615200 | PLANETARY CONE GEAR | 10T | 4 | Pcs. | $14.00 |
| 8 | 1MQ4615400 | PLANETARY CONE SHAFT (SHORT) | 2 | Pcs. | $14.00 | |
| 9 | 1MQ461560001 | PIN | 5X28 | 2 | Pcs. | $3.50 |
| 10 | 1MQ4615300 | PLANETARY CONE SHAFT (LONG) | 1 | Pc. | $10.00 | |
| 11 | 1MQ2386200 | REAR LEFT OUTPUT CONE GEAR | 1 | Pc. | $30.00 | |
| 12 | 1MQ238650001 | ADJUSTING WASHER | 45X54 | 1 | Pc. | $6.00 |
| 13 | 1MQ2386100 | REAR AXLE DRIVEN GEAR | 33T | 1 | Pc. | $96.00 |
| 14 |
9153310020285300
|
FLANGE BOLT | M10X1.25X20 | 8 | Pcs. | $3.50 |

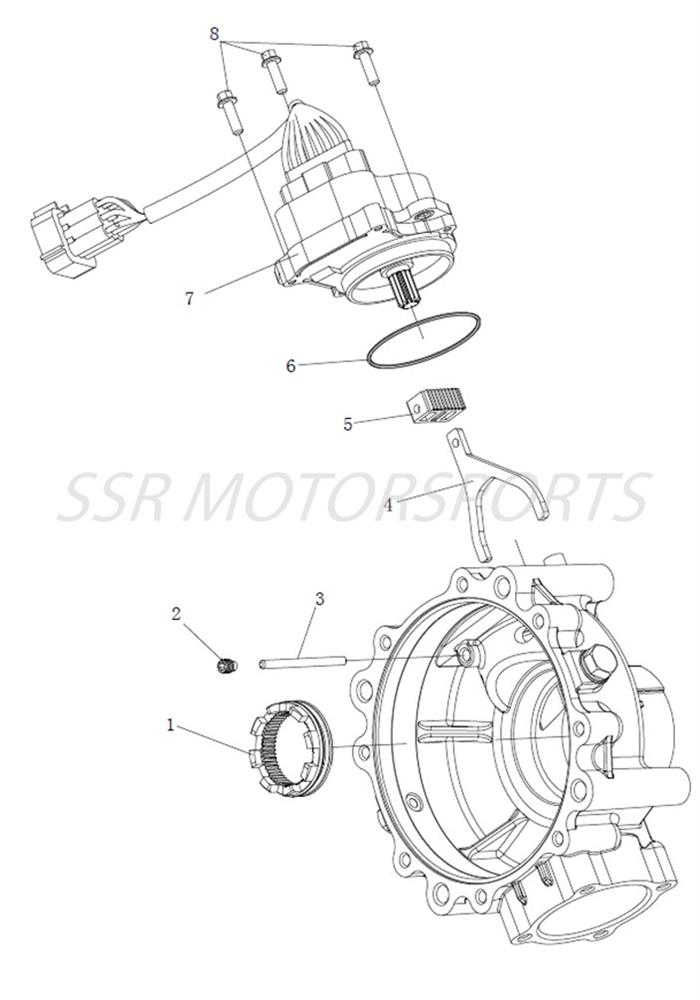

| REAR DIFFERENTIAL SWITCHING MECHANISM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MQ2386600 | REAR AXLE SPLINE SLEEVE | 1 | Pc. | $42.00 | |
| 2 | 1MQ461860001 | ALLEN PIN RETAINER | M8X10 | 1 | Pc. | $3.50 |
| 3 | 1MQ461850001 | PIN | 5X58 | 1 | Pc. | $3.50 |
| 4 | 1MQ238820001 | REAR AXLE SHIFTING FORK | 1 | Pc. | $11.00 | |
| 5 | 1MQ4618300 | RACK SPLINE | 1 | Pc. | $14.00 | |
| 6 | 1MQ461820001 | O-RING | 68X2 | 1 | Pc. | $3.50 |
| 7 | 1MQ2388100 | SWITCH MOTOR ASSY | 1 | Assy. | $150.00 | |
| 8 |
9184306020362300
|
FLANGE BOLT | M6X20 | 3 | Pcs. | $2.50 |
