| HANDLEBARS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3420048 | HANDLEBAR | BLACK | 1 | Pc. | $59.00 |
| 2 | 3410044 | RIGHT HANDLEBAR SWITCH | 1 | Pc. | $59.00 | |
| 3 | 3353539 | RIGHT HANDLEBAR GRIP W/ TUBE | 1 | Pc. | $10.00 | |
| 4 | 3420051 | HANDLEBAR CROSSBAR MOUNT | 2 | Pcs. | $13.00 | |
| 5 | 3420506 | HANDLEBAR WEIGHT ASSY | 2 | Assy. | $11.00 | |
| 6 | 3420050 | HANDLEBAR CROSSBAR | 1 | Pc. | $11.00 | |
| 7 | 3410038 | LEFT HANDLEBAR SWITCH | 1 | Pc. | $69.00 | |
| 8 | 3353538 | LEFT HANDLEBAR GRIP | 1 | Pc. | $8.00 | |
| 9 | 3411027 | CLUTCH LOCKOUT SWITCH | 1 | Pc. | $8.00 | |
| 10 | 3411021 | CLUTCH PERCH ASSY | 1 | Assy. | $39.00 | |
| 11 | 3411026 | CLUTCH LEVER | 1 | Pc. | $18.00 | |
| 12 | 3480031 | THROTTLE CABLE PUSH | M10 | 1 | Pc. | $24.00 |
| 13 | 3480032 | THROTTLE CABLE PULL | M12 | 1 | Pc. | $27.00 |
| 14 | 3561089 | REAR VIEW MIRROR SET | 1 | Set | $69.00 | |
| 15 | 3561079 | LEFT MIRROR | 1 | Pc. | $39.00 | |
| 16 | 3561080 | RIGHT MIRROR | 1 | Pc. | $39.00 | |
| 17 | 3357502 | CLUTCH CABLE BOOT | 1 | Pc. | $2.50 | |
| 18 | 3482008 | CLUTCH CABLE | 1 | Pc. | $23.00 | |

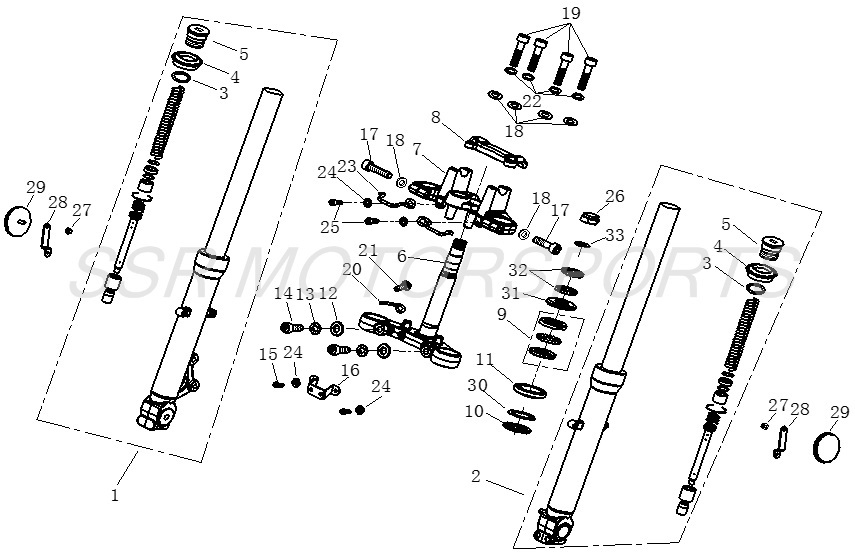

| FRONT SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3510120 | RIGHT FRONT FORK ASSY | BLACK | 1 | Assy. | $150.00 |
| 2 | 3510119 | LEFT FRONT FORK ASSY | BLACK | 1 | Assy. | $150.00 |
| 3 | 3510123 | O-RING | 37X2.65 | 2 | Pcs. | $2.00 |
| 4 | 3510124 | FORK TOP SEAL | 2 | Pcs. | $6.00 | |
| 5 | 3510125 | FORK TUBE CAP | 2 | Pcs. | $10.00 | |
| 6 | 3421557 | LOWER TRIPLE CLAMP WITH STEM ASSY | 1 | Assy. | $124.00 | |
| 7 | 3421552 | UPPER TRIPLE CLAMP | 1 | Pc. | $104.00 | |
| 8 | 3421004 | UPPER HANDLEBAR CLAMP | 1 | Pc. | $24.00 | |
| 9 | 3570061 | STEERING STEM BEARING W/ RACES | 768705 | 1 | Pc. | $14.00 |
| 10 | 3250420 | WASHER | 30X38X1.8 | 1 | Pc. | $4.00 |
| 11 | 3570062 | TAPER BEARING | 32906 | 1 | Pc. | $18.00 |
| 12 | 3250416 | WASHER | 10X20X2 | 2 | Pcs. | $1.50 |
| 13 | 3250003 | LOCK WASHER | 10 | 2 | Pcs. | $1.50 |
| 14 | 3230540 | ALLEN BOLT | M10X35 | 2 | Pcs. | $2.00 |
| 15 | 3230489 | BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 16 | 2550236 | LOWER HEADLIGHT MOUNTING BRACKET | 1 | Pc. | $4.00 | |
| 17 | 3230499 | ALLEN BOLT | M8X40 | 2 | Pcs. | $2.00 |
| 18 | 3250072 | WASHER | 8X16X1.5 | 2 | Pcs. | $1.50 |
| 19 | 3230498 | ALLEN BOLT | M8X25 | 4 | Pcs. | $1.50 |
| 20 | 3429528 | BRAKE HOSE CLAMP | 1 | Pc. | $1.50 | |
| 21 | 3230490 | BUTTON HEAD ALLEN BOLT | M6X12 | 1 | Pc. | $1.50 |
| 22 | 3250015 | LOCK WASHER | M8 | 4 | Pcs. | $1.50 |
| 23 | 3425452 | CABLE HOLDER | 2 | Pcs. | $1.50 | |
| 24 | 3250411 | WASHER | 6X12X1.4 | 2 | Pcs. | $1.50 |
| 25 | 3230492 | ALLEN BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 26 | 3570059 | STEERING STEM NUT | M22 | 1 | Pc. | $4.00 |
| 27 | 3238029 | NUT | M6 | 2 | Pcs. | $1.50 |
| 28 | 2550322 | REFLECTOR BRACKET | 2 | Pcs. | $4.00 | |
| 29 | 3376002 | SIDE REFLECTOR | 2 | Pcs. | $7.00 | |
| 30 | 3570060 | STEERING STEM DUST SEAL | 1 | Pc. | $7.00 | |
| 31 | 3570065 | DUST COVER | 1 | Pc. | $6.00 | |
| 32 | 3570063 | STEERING STEM ADJUSTMENT NUT | 2 | Pcs. | $11.00 | |
| 33 | 3570064 | WASHER | 22X30X2 | 1 | Pc. | $4.00 |
| 34 | 3230495 | ALLEN BOLT | M6X30 | 2 | Pcs. | $1.50 |

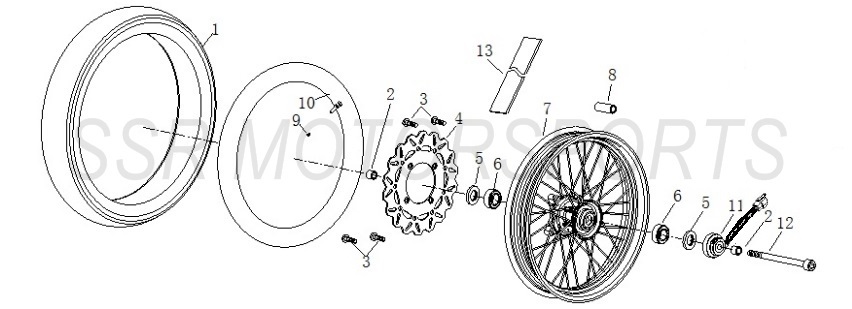

| FRONT WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3502552 | FRONT TIRE | 100/80-17 EEC C6017 | 1 | Pc. | $79.00 |
| 2 | 3287551 | FRONT WHEEL SPACER | 15.5X25X24.5 | 2 | Pcs. | $4.00 |
| 3 | 3230430 | ALLEN ROTOR BOLT | M8X25X5 | 4 | Pcs. | $1.50 |
| 4 | 3541025 | FRONT BRAKE ROTOR | Ф267 | 1 | Pc. | $69.00 |
| 5 | 3500184 | DUST SEAL | 25×35×7 | 2 | Pcs. | $4.00 |
| 6 | 3500185 | WHEEL BEARING | 6202-RS | 2 | Pcs. | $8.00 |
| 7 | 3500166 | FRONT WHEEL ASSY | 2.5×17 BLACK | 1 | Assy. | $235.00 |
| 8 | 3500186 | BEARING SPACER | 1 | Pc. | $7.00 | |
| 9 | 3503514 | VALVE STEM CAP | TR412 | 1 | Pc. | $1.50 |
| 10 | 3503512 | TUBE | 3.25/3.50-17 | 1 | Pc. | $45.00 |
| 11 | 3402014 | SPEEDOMETER PICKUP | 1 | Pc. | $59.00 | |
| 12 | 3285068 | FRONT WHEEL AXLE | M14×1.5×207 | 1 | Pc. | $30.00 |
| 13 | 3503516 | RIM STRIP | 2.5-17 | 1 | Pc. | $6.00 |

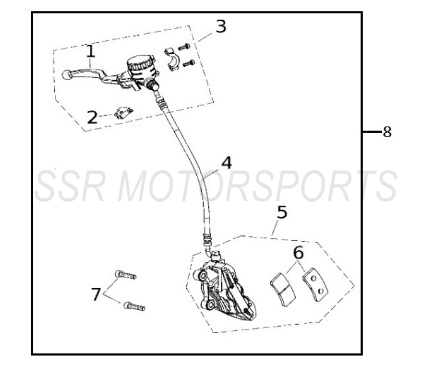

| FRONT BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3547123 | FRONT BRAKE LEVER | 1 | Pc. | $18.00 | |
| 2 | 3547021 | FRONT BRAKE LIGHT SWITCH | 1 | Pc. | $8.00 | |
| 3 | 3547130 | FRONT BRAKE MASTER CYLINDER ASSY | 1 | Assy. | $89.00 | |
| 4 | 3547131 | FRONT BRAKE LINE | 1 | Pc. | $33.00 | |
| 5 | 3547132 | FRONT BRAKE CALIPER ASSY | SILVER | 1 | Assy. | $131.00 |
| 6 | 3547124 | FRONT BRAKE PAD SET | 1 | Set | $18.00 | |
| 7 | 3230540 | ALLEN BOLT | M10X35 | 2 | Pcs. | $2.00 |
| 8 | 3540110 | FRONT BRAKE ASSY | SILVER / BLACK / ZINC | 1 | Assy. | $206.00 |

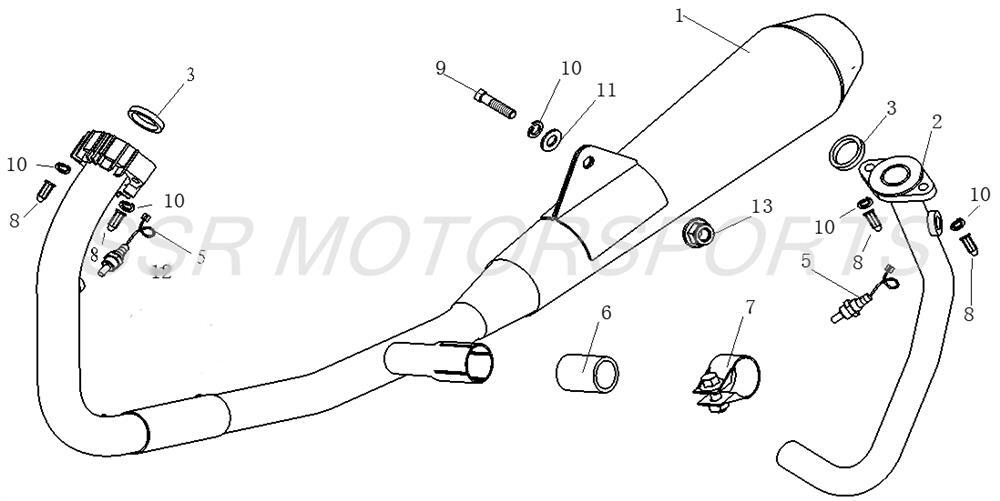

| EXHAUST SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 2530150 | MUFFLER ASSY | WITH CATALYST | 1 | Assy. | $402.00 |
| 2 | 3322022 | REAR CYLINDER HEADER | 1 | Pc. | $69.00 | |
| 3 | 3334010 | MUFFLER GASKET | 1 | Pc. | $3.50 | |
| 3-1 | 3334012 | MUFFLER GASKET | 1 | Pc. | $3.50 | |
| 3158010 | OXYGEN SENSOR SUPERSEDE TO 3158049 | $1.50 | ||||
| 5 | 3158049 | OXYGEN SENSOR | 2 | Pcs. | $131.00 | |
| 6 | 3334011 | REAR EXHAUST PIPE PACKING GASKET | 1 | Pc. | $4.00 | |
| 7 | 3339005 | MUFFLER CLAMP | 1 | Pc. | $11.00 | |
| 8 | 3238071 | CAP NUT | M6X32 | 4 | Pcs. | $1.50 |
| 9 | 3230166 | ALLEN BOLT | M8X45 | 1 | Pc. | $2.00 |
| 10 | 3250015 | LOCK WASHER | M8 | 5 | Pc. | $1.50 |
| 11 | 3250072 | WASHER | 8X16X1.5 | 1 | Pc. | $1.50 |
| 13 | 3238033 | FLANGE LOCKNUT | M8 | 1 | Pc. | $1.50 |
| AIR BOX | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3153036 | AIR BOX ASSY | 1 | Assy. | $69.00 | |
| 2 | 3154054 | AIR FILTER ELEMENT | 1 | Pc. | $33.00 | |
| 3 | 3158004 | THROTTLE BODY | 1 | Pc. | $188.00 | |
| 4 | 3061028 | AIRBOX VENT HOSE | 1 | Pc. | $6.00 | |
| 5 | 3262012 | HOSE CLAMP | 1 | Pc. | $3.50 | |
| 6 | 3261011 | WIRE HOSE CLAMP | 16 | 1 | Pc. | $1.50 |
| 7 | 3261007 | WIRE HOSE CLAMP | 12 | 1 | Pc. | $1.50 |
| 8 | 3230514 | SCREW | M6X25 | 2 | Pcs. | $1.50 |
| 9 | 3250411 | WASHER | 6X12X1.4 | 2 | Pcs. | $1.50 |
| 10 | 3010036 | CRANKCASE VENT HOSE | 1 | Pc. | $11.00 | |

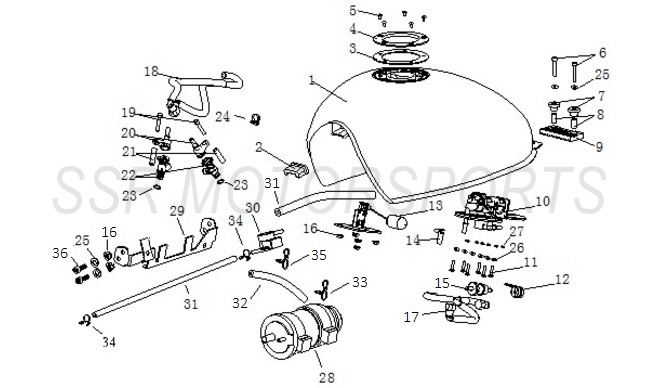

| FUEL TANK | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3470564-01 | FUEL TANK ASSY | WHITE / RED STRIPE - CAFE | 1 | Assy. | $235.00 |
| 1 | 3470564-04 | FUEL TANK ASSY | GREEN - CLASSIC | 1 | Assy. | $235.00 |
| 1 | 3470564-18 | FUEL TANK ASSY | RED - CLASSIC | 1 | Assy. | $235.00 |
| 1 | 3470564-27 | FUEL TANK ASSY | RED / WHITE STRIPE - CAFE | 1 | Assy. | $235.00 |
| 2 | 3358513 | FRONT FUEL TANK CUSHION | 1 | Pc. | $1.50 | |
| 3 | 3358518 | FUEL TANK CAP GASKET | 1 | Pc. | $3.50 | |
| 4 | 3453038 | FUEL TANK CAP BASE | 1 | Pc. | $8.00 | |
| 5 | 3230487 | BOLT | M5X8 | 5 | Pcs. | $1.50 |
| 6 | 3230515 | SCREW | M6X40 | 2 | Pcs. | $1.50 |
| 7 | 3358514 | RUBBER DAMPER | 2 | Pcs. | $1.50 | |
| 8 | 3287555 | COLLAR | 2 | Pcs. | $1.50 | |
| 9 | 3358515 | LOWER RUBBER DAMPER | 1 | Pc. | $2.50 | |
| 10 | 3470589 | FUEL PUMP | 1 | Pc. | $218.00 | |
| 11 | 3230435 | SCREW | M5X20 | 6 | Pcs. | $1.50 |
| 12 | 3423185 | FUEL FILTER HOLDER | 1 | Pc. | $2.00 | |
| 13 | 3402518 | FUEL LEVEL SENDING UNIT | 1 | Pc. | $51.00 | |
| 14 | 3351512 | TUBE PLUG | 2 | Pcs. | $2.00 | |
| 15 | 3470567 | FUEL FILTER | 1 | Pc. | $18.00 | |
| 16 | 3226010 | FLANGE NUT | M6 | 5 | Pcs. | $1.50 |
| 17 | 3158023 | FUEL LINE A | 1 | Pc. | $39.00 | |
| 18 | 3158022 | FUEL LINE B | 1 | Pc. | $33.00 | |
| 19 | 3230497 | BOLT | M6X50 | 2 | Pcs. | $1.50 |
| 20 | 3158011 | FUEL INJECTOR CAP | 2 | Pcs. | $11.00 | |
| 21 | 3287554 | COLLAR | 7X10X35 | 2 | Pcs. | $1.50 |
| 22 | 3158005 | FUEL INJECTOR | 2 | Pcs. | $161.00 | |
| 23 | 3210042 | O-RING | 2 | Pcs. | $2.50 | |
| 24 | 3262008 | HOSE CLAMP | 13-19 | 2 | Pcs. | $1.50 |
| 25 | 3250411 | WASHER | M6 | 6 | Pcs. | $1.50 |
| 26 | 3250058 | WASHER | M5 | 6 | Pcs. | $1.50 |
| 27 | 3210033 | O-RING | 4X1.8 | 6 | Pcs. | $1.50 |
| 28 | 3470565 | EVAPORATION CANISTER | 1 | Pc. | $54.00 | |
| 29 | 2550205 | EVAPORATION CANISTER BRACKET | 1 | Pc. | $7.00 | |
| 30 | 3470566 | ONE-WAY VALVE | 1 | Pc. | $8.00 | |
| 31 | 3351002 | HOSE | 3.5X7.5 | 2 | Pcs. | $8.00 |
| 32 | 3351003 | HOSE | 4.5X8.5 | 1 | Pc. | $11.00 |
| 33 | 3261003 | WIRE HOSE CLAMP | 10 | 1 | Pc. | $1.50 |
| 34 | 3261001 | WIRE HOSE CLAMP | 7 | 3 | Pcs. | $1.50 |
| 35 | 3261002 | WIRE HOSE CLAMP | 8 | 1 | Pc. | $1.50 |
| 36 | 3230492 | ALLEN BOLT | M6X16 | 4 | Pcs. | $1.50 |
| FRAME COVERS AND SIDE PANELS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3440005 | V-SHAPED DECO COVER | BLACK | 2 | Pcs. | $24.00 |
| 2 | 2550248 | COUNTERSHAFT SPROCKET COVER | BLACK | 1 | Pc. | $59.00 |
| 5 | 3451179 | RIGHT SIDE COVER | BLACK - CLASSIC | 1 | Pc. | $53.00 |
| 5 | 3451150 | RIGHT SIDE COVER | ALUMINUM - CAFE | 1 | Pc. | $51.00 |
| 6 | 3451178 | LEFT SIDE COVER | BLACK - CLASSIC | 1 | Pc. | $53.00 |
| 6 | 3451149 | LEFT SIDE COVER | ALUMINUM - CAFE | 1 | Pc. | $51.00 |
| 7 | 3440006-01 | SIDE NUMBER PLATE | WHITE | 2 | Pcs. | $42.00 |
| 7 | 3440006-02 | SIDE NUMBER PLATE | BLACK | 2 | Pcs. | $42.00 |
| 7 | 3440006-18 | SIDE NUMBER PLATE | RED | 2 | Pcs. | $42.00 |
| 8 | 3230357 | ST SCREW | ST4.8X16 | 8 | Pcs. | $1.50 |
| 9 | 3230497 | BOLT | M6X50 | 1 | Pc. | $1.50 |
| 10 | 3230495 | BOLT | M6X30 | 1 | Pc. | $1.50 |
| 11 | 3230490 | BUTTON HEAD ALLEN BOLT | M6X12 | 6 | Pcs. | $1.50 |
| 12 | 3250409 | WASHER | 6X12X0.5 | 6 | Pcs. | $1.50 |
| 13 | 3230351 | ST SCREW | ST4.2X12 | 4 | Pcs. | $1.50 |

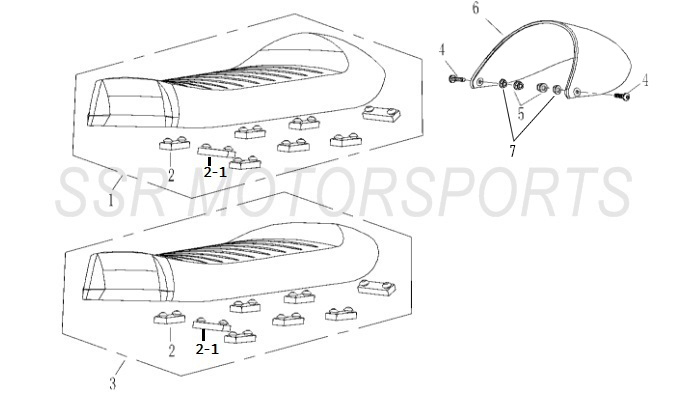

| SEAT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3460229 | SEAT | SOLO - CAFE | 1 | Pc. | $131.00 |
| 2 | 3460222 | RUBBER DAMPER | LOW | 7 | Pcs. | $2.50 |
| 2-1 | 3460223 | RUBBER DAMPER | HIGH | 1 | Pc. | $2.50 |
| 3 | 3460228 | SEAT | DUAL - CLASSIC | 1 | Pc. | $131.00 |
| 4 | 3230513 | BUTTON HEAD ALLEN BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 5 | 3226010 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 6 | 3453037-01 | SOLO SEAT COWLING | WHITE / RED STRIPE - CAFE | 1 | Pc. | $59.00 |
| 6 | 3453037-27 | SOLO SEAT COWLING | RED / WHITE STRIPE - CAFE | 1 | Pc. | $59.00 |
| 7 | 3287528 | STEPPED COLLAR | 6.5X9.5X13X3X4.5 | 2 | Pcs. | $1.50 |

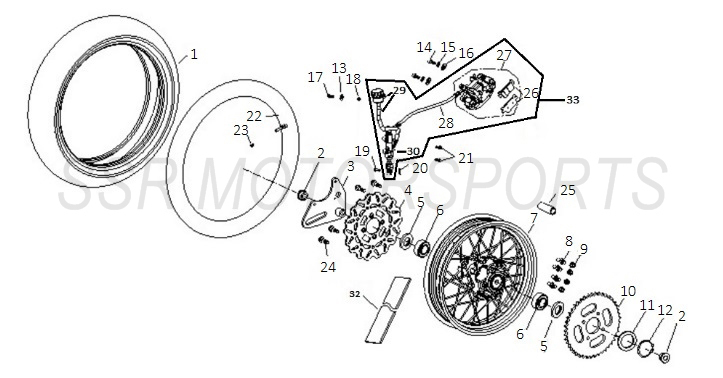

| REAR WHEEL / REAR BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3502553 | REAR TIRE | 130/90-15,EEC,C6017 | 1 | Pc. | $105.00 |
| 2 | 3287549 | REAR WHEEL SPACER | 2 | Pcs. | $4.00 | |
| 3 | 3544505 | REAR BRAKE CALIPER CARRIER | 1 | Pc. | $24.00 | |
| 4 | 3541026 | REAR BRAKE ROTOR | 1 | Pc. | $59.00 | |
| 5 | 3500206 | DUST SEAL | 47x27x7 | 2 | Pcs. | $4.00 |
| 6 | 3500205 | WHEEL BEARING | 6302-RS | 2 | Pcs. | $8.00 |
| 7 | 3500168 | REAR WHEEL ASSY | 3.0×15 BLACK | 1 | Assy. | $272.00 |
| 8 | 3504006 | BOLT | M10X1.25 | 4 | Pcs. | $1.50 |
| 9 | 3238070 | NUT | M10 | 4 | Pcs. | $1.50 |
| 10 | 3504003 | REAR SPROCKET | 1 | Pc. | $96.00 | |
| 11 | 3250418 | WASHER | 58.5X70X2 | 1 | Pc. | $2.00 |
| 12 | 3250417 | CIRCLIP | 58 | 1 | Pc. | $1.50 |
| 13 | 3250411 | WASHER | 6X12X1.4 | 1 | Pc. | $1.50 |
| 14 | 3230498 | ALLEN BOLT | M8X25 | 2 | Pcs. | $1.50 |
| 15 | 3250015 | LOCK WASHER | 8 | 2 | Pcs. | $1.50 |
| 16 | 3250072 | WASHER | 8X16X1.5 | 2 | Pcs. | $1.50 |
| 17 | 3230492 | ALLEN BOLT | M6X16 | 1 | Pc. | $1.50 |
| 18 | 3226010 | FLANGE NUT | M6 | 1 | Pc. | $1.50 |
| 19 | 3547141 | REAR BRAKE M/C PIN | 1 | Pc. | $1.50 | |
| 20 | 3273001 | COTTER PIN | 1.6X16 | 1 | Pc. | $1.50 |
| 21 | 3220015 | SCREW | M6X20 | 2 | Pcs. | $1.50 |
| 22 | 3503513 | REAR TUBE | 130/90-15 | 1 | Pc. | $41.00 |
| 23 | 3503514 | VALVE STEM CAP | TR412 | 1 | Pc. | $6.00 |
| 24 | 3230430 | ALLEN ROTOR BOLT | M8X25X5 | 4 | Pcs. | $1.50 |
| 25 | 3500187 | WHEEL BEARING SPACER | 1 | Pc. | $7.00 | |
| 26 | 3547125 | REAR BRAKE PAD SET | 1 | Set | $39.00 | |
| 27 | 3547133 | REAR BRAKE CALIPER ASSY | SILVER | 1 | Assy. | $131.00 |
| 28 | 3547134 | REAR BRAKE HOSE COMP | 1 | Pc. | $27.00 | |
| 29 | 3547135 | REAR BRAKE RESERVOIR | 1 | Pc. | $23.00 | |
| 30 | 3547136 | REAR BRAKE MASTER CYLINDER | 1 | Pc. | $77.00 | |
| 32 | 3503515 | RIM STRIP | 3.0-15 | 1 | Pc. | $6.00 |
| 33 | 3542043 | REAR BRAKE ASSY | SILVER/ZINC | 1 | Assy. | $188.00 |

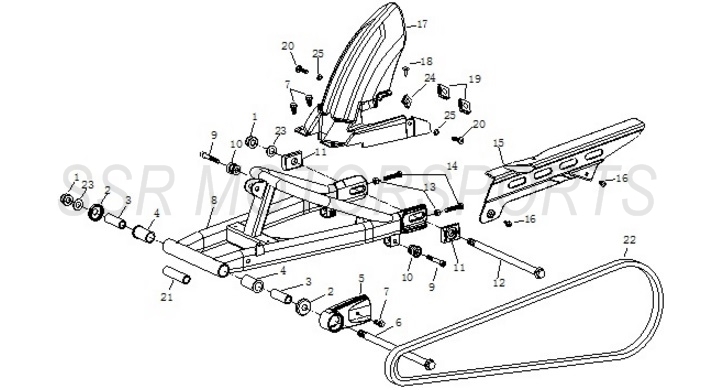

| SWINGARM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3238085 | NUT | M14 | 2 | Pcs. | $2.50 |
| 2 | 3515002 | DUST SEAL | 2 | Pcs. | $3.50 | |
| 3 | 3515003 | INNER BUSHING | 2 | Pcs. | $4.00 | |
| 4 | 3515004 | OUTER BUSHING | 2 | Pcs. | $4.00 | |
| 5 | 3531580 | DRIVE CHAIN SLIDER | 1 | Pc. | $18.00 | |
| 6 | 3285070 | SWINGARM AXLE | M14×1.5×255 | 1 | Pc. | $39.00 |
| 7 | 3230399 | BOLT | M6×3×16 | 7 | Pcs. | $1.50 |
| 8 | 2550244 | SWINGARM | BLACK | 1 | Pc. | $168.00 |
| 8 | 2550235 | SWINGARM | RED | 1 | Pc. | $164.00 |
| 9 | 3230301 | BOLT | M8X50 | 2 | Pcs. | $2.00 |
| 10 | 3287552 | COLLAR | 2 | Pcs. | $4.00 | |
| 11 | 3531577 | CHAIN ADJUSTER BLOCK | 2 | Pcs. | $18.00 | |
| 12 | 3285069 | REAR WHEEL AXLE | M14×1.5×272 | 1 | Pc. | $39.00 |
| 13 | 3238084 | NUT | M8 | 2 | Pcs. | $1.50 |
| 14 | 3230536 | BOLT | M8×50 | 2 | Pcs. | $2.00 |
| 15 | 3531575 | CHAIN GUARD | 1 | Pc. | $30.00 | |
| 16 | 3230491 | BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 17 | 3454043 | REAR FENDER MUDFLAP | BLACK | 1 | Pc. | $54.00 |
| 18 | 3230357 | SCREW | 4.8×16 | 1 | Pc. | $1.50 |
| 19 | 3238062 | NUT CLIP | M6 | 2 | Pcs. | $1.50 |
| 20 | 3230491 | BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 21 | 3515005 | SPACER COLLAR | 1 | Pc. | $7.00 | |
| 22 | 3531579 | DRIVE CHAIN | 530-114L | 1 | Pc. | $96.00 |
| 23 | 3240024 | WASHER | 14X20X0.5 | 2 | Pcs. | $1.50 |
| 24 | 3238060 | SCREW CLIP | M4.2 | 1 | Pcs. | $1.50 |
| 25 | 3250411 | WASHER | 6X12X1.4 | 2 | Pcs. | $1.50 |

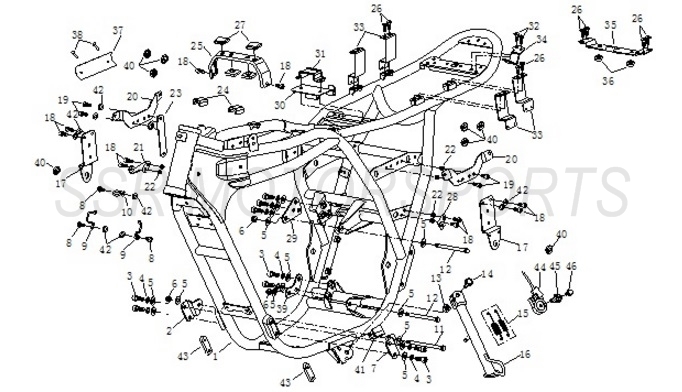

| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 2550228 | FRAME | RED *OVERSIZE* | 1 | Pc. | $437.00 |
| 1 | 2550250 | FRAME | BLACK *OVERSIZE* | 1 | Pc. | $437.00 |
| 2 | 2550256 | LEFT ENGINE MOUNTING BRACKET | BLACK | 1 | Pc. | $11.00 |
| 2 | 2550231 | LEFT ENGINE MOUNTING BRACKET | RED | 1 | Pc. | $11.00 |
| 3 | 3230507 | ALLEN BOLT | M8×16 | 9 | Pcs. | $1.50 |
| 4 | 3250015 | LOCK WASHER | 8 | 9 | Pcs. | $1.50 |
| 5 | 3250072 | WASHER | 8 | 9 | Pcs. | $1.50 |
| 6 | 3238033 | FLANGE LOCKNUT | M8 | 3 | Pcs. | $1.50 |
| 7 | 2550257 | RIGHT ENGINE MOUNTING BRACKET | BLACK | 1 | Pc. | $11.00 |
| 7 | 2550230 | RIGHT ENGINE MOUNTING BRACKET | RED | 1 | Pc. | $11.00 |
| 8 | 3230490 | BUTTON HEAD ALLEN BOLT | M6X12 | 4 | Pcs. | $1.50 |
| 9 | 3425452 | CABLE HOLDER | 2 | Pcs. | $1.50 | |
| 10 | 3429529 | CLUTCH CABLE CLAMP | 2 | Pcs. | $1.50 | |
| 11 | 3230538 | BOLT | M8×150 | 1 | Pc. | $4.00 |
| 12 | 3230537 | BOLT | M8×110 | 2 | Pcs. | $2.50 |
| 13 | 3238084 | NUT | M8 | 1 | Pc. | $1.50 |
| 14 | 3230371 | SIDE STAND PIVOT BOLT | M8X28 | 1 | Pc. | $2.00 |
| 15 | 3391502 | SIDE STAND SPRING | 1 | Pc. | $2.50 | |
| 16 | 2550251 | SIDE STAND | BLACK | 1 | Pc. | $51.00 |
| 16 | 2550229 | SIDE STAND | RED | 1 | Pc. | $51.00 |
| 17 | 2550216 | ENGINE COVER BRACKET | 2 | Pcs. | $8.00 | |
| FRAME CON'T. | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 18 | 3230489 | BOLT | M6X12 | 6 | Pcs. | $1.50 |
| 19 | 3230492 | ALLEN BOLT | M6X16 | 3 | Pcs. | $1.50 |
| 20 | 2550222 | SIDE COVER BRACKET | 2 | Pcs. | $11.00 | |
| 21 | 2550224 | LOWER RIGHT SIDE COVER BRACKET | 1 | Pc. | $4.00 | |
| 22 | 3226010 | FLANGE NUT | M6 | 4 | Pcs. | $1.50 |
| 23 | 2550219 | ECM MOUNTING BRACKET | 1 | Pc. | $3.50 | |
| 24 | 3358510 | FUEL TANK RUBBER DAMPER | 2 | Pcs. | $1.50 | |
| 25 | 2550204 | FRONT FUEL TANK BRACKET | 1 | Pc. | $8.00 | |
| 26 | 3230490 | BUTTON HEAD ALLEN BOLT | M6X12 | 8 | Pcs. | $1.50 |
| 27 | 3358511 | FUEL TANK REAR RUBBER DAMPER | 6 | Pcs. | $1.50 | |
| 28 | 2550223 | LOWER LEFT SIDE COVER BRACKET | 1 | Pc. | $4.00 | |
| 29 | 2550232 | REAR RIGHT ENGINE MOUNTING BRACKET | RED | 1 | Pc. | $11.00 |
| 29 | 2550258 | REAR RIGHT ENGINE MOUNTING BRACKET | BLACK | 1 | Pc. | $10.00 |
| 30 | 2550206 | ELECTRIC BRACKET | 1 | Pc. | $6.00 | |
| 31 | 2550209 | FRONT BRACKET CUSHION | 1 | Pc. | $2.50 | |
| 32 | 3230491 | BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 33 | 2550210 | NUMBER PLATE BRACKET | 4 | Pcs. | $2.50 | |
| 34 | 2550211 | SEAT LOCK BRACKET | 1 | Pc. | $4.00 | |
| 35 | 2550300 | BATTERY RETAINER BRACKET | 1 | Pc. | $8.00 | |
| 36 | 3358525 | CUSHION | 2 | Pcs. | $1.50 | |
| 37 | 4300002 | FRAME BODY NO. PLATE | 1 | Pc. | $1.50 | |
| 38 | 3274001 | RIVET | 3.2×9 | 2 | Pcs. | $1.50 |
| 39 | 2550259 | RIGHT REAR LOWER ENGINE MOUNTING BRACKET | BLACK | 1 | Pc. | $8.00 |
| 39 | 2550233 | RIGHT REAR LOWER ENGINE MOUNTING BRACKET | RED | 1 | Pc. | $8.00 |
| 40 | 3358025 | SIDE COVER RUBBER DAMPER | 6 | Pcs. | $1.50 | |
| 41 | 3356501 | RUBBER DAMPER | 1 | Pc. | $1.50 | |
| 42 | 3250411 | WASHER | 6 | 10 | Pcs. | $1.50 |
| 43 | 2550299 | ENGINE MOUNT | 2 | Pcs. | $4.00 | |
| 44 | 3413002 | SIDE STAND SWITCH | 1 | Pc. | $14.00 | |
| 45 | 3230371 | SIDE STAND SWITCH BOLT | M8X28 | 1 | Pc. | $1.50 |
| 46 | 3230547 | SCREW | M6X20 | 1 | Pc. | $1.50 |
| REAR SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3512101 | REAR SHOCK ABSORBER | MODEL1(300) YU-AN | 1 | Pc. | $308.00 |
| 2 | 3230541 | ALLEN BOLT | M10X45 | 2 | Pcs. | $3.50 |
| 3 | 3238070 | NUT | M10 | 2 | Pcs. | $1.50 |
| 4 | 3250416 | WASHER | 10X20X2 | 4 | Pcs. | $1.50 |
| FRONT FENDER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 2550342-01 | FRONT FENDER | WHITE / RED STRIPE - CAFE | 1 | Pc. | $77.00 |
| 1 | 2550342-04 | FRONT FENDER | GREEN - CLASSIC | 1 | Pc. | $77.00 |
| 1 | 2550342-18 | FRONT FENDER | RED - CLASSIC | 1 | Pc. | $77.00 |
| 1 | 2550342-27 | FRONT FENDER | RED / WHITE STRIPE - CAFE | 1 | Pc. | $77.00 |
| 2 | 2550260 | FRONT FENDER BRACKET | BLACK | 1 | Pc. | $8.00 |
| 3 | 2550290 | FRONT FENDER MOUNTING TAB | 2 | Pcs. | $4.00 | |
| 4 | 32304903 | BUTTON HEAD ALLEN BOLT | M6X12 | 4 | Pcs. | $1.50 |
| 5 | 3226010 | FLANGE NUT | M6 | 4 | Pcs. | $1.50 |
| 6 | 3230494 | BOLT | M6×25 | 4 | Pcs. | $1.50 |
| 7 | 3250409 | WASHER | 6X12X0.5 | 4 | Pcs. | $1.50 |
| HEADLIGHT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3372082 | HEADLIGHT ASSY | CHROME | 1 | Assy. | $89.00 |
| 1 | 3372083 | HEADLIGHT ASSY | METAL BLACK | 1 | Assy. | $83.00 |
| 2 | 3373005 | PARKING LAMP BULB | 12V5W | 1 | Pc. | $8.00 |
| 3 | 3372038 | HEADLIGHT BULB | 35W/35W | 1 | Pc. | $24.00 |
|
4
|
3374141 | RIGHT FRONT TURN SIGNAL | LED - BLACK | 1 | Pc. | $30.00 |
| 3374139 | RIGHT FRONT TURN SIGNAL | LED - CHROME | 1 | Pc. | $35.00 | |
|
5
|
3374140 | LEFT FRONT TURN SIGNAL | LED - BLACK | 1 | Pc. | $30.00 |
| 3374138 | LEFT FRONT TURN SIGNAL | LED - CHROME | 1 | Pc. | $35.00 | |
| 6 | 3374076 | TURN SIGNAL BULB | 12V10W | 2 | Pcs. | $8.00 |
| 7 | 2550326 | RIGHT TURN SIGNAL / HEADLIGHT BRACKET | 1 | Pc. | $11.00 | |
| 8 | 2550325 | LEFT TURN SIGNAL / HEADLIGHT BRACKET | 1 | Pc. | $11.00 | |
| 9 | 3226010 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 10 | 3230490 | BUTTON HEAD ALLEN BOLT | M6X12 | 4 | Pcs. | $1.50 |
| 11 | 3230351 | SCREW | ST4.2X12 | 1 | Pc. | $1.50 |
| 12 | 3441011-01 | SPEEDOMETER FAIRING | WHITE / RED STRIPE - CAFE | 1 | Pc. | $45.00 |
| 12 | 3441011-27 | SPEEDOMETER FAIRING | RED / WHITE STRIPE - CAFE | 1 | Pc. | $45.00 |
| 13 | 2550324 | HEADLIGHT GRILL | RED - CAFE | 1 | Pc. | $48.00 |
| 13 | 2550332 | HEADLIGHT GRILL | BLACK - CAFE | 1 | Pc. | $48.00 |
| 14 | 3230489 | BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 15 | 3358512 | MOUNTING BRACKET RUBBER SLEEVE | 2 | Pcs. | $7.00 | |
| 16 | 3250411 | WASHER | 6X12X1.4 | 2 | Pcs. | $1.50 |
| 17 | 3558523 | FRONT TURN STALK RUBBER | 2 | Pcs. | $2.00 | |
| FOOTPEGS AND CONTROLS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3428528 | RIGHT FOOTPEG MOUNTING BRACKET | SILVER | 1 | Pc. | $77.00 |
| 2 | 3428527 | LEFT FOOTPEG MOUNTING BRACKET | SILVER | 1 | Pc. | $77.00 |
| 3 | 3358517 | MUFFLER MOUNT RUBBER DAMPER | 1 | Pc. | $2.00 | |
| 4 | 3287550 | COLLAR | 9X12X25X25X27 | 1 | Pc. | $1.50 |
| 5 | 3230539 | SCREW | M10X1.25X25 | 4 | Pcs. | $1.50 |
| 6 | 3250003 | LOCK WASHER | 10 | 4 | Pcs. | $1.50 |
| 7 | 3101013 | GEARSHIFT LEVER ASSY | 1 | Assy. | $54.00 | |
| 8 | 3285067 | SHIFT LEVER PIVOT BOLT | M10X1.25 | 1 | Pc. | $1.50 |
| 9 | 3285066 | BRAKE LEVER PIVOT BOLT | M10X1.25 | 1 | Pc. | $1.50 |
| 10 | 3230514 | SCREW | M6X25 | 1 | Pc. | $1.50 |
| 11 | 3544504 | REAR BRAKE LEVER | 1 | Pc. | $69.00 | |
| 12 | 3250416 | WASHER | 10X20X2 | 1 | Pc. | $1.50 |
| 13 | 3226010 | FLANGE NUT | M6 | 1 | Pc. | $1.50 |
| 14 | 3390505 | REAR BRAKE PEDAL RETURN SPRING | 1 | Pc. | $2.00 | |
| 15 | 3422511 | SKID PLATE | 1 | Pc. | $59.00 | |
| 16 | 3230489 | BOLT | M6X12 | 4 | Pcs. | $1.50 |
| 17 | 3230493 | SCREW | M6X20 | 1 | Pc. | $1.50 |
| 18 | 3230495 | BOLT | M6X30 | 1 | Pc. | $1.50 |
| 19 | 3250411 | WASHER | 6 | 4 | Pcs. | $1.50 |

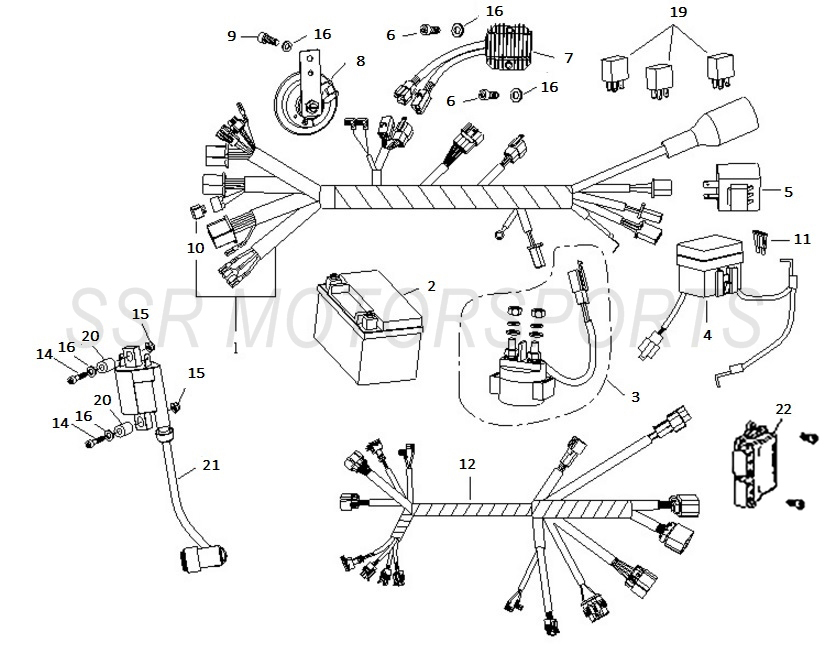

| ELECTRICAL EQUIPMENT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3370236 | MAIN WIRE HARNESS | 1 | Pc. | $112.00 | |
| 2 | 3379518 | BATTERY | YTX9-BS | 1 | Pc. | $150.00 |
| 3 | 3378501 | STARTER RELAY ASSY | 1 | Assy. | $39.00 | |
| 4 | 3382504 | FUSE BOX | 1 | Pc. | $18.00 | |
| 5 | 3376509 | TURN SIGNAL RELAY | 1 | Pc. | $13.00 | |
| 6 | 3230492 | ALLEN BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 7 | 3379015 | REGULATOR / RECTIFIER | 1 | Pc. | $77.00 | |
| 8 | 3375515 | HORN | 1 | Pc. | $24.00 | |
| 9 | 3230489 | BOLT | M6X12 | 1 | Pc. | $1.50 |
| 10 | 3380002 | DIODE | IIIB-02 | 1 | Pc. | $3.50 |
| 11 | 3370229 | FUSE | 10 AMP | 2 | Pcs. | $3.50 |
| 11 | 3370230 | FUSE | 15 AMP | 2 | Pcs. | $3.50 |
| 12 | 3370241 | EFI HARNESS | 1 | Pc. | $142.00 | |
| 14 | 3230496 | SCREW | M6X35 | 2 | Pcs. | $1.50 |
| 15 | 3226010 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 16 | 3250411 | WASHER | 6 | 5 | Pcs. | $1.50 |
| 19 | 3378508 | RELAY | 30A | 3 | Pcs. | $13.00 |
| 20 | 3287521 | COLLAR | 6.5X12X16 | 2 | Pcs. | $1.50 |
| 21 | 3378016 | IGNITION COIL ASSY | 2 | Assy. | $96.00 | |
| 22 | 3158008 | ECU | 1 | Pc. | $345.00 | |
| SPEEDOMETER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3400131 | SPEEDOMETER ASSY | 1 | Assy. | $142.00 | |
| 2 | 3400128 | SPEEDOMETER PANEL | 1 | Pc. | $51.00 | |

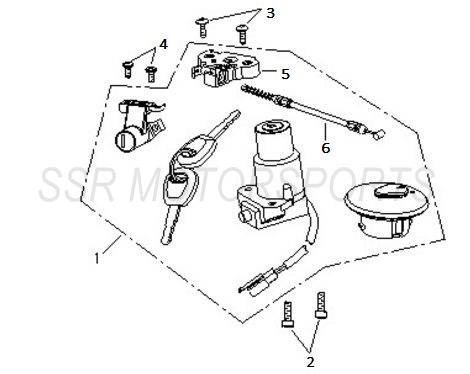

| IGNITION SWITCH | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3490042 | IGNITION LOCK SET | W/ 2 KEYS | 1 | Set | $89.00 |
| 2 | 3230492 | ALLEN BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 3 | 3230494 | BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 4 | 3230324 | PAN HEAD SCREW | M5X12 | 2 | Pcs. | $1.50 |
| 5 | 3492007 | SEAT LOCK | 1 | Pc. | $11.00 | |
| 6 | 3481014 | SEAT LOCK CABLE | 1 | Pc. | $4.00 | |
| REAR FENDER AND TAILLIGHT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3454042-01 | REAR FENDER | WHITE / RED STRIPE - CAFE | 1 | Pc. | $63.00 |
| 1 | 3454042-04 | REAR FENDER | GREEN - CLASSIC | 1 | Pc. | $63.00 |
| 1 | 3454042-18 | REAR FENDER | RED - CLASSIC | 1 | Pc. | $63.00 |
| 1 | 3454042-27 | REAR FENDER | RED / WHITE STRIPE - CAFE | 1 | Pc. | $63.00 |
| 2 | 2550201 | REAR FENDER BRACKET | 1 | Pc. | $8.00 | |
|
3
|
3374132 | LEFT REAR TURN SIGNAL | LED - CHROME | 1 | Pc. | $54.00 |
| 3374134 | LEFT REAR TURN SIGNAL | LED - BLACK | 1 | Pc. | $48.00 | |
|
4
|
3373566 | TAILLAMP | CHROME | 1 | Pc. | $83.00 |
| 3373565 | TAILLAMP | BLACK | 1 | Pc. | $83.00 | |
|
5
|
3374133 | RIGHT REAR TURN SIGNAL | LED - CHROME | 1 | Pc. | $54.00 |
| 3374135 | RIGHT REAR TURN SIGNAL | LED - BLACK | 1 | Pc. | $48.00 | |
| 6 | 337476 | TURN SIGNAL LIGHT BULB | 12V10W | 2 | Pcs. | $8.00 |
|
7
|
3373567 | TAILLAMP HOUSING | BLACK | 1 | Pc. | $33.00 |
| 3373568 | TAILLAMP HOUSING | CHROME | 1 | Pc. | $36.00 | |
| 8 | 3230430 | ALLEN ROTOR BOLT | M8X25X5 | 1 | Pc. | $1.50 |
| 9 | 3230493 | SCREW | M6X20 | 3 | Pcs. | $1.50 |
| 10 | 2550215 | FENDER LINER BRACKET | 1 | Pc. | $6.00 | |
| 11 | 3226010 | FLANGE NUT | M6 | 1 | Pc. | $1.50 |
| 12 | 3376006 | REFELCTOR DOT | M6 | 1 | Pc. | $4.00 |
| 13 | 3230492 | ALLEN BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 15 | 3358522 | REAR TURN SIGNAL STALK RUBBER | 2 | Pcs. | $2.00 | |
| 16 | 2550264 | LICENSE PLATE HOLDER | 1 | Pc. | $18.00 | |
| 17 | 3230347 | SCREW | M5X12 | 2 | Pcs. | $1.50 |

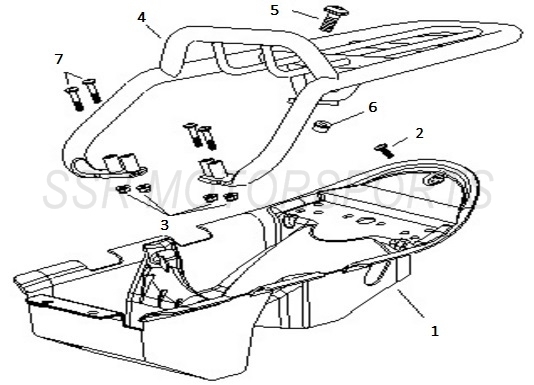

| UNDERFENDER AND REAR RACK | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3450083 | UNDERSEAT STORAGE TRAY | 1 | Pc. | $51.00 | |
| 2 | 3230490 | BUTTON HEAD ALLEN BOLT | M6X12 | 1 | Pc. | $1.50 |
| 3 | 3226010 | FLANGE NUT | M6 | 4 | Pcs. | $1.50 |
| 4 | 2550303 | REAR RACK | OPTIONAL - BLACK | 1 | Pc. | $67.00 |
| 5 | 3230430 | ROTOR ALLEN BOLT | M8X25 - OPT. | 1 | Pc. | $1.50 |
| 6 | 3287560 | COLLAR | 8X10.2X15X4X6 OPT. | 1 | Pc. | $1.50 |
| 7 | 3230515 | SCREW | M6X40 OPT. | 4 | Pcs. | $1.50 |
| TOOL KIT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3560508 | TOOL KIT | 1 | Kit | $30.00 | |
| 2 | 3355506 | STRAP | 1 | Pc. | $3.50 | |
| ENGINE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3180044 | COMPLETE ENGINE ASSY | W/ INTAKE MANIFOLD *OVERSIZE* | 1 | Assy. | $1,449.00 |
| 2 | 3210042 | O-RING | 1 | Pc. | $2.50 | |
| 3 | 3158006 | INTAKE AIR TEMPERATURE SENSOR | 1 | Pc. | $112.00 | |
| 4 | 2550225 | IAT SENSOR BRACKET | 1 | Pc. | $4.00 | |
| 5 | 3230321 | SCREW | M4X10 | 1 | Pc. | $1.50 |
| CYLINDER HEAD AND VALVE COVERS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3011039 | FRONT CYLINDER HEAD ASSY | 1 | Assy. | $246.00 | |
| 1-1 | 3011041 | REAR CYLINDER HEAD ASSY | 1 | Assy. | $246.00 | |
| 2 | VMA12214 | INTAKE VALVE GUIDE | 2 | Pcs. | $24.00 | |
| 3 | VMA12215 | EXHAUST VALVE GUIDE | 2 | Pcs. | $24.00 | |
| 4 | VMA12216 | O-RING | 4 | Pcs. | $2.00 | |
| 5 | Q1200648F92 | EXHAUST STUD | M6x48 | 4 | Pcs. | $1.50 |
| 6 | 3010033 | CYLINDER HEAD DECO COVER | 2 | Pcs. | $69.00 | |
| 7 | 3210035 | O-RING | 79x2.9 | 2 | Pcs. | $7.00 |
| 8 | Q2180625F30 | BOLT | M6x25 | 4 | Pcs. | $1.50 |
| 9 | VMA12250 | PROTECTOR BRACKET SET | 1 | Pc. | $2.50 | |
| 10 | 3010034 | TAPPET INSPECTION COVER | 4 | Pcs. | $11.00 | |
| 11 | 3210036 | O-RING | 44.5x3.1 | 4 | Pcs. | $4.00 |
| 12 | 3222032 | STUD | M8x216 | 8 | Pcs. | $8.00 |
| 13 | VMA12345 | COPPER WASHER | 19x8.5x2 | 2 | Pcs. | $1.50 |
| 14 | VMA12323 | COVER HOLDER | 2 | Pcs. | $51.00 | |
| 15 | 3011040 | SPARK PLUG | CR6HSA | 2 | Pcs. | $12.00 |
| 16 | 3160088 | CYLINDER HEAD GASKET | 2 | Pcs. | $8.00 | |
| 17 | 150083070000 | DOWEL PIN | 10x14 | 4 | Pcs. | $1.50 |
| 18 | Q21806110F30 | BOLT | M6x110 | 4 | Pcs. | $2.50 |
| 19 | Q2180640F30 | BOLT | M6x40 | 4 | Pcs. | $1.50 |
| 20 | VMP12310 | CYLINDER HEAD COVER | 4 | Pcs. | $24.00 | |
| 21 | GIA12324 | RUBBER GROMMET | 8 | Pcs. | $1.50 | |
| 22 | BIA12325 | SLEEVE | 9.5x6.5x6 | 8 | Pcs. | $1.50 |
| 23 | BIA12326 | WASHER | 22x6.5x1.6 | 8 | Pcs. | $1.50 |
| 24 | Q150D0620F3 | BOLT | M6x20 | 8 | Pcs. | $1.50 |
| 25 | 3160089 | CYLINDER HEAD DECO COVER GASKET | 2 | Pcs. | $8.00 | |
| 26 | VMA12314 | FLANGE NUT | 2 | Pcs. | $1.50 | |
| 27 | BIA12313 | CAP NUT | 6 | Pcs. | $1.50 | |
| 28 | VMA12115 | DAMPENING BLOCK | 20 | Pcs. | $1.50 | |
| 29 | 3158035 | CYLINDER TEMPERATURE SENSOR | 1 | Pc. | $69.00 | |

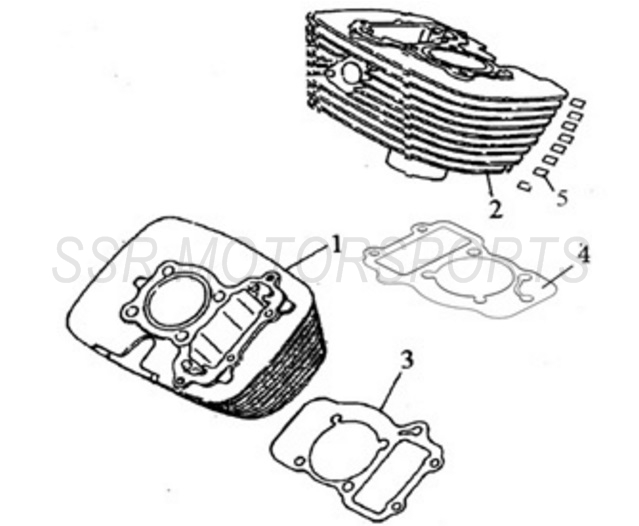

| CYLINDER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3021022 | FRONT CYLINDER | 1 | Pc. | $199.00 | |
| 2 | 3021023 | REAR CYLINDER | 1 | Pc. | $199.00 | |
| 3 | 3160090 | FRONT CYLINDER BASE GASKET | 1 | Pc. | $8.00 | |
| 4 | 3160091 | REAR CYLINDER BASE GASKET | 1 | Pc. | $8.00 | |
| 5 | VMA12115 | DAMPENING BLOCK | 30 | Pcs. | $1.50 | |
| CRANKSHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3032026 | CRANKSHAFT ASSY | W/ RODS | 1 | Assy. | $385.00 |
| 2 | VMA13111 | LEFT CRANK HALF | 1 | Pc. | $63.00 | |
| 3 | VMA13121 | RIGHT CRANK HALF | 1 | Pc. | $63.00 | |
| 4 | VMA13141 | CRANKSHAFT PIN | 1 | Pc. | $21.00 | |
| 5 | VMA13130 | CONNECTING ROD | 2 | Pcs. | $45.00 | |
| 6 | VMA13158 | CONNECTING ROD THRUST WASHER | 3 | Pcs. | $7.00 | |
| 7 | 3020039 | TIMING DRIVE SPROCKET | 1 | Pc. | $36.00 | |
| 8 | VMA14315 | SLEEVE | 1 | Pc. | $8.00 | |
| 9 | VMA13170 | MAIN BEARING | 6306 | 1 | Pc. | $41.00 |
| 10 | 3226026 | NUT | 1 | Pc. | $2.00 | |
| 11 | VMA31312 | WASHER | 1 | Pc. | $1.50 | |
| 12 | VMA13118 | WOODRUFF KEY | 1 | Pc. | $1.50 | |
| 13 | 3030021 | PISTON | 2 | Pcs. | $48.00 | |
| 14 | 3031023 | PISTON PIN | 2 | Pcs. | $14.00 | |
| 15 | 3031024 | PSITON PIN CIRCLIP | 4 | Pcs. | $1.50 | |
| 16 | 3033049 | PISTON RING SET | 2 | Set | $51.00 | |
| VALVES & ROCKER ARMS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3012086 | INTAKE VALVE | 2 | Pcs. | $18.00 | |
| 2 | 3012087 | EXHAUST VALVE | 2 | Pcs. | $23.00 | |
| 3 | 3012088 | VALVE STEM SEAL | 4 | Pcs. | $4.00 | |
| 4 | 3012098 | LOWER VALVE SPRING SEAT | 4 | Pcs. | $4.00 | |
| 5 | 3012089 | VALVE SPRING | 4 | Pcs. | $7.00 | |
| 6 | 3012090 | VALVE COLLET | 8 | Pcs. | $2.50 | |
| 7 | 3012099 | UPPER VALVE SPRING SEAT | 4 | Pcs. | $4.00 | |
| 8 | VMA14411 | ROCKER ARM | 4 | Pcs. | $24.00 | |
| 9 | VMA14415 | VALVE CLEARANCE ADJUSTING SCREW | 4 | Pcs. | $2.50 | |
| 10 | VMA14416 | VALVE CLEARANCE ADJUSTING NUT | 4 | Pcs. | $2.50 | |
| 11 | 3012108 | ROCKER ARM SHAFT | 4 | Pcs. | $13.00 | |
| 12 | 3012091 | ROCKER ARM ASSY | 4 | Assy. | $35.00 | |
| CAMSHAFTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3012092 | CAMSHAFT I | 1 | Pc. | $112.00 | |
| 2 | 3012093 | CAMSHAFT II | 1 | Pc. | $124.00 | |
| 3 | 3012094 | CAMSHAFT BUSHING | 2 | Pcs. | $10.00 | |
| 4 | 3012100 | BUSHING RETAINER PLATE | 2 | Pcs. | $2.50 | |
| 5 | Q2140612F32 | BOLT | M6x12 | 2 | Pcs. | $1.50 |
| 6 | 3012095 | CAMSHAFT SPROCKET | 2 | Pcs. | $30.00 | |
| 7 | Q150D0816F3 | BOLT | M8x16 | 2 | Pcs. | $1.50 |
| 8 | VMA14327 | WASHER | 25x8.2x2 | 2 | Pcs. | $1.50 |
| 9 | 3020029 | TIMING CHAIN | 2 | Pcs. | $45.00 | |
| 10 | 3020030 | FRONT CAM CHAIN GUIDE | 2 | Pcs. | $18.00 | |
| 11 | 3020031 | REAR CAM CHAIN GUIDE | 2 | Pcs. | $51.00 | |
| 12 | Q2140612F32 | BOLT | M6x12 | 4 | Pcs. | $1.50 |
| 13 | Q2180616F30 | BOLT | M6x16 | 4 | Pcs. | $1.50 |
| 14 | 3020032 | CAM CHAIN TENTIONER ASSY | 2 | Assy. | $51.00 | |
| 15 | 3160092 | CAM CHAIN TENTIONER GASKET | 2 | Pcs. | $2.50 | |
| OIL PUMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3050012 | OIL PUMP ASSY | 1 | Assy. | $112.00 | |
| 2 | VMA15116 | OIL PUMP SHAFT | 1 | Pc. | $8.00 | |
| 3 | VMA15122 | PIN | 1 | Pc. | $1.50 | |
| 4 | BIA15131 | O-RING | 9.7x2.4 | 1 | Pc. | $1.50 |
| 5 | Q1840625F15 | SCREW | M6x25 | 2 | Pcs. | $1.50 |
| 6 | 3210043 | O-RING | 6.2x3 | 1 | Pc. | $1.50 |
| 7 | Q2540625F32 | SCREW | M6x25 | 1 | Pc. | $1.50 |
| 8 | 3050013 | DRIVE GEAR | 1 | Pc. | $41.00 | |
| 9 | VMA15212 | WASHER | 10mm | 2 | Pcs. | $1.50 |
| 10 | Q43109F92 | CIRCLIP | 9mm | 1 | Pc. | $1.50 |
| 11 | 3052026 | OIL PIPE | 1 | Pc. | $4.00 | |
| 12 | 3052022 | OIL PICKUP SCREEN | 1 | Pc. | $8.00 | |
| 13 | 3052027 | SPRING | 1 | Pc. | $3.50 | |
| 14 | 3052023 | OIL PICKUP COVER | 1 | Pc. | $13.00 | |
| 15 | 3210037 | O-RING | 1 | Pc. | $2.50 | |
| 16 | VMA15121 | DRIVEN GEAR | 1 | Pc. | $33.00 | |
| OIL FILTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3052024 | OIL FILTER SCREEN | 1 | Pc. | $18.00 | |
| 2 | 3052025 | OIL FILTER COVER | 1 | Pc. | $39.00 | |
| 3 | 3210038 | O-RING | 64x3.6 | 1 | Pc. | $4.00 |
| 4 | Q2180625F30 | BOLT | M6x25 | 2 | Pcs. | $1.50 |
| 5 | Q2180690F30 | BOLT | M6x90 | 1 | Pc. | $2.00 |

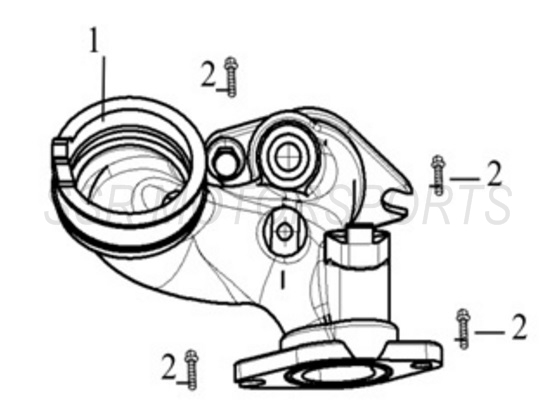

| INTAKE MANIFOLD | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3150023 | INTAKE MANIFOLD | 1 | Pc. | $112.00 | |
| 2 | Q2180625F30 | BOLT | M6x25 | 4 | Pcs. | $1.50 |

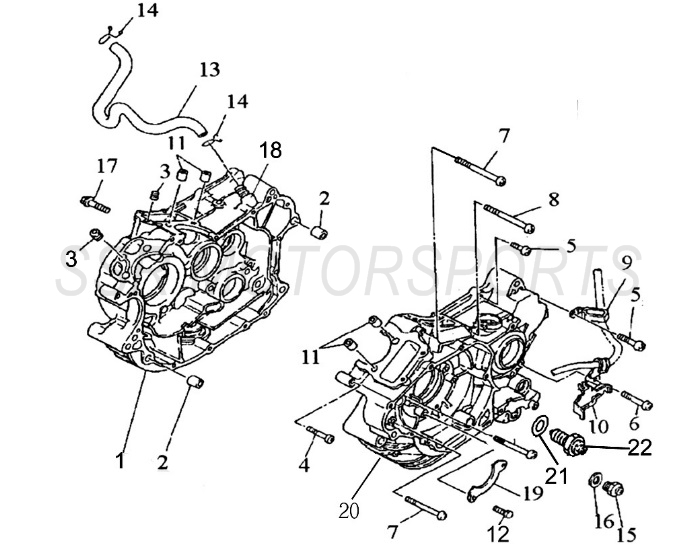

| CRANKCASE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3061038 | RIGHT CRANKCASE HALF | 1 | Pc. | $265.00 | |
| 2 | GIA11118 | DOWEL PIN | 12x16 | 2 | Pcs. | $1.50 |
| 3 | VMA11214A1 | LEFT OIL NOZZLE | 2 | Pcs. | $4.00 | |
| 4 | Q2180640F30 | BOLT | M6x40 | 1 | Pc. | $1.50 |
| 5 | Q2180630F30 | BOLT | M6x30 | 5 | Pcs. | $1.50 |
| 6 | Q2180660F30 | BOLT | M6x60 | 2 | Pcs. | $2.00 |
| 7 | Q2180680F30 | BOLT | M6x80 | 4 | Pcs. | $2.00 |
| 8 | Q2180670F30 | BOLT | M6x70 | 2 | Pcs. | $2.00 |
| 9 | GIA34931 | STARTER MOTOR WIRE CLAMP | 1 | Pc. | $7.00 | |
| 10 | VMA31922 | OUTPUT WIRE CLAMP | 1 | Pc. | $11.00 | |
| 11 | 150083070000 | DOWEL PIN | 10x14 | 4 | Pcs. | $1.50 |
| 12 | Q2140612F32 | BOLT | M6x12 | 1 | Pc. | $1.50 |
| 13 | 3010036 | CRANKCASE VENT HOSE | 1 | Pc. | $24.00 | |
| 14 | 3261016 | CRANKCASE VENT HOSE CLAMP | 2 | Pcs. | $1.50 | |
| 15 | 3222033 | DRAIN BOLT | M14X12 | 1 | Pc. | $4.00 |
| 16 | VQA11213 | CRUSH WASHER | M14 | 1 | Pc. | $1.50 |
| 17 | Q150D0620F35 | BOLT | M6x20 | 1 | Pc. | $1.50 |
| 18 | VMA20151 | CRANKCASE VENT NOZZLE | 1 | Pc. | $11.00 | |
| 19 | VMA14361 | TIMING CHAIN LIMITER | 1 | Pc. | $11.00 | |
| 20 | 3061039 | LEFT CRANKCASE HALF | 1 | Pc. | $291.00 | |
| 21 | VMA35725 | GEAR POSITION INDICATOR O-RING | 1 | Pc. | $2.50 | |
| 22 | 3101014 | GEAR POSITION SENSOR | 1 | Pc. | $30.00 | |
| 23 | A00267-21-03 | GROUNDING WASHER | NOT PICTURED | 1 | Pc. | $6.00 |
| LEFT & RIGHT CRANKCASE COVERS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3060024 | STATOR COVER | 1 | Pc. | $89.00 | |
| 2 | 3060025 | CRANK HOLE PLUG | 1 | Pc. | $6.00 | |
| 3 | 3210040 | O-RING | 22.7x3.1 | 1 | Pc. | $2.00 |
| 4 | 3060026 | TIMING HOLE PLUG | 1 | Pc. | $3.50 | |
| 5 | 3210041 | O-RING | 13.6x2.1 | 1 | Pc. | $2.00 |
| 6 | 3160094 | STATOR COVER GASKET | 1 | Pc. | $13.00 | |
| 7 | GIA11118 | DOWEL PIN | 12x16 | 4 | Pcs. | $1.50 |
| 8 | Q2180625F30 | BOLT | M6x25 | 14 | Pcs. | $1.50 |
| 9 | Q2180635F30 | BOLT | M6x35 | 4 | Pcs. | $1.50 |
| 10 | Q2180670F30 | BOLT | M6x70 | 1 | Pc. | $2.00 |
| 11 | VMA31911A1 | STATOR WIRE CLAMP | 1 | Pc. | $11.00 | |
| 12 | Q2140612F32 | BOLT | M6x12 | 1 | Pc. | $1.50 |
| 13 | 3063022 | CLUTCH COVER | 1 | Pc. | $89.00 | |
| 14 | 3160095 | CLUTCH COVER GASKET | 1 | Pc. | $18.00 | |
| 18 | Q2180635F35 | BOLT | M6x35 | 2 | Pcs. | $1.50 |
| 19 | 3212031 | OIL SIGHT LEVEL WINDOW | 1 | Pc. | $4.00 | |
| 20 | 3063017 | OIL FILLER CAP | 1 | Pc. | $8.00 | |
| 21 | 3210039 | O-RING | 1 | Pc. | $1.50 | |
| 22 | VMA11451A1 | COUNTERSHAFT SPROCKET COVER | 1 | Pc. | $53.00 | |
| 25 | VMA22824 | CLUTCH CABLE SUPPORT | 1 | Pc. | $13.00 | |
| 26 | 3212042 | OIL SEAL | 14x25x5.5 | 1 | Pc. | $2.00 |
| 27 | Q430B26F92 | CIRCLIP | 1 | Pc. | $1.50 | |
| STARTER CLUTCH | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3121004 | STARTER REDUCTION GEAR | 1 | Pc. | $45.00 | |
| 2 | 3121005 | REDUCTION GEAR SHAFT | 1 | Pc. | $13.00 | |
| 3 | 3123012 | STARTER CLUTCH GEAR | 1 | Pc. | $77.00 | |
| 4 | VMA28172 | WASHER | 39x25x1 | 1 | Pc. | $2.00 |
| 5 | 3123013 | STARTER CLUTCH | 1 | Pc. | $142.00 | |
| 6 | Q2180816F30 | BOLT | M8x16 | 3 | Pcs. | $1.50 |
| CLUTCH | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3083035 | PRIMARY DRIVE GEAR | 1 | Pc. | $41.00 | |
| 2 | 3271005 | WOODRUFF KEY | 1 | Pc. | $1.50 | |
| 3 | 3083036 | SPECIAL WASHER | 1 | Pc. | $2.00 | |
| 4 | 3083037 | LOCK WASHER | 1 | Pc. | $2.00 | |
| 5 | 3226027 | NUT | M16x1 | 2 | Pcs. | $4.00 |
| 6 | 3090034 | CLUTCH ASSY | 1 | Assy. | $345.00 | |
| 7 | 3090039 | CLUTCH SPLINE WASHER | 1 | Pc. | $1.50 | |
| 8 | 3090040 | CLUTCH LOCK WASHER | 1 | Pc. | $1.50 | |
| 9 | 3090041 | STEEL BALL | 8.7 | 1 | Pc. | $1.50 |
| 10 | 3090035 | CLUTCH PUSH ROD | 1 | Pc. | $21.00 | |
| 11 | 3090036 | CLUTCH ACTUATOR ROD | 1 | Pc. | $13.00 | |
| 12 | 3240059 | WASHER | 8MM | 1 | Pc. | $1.50 |
| 13 | VMA22825 | SCREW | M8x14 | 1 | Pc. | $1.50 |
| 14 | 3090037 | SPRING | 1 | Pc. | $1.50 | |
| 15 | Q430B28F92 | CIRCLIP | 1 | Pc. | $1.50 | |
| 16 | 3212035 | OIL SEAL | 14 26 6 | 1 | Pc. | $2.00 |
| 17 | A02720-09-00 | OUTER BASKET CLUTCH | 1 | Pc. | $142.00 | |
| 18 | VMA22324 | CLUTCH INNER HUB | 1 | Pc. | $89.00 | |
| 19 | 3090042 | FRICTION PLATE | 5 | Pcs. | $8.00 | |
| 20 | 3090043 | STEEL PLATE | 4 | Pcs. | $18.00 | |
| 21 | VMA22351 | PRESSURE PLATE | 1 | Pc. | $48.00 | |
| 22 | 3090064 | CLUTCH SPRING | 4 | Pcs. | $2.50 | |
| 23 | VMA22119 | CLUTCH SPRING BOLT | 4 | Pcs. | $1.50 | |
| 24 | VMA22871 | CLUTCH MANDRIL | 1 | Pc. | $2.00 | |
| 25 | VMA22851 | CLUTCH ADJUSTING BOLT | 1 | Pc. | $3.50 | |
| 26 | VMA22852 | O-RING | 1 | Pc. | $1.50 | |
| 27 | Q40106F32 | WASHER | 1 | Pc. | $1.50 | |
| 28 | 3201008 | NEEDLE BEARING | HK1412Z | 1 | Pc. | $13.00 |
| 29 | Q40106F32 | WASHER | 1 | Pc. | $1.50 | |
| TRANSMISSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3083031 | MAIN SHAFT ASSY | 1 | Assy. | $188.00 | |
| 2 | 3083032 | COUNTERSHAFT ASSY | 1 | Assy. | $217.00 | |
| 3 | 3200038 | BEARING | 6004 | 1 | Pc. | $18.00 |
| 4 | 3200039 | BEARING | 6305 | 1 | Pc. | $21.00 |
| 5 | 3212032 | OIL SEAL | 25x45x6 | 1 | Pc. | $7.00 |
| 6 | 3083033 | COUNTERSHAFT SPROCKET | 16T | 1 | Pc. | $18.00 |
| 7 | 3083034 | SPROCKET RETAINER PLATE | 1 | Pc. | $4.00 | |
| 8 | 3200040 | BEARING | 6205 | 1 | Pc. | $18.00 |
| 9 | Q150D0610F35 | BOLT | M6x10 | 2 | Pcs. | $1.50 |
| 10 | 3200041 | BEARING | 6003 | 1 | Pc. | $18.00 |
| 11 | 3212033 | OIL SEAL | 17x28x3.5 | 1 | Pc. | $4.00 |

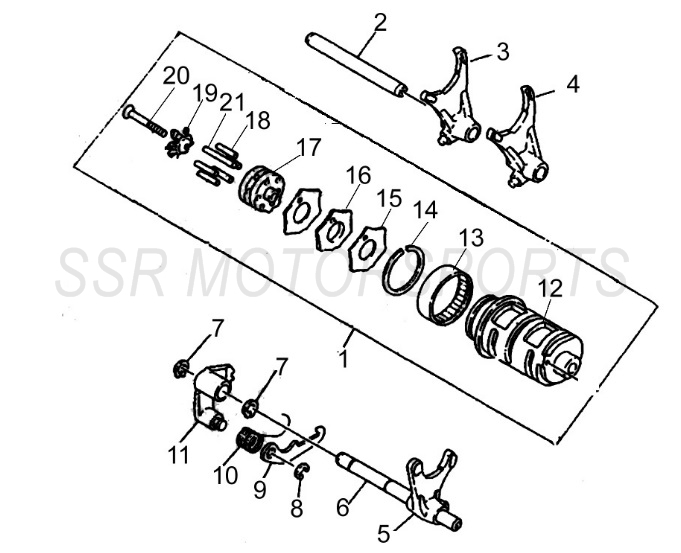

| SHIFT DRUM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3100025 | GEARSHIFT DRUM ASSY | 1 | Assy. | $104.00 | |
| 2 | 3100031 | SHIFT FORK SHAFT | 1 | Pc. | $18.00 | |
| 3 | 3100026 | SHIFT FORK III | 1 | Pc. | $30.00 | |
| 4 | 3100027 | SHIFT FORK I | 1 | Pc. | $30.00 | |
| 5 | 3100028 | SHIFT FORK II | 1 | Pc. | $30.00 | |
| 6 | 3100032 | SHIFT FORK SHAFT I | 1 | Pc. | $30.00 | |
| 7 | 3260014 | CIRCLIP | 2 | Pcs. | $1.50 | |
| 8 | 3260015 | SNAP RING | 1 | Pc. | $1.50 | |
| 9 | 3100029 | PRIMARY LIFTER | 1 | Pc. | $13.00 | |
| 10 | 3100030 | LIFTER SPRING | 1 | Pc. | $2.00 | |
| 11 | 3100033 | GEARSHIFT DRIVEN ARM | 1 | Pc. | $24.00 | |
| 12 | VMA24211 | GEARSHIFT DRUM | 1 | Pc. | $41.00 | |
| 13 | Q9613512Z / 3201009 | NEEDLE BEARING | HK3512 | 1 | Pc. | $18.00 |
| 14 | VMA 24225 | CIRCLIP | 1 | Pc. | $1.50 | |
| 15 | VMA24224 | GEARSHIFT PLATE | 2 | Pcs. | $4.00 | |
| 16 | VMA24211 | GEARSHIFT STAR | 1 | Pc. | $4.00 | |
| 17 | VMA24218 | PIN | 1 | Pc. | $2.50 | |
| 18 | VMA24212 | GEAR INDICATING PIN | 4 | Pcs. | $1.50 | |
| 19 | VMA24213 | PIN PRESSING PLATE | 2 | Pcs. | $13.00 | |
| 20 | Q2140636F32 | SCREW | M6x36 | 1 | Pc. | $1.50 |
| 21 | VMA24222 | GEARSHIFT WHEEL DOWEL PIN | 1 | Pc. | $1.50 | |
| SHIFTER & SHIFTER SHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3101015 | GEARSHIFT SHAFT ASSY | 1 | Assy. | $51.00 | |
| 2 | 3546038 | PIN | M8x35 | 1 | Pc. | $1.50 |
| 3 | 3212034 | OIL SEAL | 12x22x5 | 1 | Pc. | $6.00 |
| 4 | 3101013 | GEARSHIFT LEVER ASSY | 1 | Assy. | $54.00 | |
| STARTER MOTOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3120011 | STARTER MOTOR ASSY | 1 | Assy. | $161.00 | |
| 2 | Q2180620F30 | BOLT | M6x20 | 2 | Pcs. | $1.50 |
| 3 | O-RING | 1 | Pc. | $2.00 | ||
| STATOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3130025 | STATOR | 1 | Pc. | $168.00 | |
| 2 | 3131014 | FLYWHEEL | 1 | Pc. | $150.00 | |
| 3 | Q2180630F30 | BOLT | M6x30 | 3 | Pcs. | $1.50 |
| 4 | Q2140512F32 | BOLT | M5x12 | 2 | Pcs. | $1.50 |
