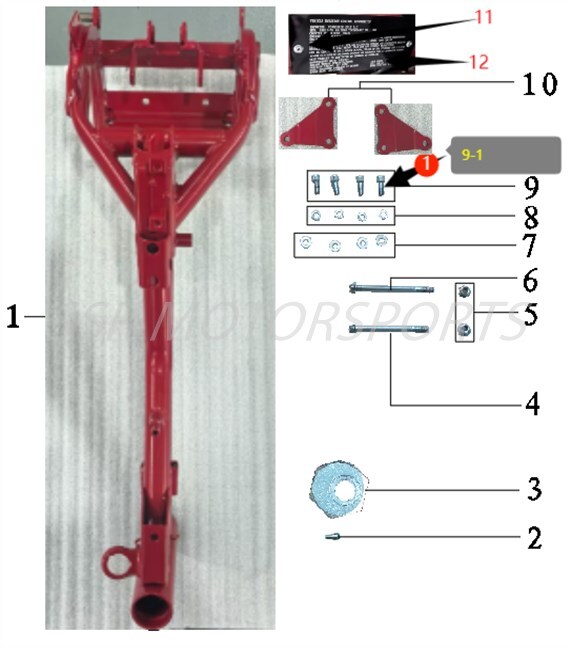

FRAME
Click parts on table to add
| # | Part # | Description | Price |
|---|---|---|---|
| 1 | A00656-11-00 | Frame Red | $231.00 |
| 2 | A00002-19-01 | Flange Bolt M6x16 | $2.00 |
| 3 | A00635-05-00 | Brake Pedal Stopper | $3.50 |
| 4 | A00044-19-01 | Flange Bolt M8x105 | $2.60 |
| 5 | A00001-22-04 | Flange Locknut M8 | $2.00 |
| 6 | A00407-19-01 | Flange Bolt M8x120 | $3.50 |
| 7 | A00013-21-01 | Washer | $2.00 |
| 8 | A00001-21-02 | Lock Washer | $2.00 |
| 9 | A00015-19-01 | Flange Bolt M8x20 | $2.00 |
| 9-1 | A00249-19-02 | Allen Bolt M8x25 | $2.00 |
| 10 | A00644-11-00 | Upper Engine Mount Bracket | $10.50 |
