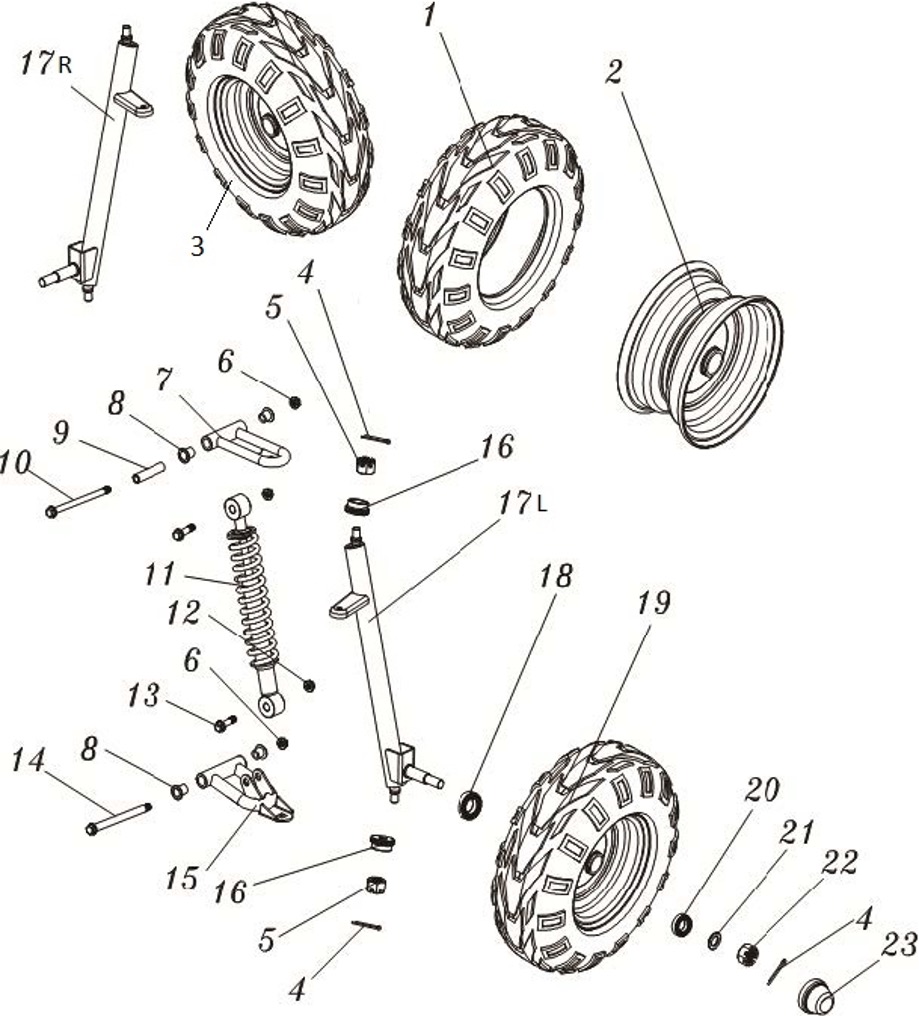

Hammerhead Mudhead SE (Front Suspension Assembly)
|
REF # |
PART NUMBER |
DESCRIPTION |
COUNT |
|
1 |
6.000.311 |
TIRE 16X6-8 |
2 |
|
2 |
6.000.310-BK |
8" FRONT RIM (BLACK) |
2 |
|
3 |
6.000.321 |
RIGHT FRONT TIRE/WHEEL ASSEMBLY |
1 |
|
4 |
9.500.200 |
COTTER PIN |
6 |
|
5 |
9.800.010 |
CASTLE NUT M10 |
4 |
|
6 |
9.220.008 |
LOCKING FLANGE NUT, M8 |
4 |
|
7 |
4.000.047 |
UPPER SUSPENSION ARM |
2 |
|
8 |
7.010.003 |
UPPER SUSPENSION ARM BUSHING |
8 |
|
9 |
8.010.104 |
UPPER SUSPENSION ARM COLLAR |
2 |
|
10 |
9.108.095 |
FLANGE BOLT M8X1.25X95 |
2 |
|
11 |
6.100.325 |
FRONT SHOCK |
2 |
|
12 |
9.220.010 |
LOCKING FLANGE NUT, M10 |
4 |
|
13 |
9.110.040 |
FLANGE BOLT M10X40 |
4 |
|
15 |
4.000.041 |
LOWER SUSPENSION ARM ASSY |
2 |
|
16 |
7.020.079 |
BALL HEAD DUST SEAL |
2 |
|
17L |
2.000.057-80 |
SPINDLE (L) |
1 |
|
17R |
2.000.055-80 |
SPINDLE ( R ) |
1 |
|
18 |
9.030.010 |
BEARING 6202 |
2 |
|
19 |
6.000.309 |
LEFT FRONT TIRE/WHEEL ASSEMBLY |
1 |
|
20 |
9.030.009 |
BEARING 6201 |
2 |
|
21 |
9.300.012 |
WASHER |
2 |
|
22 |
9.800.012 |
Castle Nut M12 |
2 |
|
23 |
7.020.039 |
HUB COVER FRONT |
2 |
***PARTS HIGHLIGHTED ARE LINKS TO SAME PARTS BEING USED ELSEWHERE***
