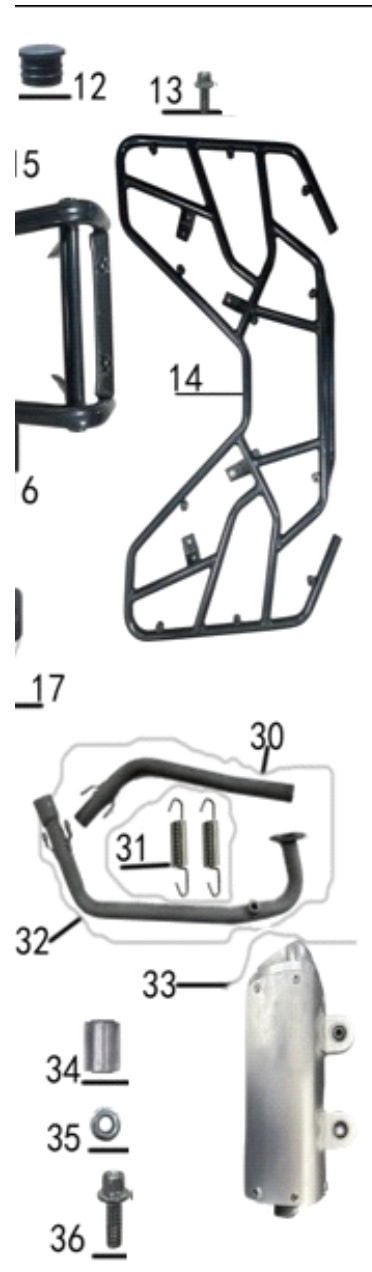

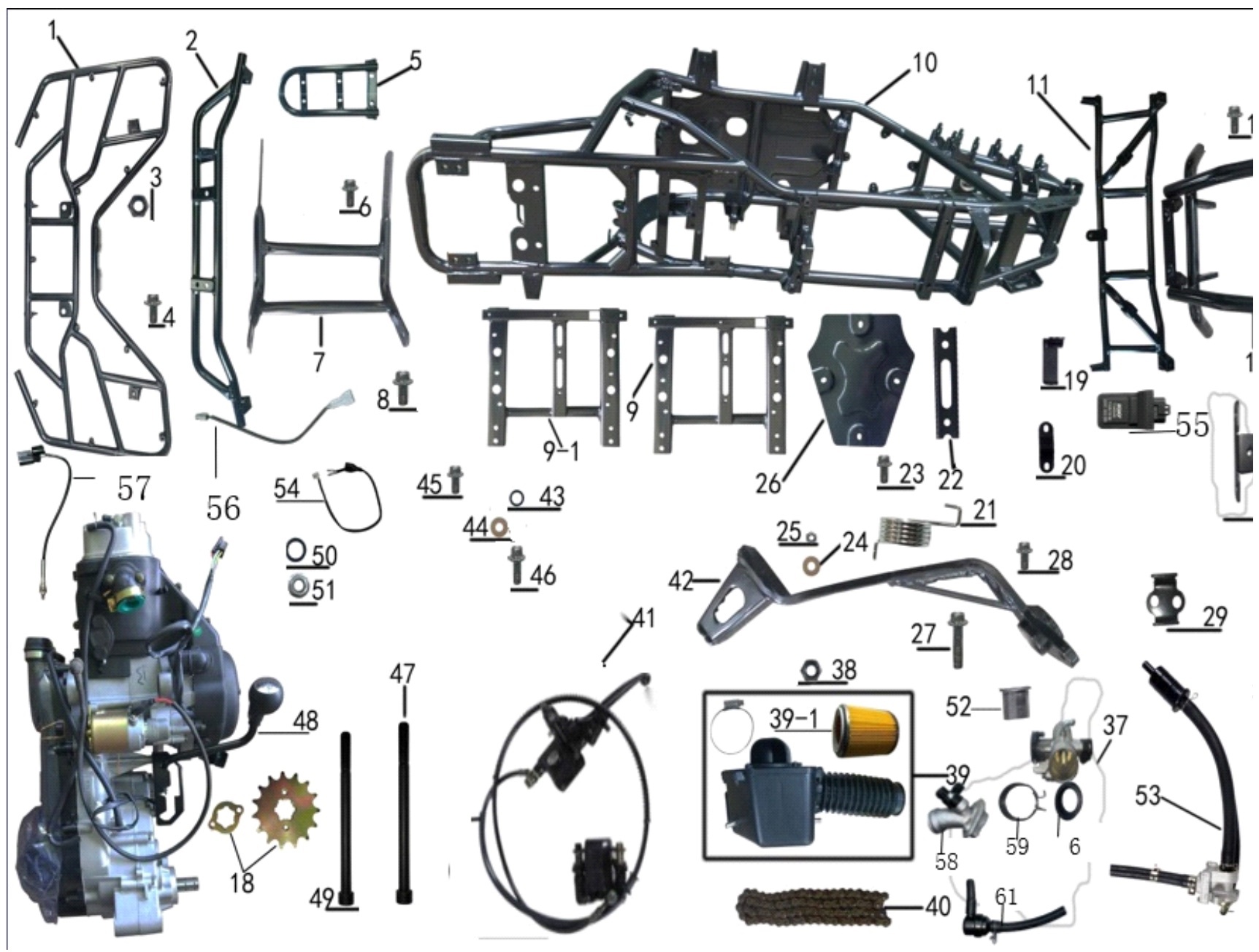

Frame & Engine

 Number Part Name Specs/SKU
1 Rear shelf 610256
2 Rear shelf lower support 606527
3 Locknut M8 105276
4 Flange bolts M8*20 105204
5 Backrest bracket 606658
6 Flange bolts M8*16 105194
7 Rear shelf lower bracket 606529
8 Flange bolts M10*1.25*20 104963
9 Footrest left 9-1 right 606515/7
10 Main frame 610271
11 Front lower support assembly 606531
12 Rubber stopper 102414
13 Flange bolts M8*25 105212
14 Front shelf 610258
15 Flange bolts M8*16 105194
16 Bumper assembly 610260
17 Block decorative cover bracket 610273
18 Drive sprocket 607377
19 Hand guard mount 109860
20 Hand guard bracket 109861
21 Brake return torsion spring 606817
22 Anti-slip pedal 606525
23 Flange bolts M6*12 105131
24 Flat pad 106932
25 Ordinary nuts M8 105514
26 Underbody protection plate 606535
27 Flange bolts M8*40 (full thread) 105227
28 Flange bolts M8*16 105194
29 Electrical bracket 603845
30 Exhaust pipe rear section 606860
31 Exhaust pipe tension spring 606580
32 Exhaust pipe front section 606579
33 Aluminum tube 606859
34 Buffer sleeve 600753
35 Self-locking nuts M8 105888
36 Flange bolts M8*30 105217
37 Throttle 134647
38 Locknut M6 105272
39 Air filter 606581
40 Chain 530#82 101641
41 Rear disc brake-handbrake 606584
42 Rear brake arm 606519
43 Spring pad M8 105276
44 Flat pad 106931
45 Flange bolts M6*16 105136
46 Flange bolts M8*25 105212
47 Hexagon socket head bolts M10*1.25*115 607915
48 Engine 606578
49 Hexagon socket head bolts M10*1.25*105 607914
50 Spring pad M10 104868
51 Self-locking nuts M10*1.25 105875
41-1 Upper pump 108332
41-2 YouTube 607189
41-3 Disc brake friction pad 111719
41-4 Lower pump 123164
52 Steering knuckle lower bushing 112933
53 Air supply valve 117236
54 Rear disc brake-foot brake switch cable 608939
39-1 Air filter element 609840
55 ECU 134634
56 High temperature sensor 134648
57 Oxygen Sensor 134637
58 Intake pipe
59 Hoop
60 Connecting pipe
61 Ventilation nozzle
