Plastics

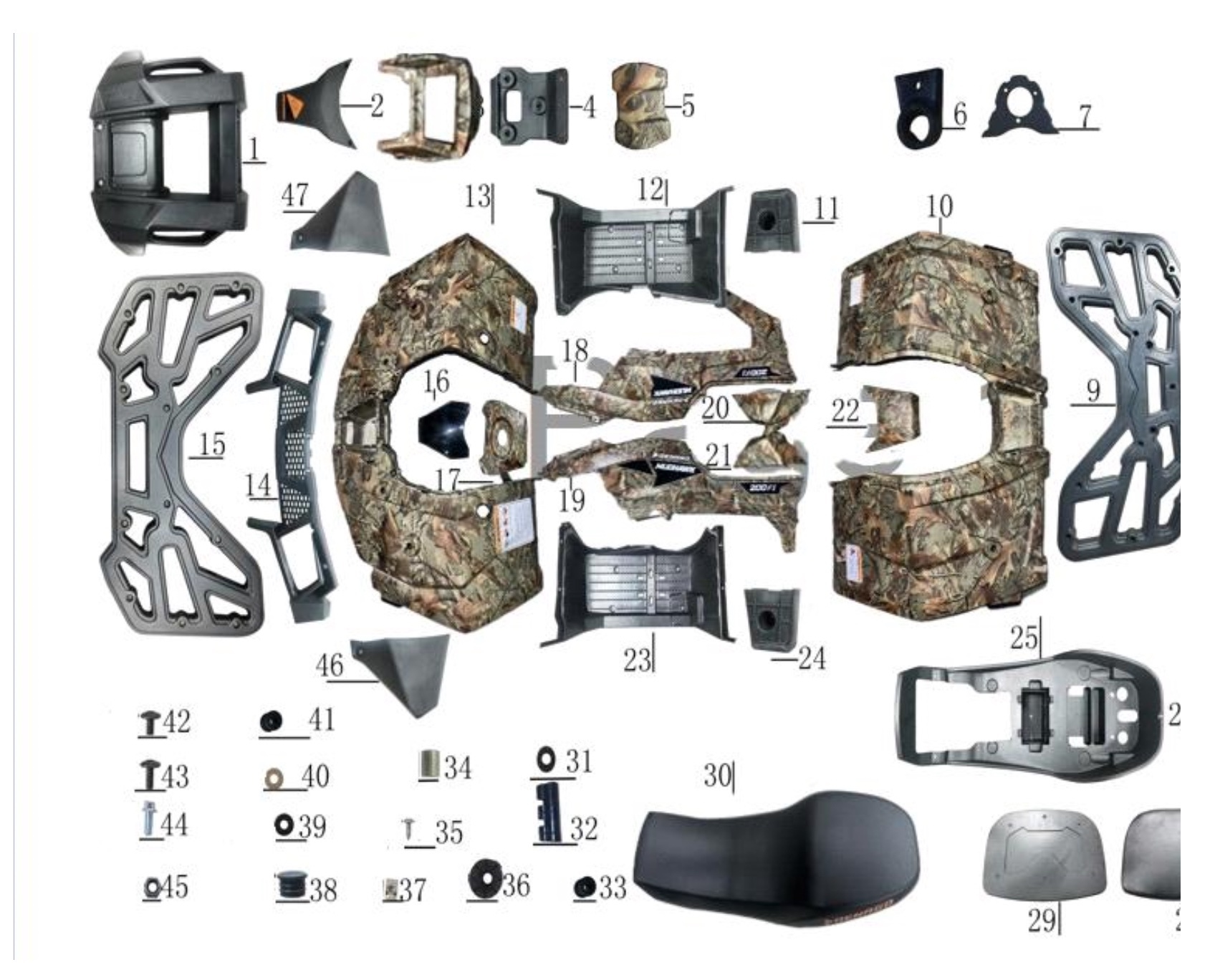

Schematic Number Part Name SKU
1 Plastic bumper 610226
2 Electrical cover 610217
3 Instrument mask 610222
4 Instrument fixing plate 610223
5 Pressed decorative cover 610227
6 Flat fork cover 606857
7 Small chain guard 606853
9 Rear shelf panel 610225
10 Rear body 610206
11 Right small pedal 610216
12 Plastic right pedal 610214
13 Front body 610205
14 Front light bracket 610204
15 Front shelf panel 610224
16 Instrument windshield 610219
17 Fuel tank decorative cover 610209
18 Right side panel 610208
19 Left side panel 610207
20 Instrument cover right side panel 610221
21 Instrument cover left side panel 610220
22 ECU box cover 610218
23 Plastic left pedal 610213
24 Left small pedal 610215
25 Seat bucket 610210
26 Bracket cover 606876
27 Handguard 115234
28 Backrest 124402
29 Backrest decorative panel 610228
30 Seat cushion 124403
31 Rubber sleeve 116322
32 Line card 120558
33 I-shaped rubber 123793
34 Spacer 116300
35 Self-tapping screws 601797
36 Seat cushion shockproof rubber 112957
37 Self-tapping clip 105873
38 Rubber stopper 102414
39 Panel gasket 101701
40 Flat pad 105450
41 I-shaped rubber 116322
42 Hexagon socket flat head bolts 110887
43 Hexagon socket flat head bolts 110905
44 Flange bolts 105136
45 Locknut 104921
46 Left small side panel 610211
47 Right small side panel 610212
