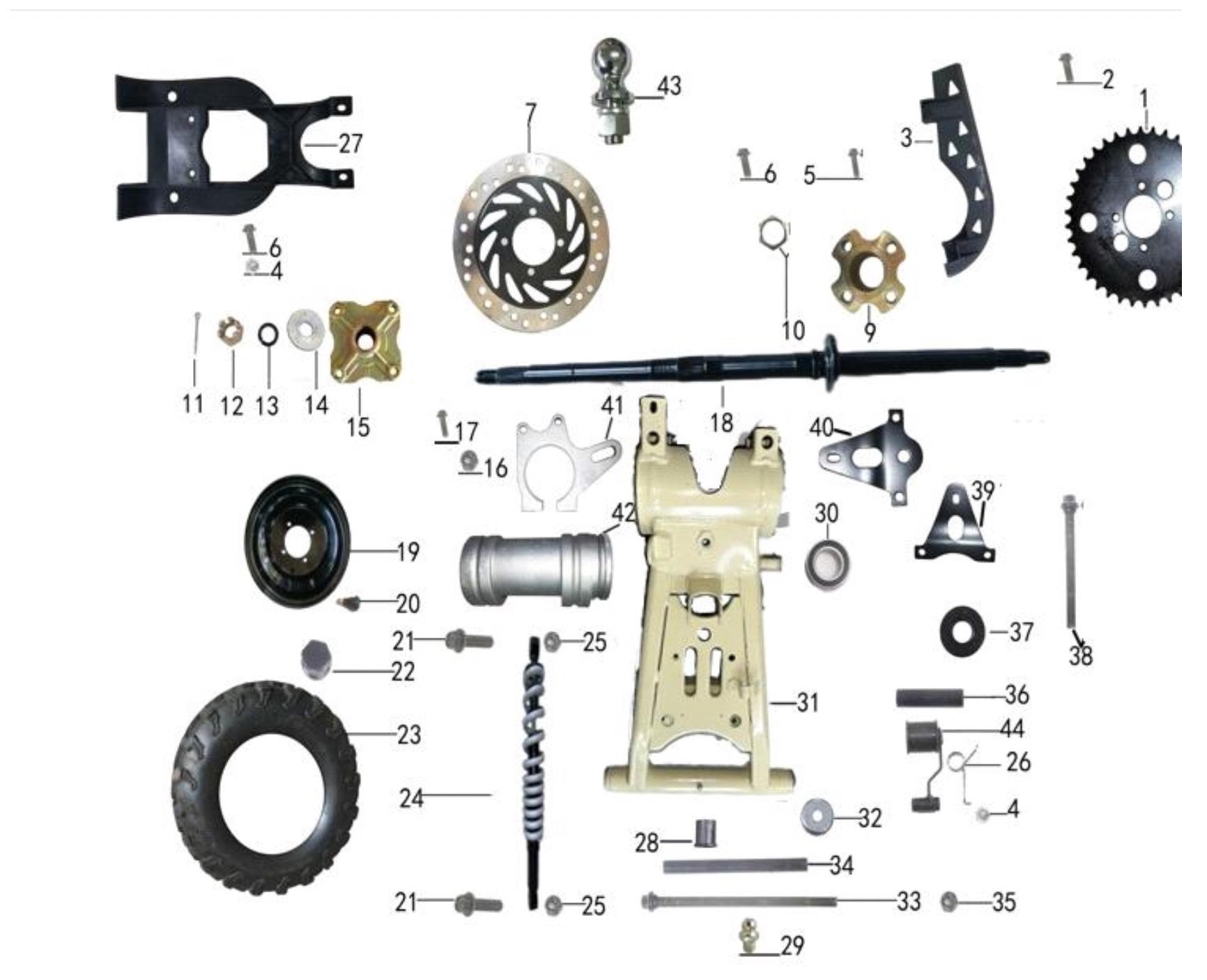

Rear Suspension
| Schematic Number | Part Name | SKU |
| 1 | Rear sprocket | 607097 |
| 2 | Flange bolts | 105136 |
| 3 | Large chain guard | 606850 |
| 4 | Locknut | 105277 |
| 5 | Flange bolts | 104985 |
| 6 | Flange bolts | 105194 |
| 7 | Rear disc brake | 606586 |
| 9 | Chain plate flange | 606588 |
| 10 | Hex nuts | 104860 |
| 11 | Split pin | 105340 |
| 12 | Slotted nuts | 105333 |
| 13 | Spring pad | 104876 |
| 14 | Gasket | 600583 |
| 15 | Rear hub flange | 606587 |
| 16 | Locknut | 105255 |
| 17 | Flange bolts (aluminum/iron optional) | 104981 |
| 18 | Rear Axle | 606583 |
| 19 | Rear wheel hub (aluminum/iron optional) | 606661 |
| 20 | Valve | 100537 |
| 21 | Flange bolts | 105013 |
| 22 | Dust cover (aluminum/iron optional) | 108326 |
| 23 | Rear tire | 607624 |
| 24 | Rear shock absorber | 606539 |
| 25 | Locknut | 105255 |
| 26 | Tensioner spring | 104651 |
| 27 | Rear axle protection plate | 606852 |
| 28 | Rear fork bushing | 112921 |
| 29 | Grease fitting | 108287 |
| 30 | Aluminum rear axle bearing | 102803 |
| 31 | Rear flat fork | 606521 |
| 32 | Rear fork sealing cover | 112924 |
| 33 | Flange bolts | 607103 |
| 34 | Rear fork spacer | 606592 |
| 35 | Locknut | 104908 |
| 36 | Rear axle bushing | 120355 |
| 37 | Aluminum rear axle oil seal | 111362 |
| 38 | Flange bolts | 105039 |
| 39 | Reinforced seat | 604476 |
| 40 | Tow hook | 110316 |
| 41 | Disc brake bracket | 608858 |
| 42 | Rear axle aluminum tube | 108647 |
| 43 | Trailer ball joint | 102326 |
| 44 | Pressure wheel | 111483 |
