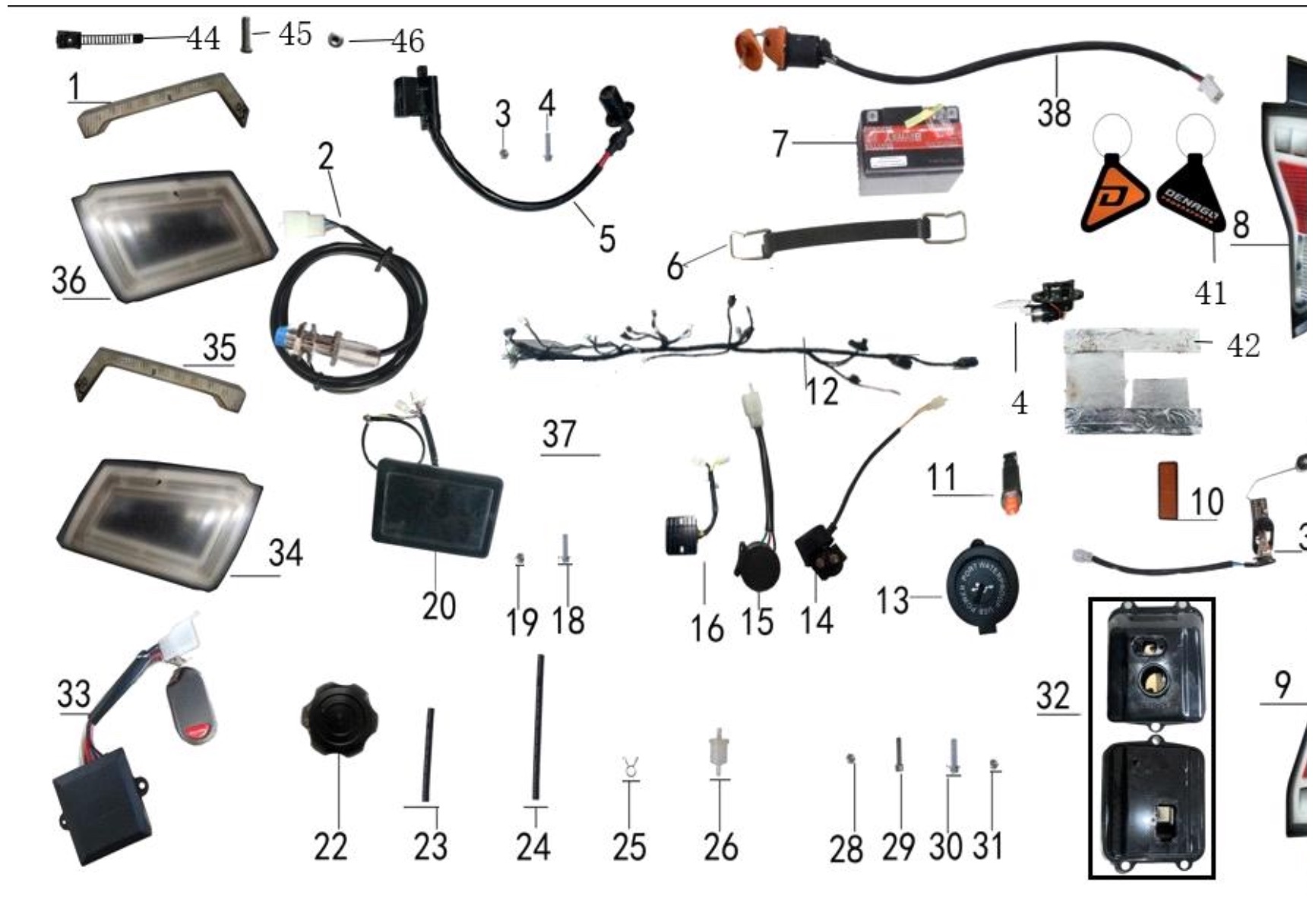

| Number |
Part Name |
Specs/SKU |
| 1 |
Left turn signal |
124400 |
| 2 |
Speed sensor |
120354 |
| 3 |
Locknut M6 |
105272 |
| 4 |
Flange bolts M6*20 |
105140 |
| 5 |
High voltage package |
134638 |
| 6 |
Battery strap |
117493 |
| 7 |
Battery 12V9AH |
100678 |
| 8 |
Left tail light |
124396 |
| 9 |
Right tail light |
124397 |
| 10 |
Reflective sheeting |
108707 |
| 11 |
Double flash switch |
124405 |
| 12 |
Mainline |
610274 |
| 13 |
USB Connector |
609563 |
| 14 |
Relay |
101384 |
| 15 |
Flasher |
104062 |
| 16 |
Rectifier |
100733 |
| 18 |
Flange bolts M6*20 |
105140 |
| 19 |
Locknut M6 |
105272 |
| 20 |
Meter |
124404 |
| 22 |
Aluminum fuel tank cap |
101679 |
| 23 |
EPA Oil Pipeline 100mm |
100269 |
| 24 |
EPA Oil Pipeline 220mm |
605993 |
| 25 |
Buckle |
101456 |
| 26 |
Filter |
101098 |
| 27 |
- |
- |
| 28 |
Locknut M6 |
105272 |
| 29 |
Hexagon socket bolts M6*16 |
105798 |
| 30 |
Flange bolts M8*25 |
105212 |
| 31 |
Locknut M8 |
105276 |
| 32 |
Iron fuel tank |
102305 |
| 33 |
Alarm |
100396 |
| 34 |
Right headlight |
124399 |
| 35 |
Right turn signal |
124401 |
| 36 |
Left headlight |
124398 |
| 38 |
Electric door lock |
100699 |
| 39 |
Oil level sensor |
102659 |
| 40 |
Hexagon socket flat head bolts M6*16 |
110887 |
| 41 |
Keychain_DENAGO |
145115 |
| 42 |
Thermal insulation film |
|
| 43 |
Oil Pump |
134649 |
| 44 |
Main line buckle |
|
| 45 |
Cross flat head bolt M5*20 |
|
| 46 |
Self-locking nuts M5 |
|
