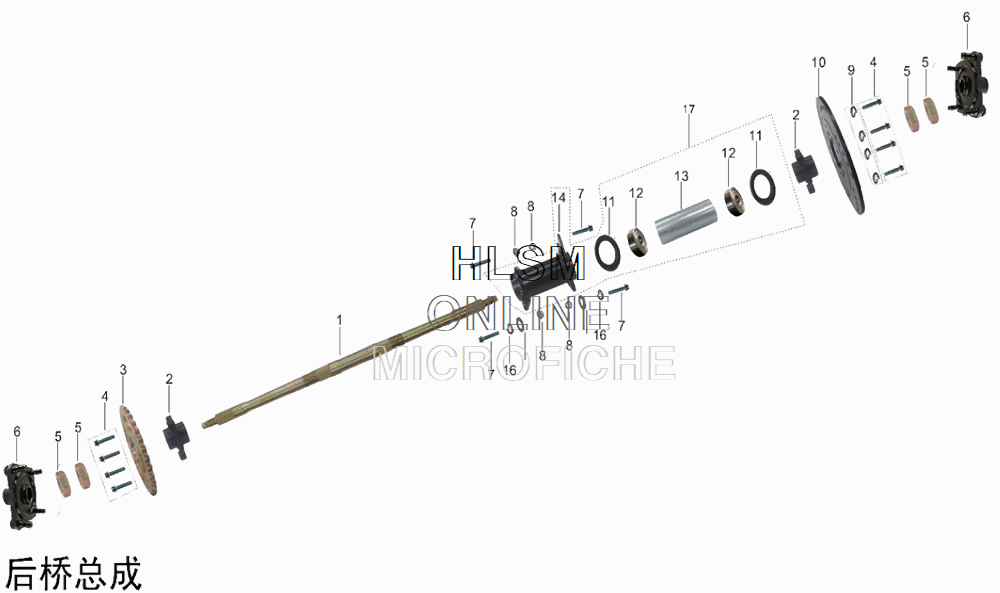

Rear Axle
| No. | U8 Code | EN name | Qty/vehicle | QTY | Retail |
| 1 | 505001-0011 | rear wheel axle | 1 | /ea | $ 61.20 |
| 2 | 205003-0004 | chain pulley seat | 2 | /ea | $ 22.10 |
| 3 | 205001-0004 | rear sprocket | 1 | /ea | $ 34.00 |
| 4 | 903019-0012-02 | screw | 8 | /ea | $ 3.40 |
| 5 | 903008-0016 | nut | 4 | /ea | $ 6.80 |
| 6 | 402003-0021 | rear hub | 2 | /ea | $ 34.00 |
| 7 | 903019-0025 | flange bolt | 4 | /ea | $ 6.80 |
| 8 | 903007-0008 | flange locknut | 4 | /ea | $ 6.80 |
| 9 | 903001-0003 | spring washer | 4 | /ea | $ 3.40 |
| 10 | 405001-0012 | rear brake disc | 1 | /ea | $ 34.00 |
| 11 | 908001-0010 | oil seal | 2 | /ea | $ 8.50 |
| 12 | 907001-0010 | bearing | 2 | /ea | $ 13.60 |
| 13 | 901003-0009 | inner sleeve | 1 | /ea | $ 25.50 |
| 14 | 564000-0002 | rear axle | 1 | /ea | $ 51.00 |
| 16 | 903001-0006 | spring washer | 2 | /ea | $ 3.40 |
| 17 | C90004-0025 | rear axle assy | 1 | /ea | $ 119.00 |
