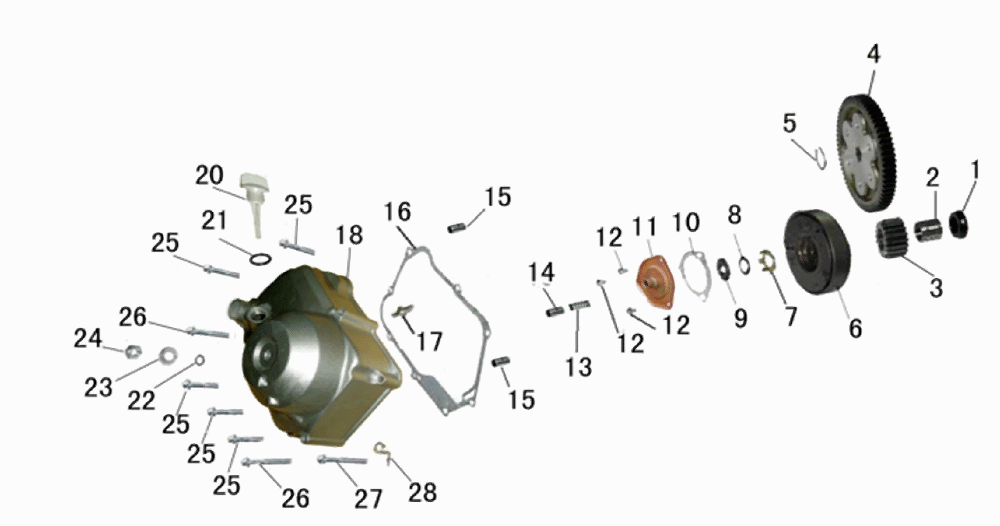

Crankcase Cover - Right with Clutch
| CLUTCH,RIGHT CRANKCASE | |||||
 |
|||||
| No. | NEW PART NUMBER | EN name | Qty/vehicle | QTY | Retail |
| 1 | 101043-0065 | Isolate Bush | 1 | /ea | $ 10.20 |
| 2 | 101043-0066 | Drive Gear Bush | 1 | /ea | $ 13.60 |
| 3 | 101043-0067 | Drive Gear | 1 | /ea | $ 17.00 |
| 4 | 101043-0068 | Driven Gear | 1 | /ea | $ 25.50 |
| 5 | 101043-0069 | Spring Snap Ring 17 | 1 | /ea | $ 5.10 |
| 6 | 101043-0070 | Clutch Assy. | 1 | /ea | $ 59.50 |
| 7 | 101043-0071 | Thrust Washer | 1 | /ea | $ 6.80 |
| 8 | 101043-0072 | Washer | 1 | /ea | $ 6.80 |
| 9 | 101043-0073 | Nut M14×1 | 1 | /ea | $ 6.80 |
| 10 | 101043-0074 | Clutch Panel Gasket | 1 | /ea | $ 13.60 |
| 11 | 101043-0075 | Clutch Panel | 1 | /ea | $ 22.10 |
| 12 | 101043-0134 | Screw M14×1 | 3 | /ea | $ 5.10 |
| 13 | 101043-0076 | Oil Pipe Spring | 1 | /ea | $ 5.10 |
| 14 | 101043-0077 | Oil Pipe | 1 | /ea | $ 5.10 |
| 15 | 101043-0131 | Dowel Pin Ф8×12 | 2 | /ea | $ 5.10 |
| 16 | 101043-0078 | Crankcase Cover Gasket，Right Head | 1 | /ea | $ 17.00 |
| 17 | 101043-0079 | Adjusting Bolt | 1 | /ea | $ 8.50 |
| 18 | 101043-0080 | Crankcase Cover，Right Head | 1 | /ea | $ 68.00 |
| 20 | 101043-0081 | Dipstick | 1 | /ea | $ 25.50 |
| 21 | 101043-0082 | O-Ring 18×3.5 | 1 | /ea | $ 6.80 |
| 22 | 101043-0083 | O-Ring 7.5×1.8 | 1 | /ea | $ 6.80 |
| 23 | 101043-0122 | Iron Washer 8×16×2.5 | 1 | /ea | $ 6.80 |
| 24 | 101043-0133 | Nut M8 | 1 | /ea | $ 5.10 |
| 25 | 101043-0148 | Bolt M6×40 | 5 | /ea | $ 6.80 |
| 26 | 101043-0151 | Bolt M6×65 | 2 | /ea | $ 6.80 |
| 27 | 101043-0152 | Bolt M6×100 | 1 | /ea | $ 8.50 |
| 28 | 101043-0113 | High-Tension Clamp | 1 | /ea | $ 5.10 |
