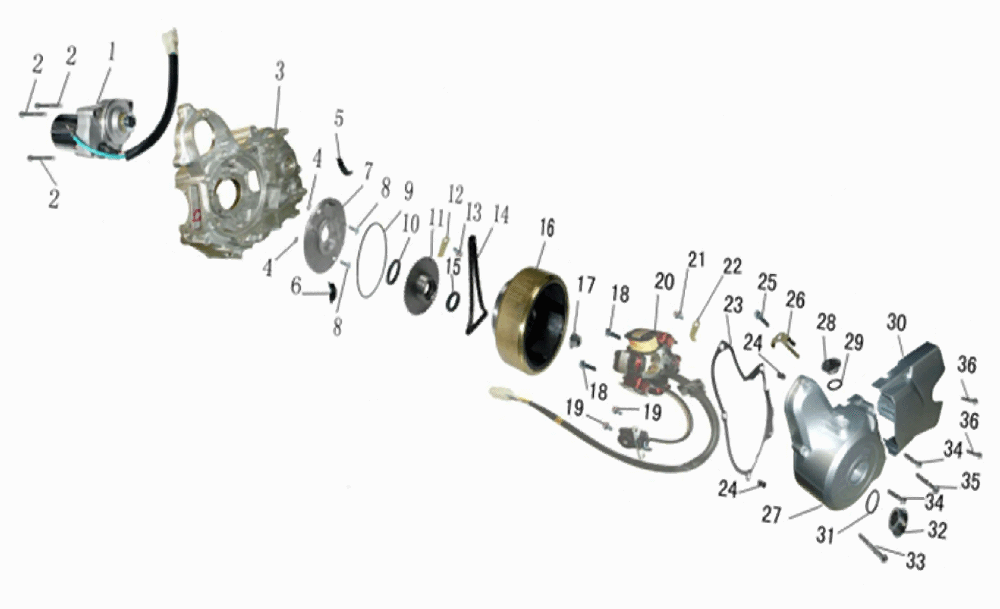

Crankcase - Left with Starter & Stator
| MAGNETO,STARTING MOTOR,LEFT CRANKCASE | |||||
 |
|||||
| No. | NEW PART NUMBERS | EN name | Qty/vehicle | QTY | Retail |
| 1 | 101043-0041 | Starting Motor | 1 | /ea | $ 51.00 |
| 2 | 101043-0149 | Bolt M6×50 | 3 | /ea | $ 5.10 |
| 3 | 101043-0042 | LEFT CRANKCASE BODY | 1 | /ea | $ 59.50 |
| 4 | 101043-0043 | O-Ring 6.5×1.9 | 2 | /ea | $ 8.50 |
| 5 | 101043-0044 | Start Chain Guid | 1 | /ea | $ 8.50 |
| 6 | 101043-0045 | Start Chain Tension Plate | 1 | /ea | $ 8.50 |
| 7 | 101043-0046 | Oil Seal Plate | 1 | /ea | $ 34.00 |
| 8 | 101043-0136 | Screw M6×16 | 2 | /ea | $ 5.10 |
| 9 | 101043-0047 | O-Ring Seal 106.8×2 | 1 | /ea | $ 8.50 |
| 10 | 101043-0048 | Oil Seal 30*42*4.5 | 1 | /ea | $ 13.60 |
| 11 | 101043-0049 | Sprocket | 1 | /ea | $ 30.60 |
| 12 | 101043-0050 | Gear Plate | 1 | /ea | $ 20.40 |
| 13 | 101043-0138 | Bolt M6×12 | 1 | /ea | $ 5.10 |
| 14 | 101043-0051 | Starting Chain | 1 | /ea | $ 25.50 |
| 15 | 101043-0052 | Oil Seal 18.9*30*5 | 1 | /ea | $ 17.00 |
| 16 | 101043-0053 | Magneto Roter | 1 | /ea | $ 34.00 |
| 17 | 101043-0054 | Magneto Nut | 1 | /ea | $ 6.80 |
| 18 | 101043-0145 | Bolt M6×20 | 2 | /ea | $ 5.10 |
| 19 | 101043-0143 | Bolt M5×12 | 2 | /ea | $ 5.10 |
| 20 | 101043-0055 | Magneto Stator | 1 | /ea | $ 42.50 |
| 21 | 101043-0137 | Bolt M5×6 | 1 | /ea | $ 5.10 |
| 22 | 101043-0056 | Wire Clamp | 1 | /ea | $ 6.80 |
| 23 | 101043-0057 | Left Crankcase Gasket | 1 | /ea | $ 17.00 |
| 24 | 101043-0131 | Dowel Pin Ф8×12 | 2 | /ea | $ 5.10 |
| 25 | 101043-0144 | Bolt M6×12 | 1 | /ea | $ 5.10 |
| 26 | 101043-0058 | Magneto Clamp | 1 | /ea | $ 8.50 |
| 27 | 101043-0059-02 | Left Crankcase | 1 | /ea | $ 51.00 |
| 28 | 101043-0060 | View Hole Plug,B | 1 | /ea | $ 13.60 |
| 29 | 101043-0061 | O-Ring Seal 13.2×2.65 | 1 | /ea | $ 6.80 |
| 30 | 101043-0062 | Rear Cover(Left) | 1 | /ea | $ 30.60 |
| 31 | 101043-0063 | O-Ring Seal 27.4×2.4 | 1 | /ea | $ 6.80 |
| 32 | 101043-0064 | View Hole Plug,A | 1 | /ea | $ 17.00 |
| 33 | 101043-0151 | Bolt M6×65 | 1 | /ea | $ 6.80 |
| 34 | 101043-0147 | Bolt M6×32 | 2 | /ea | $ 6.80 |
| 35 | 101043-0149 | Bolt M6×50 | 1 | /ea | $ 6.80 |
| 36 | 101043-0146 | Bolt M6×28 | 2 | /ea | $ 6.80 |
